12022EN-819
Revolution

REVOLUTION, 4 x 5 model - EN 131 - 150 kg rated, aluminum articulated extendable ladder with RATCHET levelers and outriggers - TYCO

Download Media Package

  • Model Number: 10104TUV - Work Platform, EN131, accessory for articulated extendable ladders
  • Model Number: 10111 - WingSpan Wall Standoff
  • Model Number: 10154EN - Work Platform, EN131, Adjustable, accessory for articulated extendable ladders
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
  • Model Number: 15097 - Ladder Rack
  • Model Number: 26999 - Trestle Brackets - Most multi-position models

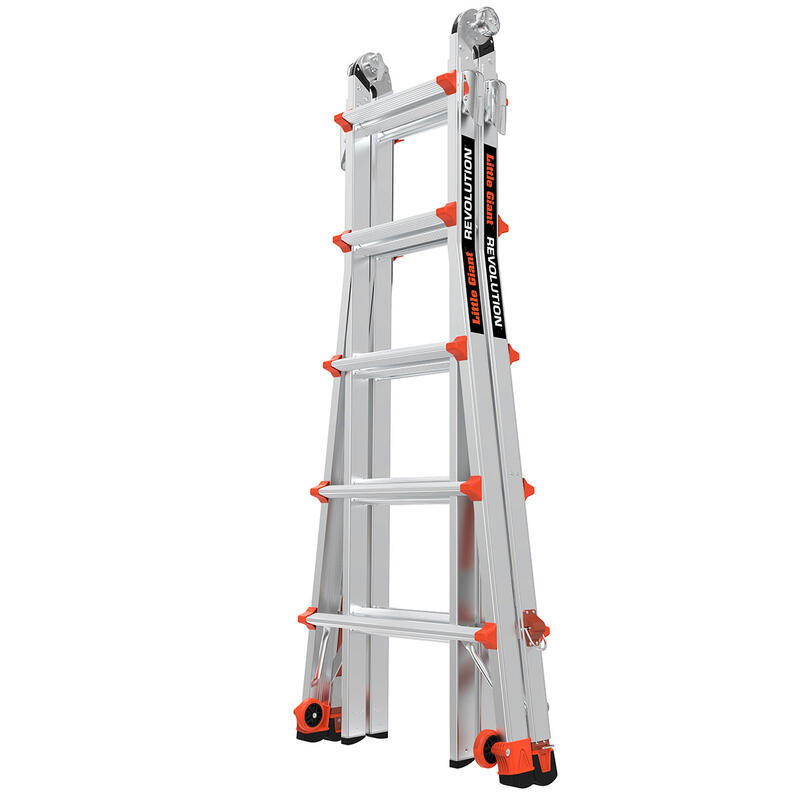

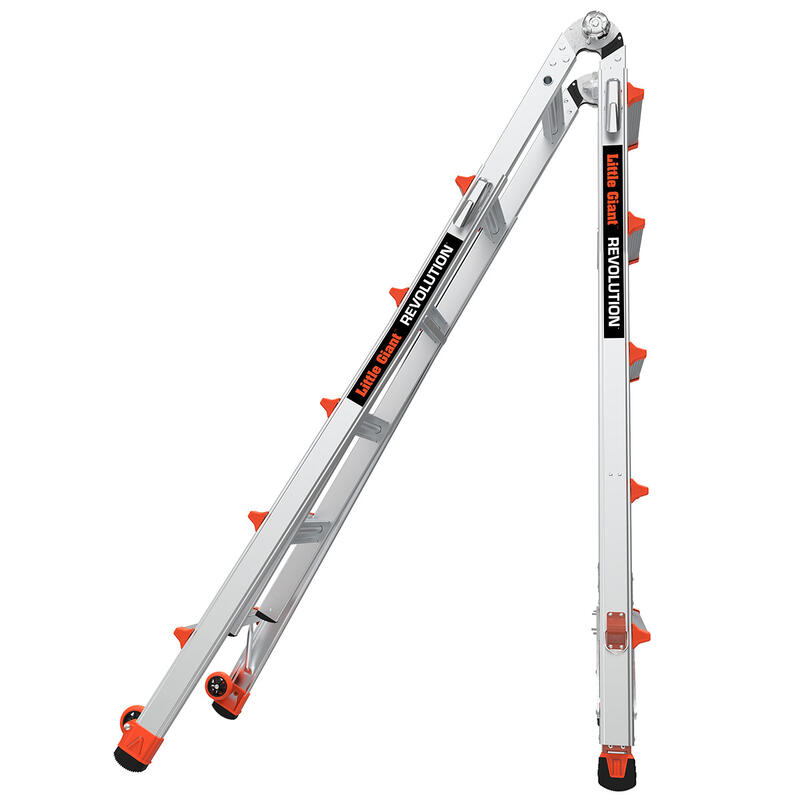

Revolution™

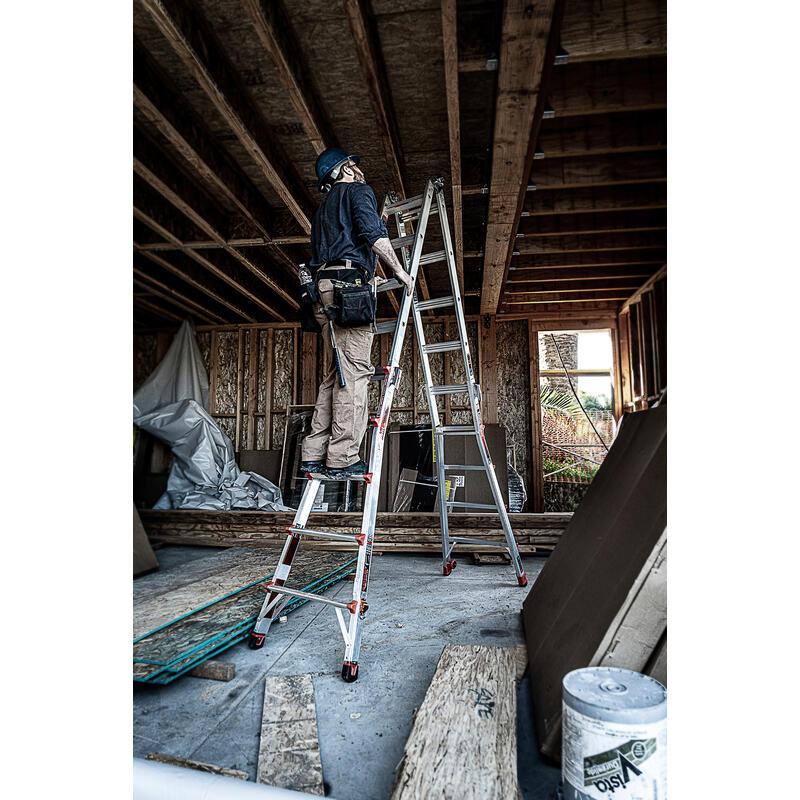

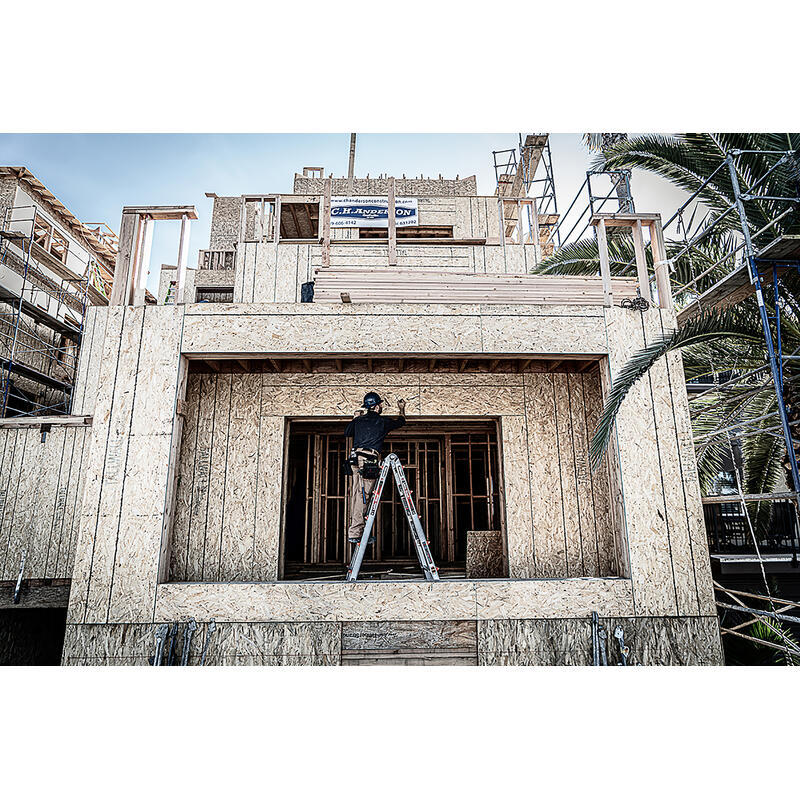

An intense job calls for an intense tool. The Little Giant® Revolution™ ladder helps you complete those heavy-duty tasks. From roofing, to tinning, to general maintenance, the Revolution is the ladder to help you get stuff done.



Designed Especially for the Pro

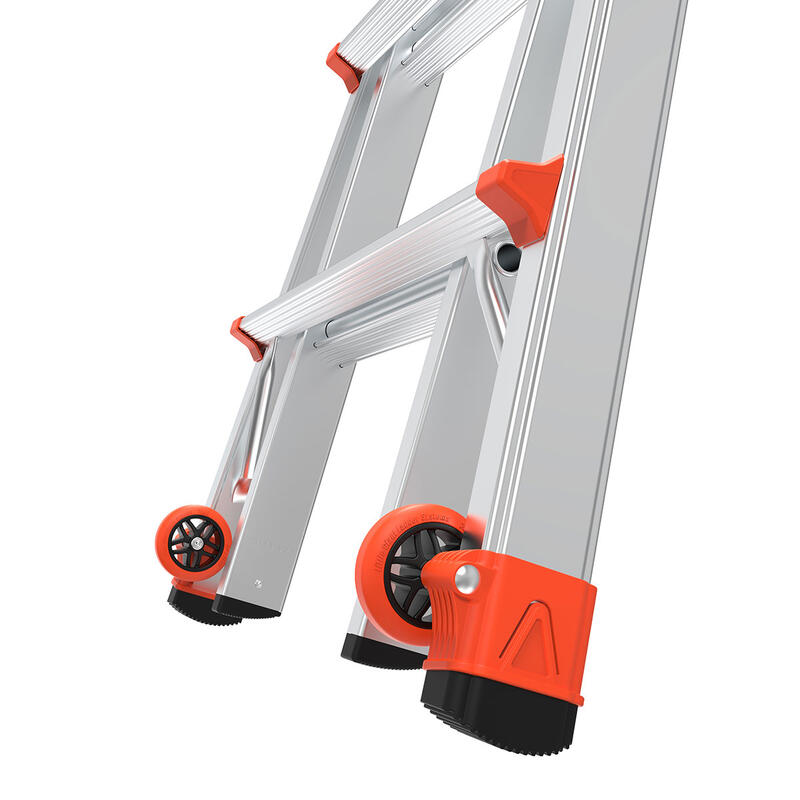

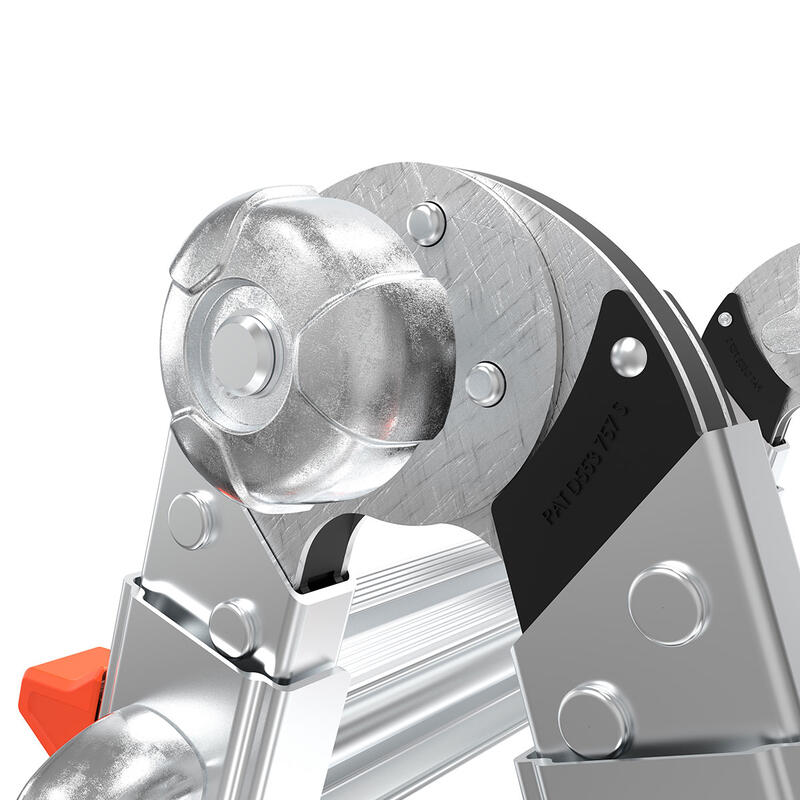

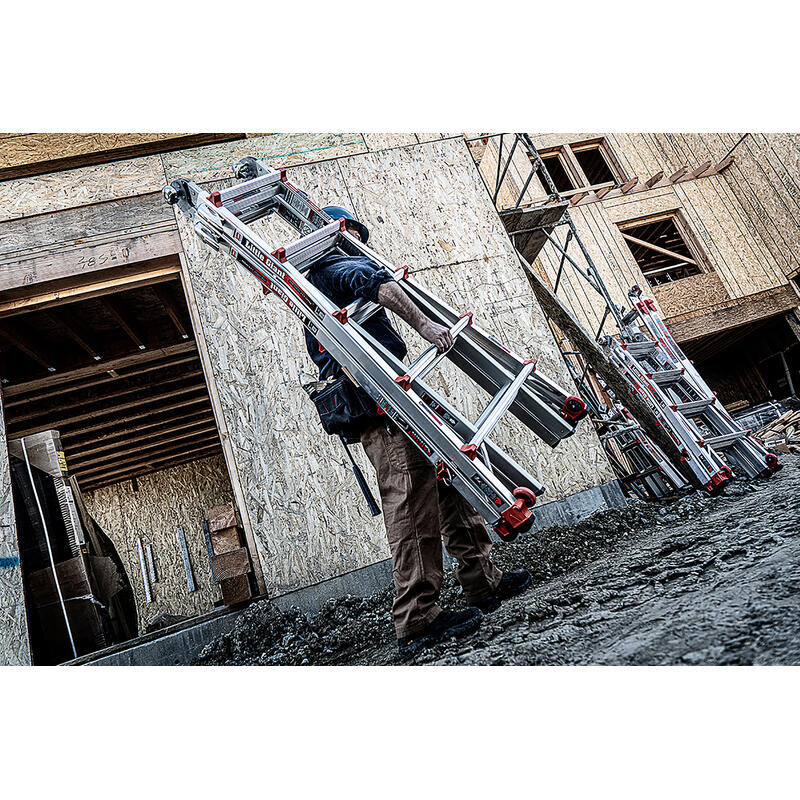

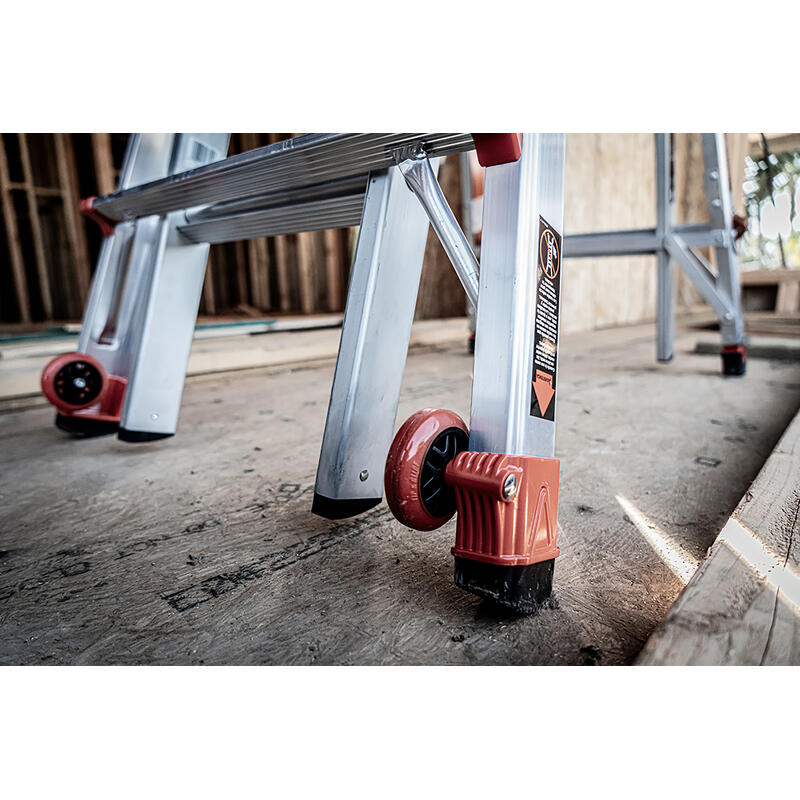

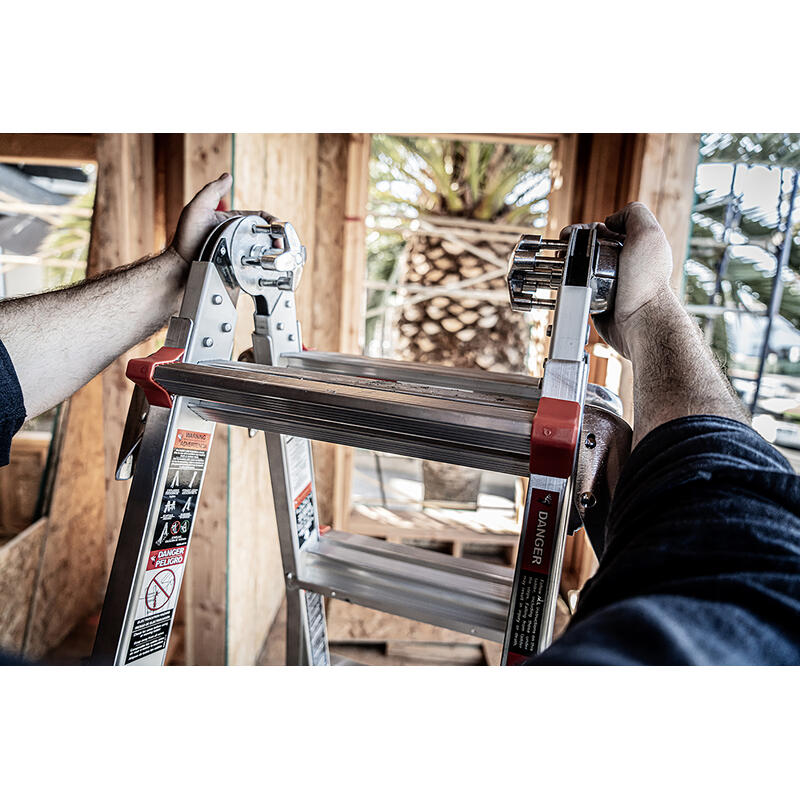

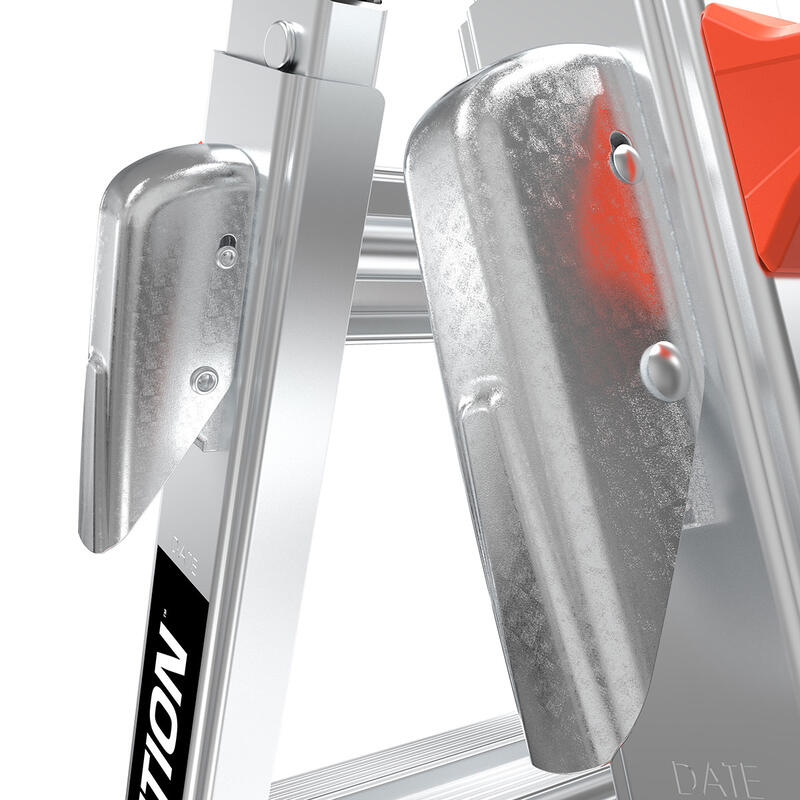

The Revolution was designed with you in mind. The Quad-Lock™ hinge and metal Rock Locks™ allow for quick and easy height and position adjustment. The Tip & Glide™ wheels help you move the ladder easily from job to job.

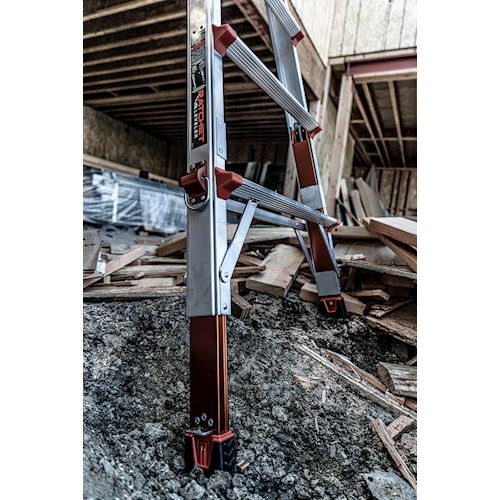

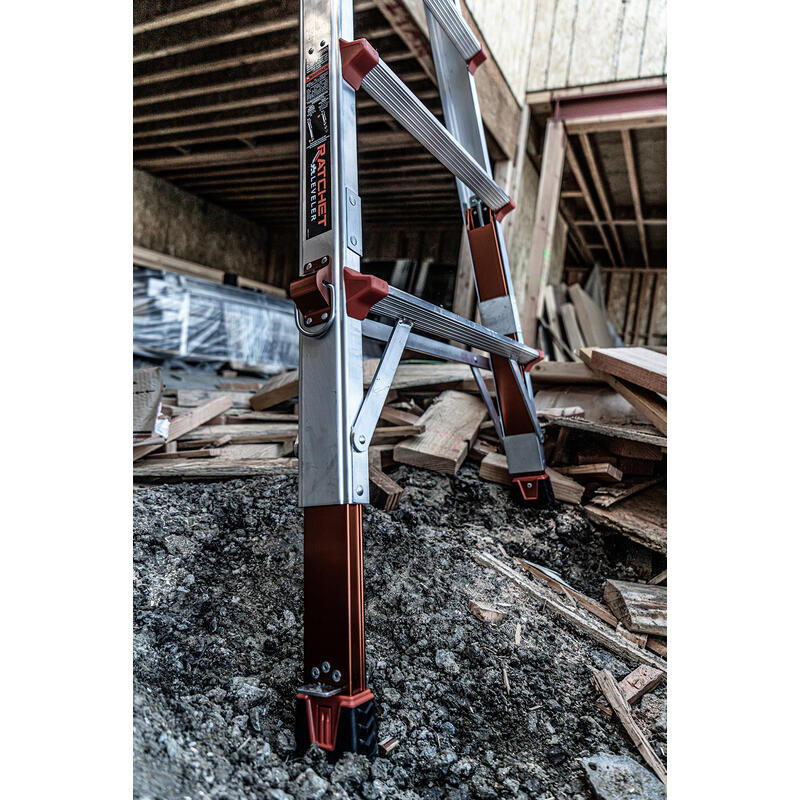

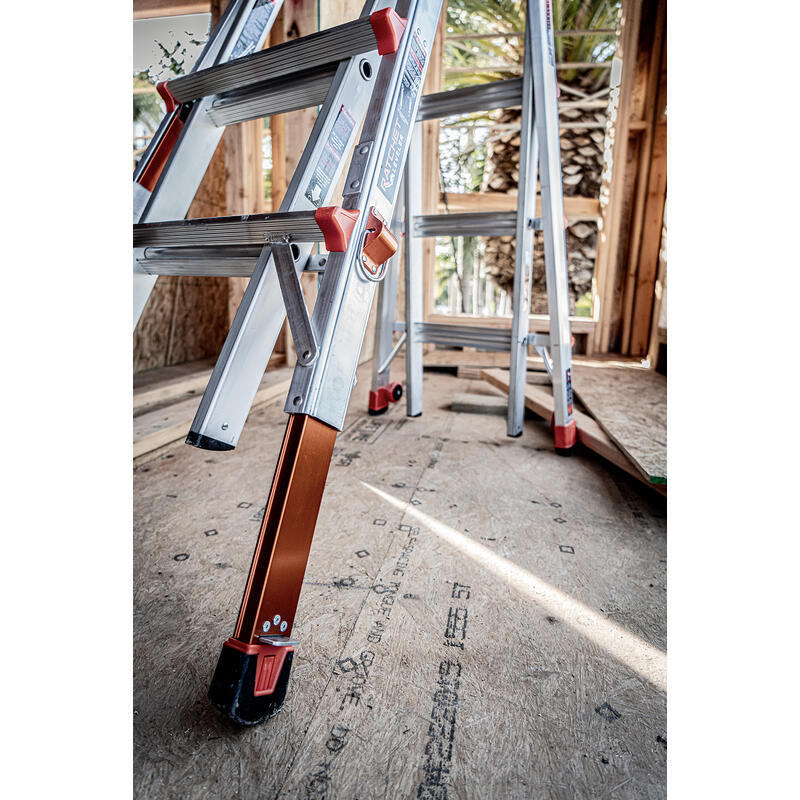

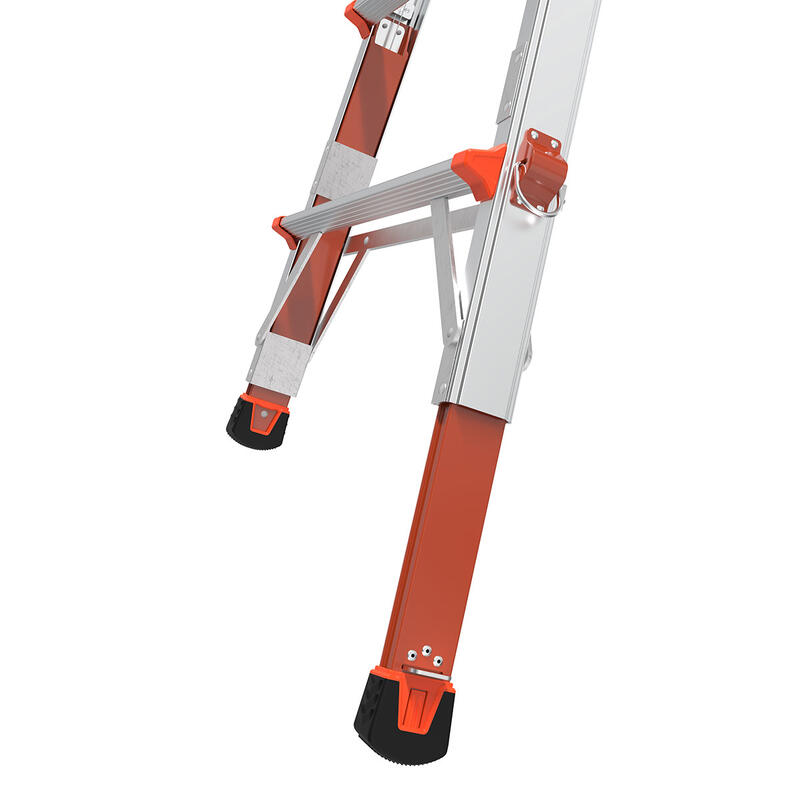

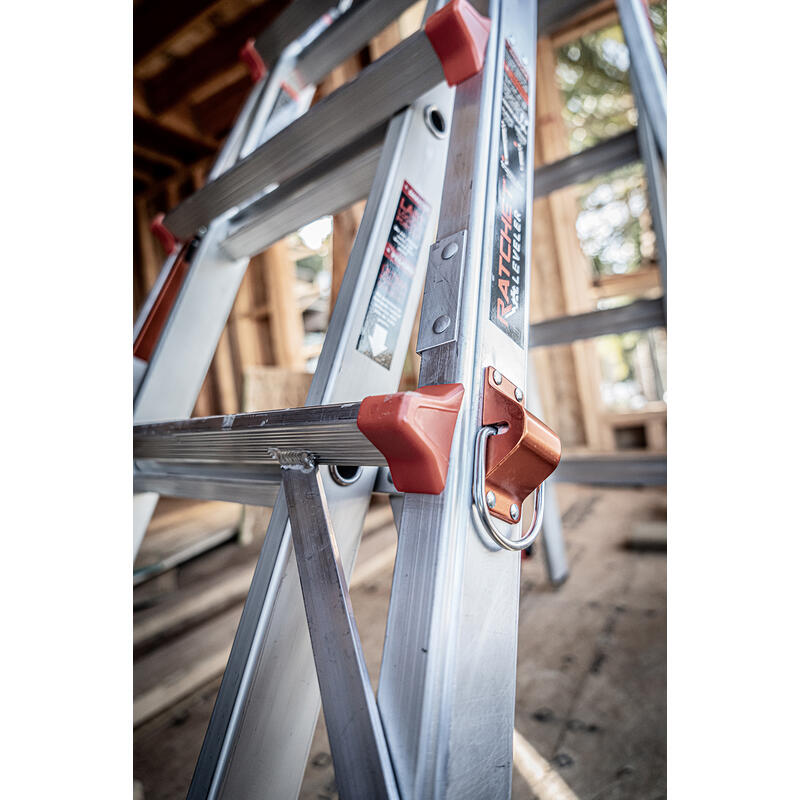

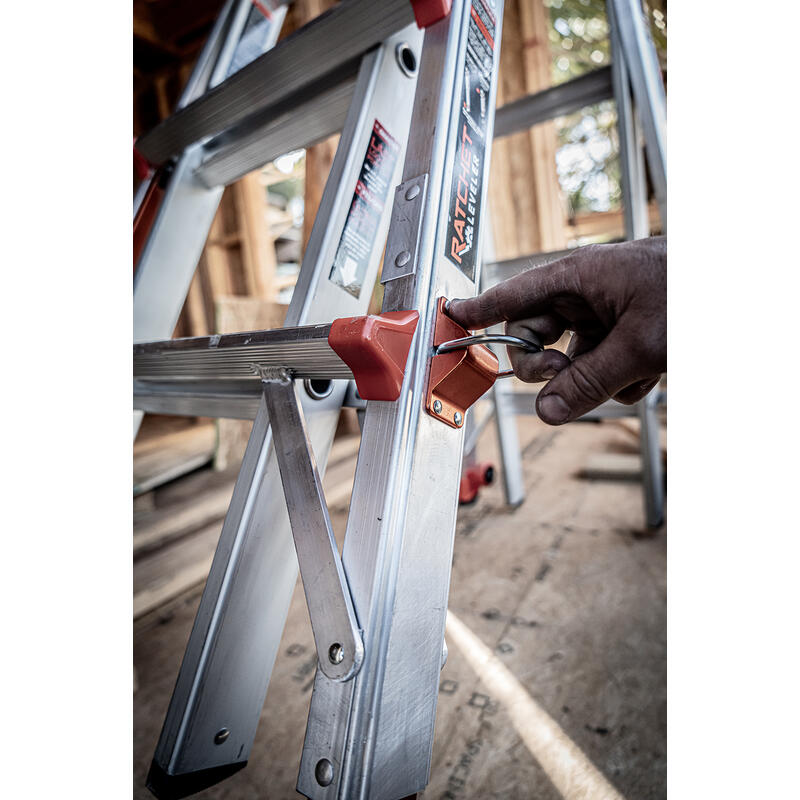

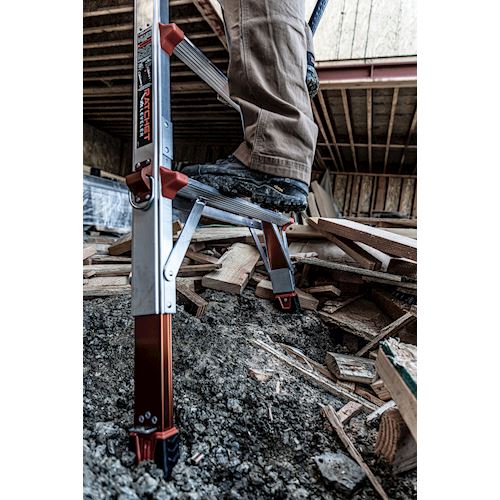

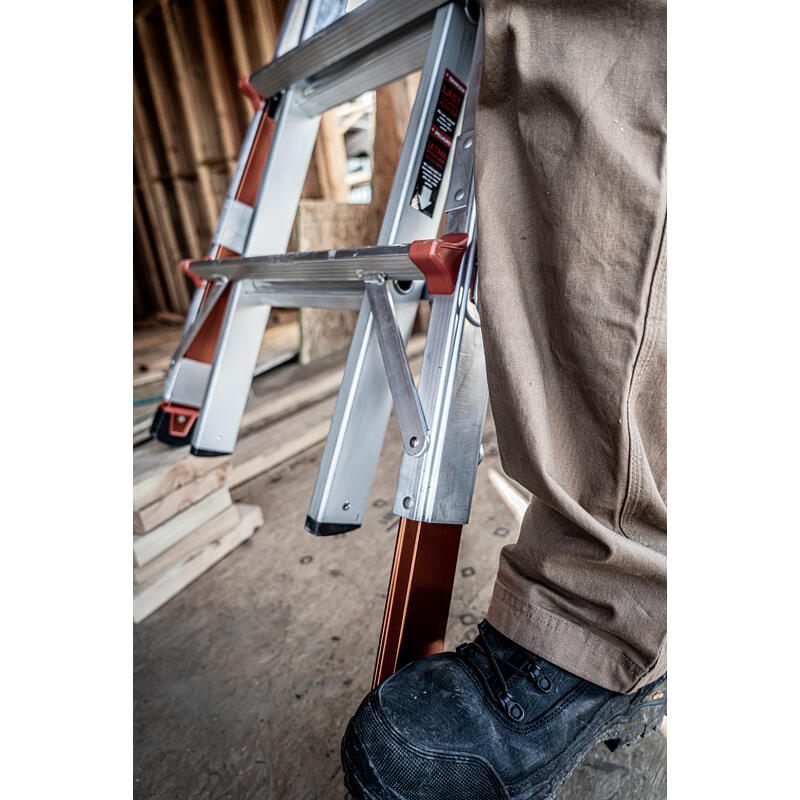

Adjustable Ratchet™ Leg Levelers

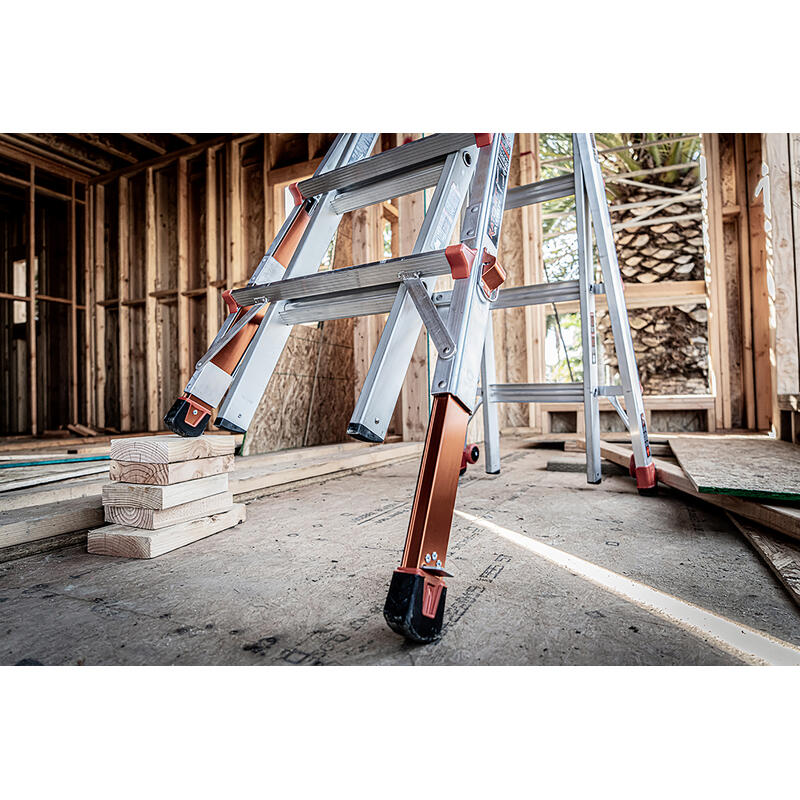

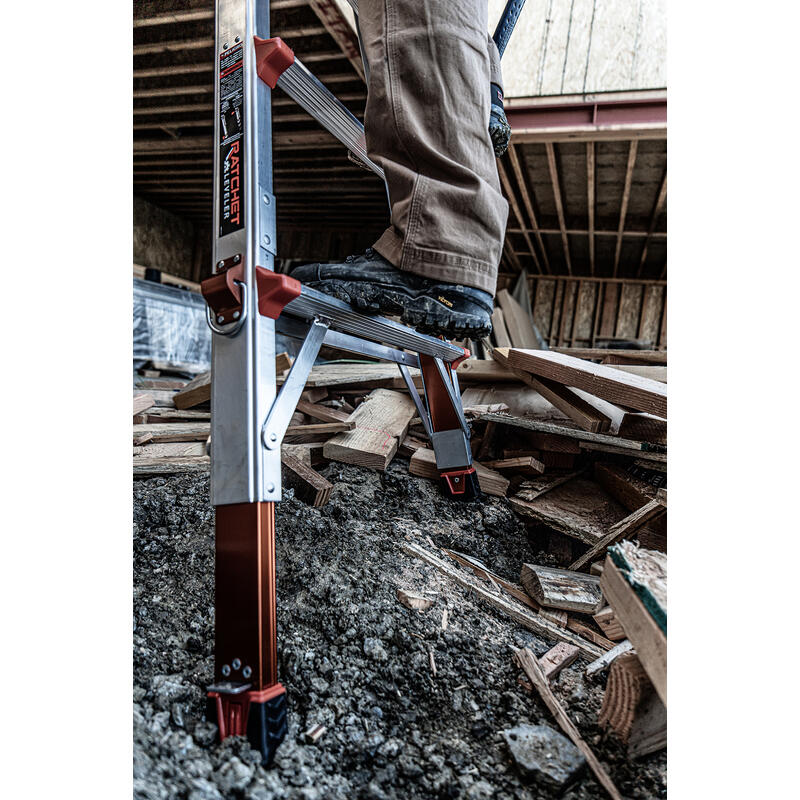

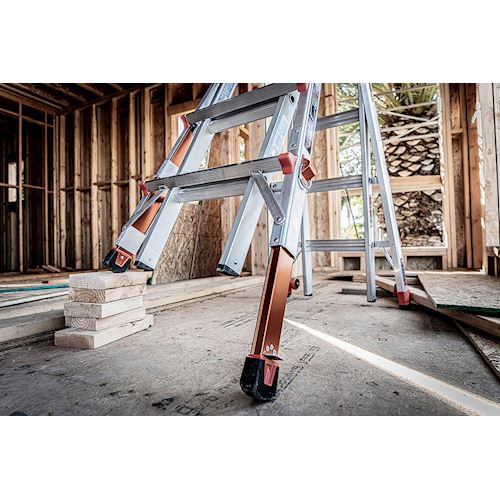

Uneven terrain? Not a problem. With the Ratchet leg levelers, you can adjust the ladder’s legs in seconds, allowing you to stabilize the ladder on unlevel ground. The retractable legs give you more than eight inches of leveling adjustment.

Multi-Position Ladder

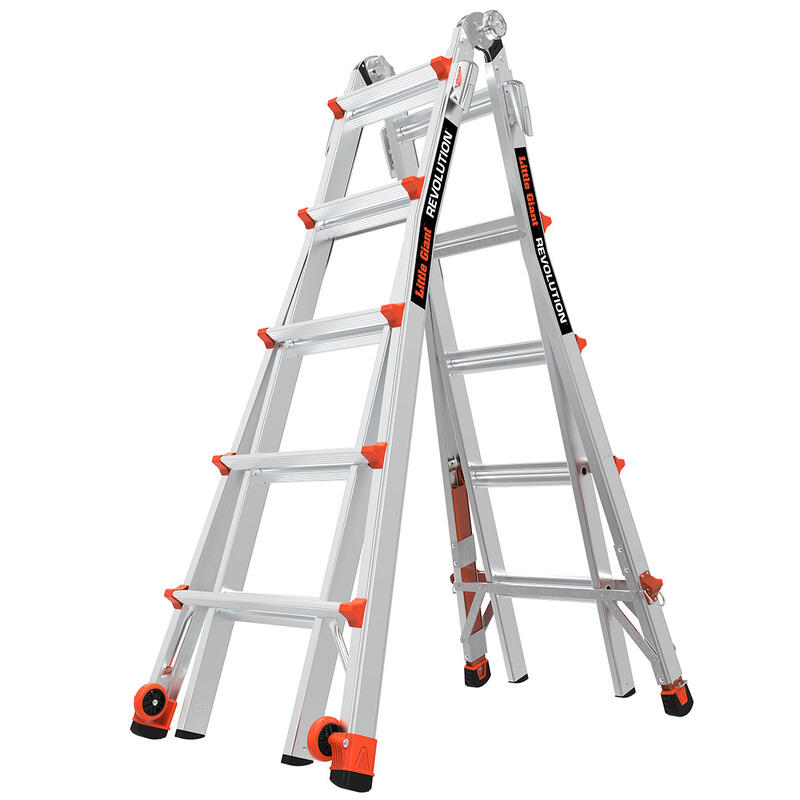

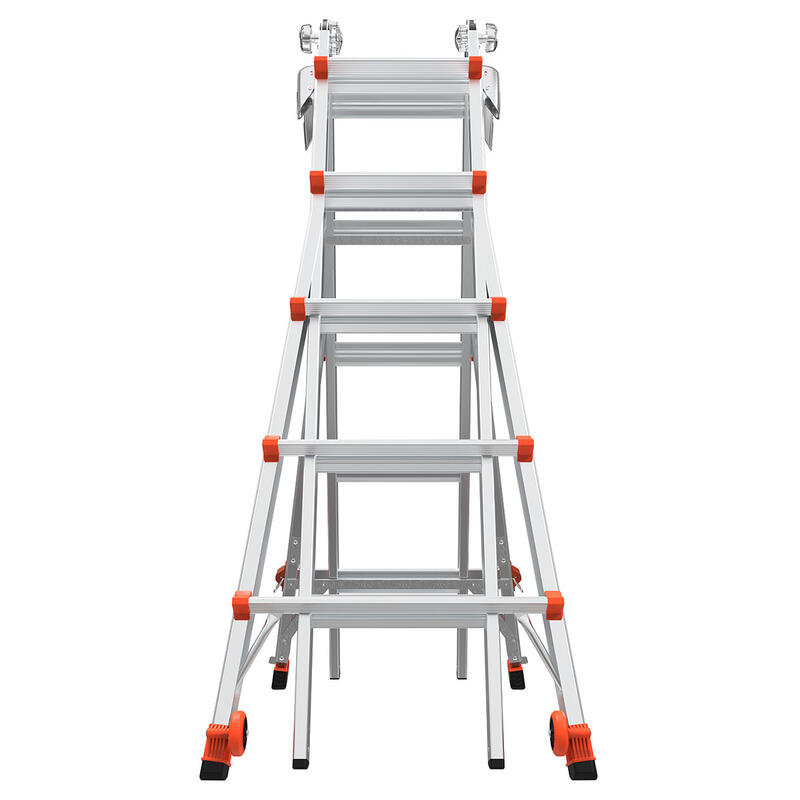

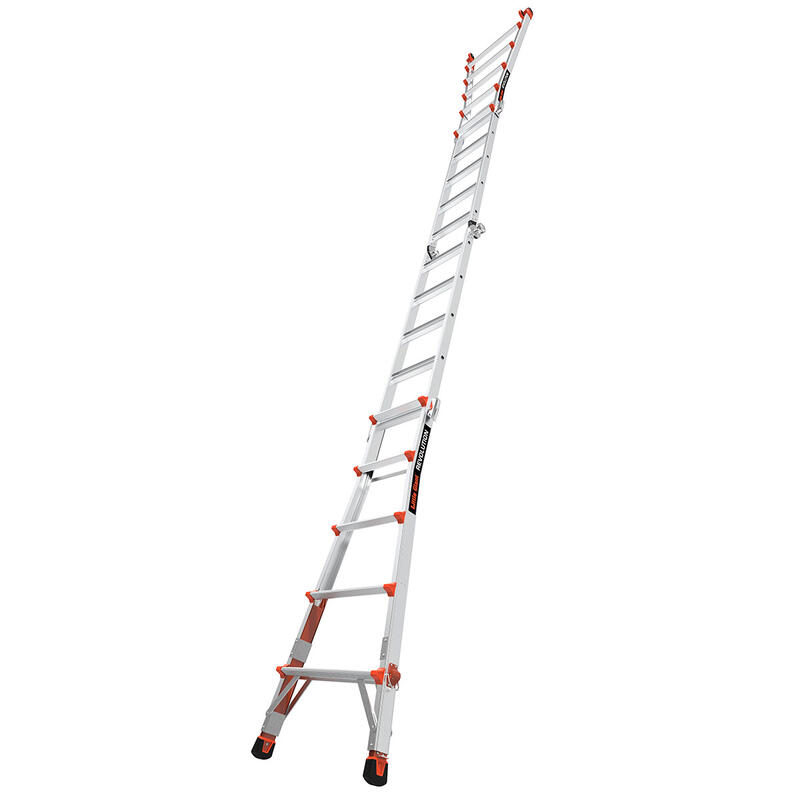

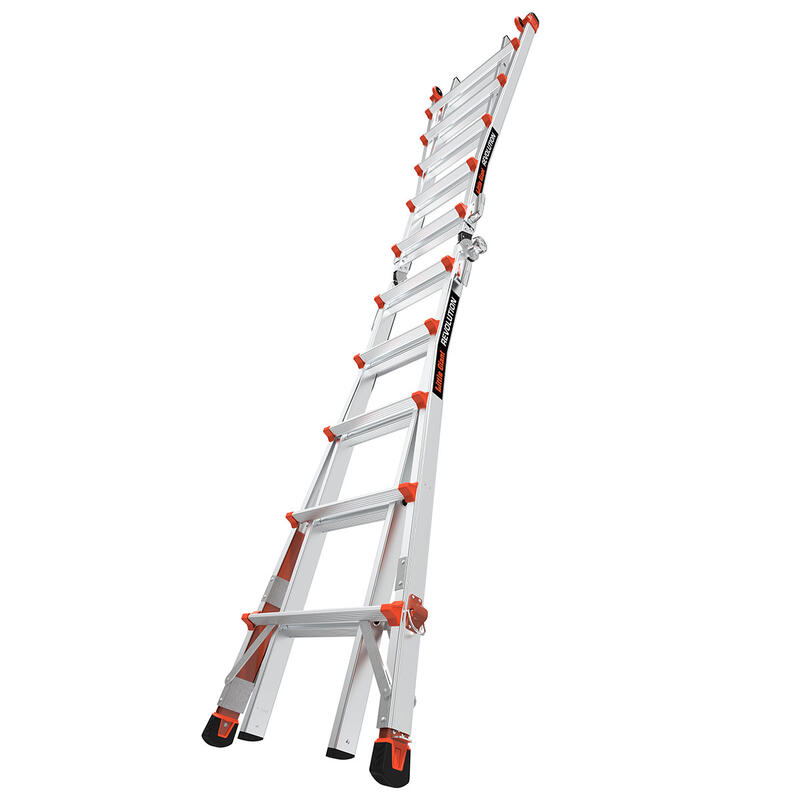

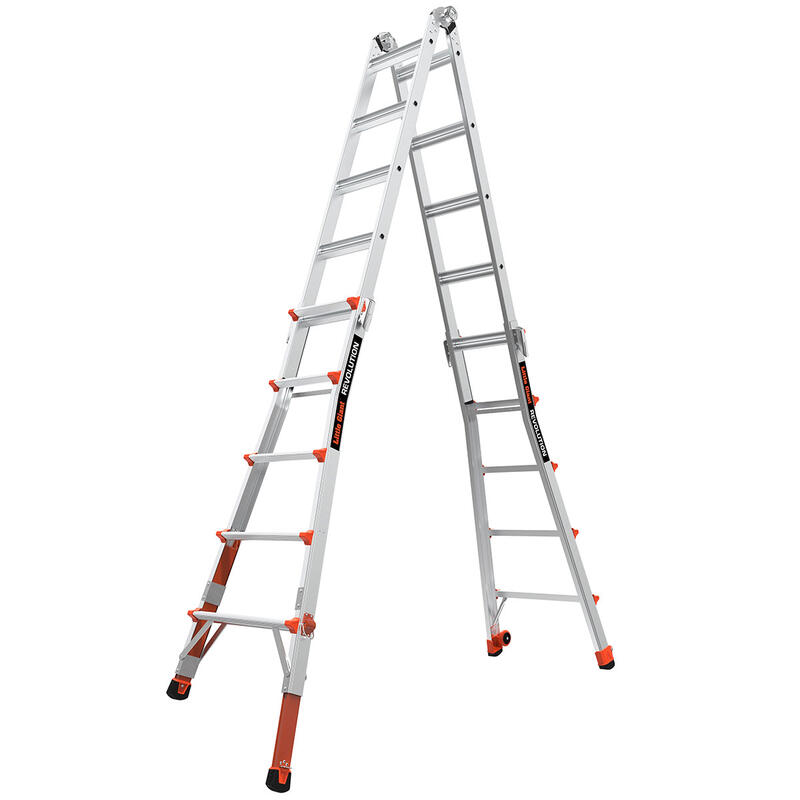

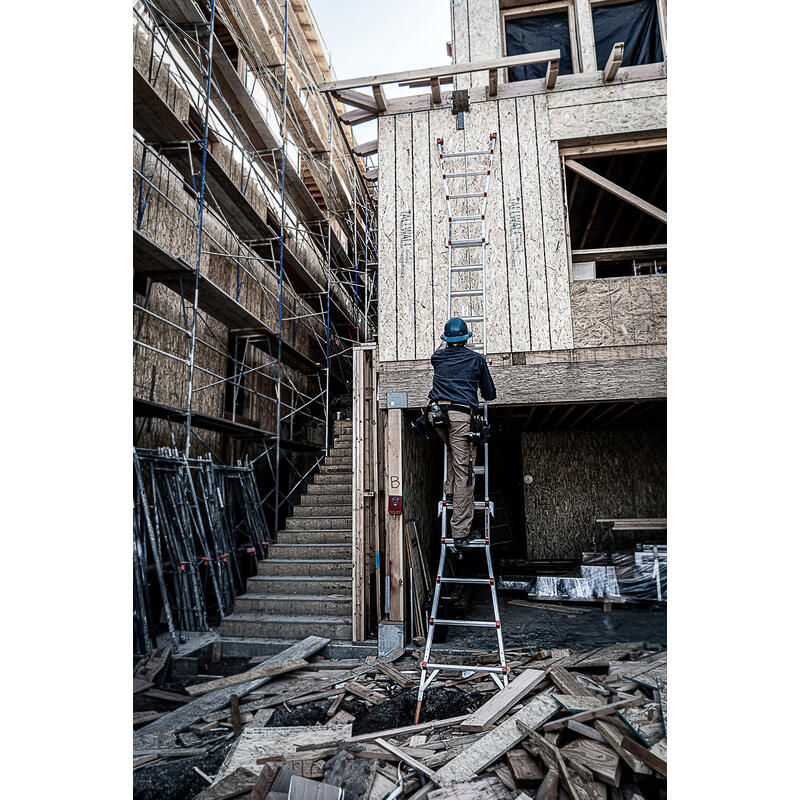

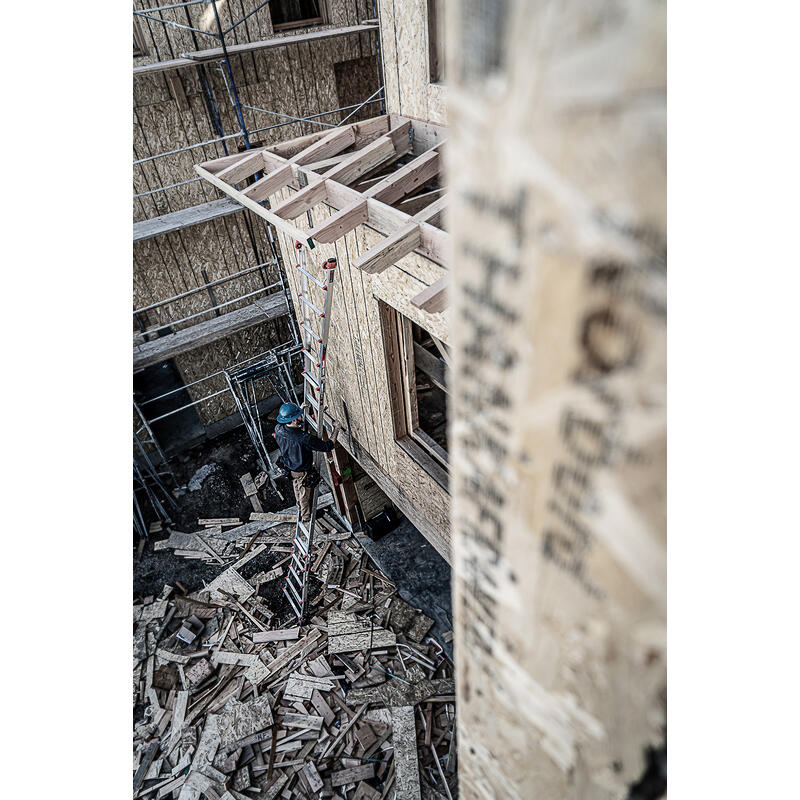

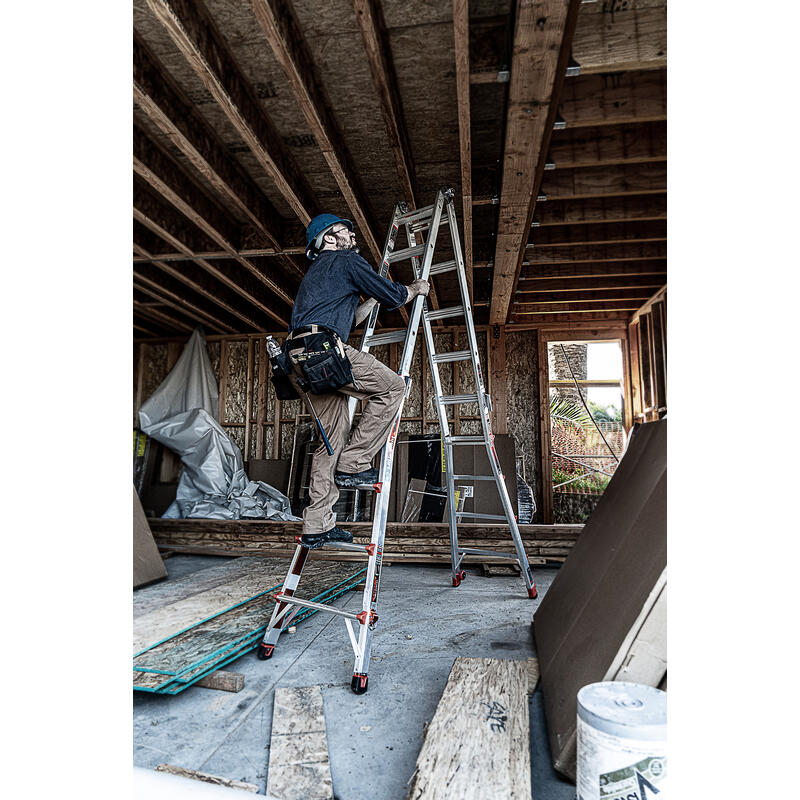

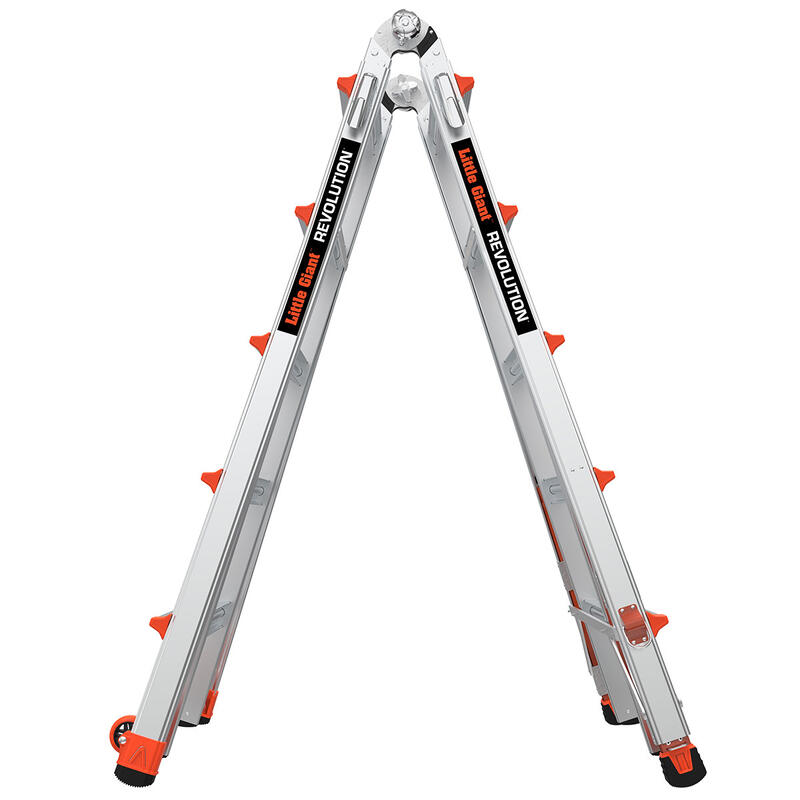

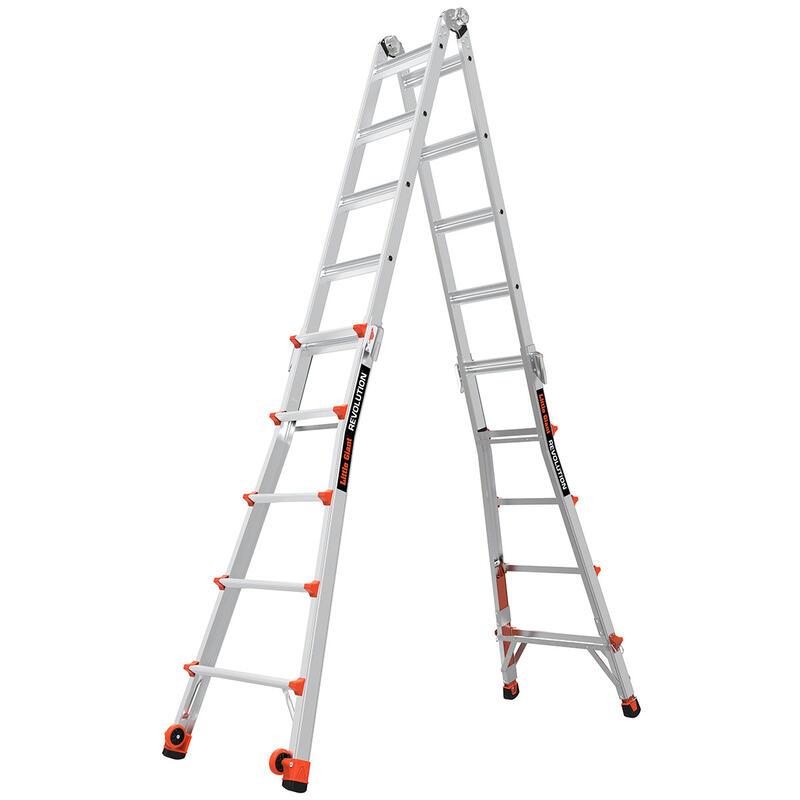

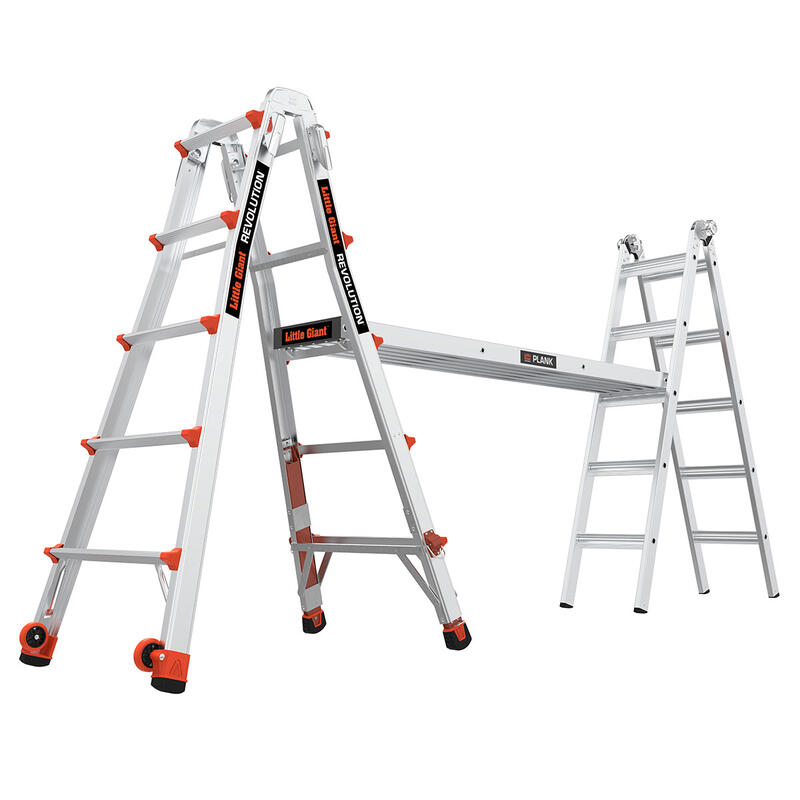

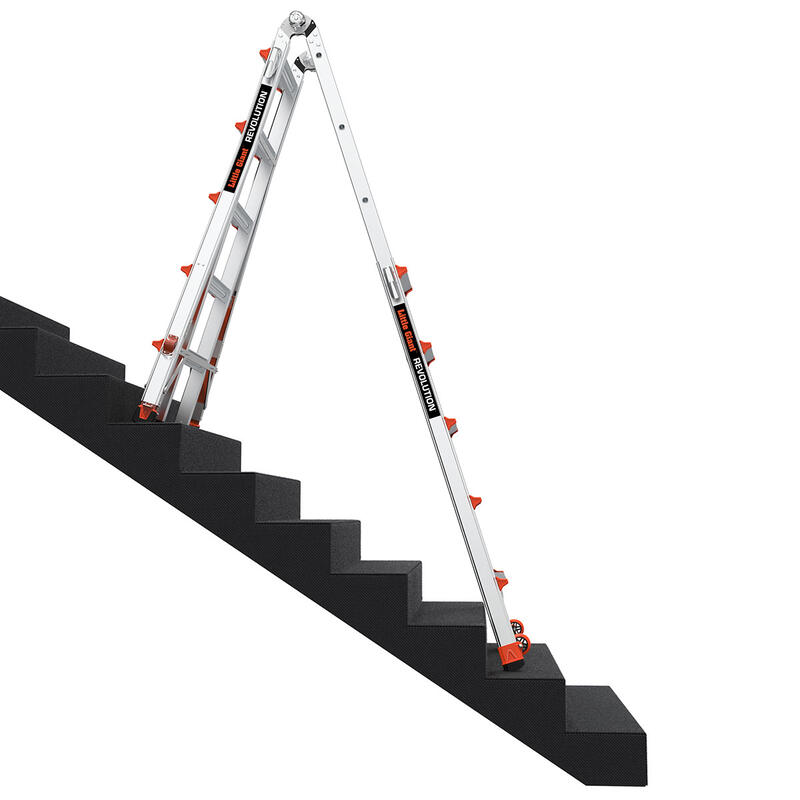

The Revolution is designed to help you work quickly and effectively, since it can be used in multiple positions. Use the Revolution in the stepladder, extension, staircase, 90-degree or trestle-and-plank* scaffolding positions, depending on the needs of the job.

Benefits

The Revolution is rated to hold 300 lbs. It meets or exceeds all OSHA and ANSI standards in all configurations. In the stepladder position, the Revolution can hold 300 lbs. on both sides.

*Plank not included

Specifications
Product Category Revolution
Extension Lock Cast Aluminum Rock Locks
Country Assembled China
Marketing Language Europe
Duty Rating Type IA - Extra Heavy Duty
Feet Standard non-marring (snap-on)
Hinge Lock Cast Aluminum /Quad Lock
Material Aluminum
Load Capacity 300 lbs.
90° Ladder Yes
Scaffolding Position Yes
Spreader System Hinge Lock
Tip-N-Glide Wheels Yes
Ladder Type Telescoping - Articulated
Warranty Limited Lifetime
Size 11' - 19' 3.35 m - 5.79 m
Inside Clear Width 1 ft. 32 cm

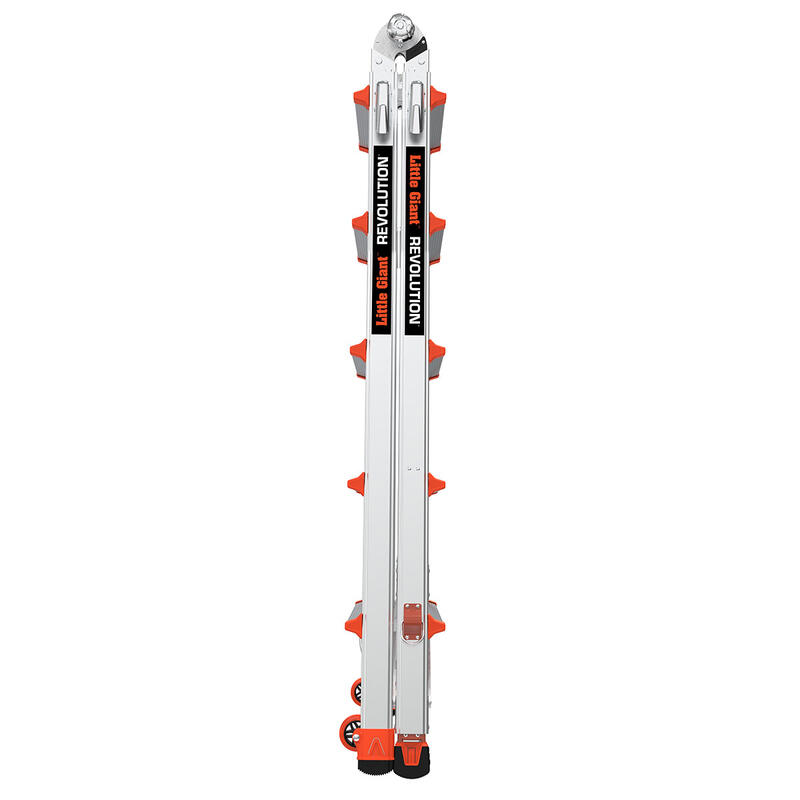

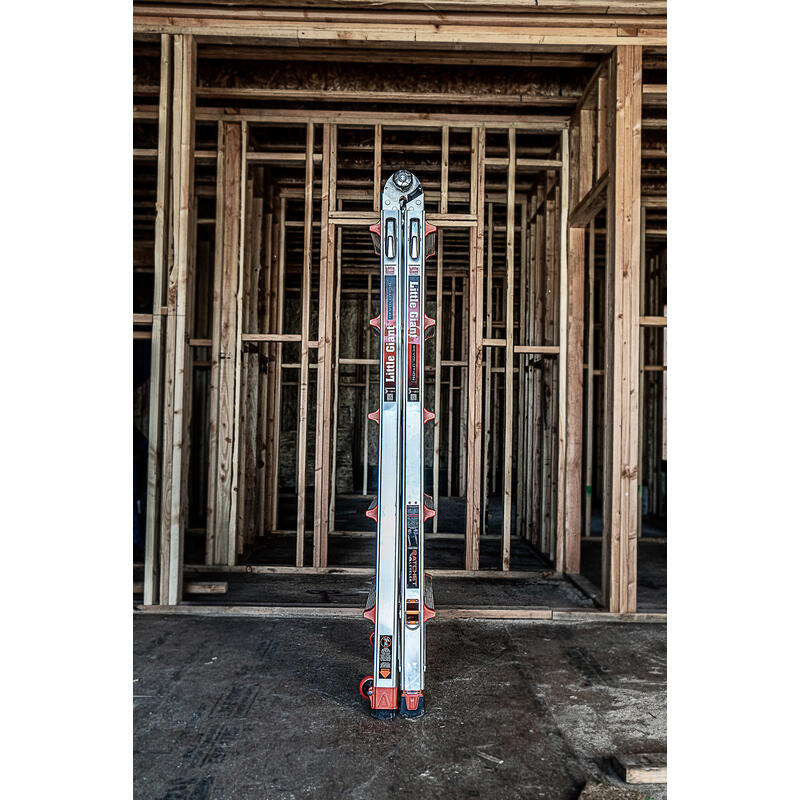

Storage Height 5 ft. 7 in. 1.70 m
Storage Width at Base 2 ft. 3 in. 69 cm
Storage Depth 9 in. 23 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 3 in. 9 cm
Top Width 1 ft. 6 in. 46 cm
Product Weight 51 Lbs.
Shipping
Freight Class 250 - Ladders and/or Accessories
Ship Length 68"
Ship Width 28"
Ship Height 9"
Ship Weight 57.4 Lbs.
HTS Code 7616.99.5190
Step Ladder
Highest standing level Max 6 ft. 8 in. 2.03 m
Highest standing level Min 2 ft. 11 in. 89 cm
Maximum Footprint 6 ft. 8 in. 2.03 m
Minimum Footprint 4 ft. 1.22 m
Max Reach 13 ft. 2 in. 4.01 m
Single / Extension
Extension Total Length of Sections 21 ft. 2 in. 6.45 m
Extension Max Reach 22 ft. 3 in. 6.78 m
Single / Extension Highest Standing Level Max 15 ft. 6 in. 4.72 m
Single / Extension Highest Standing Level Min 7 ft. 10 in. 2.39 m
Single / Extension Max Working Length 18 ft. 11 in. 5.77 m
Single / Extension Min Working Length 10 ft. 11 in. 3.33 m
