12317-801
Xtreme

XTREME, Model 17 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendable Ladder with Trestle Brackets and RATCHET Levelers

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

No manuals have been assigned to this product

Compatible Accessories

Model Number: 10104 - Work Platform
Model Number: 10111 - WingSpan Wall Standoff
Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, Accessories for Articulated Extendable Ladders
Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15012 - Project Tray
Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 15040-001 - Cargo Hold
Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
Model Number: 15049 - xtralite plus
Model Number: 15050-001 - Fuel Tank
Model Number: 15086-001 - Accessory pack, QUANTUM STEP Platform and FUEL TANK vertical paint tray
Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
Model Number: 15097 - Ladder Rack
Model Number: 15106 - Accessory pack, AIRDECK workstation, EPIC STEP Platform, Trestle Brackets, Ladder Rack and Hooks, Accessories for MEGALITE Ladders
Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 26057 - AirDeck Workstation
Model Number: 26057-001 - Airdeck Workstation
Model Number: 26999 - Trestle Brackets - Most multi-position Models

Included Accessories

Model Number: 26057 - AirDeck Workstation
Model Number: 26260 - Trestle Brackets, Accessory for the the REVOLUTION, QUANTUM, XTREME, LT, DEFENDER, and the VELOCITY Ladder made after July 1st, 2015

Xtreme™

If you are looking for a ladder that exudes versatility, the Little Giant® Xtreme™ is the ladder you need. Over 40 years of engineering helped us create this signature ladder to help you successfully complete every project, both in the house and on the job. The Xtreme is available in 17’, 22’ and 26’ models. This Type IA ladder is rated to hold 300 lbs., and when placed in A-frame, is rated to hold 300 lbs. on both sides. The Xtreme meets or exceeds all OSHA and ANSI standards.

Multi-Position Ladder

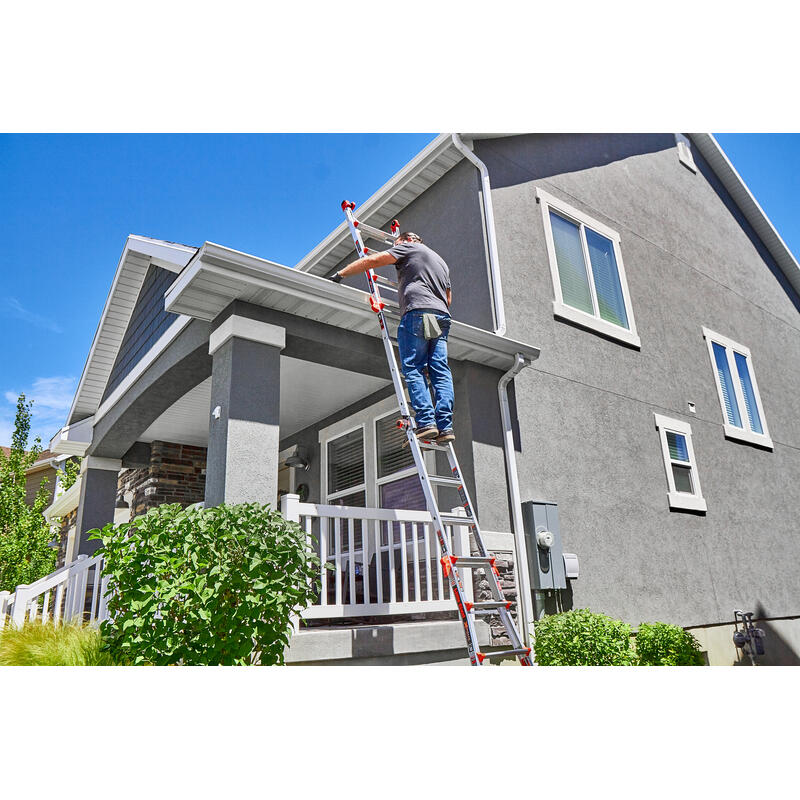

If you need to reach a high place, get close to your task or work on a staircase, the Xtreme can help you get there. This articulating, multi-position ladder converts to A-frame, extension, trestle-and-plank*, 90-degree and staircase with the press of a button. You are going to love how seamless it is to transition from project to project with the Xtreme.

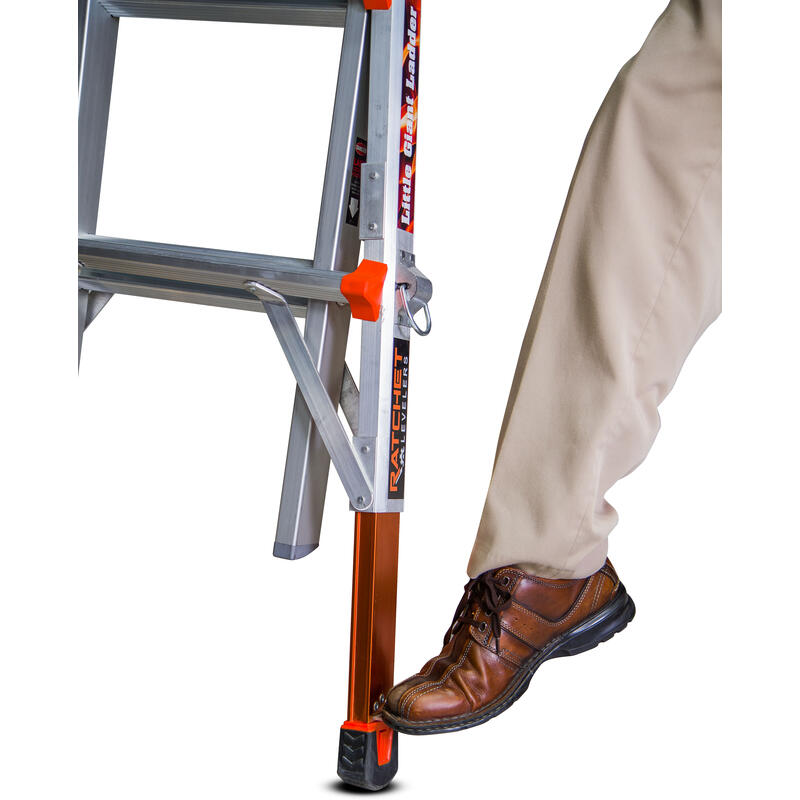

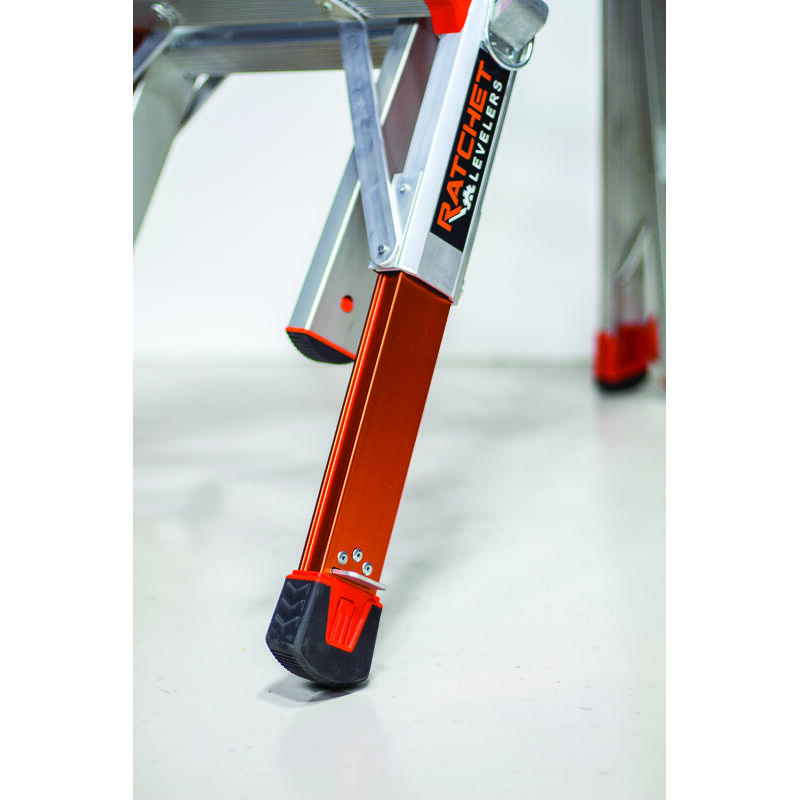

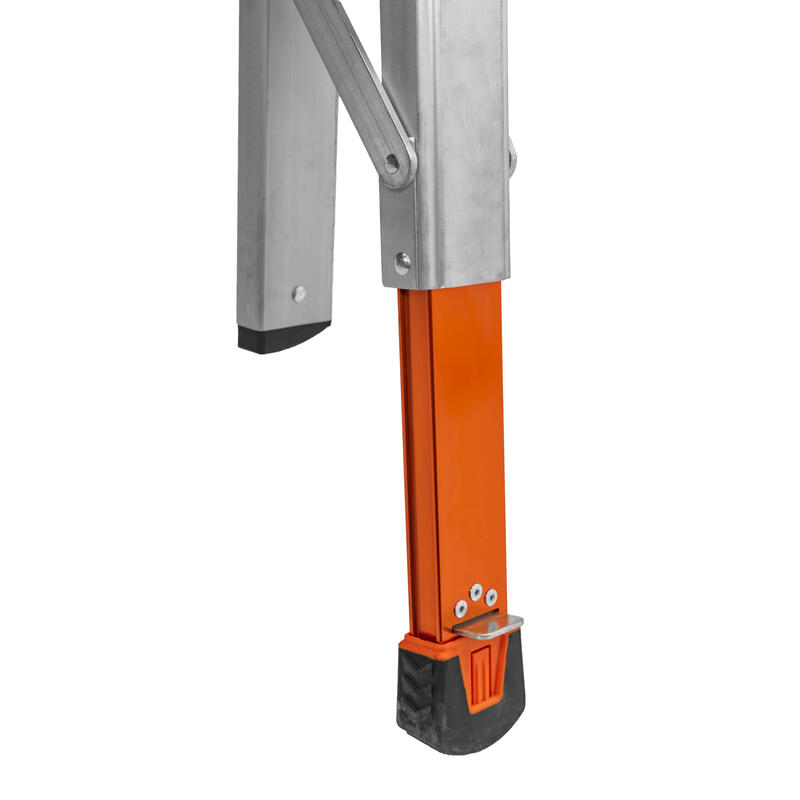

Ratchet™ Levelers

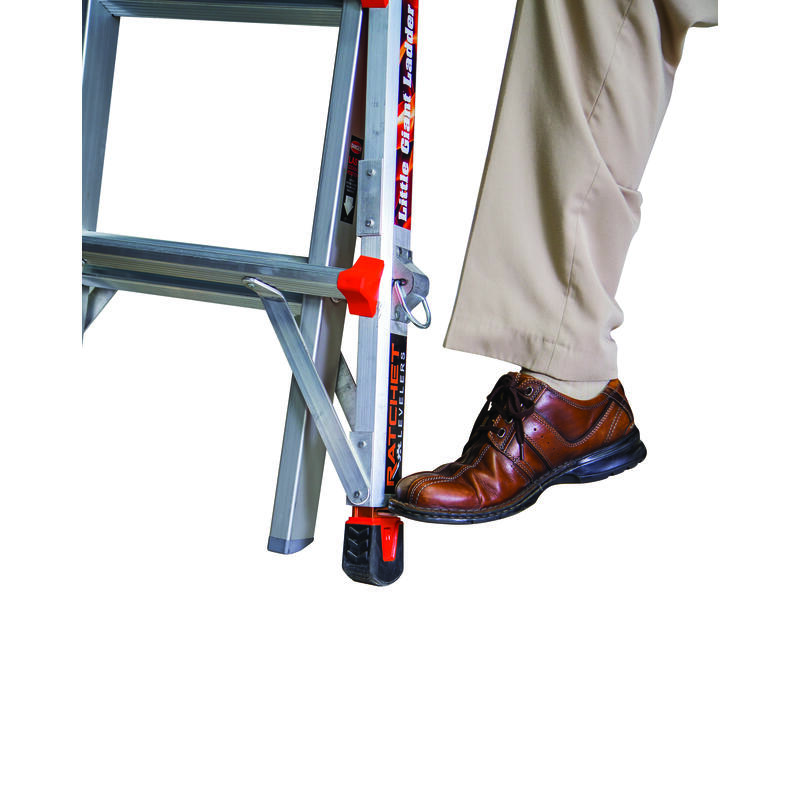

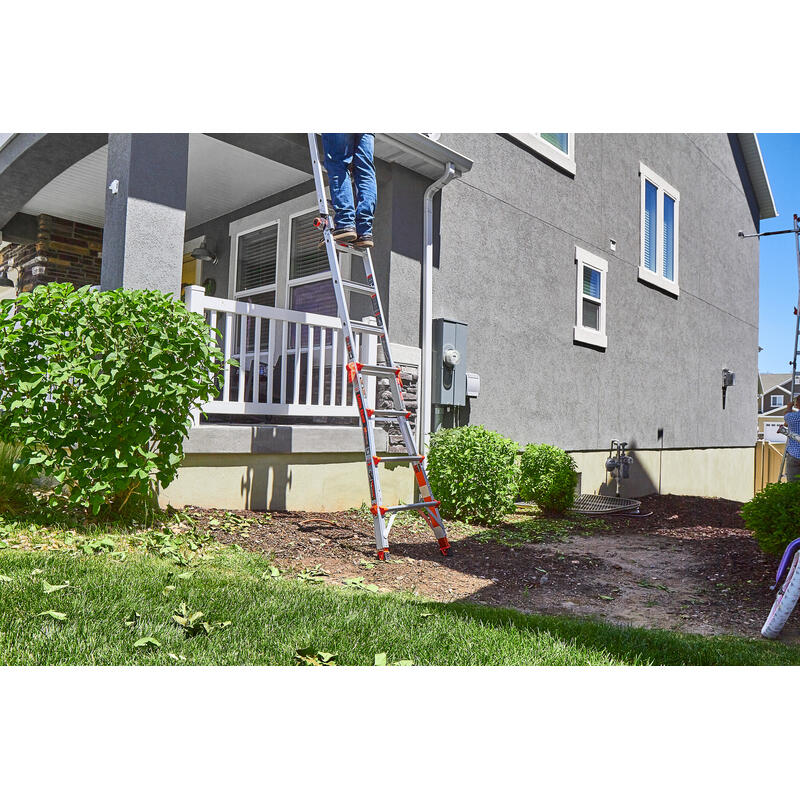

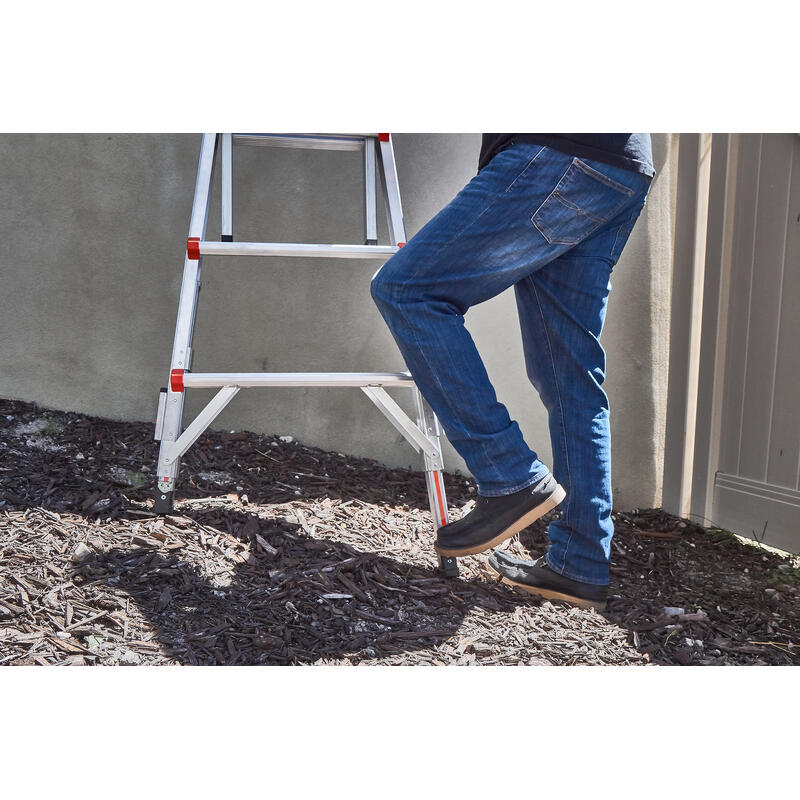

You may have seen the Ratchet™ leg levelers before, but nothing beats experiencing them firsthand. Working outside comes with its challenges, with uneven surfaces being the foremost concern. The Ratchet leg levelers allow you to adjust the ladder’s legs independently to securely reach uneven ground, quickly stabilizing your ladder.

Compatibility

It is important that your ladder is compatible with ladder accessories. Whether you are using the AirDeck™, Work Platform or Safety Rails, the Xtreme can handle it.

When used with the Safety Rails, you can convert your ladder’s extension orientation to an even safer, sturdier workspace. The Safety Rails can be placed horizontally or vertically on the Xtreme ladder. When placed horizontally, it spans windows. In its vertical orientation, it creates a safe walkthrough for you to move from ladder to rooftop. Make your ladder more comfortable and convenient with these unique accessories.

Wherever the job may take you, the Xtreme is going to be the ladder that you will want to take with you.

*Plank not included.

Specifications
Product Category	Xtreme

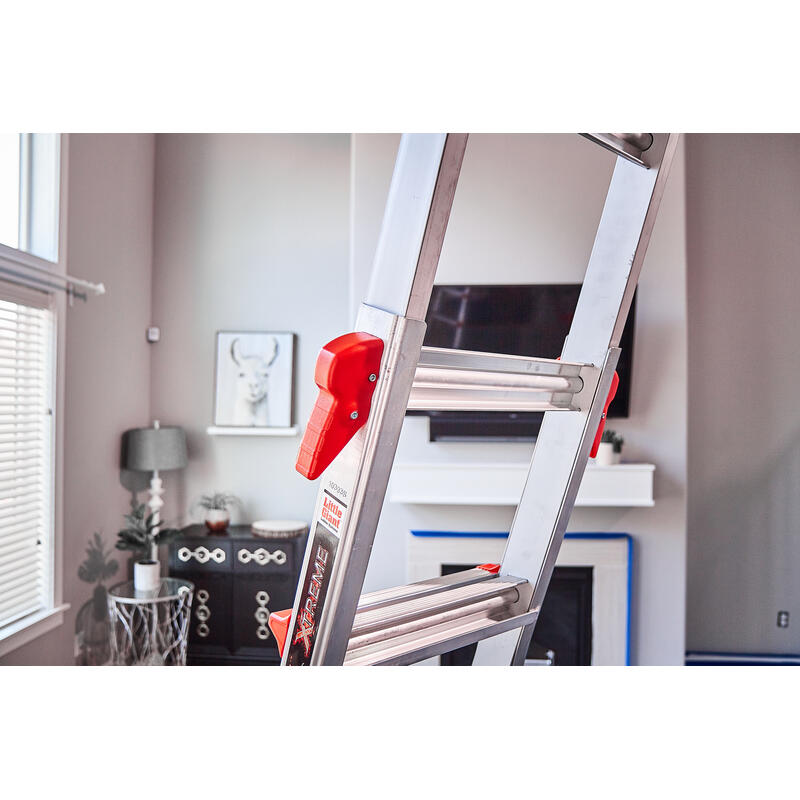

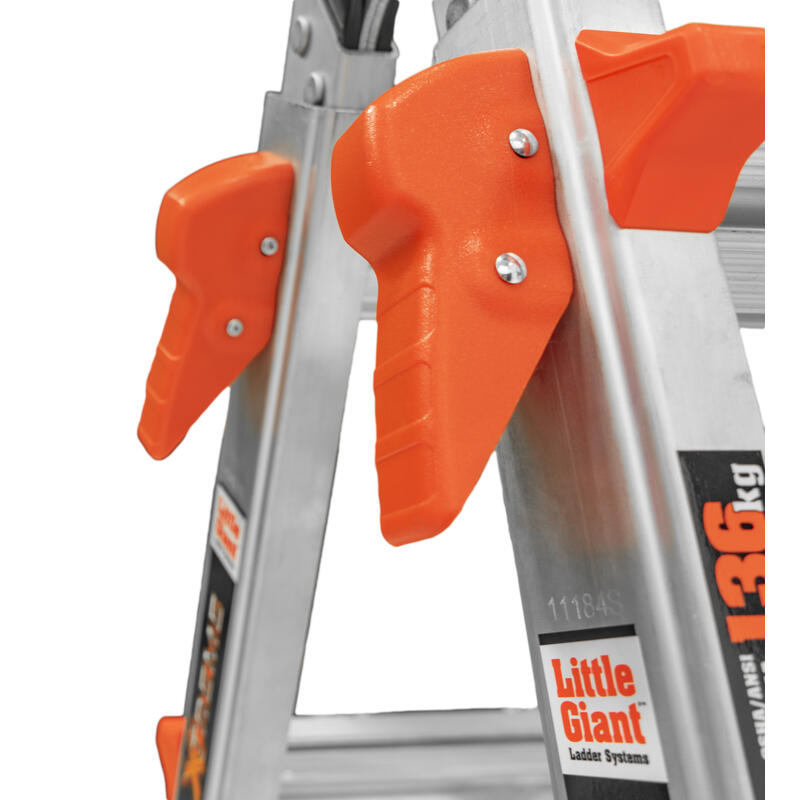

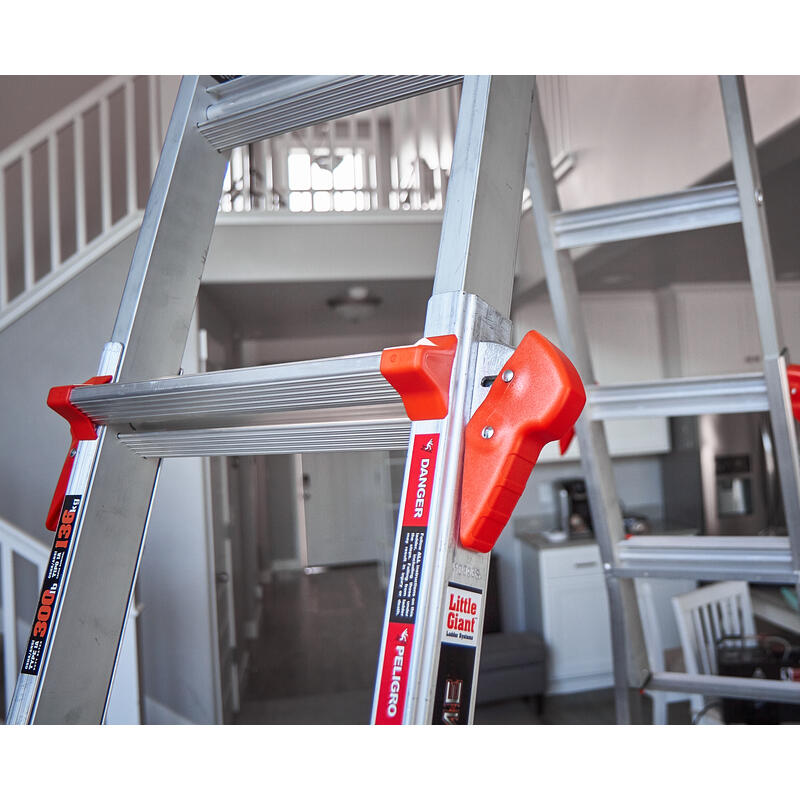

Extension Lock	Plastic Rock Locks
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (snap-on)

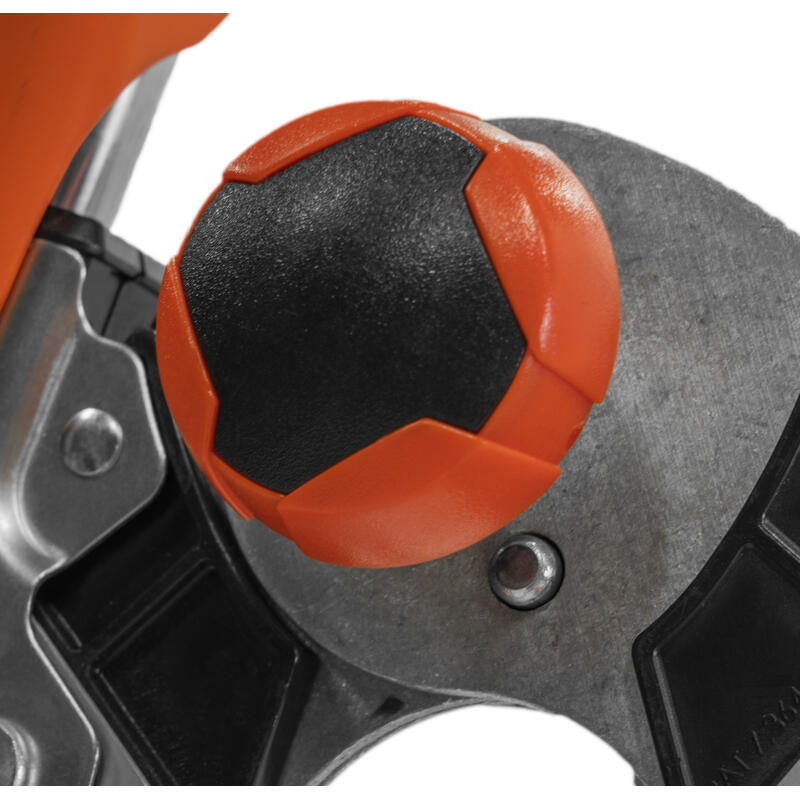

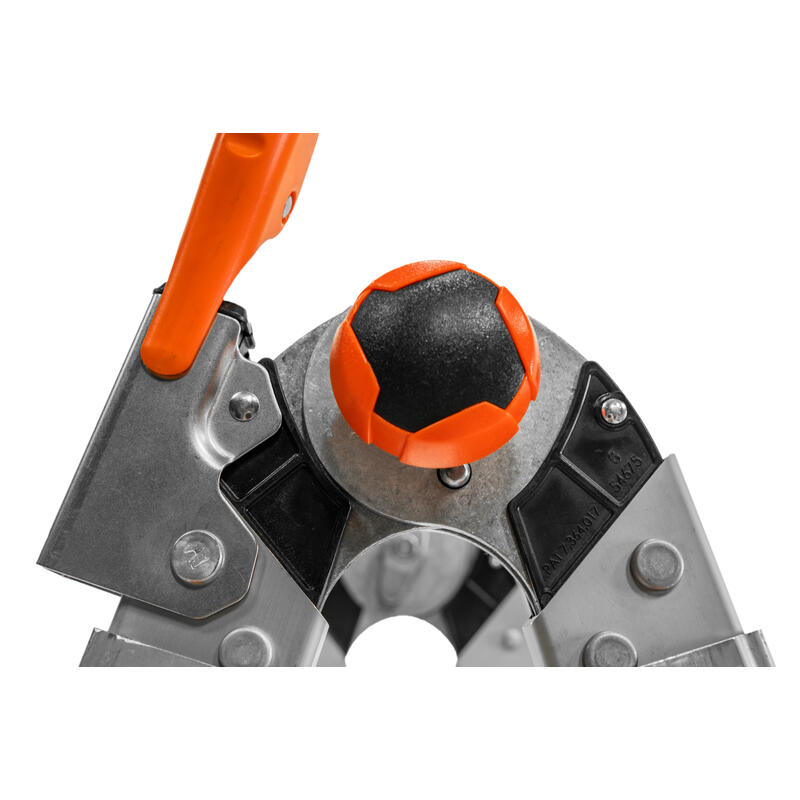

Hinge Lock	Plastic / Quad Lock
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Telescoping - Articulated
Warranty	Limited Lifetime
Size	9' - 18' 1"	2.74 m - 5.51 m
Inside Clear Width	1 ft.	32 cm
Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft. 1 in.	64 cm
Storage Depth	9 in.	23 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	3 in.	9 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	40 lbs.	18.14 kg

Features
Scaffolding Position	Yes

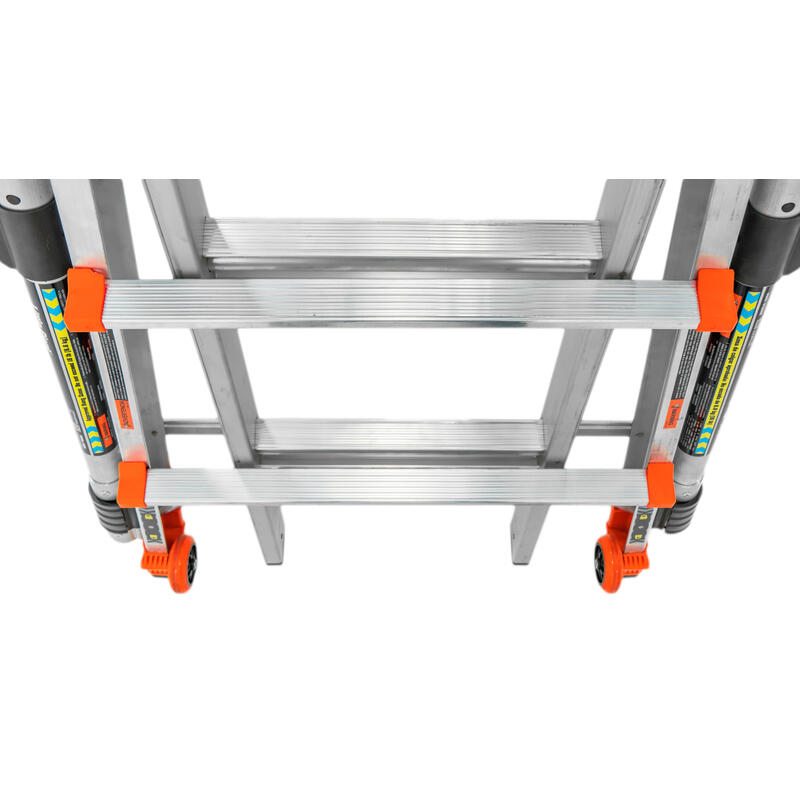

Tip-N-Glide Wheels	Yes
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Highest standing level Max	5 ft. 9 in.	1.75 m
Highest standing level Min	2 ft. 11 in.	89 cm
Maximum Footprint	5 ft. 2 in.	1.58 m
Minimum Footprint	3 ft. 4 in.	1.03 m
Max Reach	12 ft. 3 in.	3.73 m

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 1 in.	5.51 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
