12317EN-801
Xtreme

XTREME, 4 x 4 Model - EN 131 - 150 kg Rated, Aluminum Articulated Extendable Ladder with Trestle Brackets and RATCHET Levelers

Download Media Package
Download Box Label

  • Model Number: 10111 - WingSpan Wall Standoff
  • Model Number: 10154EN - Work Platform, EN131, Adjustable, Accessory for Articulated Extendable Ladders
  • Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15049 - xtralite plus
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
  • Model Number: 15097 - Ladder Rack
  • Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 26057 - AirDeck Workstation
  • Model Number: 26057-001 - Airdeck Workstation
  • Model Number: 26999 - Trestle Brackets - Most multi-position Models
  • Model Number: 26057 - AirDeck Workstation
  • Model Number: 26260 - Trestle Brackets, Accessory for the the REVOLUTION, QUANTUM, XTREME, LT, DEFENDER, and the VELOCITY Ladder made after July 1st, 2015

Xtreme™

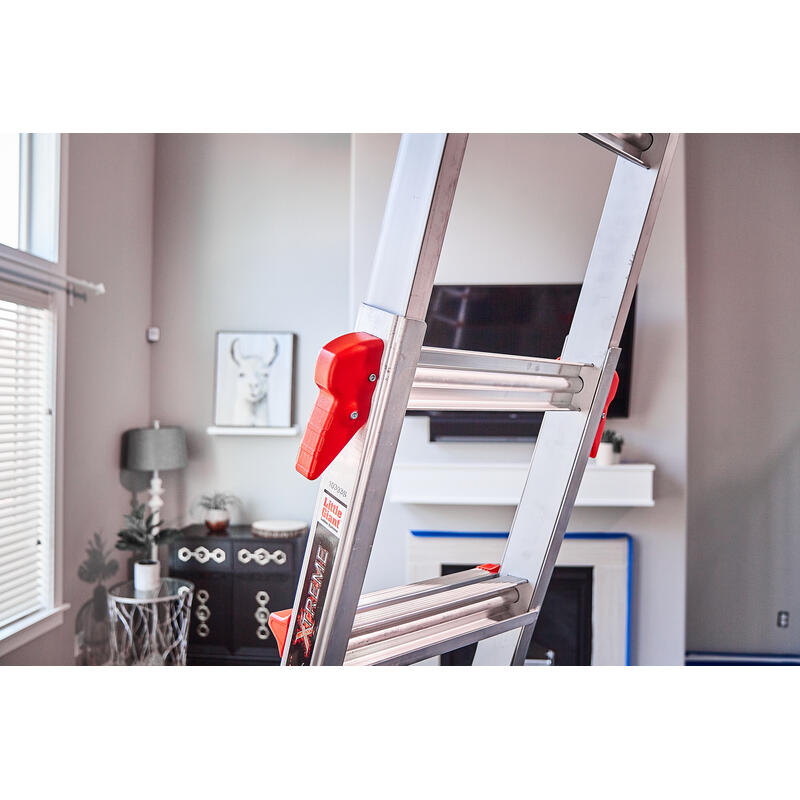

If you are looking for a ladder that exudes versatility, the Little Giant® Xtreme™ is the ladder you need. Over 40 years of engineering helped us create this signature ladder to help you successfully complete every project, both in the house and on the job. The Xtreme is available in 17’, 22’ and 26’ models. This Type IA ladder is rated to hold 300 lbs., and when placed in A-frame, is rated to hold 300 lbs. on both sides. The Xtreme meets or exceeds all OSHA and ANSI standards.



Multi-Position Ladder

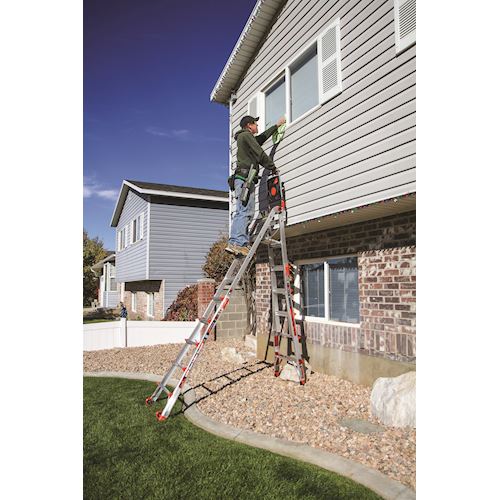

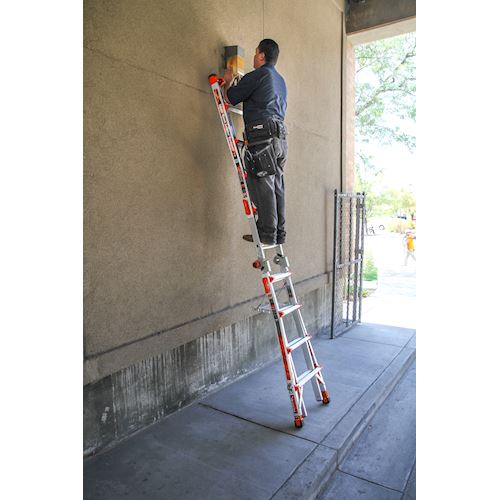

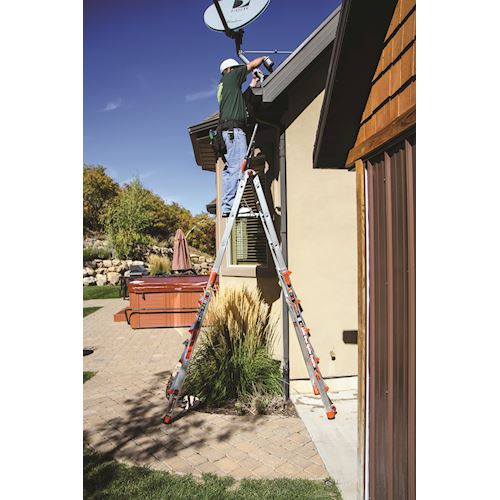

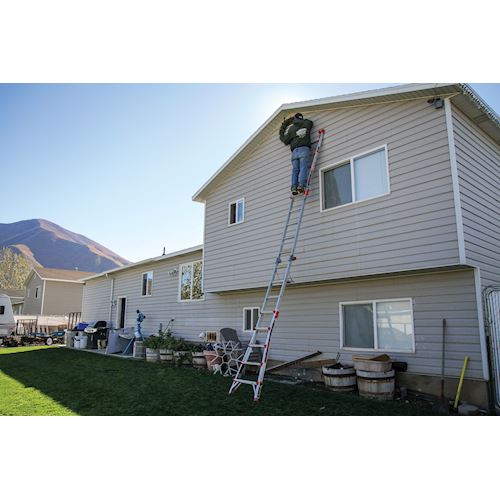

If you need to reach a high place, get close to your task or work on a staircase, the Xtreme can help you get there. This articulating, multi-position ladder converts to A-frame, extension, trestle-and-plank*, 90-degree and staircase with the press of a button. You are going to love how seamless it is to transition from project to project with the Xtreme.

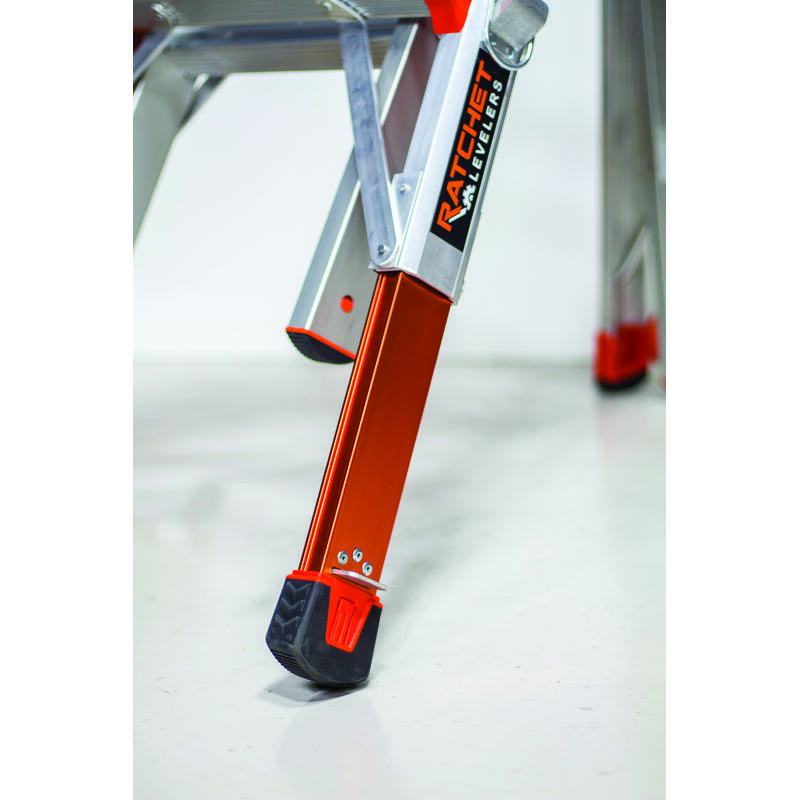

Ratchet™ Levelers

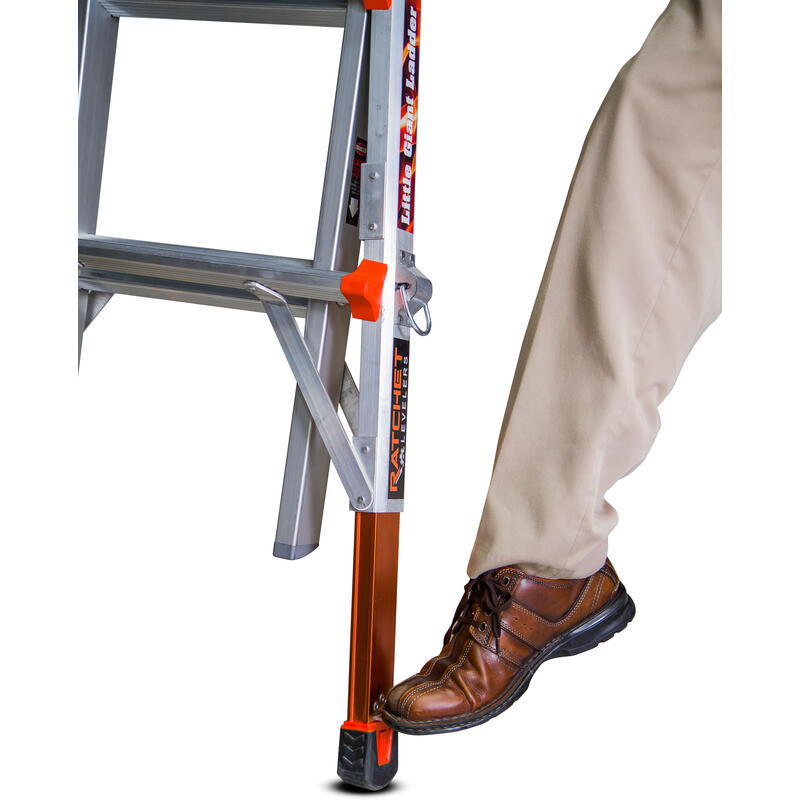

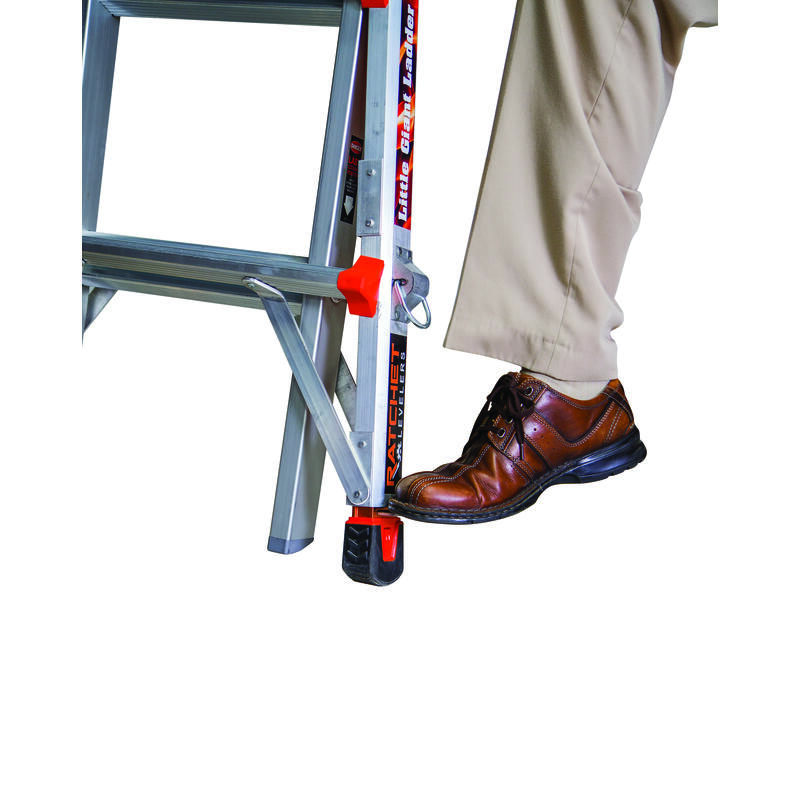

You may have seen the Ratchet™ leg levelers before, but nothing beats experiencing them firsthand. Working outside comes with its challenges, with uneven surfaces being the foremost concern. The Ratchet leg levelers allow you to adjust the ladder’s legs independently to securely reach uneven ground, quickly stabilizing your ladder.



Compatibility

It is important that your ladder is compatible with ladder accessories. Whether you are using the AirDeck™, Work Platform or Safety Rails, the Xtreme can handle it.



When used with the Safety Rails, you can convert your ladder’s extension orientation to an even safer, sturdier workspace. The Safety Rails can be placed horizontally or vertically on the Xtreme ladder. When placed horizontally, it spans windows. In its vertical orientation, it creates a safe walkthrough for you to move from ladder to rooftop. Make your ladder more comfortable and convenient with these unique accessories.



Wherever the job may take you, the Xtreme is going to be the ladder that you will want to take with you.



*Plank not included.

Specifications
Product Category Xtreme

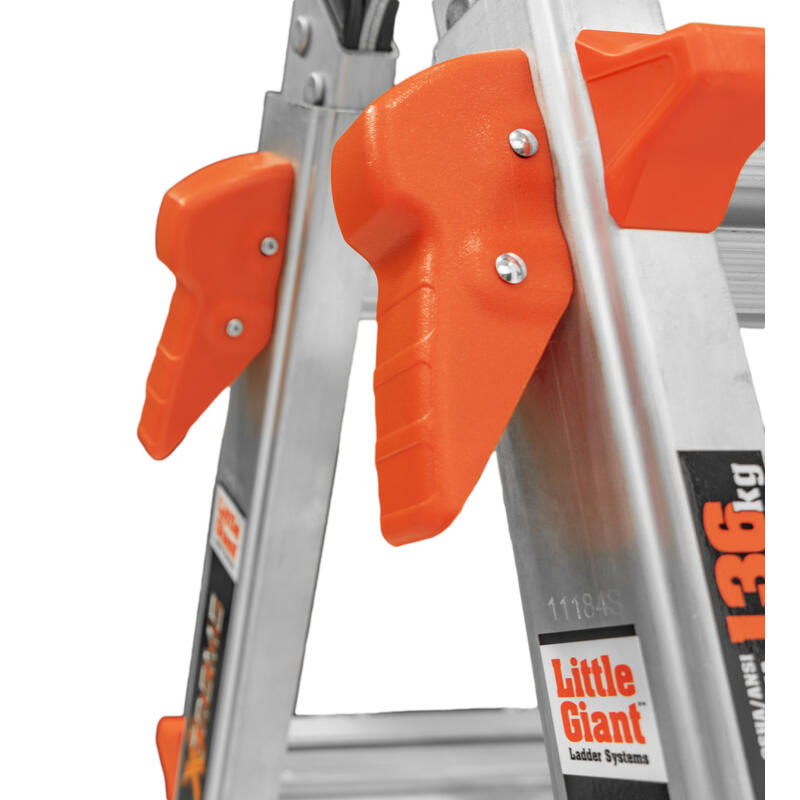

Extension Lock Plastic Rock Locks
Country Assembled China
Marketing Language Europe
Duty Rating EN 131 - 150 kg
Feet Standard non-marring (snap-on)

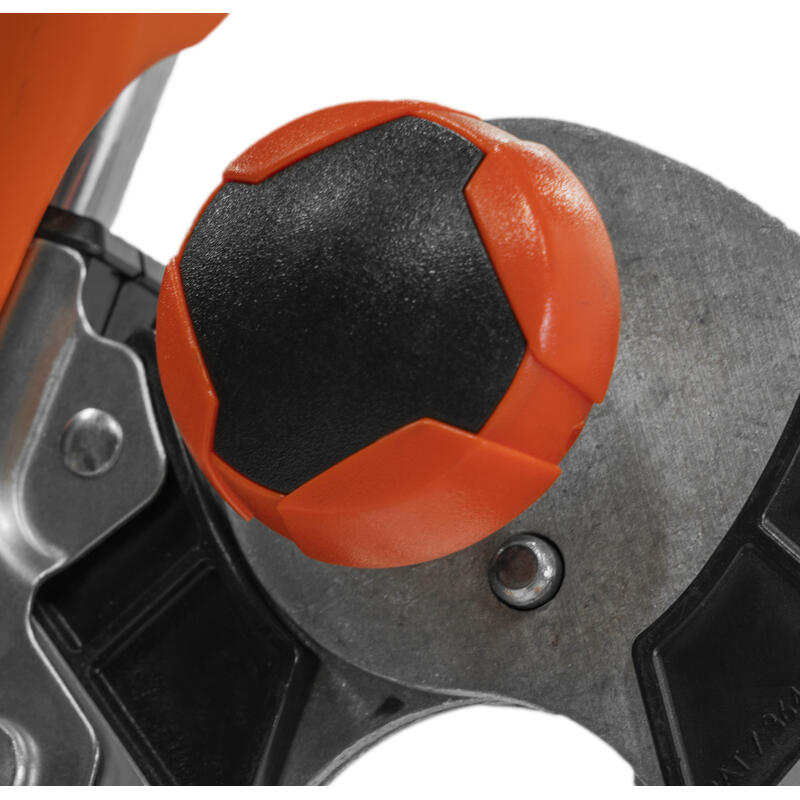

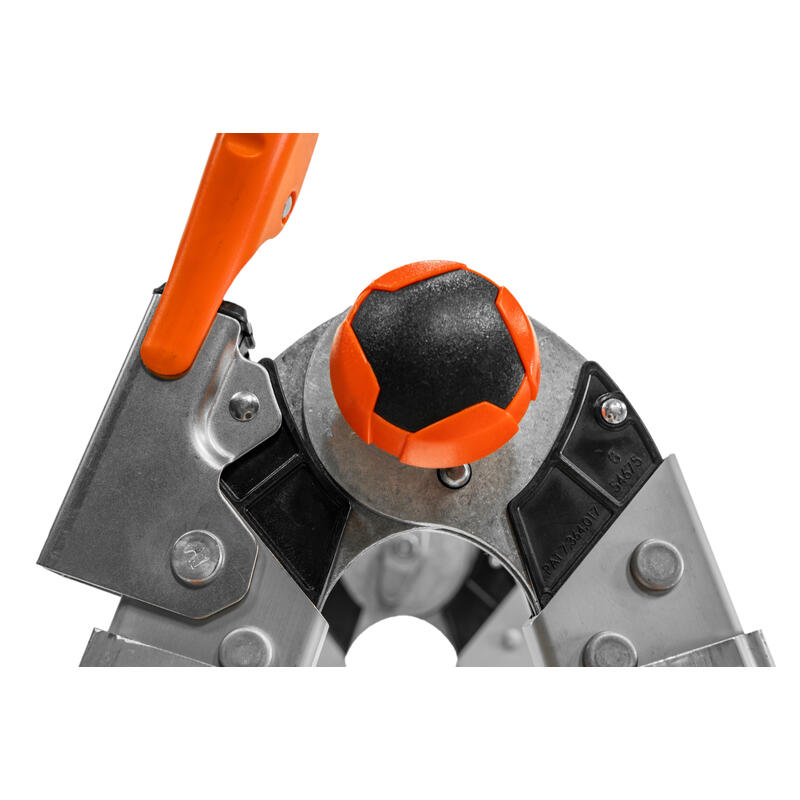

Hinge Lock Plastic / Quad Lock
Material Aluminum
Load Capacity (150 kg) 330 lbs.
Spreader System Hinge Lock
Ladder Type Telescoping - Articulated
Warranty Limited Lifetime
Size 9' - 18' 1" 2.74 m - 5.51 m
Inside Clear Width 1 ft. 32 cm
Storage Height 4 ft. 7 in. 1.40 m
Storage Width at Base 2 ft. 1 in. 64 cm
Storage Depth 9 in. 23 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 3 in. 9 cm
Top Width 1 ft. 6 in. 46 cm
Product Weight 45.5 lbs. 20.63 kg
Features
Scaffolding Position Yes
Tip-N-Glide Wheels Yes
90° Position Yes
Shipping
Freight Class 250 - Ladders and/or Accessories
HTS Code 7616.99.5190
Step Ladder
Stepladder Size 4' 6" - 7' 6" 1.37 m - 2.29 m
Highest standing level Max 5 ft. 9 in. 1.75 m
Highest standing level Min 2 ft. 11 in. 89 cm
Maximum Footprint 5 ft. 2 in. 1.58 m
Minimum Footprint 3 ft. 4 in. 1.03 m
Max Reach 12 ft. 3 in. 3.73 m
Single / Extension
Extension Total Length of Sections 17 ft. 2 in. 5.23 m
Extension Max Reach 18 ft. 1 in. 5.51 m
Single / Extension Highest Standing Level Max 11 ft. 7 in. 3.53 m
Single / Extension Highest Standing Level Min 5 ft. 9 in. 1.75 m
Single / Extension Max Working Length 14 ft. 11 in. 4.55 m
Single / Extension Min Working Length 8 ft. 11 in. 2.72 m
