13814-305

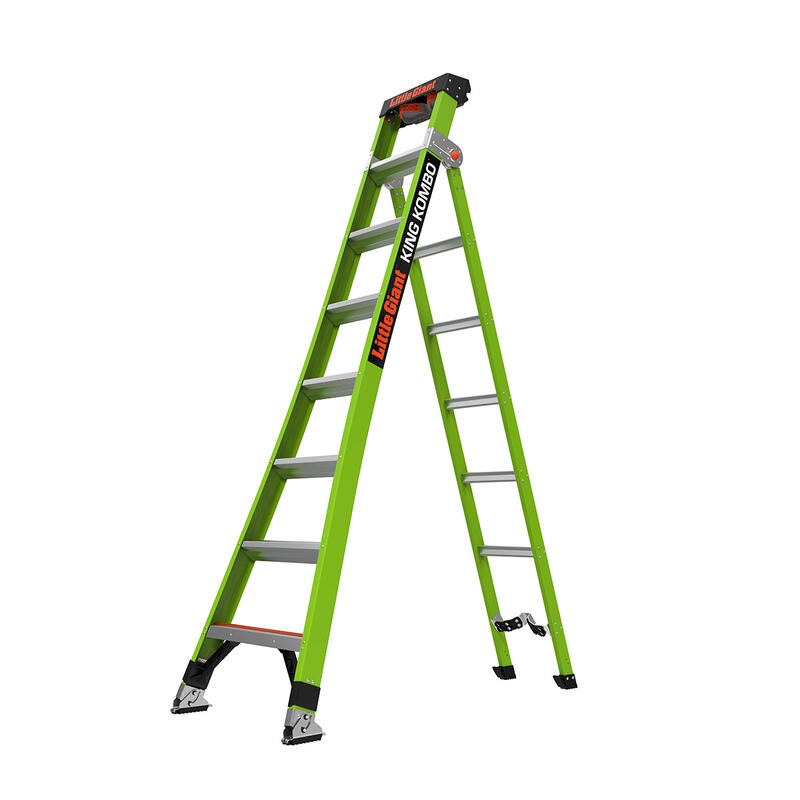

King Kombo

KK PRO,8',GRADE 1AA,FG LDDR-CSA RETAIL

Download Media Package

Data Feed:

No manuals have been assigned to this product

It’s the pro tool that helps you get stuff done faster than ever. The pinnacle of ladder technology, the King Kombo™ from Little Giant Ladder Systems® is tough as nails and versatile enough for any tradesman. Recognized for its superior safety and innovation, the King Kombo is the most awarded ladder ever, having received awards at the 2019 Pro Tool Innovation Awards, 2019 OH&S New Product of the Year Awards, SAFE Awards from the National Association of Homebuilders and more.

3-IN-1 LADDER

1. EXTENSION

With the functional rear section in the extension position, you can easily reach those high places, even roof and attic access ports.

2. STEPLADDER

This ladder features a wide-flared base for sturdy climbing and a narrow backside to fit between studs.

3. LEANING

The King Kombo is an OSHA/ANSI compliant leaning ladder. Safely lean your ladder, so you can get closer to your work.

FEATURES

ROTATING WALL PAD

The crowning gem of the King Kombo is its rotating wall pad. Now, you can safely set up your ladder on inside and outside corners, walls and studs with ease.

FIELD REPLACEABLE FEET

Field-replaceable feet allow for easy foot replacement on the job site. Save time and energy, while getting the job done with ease.

1. PRO

1. INDUSTRIAL

TECHNICAL

FITS BETWEEN STUDS

The extension side of the ladder has straight-line legs that are narrow enough to fit between studs. Access tight workspaces between wall studs, ceiling trusses and roof or attic access ports.

Specifications
Product Category	King Kombo
Extension Lock	None
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IAA - Special Duty
Feet	Standard non-marring (screw-on)
Hinge Lock	Push Button
Material	Fiberglass
Load Capacity	375 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Purpose
Warranty	1-Year
Size	8'	2.44 m
Inside Clear Width	1 ft.	31 cm
Storage Height	8 ft. 1 in.	2.46 m
Storage Width at Base	2 ft. 4 in.	71 cm
Storage Depth	7 in.	18 cm
Inner Rung Depth	3 in.	8 cm
Outer Rung Depth	3 in.	8 cm
Double Rung Depth	6 in.	15 cm
Top Width	1 ft. 3 in.	38 cm
Product Weight	31 lbs.	14.06 kg

Features
Scaffolding Position	No
Tip-N-Glide Wheels	No
90° Position	No

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	3926.90.9930

Step Ladder
Stepladder Size	8'	2.44 m
Highest standing level Max	5 ft. 8 in.	1.73 m
Highest standing level Min	5 ft. 8 in.	1.73 m
Maximum Footprint	4 ft. 11 in.	1.50 m
Minimum Footprint	4 ft. 11 in.	1.50 m
Max Reach	12 ft. 2 in.	3.71 m

Single / Extension
Extension Total Length of Sections	13 ft. 11 in.	4.24 m
Extension Max Reach	17 ft. 2 in.	5.23 m
Single / Extension Highest Standing Level Max	10 ft. 8 in.	3.25 m
Single / Extension Highest Standing Level Min	4 ft. 10 in.	1.47 m
Single / Extension Max Working Length	13 ft. 11 in.	4.24 m
Single / Extension Min Working Length	8 ft.	2.44 m

Leaning Stepladder Position
Highest Standing Level	4 ft. 8 in.	1.42 m
Max Reach	11 ft. 2 in.	3.40 m

UPC
