14013-001TH
Alta-One

ALTA-ONE, Model 17 - ANSI Type I - 250 lb Rated, Aluminum Articulated Extendable Ladder - Third

Download Media Package

Data Feed:

Manuals

No manuals have been assigned to this product

Alta-One

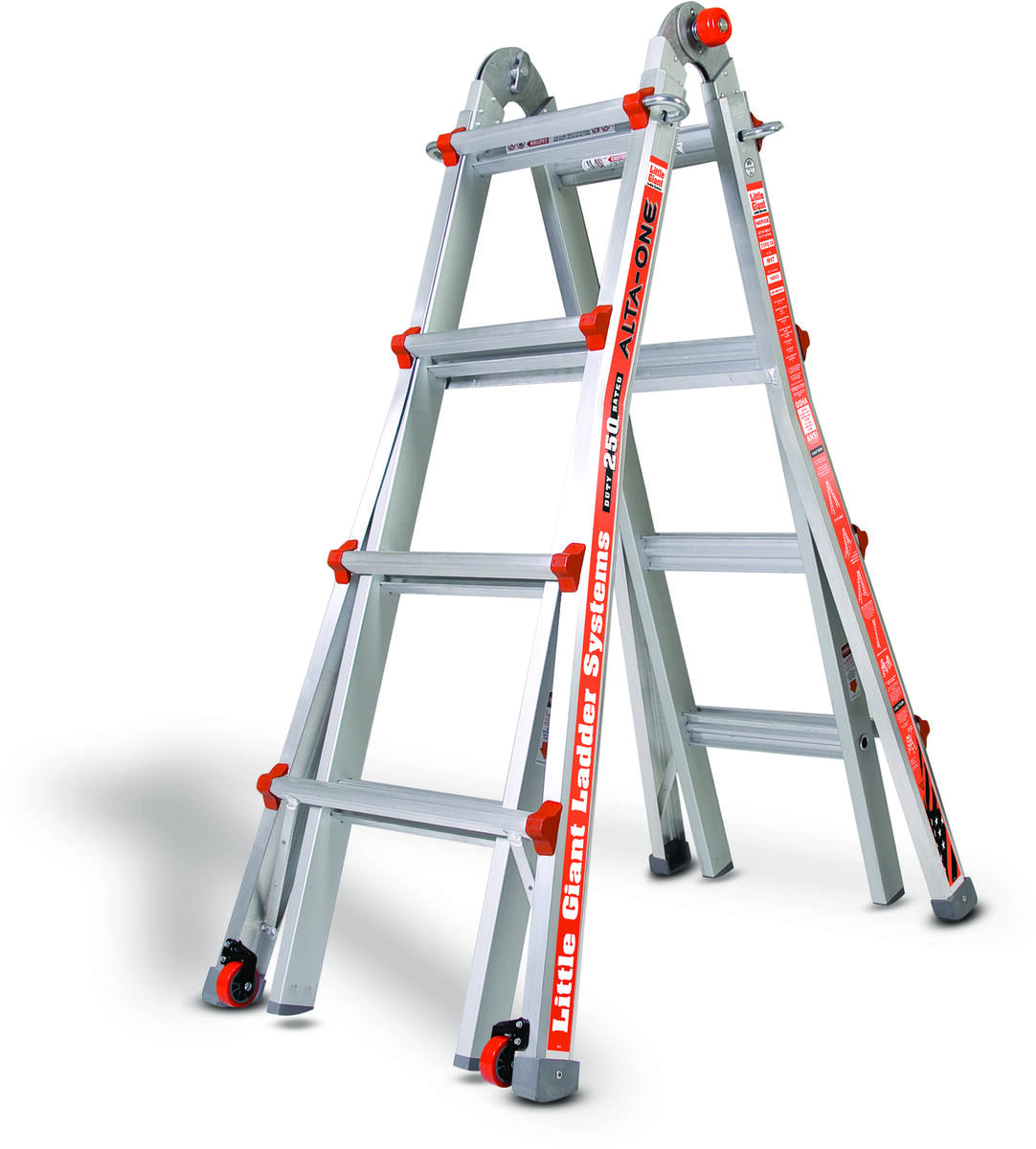

With the light-weight, versatile Little Giant Alta-One™ articulating ladder, you can count on quality performance for years to come. The hinge locks and telescoping sides let you safely use the Alta-One as an adjustable extension ladder, A-frame ladder, staircase ladder, and as trestle-and-plank scaffolding system. Wide-flared legs, rubberized feet, and high-quality construction give you unmatched stability in any of its dozens unique configurations. Because it is constructed of aerospace-grade aluminum, the Alta-One is ultra-light and ultra-strong. The Alta-One is rated to hold up to 250 lbs. on both sides, so it’s perfect for medium-sized jobs.

The Alta-One Ladder is available in 13, 17, and 22-foot sizes.

Specifications
Product Category	Alta-One
Extension Lock	All Steel Lock Tab
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type I - Heavy Duty
Feet	Standard non-marring (snap-on)
Hinge Lock	Plastic / Triple Locking Hinge
Material	Aluminum
Load Capacity	250 lbs.
Spreader System	Hinge Lock
Ladder Type	Telescoping - Articulated
Warranty	Limited Lifetime
Size	9' - 18' 1"	2.74 m - 5.51 m
Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft.	61 cm
Storage Depth	8 in.	20 cm
Inner Rung Depth	1 in.	3 cm
Outer Rung Depth	1 in.	3 cm
Double Rung Depth	2 in.	7 cm
Product Weight	30.5 lbs.	13.83 kg

Features
Scaffolding Position	Yes
Tip-N-Glide Wheels	Yes
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Highest standing level Max	4 ft. 10 in.	1.47 m
Highest standing level Min	1 ft. 11 in.	60 cm
Maximum Footprint	5 ft. 2 in.	1.58 m
Minimum Footprint	3 ft. 4 in.	1.03 m
Max Reach	11 ft. 4 in.	3.45 m

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 1 in.	5.51 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
