14437-001D
MegaMax

MEGAMAX, Model 17 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendable Ladder with Accessory Ports

Dowload Specsheet

Download Box Label

Data Feed:

Manuals

No manuals have been assigned to this product

MegaMax®

Are you tired of needing multiple ladders for one task? Simplify your climbing needs by getting the right ladder. Whether you need a ladder in the home or on the go, the Little Giant® MegaMax® is ideal to help you get the job done efficiently.

Multi-Position Ladder

Unlike traditional ladders that only offer one position, the MegaMax is a multi-position, articulating ladder. It allows you to set up in A-frame, extension, 90-degree, staircase and trestle-and-plank* configurations with ease.

Easy to Transport

It’s time to get rid of your old, heavy ladder. Made from sturdy, lightweight aluminum, the MegaMax is easy to carry. Plus, its Tip & Glide™ Wheels make transportation easier than ever.

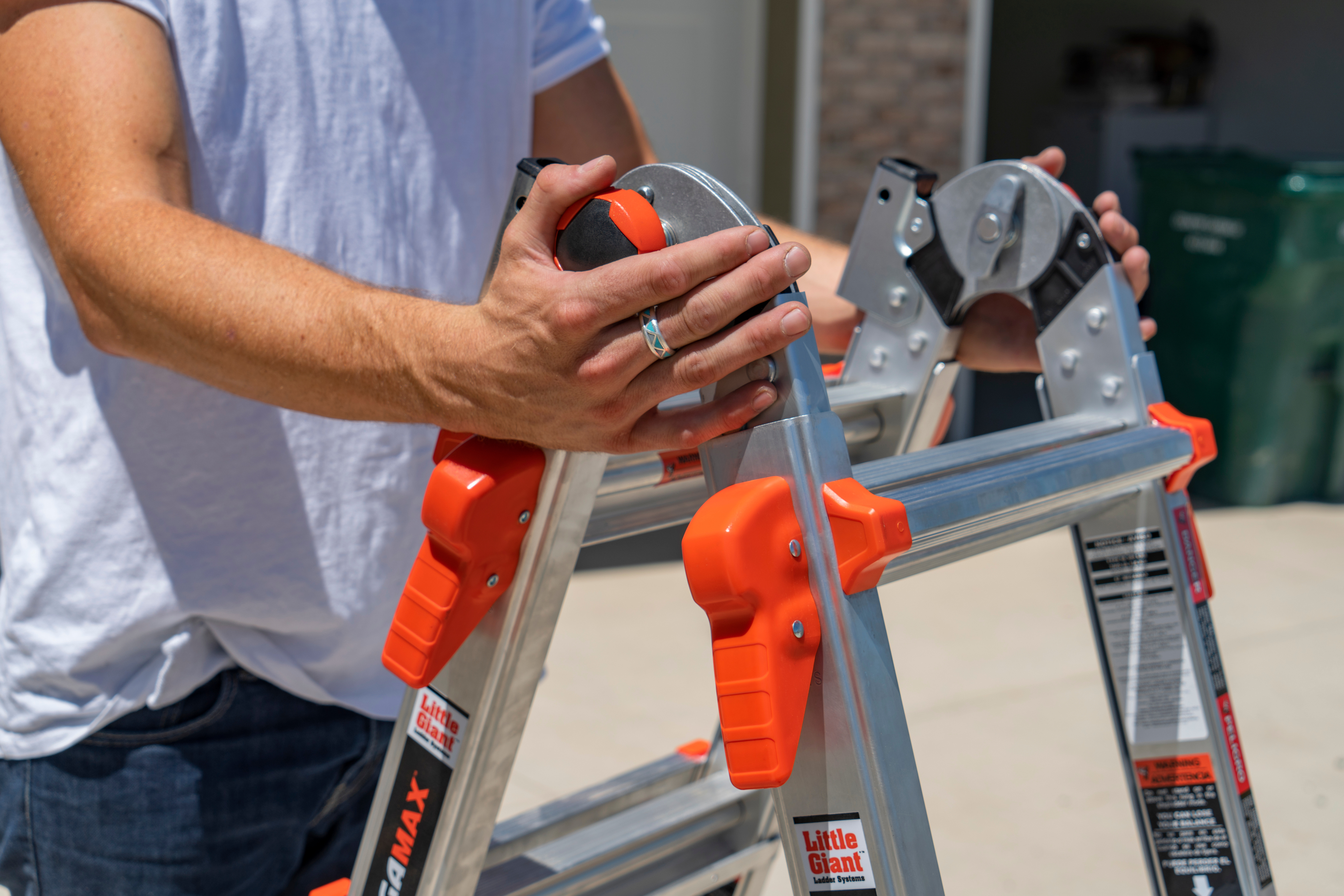

Rock Lock® Adjusters

When adjusting your ladder, use the MegaMax Rock Lock® adjusters to seamlessly transition your ladder from position to position.

AirDeck® Ports

With its AirDeck® ports, you can attach the Little Giant AirDeck to your ladder, giving you a sturdy workspace.

Rating

Meeting or exceeding all OSHA and ANSI standards, the MegaMax is rated to hold 300 lbs. in all configurations; and in A-frame, it will hold 300 lbs. on both sides.

*Plank not included.

Specifications
Product Category	MegaMax
Extension Lock	Plastic Rock Locks
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (riveted)
Hinge Lock	Plastic / Triple Locking Hinge
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Telescoping - Articulated
Warranty	Limited Lifetime
Size	9' - 18' 1"	2.74 m - 5.51 m
Inside Clear Width	1 ft.	32 cm
Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft.	61 cm
Storage Depth	8 in.	20 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	3 cm
Double Rung Depth	3 in.	8 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	31.2 lbs.	14.15 kg

Features
Scaffolding Position	Yes
Tip-N-Glide Wheels	Yes
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Highest standing level Max	5 ft. 9 in.	1.75 m
Highest standing level Min	2 ft. 11 in.	89 cm
Maximum Footprint	5 ft. 2 in.	1.58 m
Minimum Footprint	3 ft. 4 in.	1.03 m
Max Reach	12 ft. 3 in.	3.73 m

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 1 in.	5.51 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
