15143-303
Dark Horse

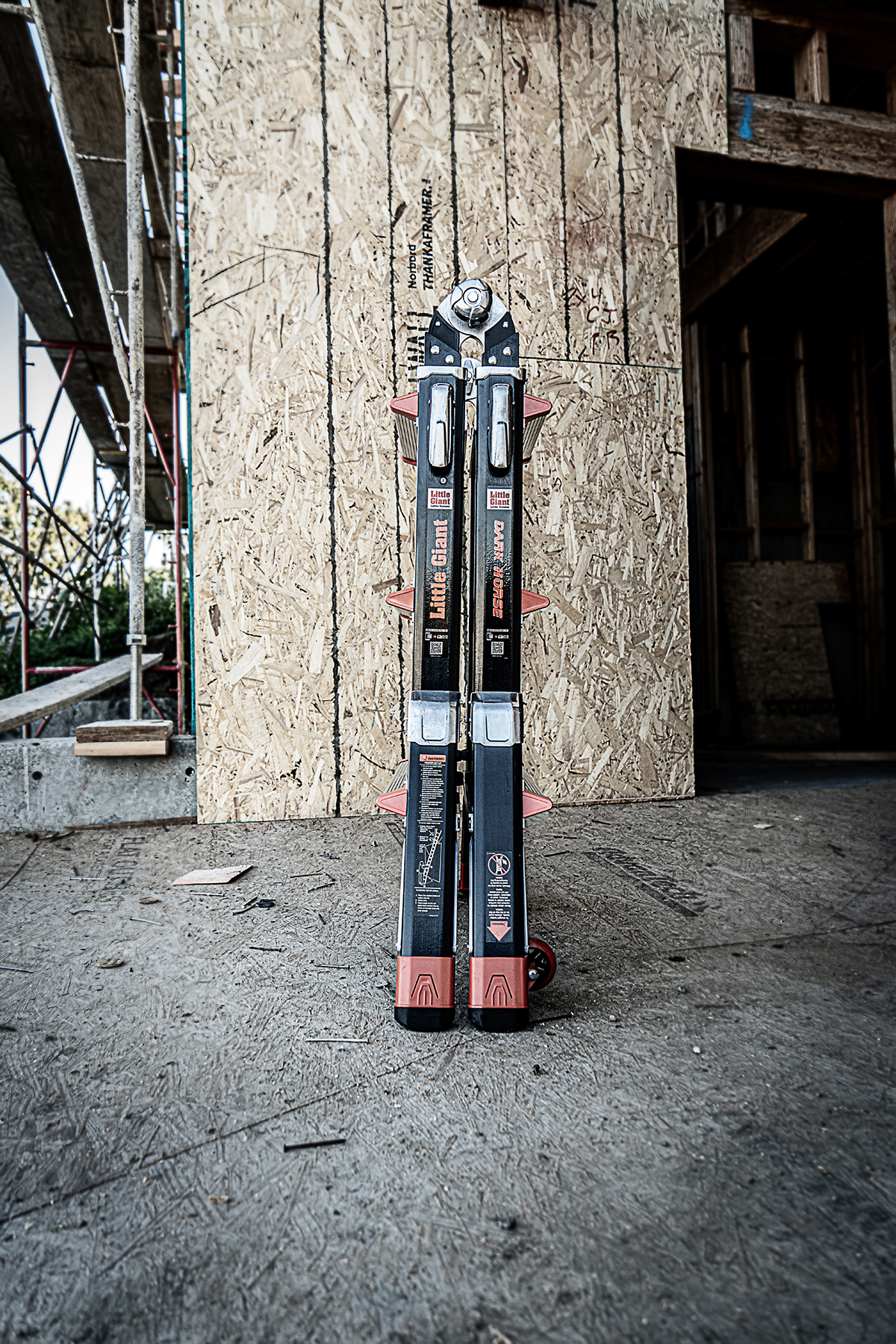

DARK HORSE, Model 13 - CSA Grade IAA - 375 lb/170 kg rated, fiberglass articulated extendable ladder

Dowload Specsheet
Download Media Package

  • Model Number: 10104 - Work Platform
  • Model Number: 10104V - EPIC STEP, 375 lb capacity, accessory for articulated extendable ladders
  • Model Number: 10111 - WingSpan Wall Standoff
  • Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, accessories for articulated extendable ladders
  • Model Number: 10160-001 - QUANTUM STEP platform, 300 lb capacity, accessory for articulated extendable ladders
  • Model Number: 15012 - Project Tray
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15086-001 - Accessory pack, QUANTUM STEP platform and FUEL TANK vertical paint tray
  • Model Number: 15087 - Accessory pack, Work Platform and Project Tray, accessories for articulated extendable ladders
  • Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
  • Model Number: 15097 - Ladder Rack
  • Model Number: 56480 - Trestle brackets - Dark Horse/Conquest
  • Nonconductive fiberglass provides additional safety while working around electricity
  • Use the Little Giant Dark Horse in dozens of unique configurations, including A-frame stepladder, extension, staircase and 90-degree ladders.
  • Weather-resistant UV-inhibiting compound in fiberglass resin for extended outdoor use
  • Replaces several sizes of stepladders and extension ladders
  • Reach some of the toughest areas such as the space above the staircase or vaulted ceilings
  • Independent telescoping slides allow you to work safely on stairs.
  • Extra-wide, cast aluminum hinge palm buttons for improved comfort and durability
  • Patented Triple-Locking™ hinge allows for easy adjustment and eliminates spreader bars, allowing you to use your ladder over and around obstacles, fences or bushes
  • Rated for two-person, two-sided use—300 lbs on each side
  • Cast aluminum Rock Lock™ adjusters provide ultimate durability
  • Extra wide rungs with aggressive tread provide added comfort and safety
  • Use included Trestle Brackets to form a time-saving trestle-and-plank scaffolding system
  • Stores in a slim 9” storage profile at one-fourth its maximum size
  • Wide-flared legs provide a feeling of safety and security
  • Wide-flared base provides more lateral stability than straight-sided step or extension ladders
  • Tip & Glide™ Wheels for easy transportation
  • Nonslip co-molded feet snap on to provide traction on multiple surfaces
  • Co-molded feet are replaceable without tools
  • 1-year limited warranty
  • Meets or exceeds all OSHA and ANSI standards
  • Available in ANSI IA 300-lbs rating or ANSI IAA 375-lbs ratings (Model 13 only)
  • Available in 13, 17, and 22-foot models
Specifications
Product Category Dark Horse
Extension Lock Cast Aluminum Rock Locks
Country Assembled China
Marketing Language English / French
Duty Rating Type IAA - Special Duty
Feet Standard non-marring (snap-on)
Hinge Lock Cast Aluminum / Triple Locking Hinge
Material Fiberglass
Load Capacity 375 lbs.
90° Ladder Yes
Scaffolding Position Yes
Spreader System Hinge Lock
Tip-N-Glide Wheels Yes
Ladder Type Telescoping - Articulated
Warranty 1-Year
Size 7' - 11' 2.13 m - 3.35 m
Inside Clear Width 1 ft. 32 cm
Storage Height 3 ft. 7 in. 1.09 m
Storage Width at Base 2 ft. 5 in. 74 cm
Storage Depth 10 in. 25 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 10 cm
Top Width 1 ft. 5 in. 45 cm
Product Weight 35 Lbs.
Shipping
Freight Class 250 - Ladders and/or Accessories
Ship Length 51"
Ship Width 28"
Ship Height 8½"
Ship Weight 41 Lbs.
HTS Code 3926.90.9930
Step Ladder
Highest standing level Max 2 ft. 11 in. 89 cm
Highest standing level Min 1 ft. 32 cm
Maximum Footprint 4 ft. 1.22 m
Minimum Footprint 2 ft. 11 in. 89 cm
Max Reach 7 ft. 6 in. 2.29 m
Single / Extension
Extension Total Length of Sections 13 ft. 2 in. 4.01 m
Extension Max Reach 14 ft. 1 in. 4.29 m
Single / Extension Highest Standing Level Max 7 ft. 9 in. 2.36 m
Single / Extension Highest Standing Level Min 3 ft. 10 in. 1.17 m
Single / Extension Max Working Length 10 ft. 11 in. 3.33 m
Single / Extension Min Working Length 6 ft. 11 in. 2.11 m
