15144-186
Conquest

CONQUEST, Model 17 - ANSI Type IA - 300 lb rated, fiberglass articulated extendable ladder with V-rung

Dowload Specsheet

Data Feed:

Model Number: 10104 - Work Platform
Model Number: 10104V - EPIC STEP, 375 lb capacity, accessory for articulated extendable ladders
Model Number: 10111 - WingSpan Wall Standoff
Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, accessories for articulated extendable ladders
Model Number: 10160-001 - QUANTUM STEP platform, 300 lb capacity, accessory for articulated extendable ladders
Model Number: 15012 - Project Tray
Model Number: 15040-001 - Cargo Hold
Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
Model Number: 15050-001 - Fuel Tank
Model Number: 15086-001 - Accessory pack, QUANTUM STEP platform and FUEL TANK vertical paint tray
Model Number: 15087 - Accessory pack, Work Platform and Project Tray, accessories for articulated extendable ladders
Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
Model Number: 15097 - Ladder Rack
Model Number: 56480 - Trestle brackets - Dark Horse/Conquest

Constructed of nonconductive, high-strength, lightweight fiberglass
Fully articulating and telescoping multipurpose ladder
Provides versatile, strong yet lightweight climbing solution for dozens of applications
Straight side allows operator access to wall or ceiling trusses and roof or attic access ports

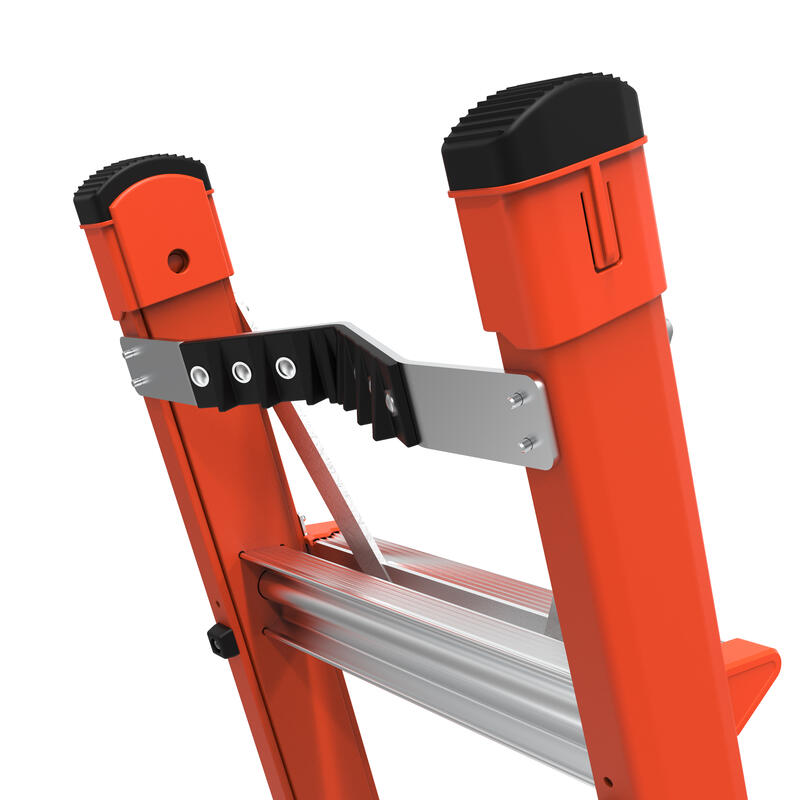

Optional aluminum V-bar with rubber pad to prevent slippage on round utility pole
Triple-Locking™ hinge
Cast aluminum Rock Lock™ fasteners for easy adjustment
Two-sided, two-person stepladder
Adjustable wide-base extension ladder
Can be used in the 90-degree position
Independently adjusting sides allow for use on stairs and uneven surfaces
Wide-flared side offers side-tip stability
Balanced carrying handle for easy adjustment and transportation
Rail shield bracket and shoe protects fiberglass rails from damage and weather
Co-molded nonslip rubber wall pads protect working surfaces and provide superior stability
Co-molded snap on feet
Weather-resistant UV-inhibiting compound in fiberglass resin for extended outdoor use
Meets or exceeds all OSHA and ANSI standards for safety
1-year limited warranty
ANSI-rated Type IAA 375-lbs rating
Available in 17 and 22-foot sizes

Specifications
Product Category	Conquest
Extension Lock	Cast Aluminum Rock Locks
Country Assembled	USA
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (snap-on)
Hinge Lock	Cast Aluminum / Triple Locking Hinge
Material	Fiberglass
Load Capacity	300 lbs.
90° Ladder	Yes
Scaffolding Position	Yes
Spreader System	Hinge Lock
Tip-N-Glide Wheels	No
Ladder Type	Telescoping - Articulated
Warranty	1-Year
Size	9' - 15'	2.74 m - 4.57 m
Inside Clear Width	1 ft.	32 cm
Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft. 5 in.	74 cm
Storage Depth	10 in.	25 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	4 in.	10 cm
Top Width	1 ft. 5 in.	45 cm
Product Weight	42 Lbs.

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 2 in.	5.54 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
