Conquest

CONQUEST, Model 22 - ANSI Type IA - 300 lb rated, fiberglass articulated extendable ladder

Dowload Specsheet
Download Media Package

  • Model Number: 10104 - Work Platform
  • Model Number: 10104V - EPIC STEP, 375 lb capacity, accessory for articulated extendable ladders
  • Model Number: 10111 - WingSpan Wall Standoff
  • Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, accessories for articulated extendable ladders
  • Model Number: 10160-001 - QUANTUM STEP platform, 300 lb capacity, accessory for articulated extendable ladders
  • Model Number: 15012 - Project Tray
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15086-001 - Accessory pack, QUANTUM STEP platform and FUEL TANK vertical paint tray
  • Model Number: 15087 - Accessory pack, Work Platform and Project Tray, accessories for articulated extendable ladders
  • Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
  • Model Number: 15097 - Ladder Rack
  • Model Number: 56480 - Trestle brackets - Dark Horse/Conquest
  • Constructed of nonconductive, high-strength, lightweight fiberglass
  • Fully articulating and telescoping multipurpose ladder
  • Provides versatile, strong yet lightweight climbing solution for dozens of applications
  • Straight side allows operator access to wall or ceiling trusses and roof or attic access ports
  • Optional aluminum V-bar with rubber pad to prevent slippage on round utility pole

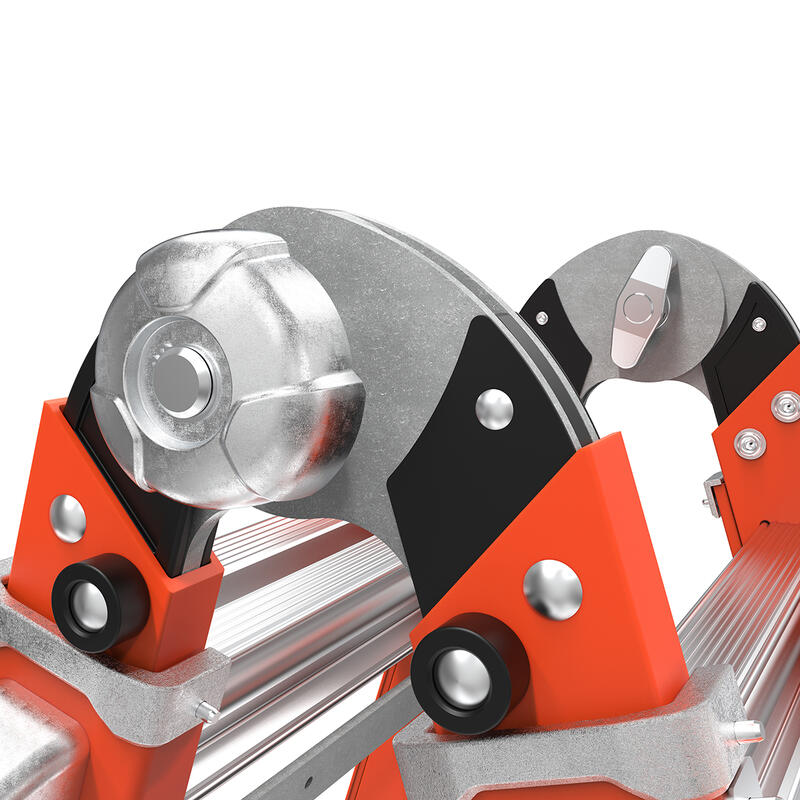

  • Triple-Locking™ hinge
  • Cast aluminum Rock Lock™ fasteners for easy adjustment
  • Two-sided, two-person stepladder
  • Adjustable wide-base extension ladder
  • Can be used in the 90-degree position

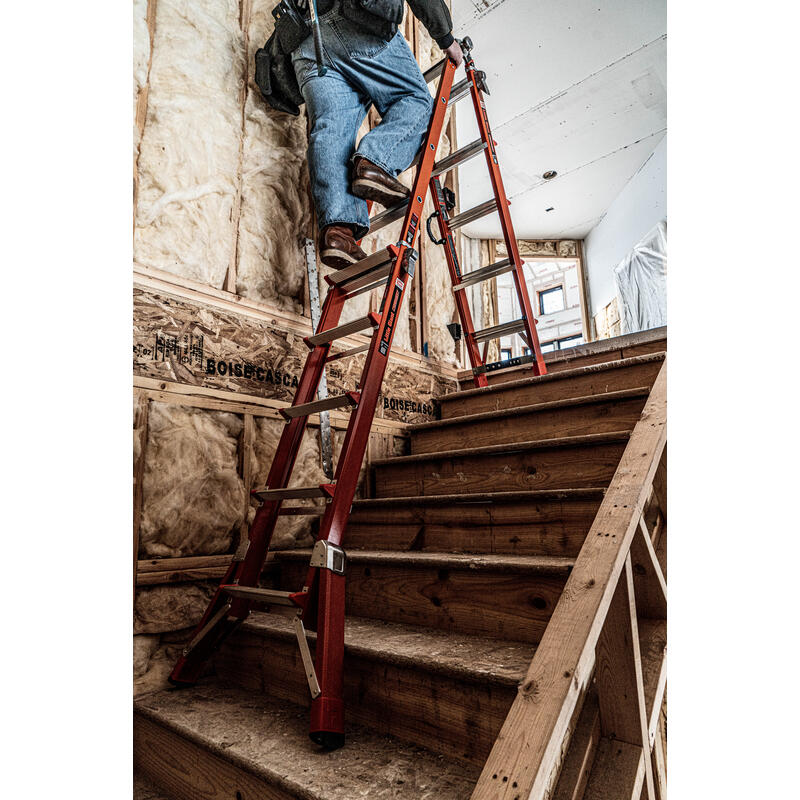

  • Independently adjusting sides allow for use on stairs and uneven surfaces
  • Wide-flared side offers side-tip stability
  • Balanced carrying handle for easy adjustment and transportation
  • Rail shield bracket and shoe protects fiberglass rails from damage and weather
  • Co-molded nonslip rubber wall pads protect working surfaces and provide superior stability
  • Co-molded snap on feet
  • Weather-resistant UV-inhibiting compound in fiberglass resin for extended outdoor use
  • Meets or exceeds all OSHA and ANSI standards for safety
  • 1-year limited warranty
  • ANSI-rated Type IAA 375-lbs rating
  • Available in 17 and 22-foot sizes



Specifications
Product Category Conquest
Extension Lock Cast Aluminum Rock Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IA - Extra Heavy Duty
Feet Standard non-marring (snap-on)
Hinge Lock Cast Aluminum / Triple Locking Hinge
Material Fiberglass
Load Capacity 300 lbs.
90° Ladder Yes
Scaffolding Position Yes
Spreader System Hinge Lock
Tip-N-Glide Wheels No
Ladder Type Telescoping - Articulated
Warranty 1-Year
Size 11' - 19' 3.35 m - 5.79 m
Inside Clear Width 1 ft. 32 cm
Storage Height 5 ft. 7 in. 1.70 m
Storage Width at Base 2 ft. 5 in. 74 cm
Storage Depth 10 in. 25 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 10 cm
Top Width 1 ft. 5 in. 45 cm
Product Weight 47 Lbs.
Shipping
Freight Class 250 - Ladders and/or Accessories
Ship Length 68"
Ship Width 29"
Ship Height 10"
Ship Weight 55 Lbs.
HTS Code 3926.90.9930
Step Ladder
Highest standing level Max 6 ft. 8 in. 2.03 m
Highest standing level Min 2 ft. 11 in. 89 cm
Maximum Footprint 6 ft. 7 in. 2.01 m
Minimum Footprint 4 ft. 1.22 m
Max Reach 13 ft. 3 in. 4.04 m
Single / Extension
Extension Total Length of Sections 21 ft. 2 in. 6.45 m
Extension Max Reach 22 ft. 3 in. 6.78 m
Single / Extension Highest Standing Level Max 15 ft. 6 in. 4.72 m
Single / Extension Highest Standing Level Min 7 ft. 10 in. 2.39 m
Single / Extension Max Working Length 18 ft. 11 in. 5.77 m
Single / Extension Min Working Length 10 ft. 11 in. 3.33 m
