15147-001
Dark Horse

DARK HORSE, Model 17 - ANSI Type IA - 300 lb Rated, Fiberglass Articulated Extendable Ladder

Dowload Specsheet
Download Media Package

  • Model Number: 10104 - Work Platform
  • Model Number: 10104V - EPIC STEP, 375 lb Capacity, Accessory for Articulated Extendable Ladders
  • Model Number: 10160-001 - QUANTUM STEP Platform, 300 lb Capacity, Accessory for Articulated Extendable Ladders
  • Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15012 - Project Tray
  • Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15086-001 - Accessory pack, QUANTUM STEP Platform and FUEL TANK vertical paint tray
  • Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
  • Model Number: 15097 - Ladder Rack
  • Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 56480 - Trestle Brackets - Dark Horse/Conquest
  • Nonconductive fiberglass provides additional safety while working around electricity
  • Use the Little Giant Dark Horse in dozens of unique configurations, including A-frame stepladder, extension, staircase and 90-degree ladders.
  • Weather-resistant UV-inhibiting compound in fiberglass resin for extended outdoor use
  • Replaces several sizes of stepladders and extension ladders
  • Reach some of the toughest areas such as the space above the staircase or vaulted ceilings

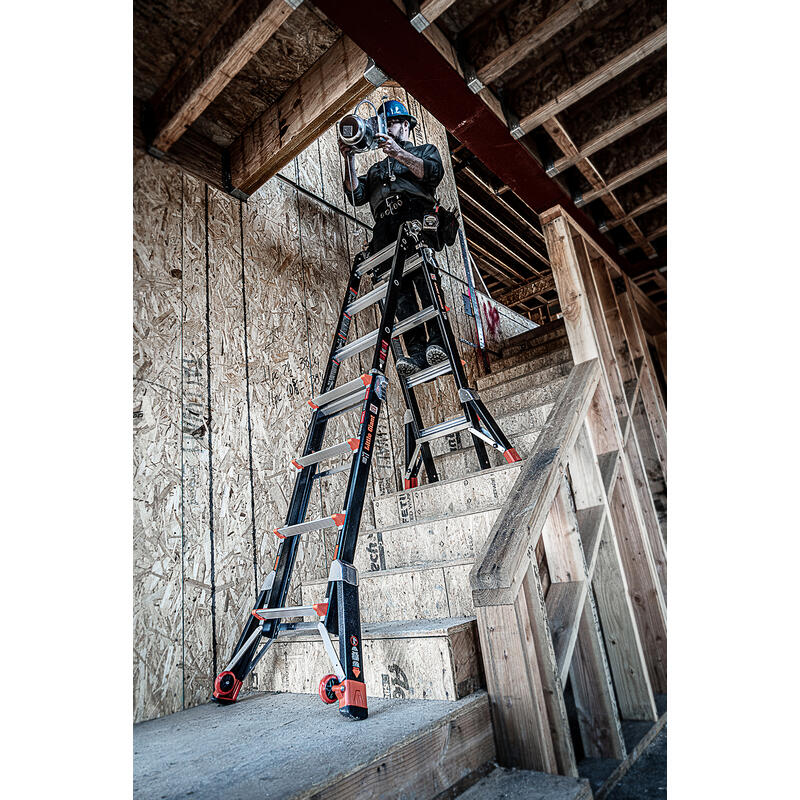

  • Independent telescoping slides allow you to work safely on stairs.
  • Extra-wide, cast aluminum hinge palm buttons for improved comfort and durability
  • Patented Triple-Locking™ hinge allows for easy adjustment and eliminates spreader bars, allowing you to use your ladder over and around obstacles, fences or bushes
  • Rated for two-person, two-sided use—300 lbs on each side
  • Cast aluminum Rock Lock™ adjusters provide ultimate durability
  • Extra wide rungs with aggressive tread provide added comfort and safety
  • Use included Trestle Brackets to form a time-saving trestle-and-plank scaffolding system
  • Stores in a slim 9” storage profile at one-fourth its maximum size
  • Wide-flared legs provide a feeling of safety and security
  • Wide-flared base provides more lateral stability than straight-sided step or extension ladders
  • Tip & Glide™ Wheels for easy transportation
  • Nonslip co-molded feet snap on to provide traction on multiple surfaces
  • Co-molded feet are replaceable without tools
  • 1-year limited warranty
  • Meets or exceeds all OSHA and ANSI standards
  • Available in ANSI IA 300-lbs rating or ANSI IAA 375-lbs ratings (Model 13 only)
  • Available in 13, 17, and 22-foot models
  •
Specifications
Product Category Dark Horse
Extension Lock Cast Aluminum Rock Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IA - Extra Heavy Duty
Feet Standard non-marring (snap-on)
Hinge Lock Cast Aluminum / Triple Locking Hinge
Material Fiberglass
Load Capacity 300 lbs.
Spreader System Hinge Lock
Ladder Type Telescoping - Articulated
Warranty 1-Year
Size 9' - 15' 2.74 m - 4.57 m
Inside Clear Width 1 ft. 32 cm
Storage Height 4 ft. 7 in. 1.40 m
Storage Width at Base 2 ft. 5 in. 74 cm
Storage Depth 10 in. 25 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 3 in. 10 cm
Top Width 1 ft. 5 in. 45 cm
Product Weight 44 lbs. 19.95 kg
Features
Scaffolding Position Yes
Tip-N-Glide Wheels Yes
90° Position Yes
Shipping
Freight Class 250 - Ladders and/or Accessories
Ship Length 56" 4' 8"
Ship Width 29" 2' 5"
Ship Height 10" 10"
Ship Weight 49.7 lbs.
Ship Volume 9.4 CuFt.
HTS Code 3926.90.9930
Step Ladder
Stepladder Size 4' 6" - 7' 6" 1.37 m - 2.29 m
Highest standing level Max 4 ft. 10 in. 1.47 m
Highest standing level Min 1 ft. 11 in. 60 cm
Maximum Footprint 5 ft. 2 in. 1.57 m
Minimum Footprint 3 ft. 4 in. 1.02 m
Max Reach 11 ft. 4 in. 3.45 m
Single / Extension
Extension Total Length of Sections 17 ft. 2 in. 5.23 m
Extension Max Reach 18 ft. 1 in. 5.51 m
Single / Extension Highest Standing Level Max 11 ft. 7 in. 3.53 m
Single / Extension Highest Standing Level Min 5 ft. 9 in. 1.75 m
Single / Extension Max Working Length 14 ft. 11 in. 4.55 m
Single / Extension Min Working Length 8 ft. 11 in. 2.72 m
