15147-801
Dark Horse

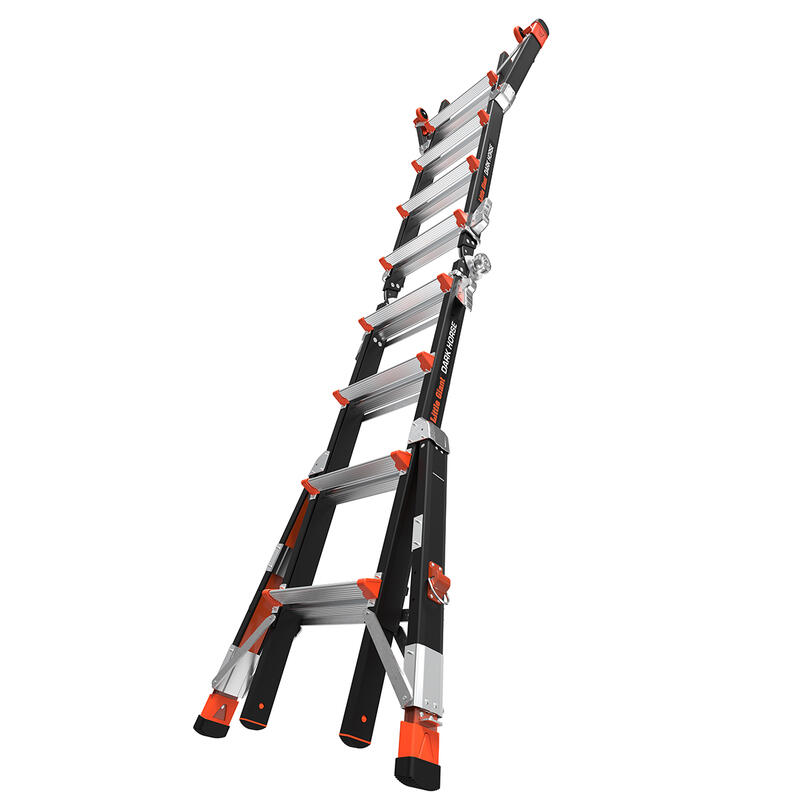

DARK HORSE, Model 17 - ANSI Type IA - 300 lb Rated, Fiberglass Articulated Extendable Ladder with RATCHET Levelers

Dowload Specsheet
Download Media Package

  • Model Number: 10104 - Work Platform
  • Model Number: 10104V - EPIC STEP, 375 lb Capacity, Accessory for Articulated Extendable Ladders
  • Model Number: 10160-001 - QUANTUM STEP Platform, 300 lb Capacity, Accessory for Articulated Extendable Ladders
  • Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15012 - Project Tray
  • Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15086-001 - Accessory pack, QUANTUM STEP Platform and FUEL TANK vertical paint tray
  • Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
  • Model Number: 15097 - Ladder Rack
  • Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 56480 - Trestle Brackets - Dark Horse/Conquest

Dark Horse™

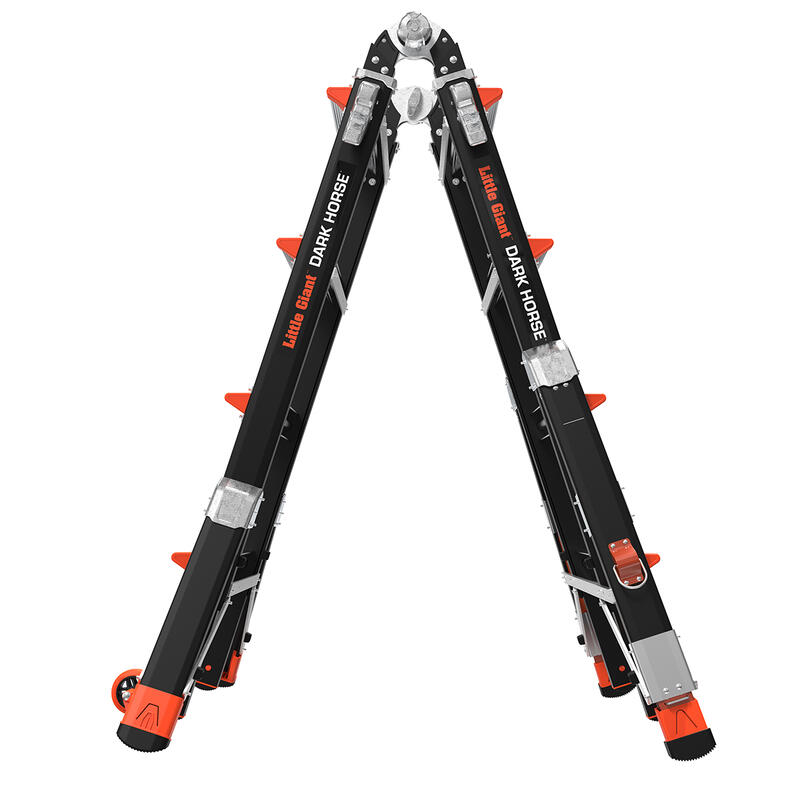

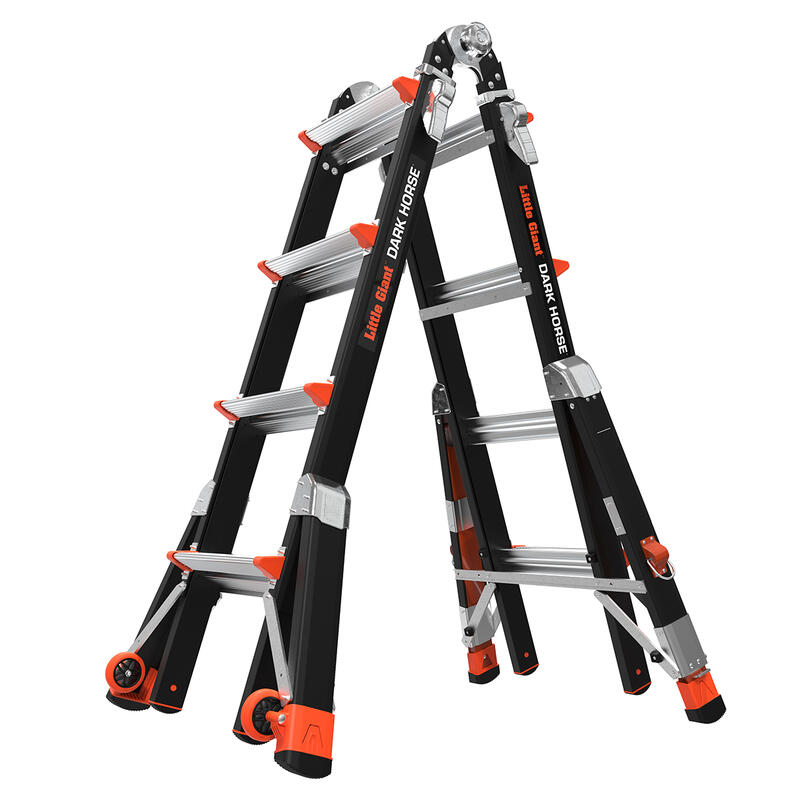

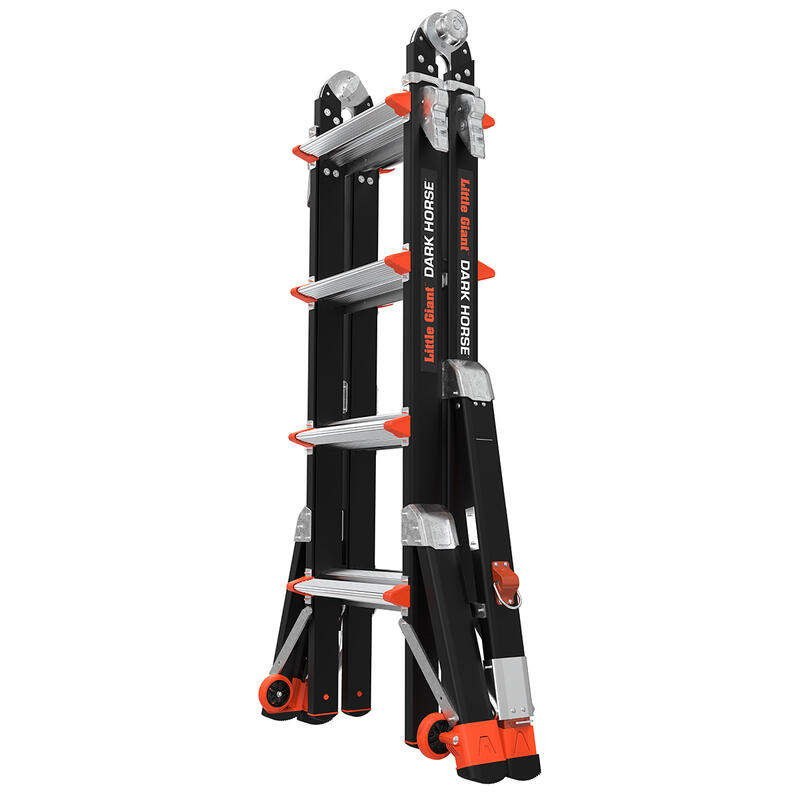

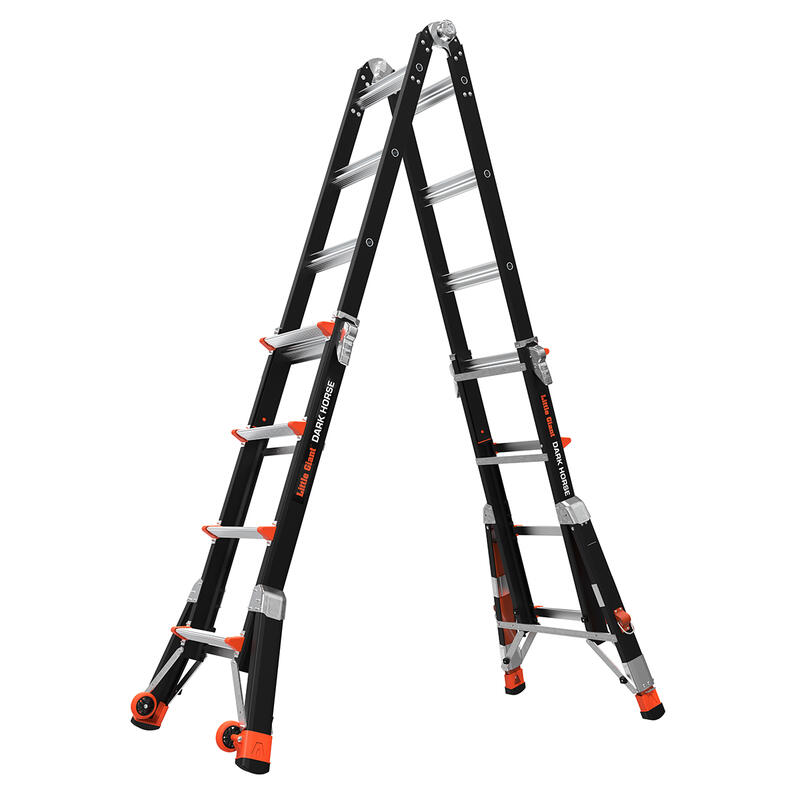

The Little Giant® Dark Horse™ combines some of our best ladder features into one versatile multi-position ladder that will suit your ladder needs for years to come.



Multi-Position

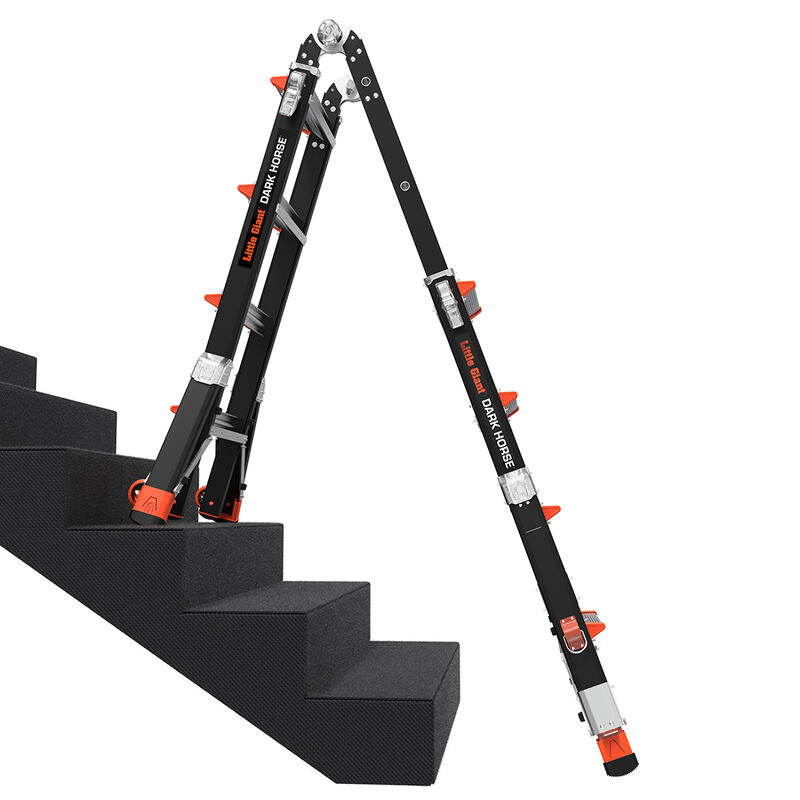

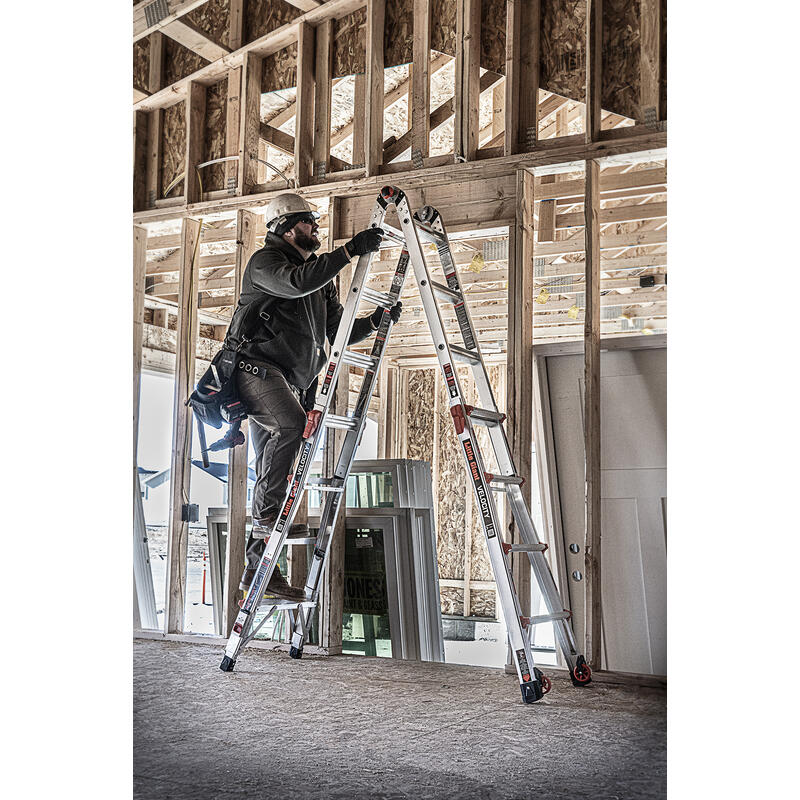

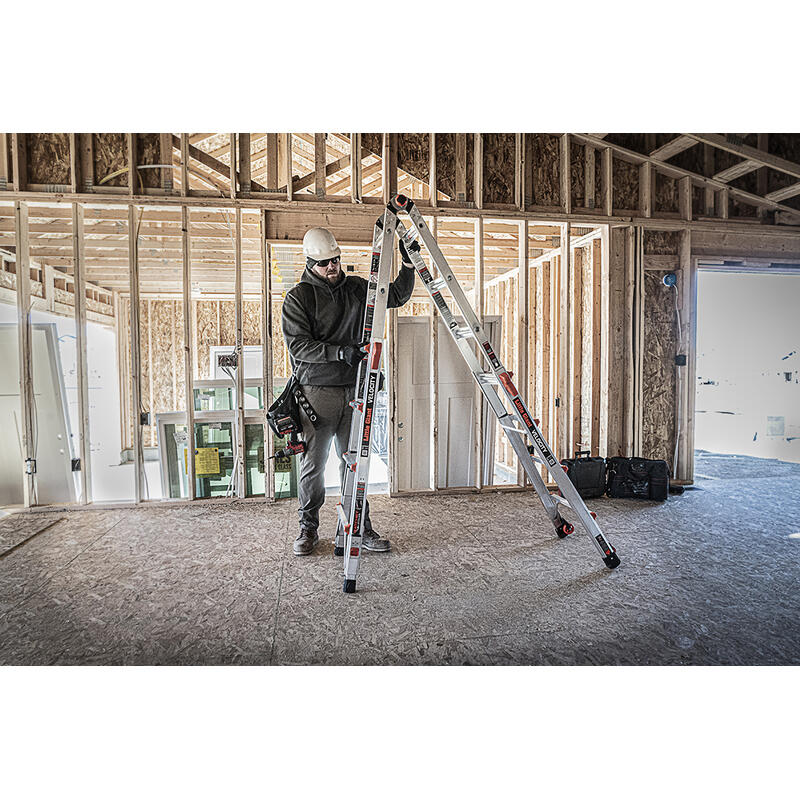

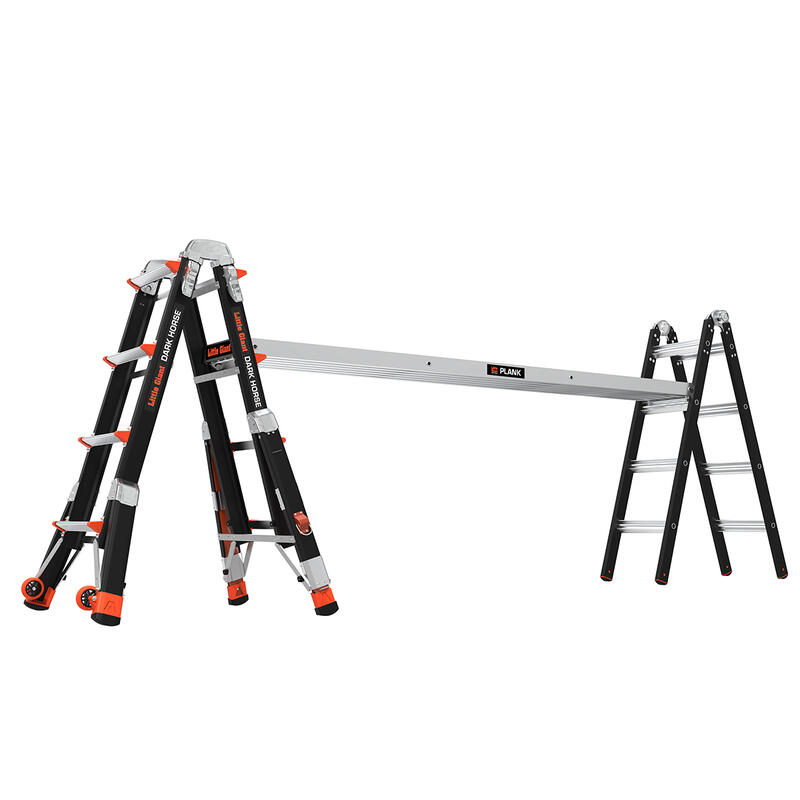

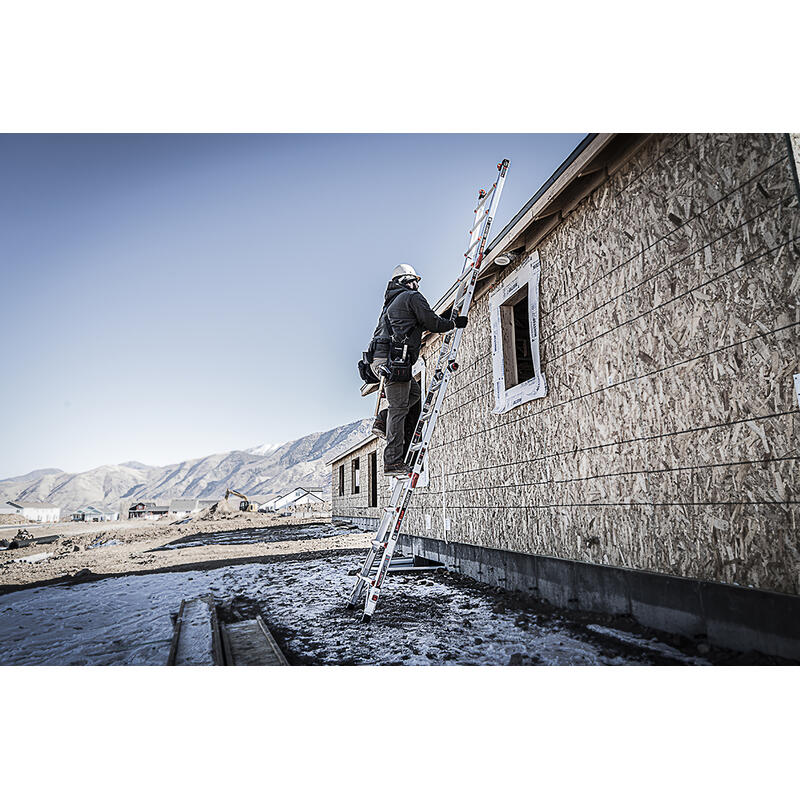

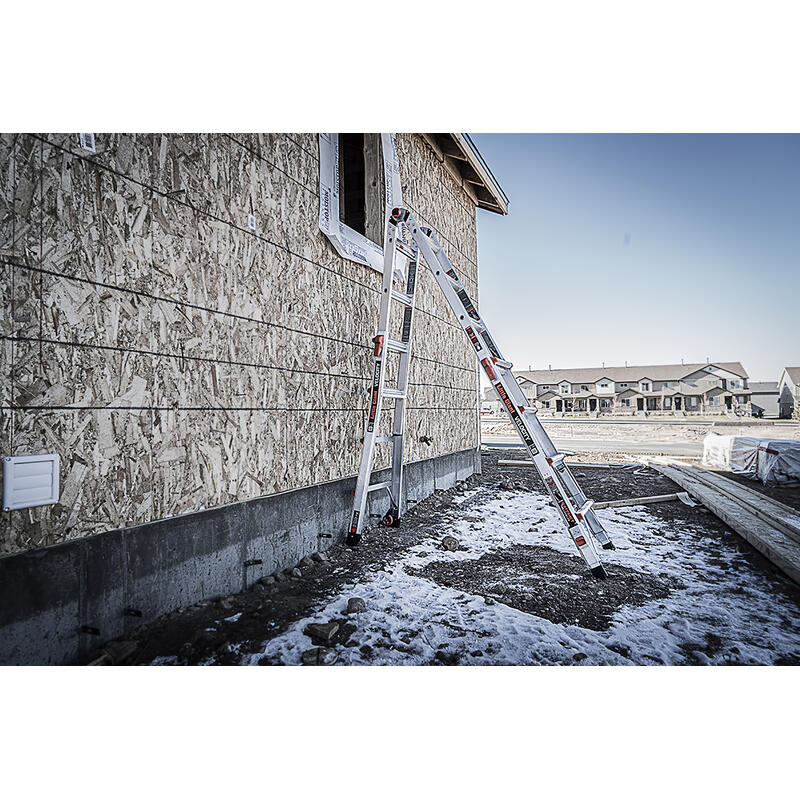

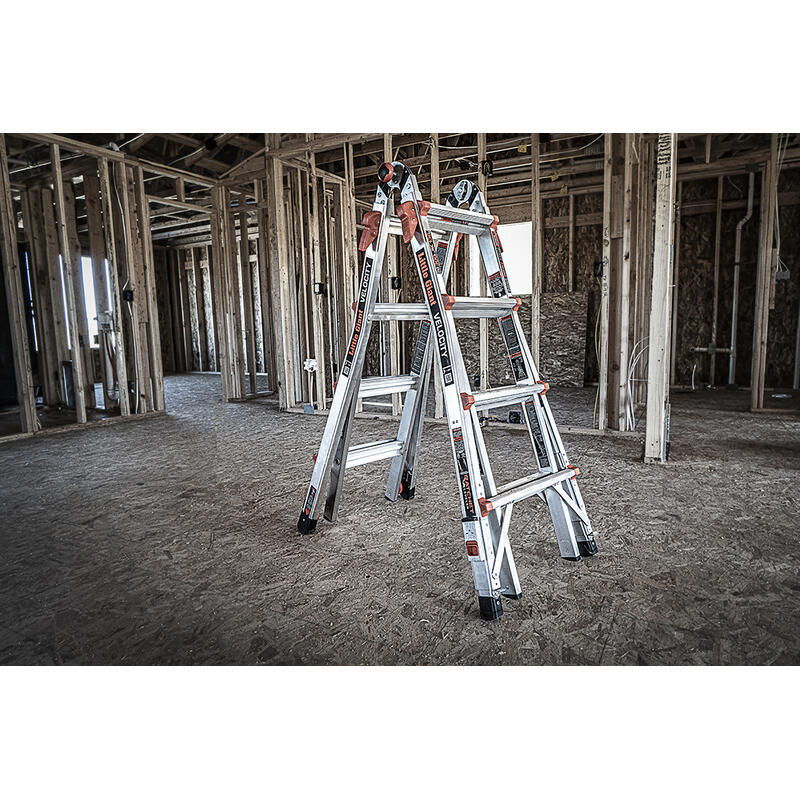

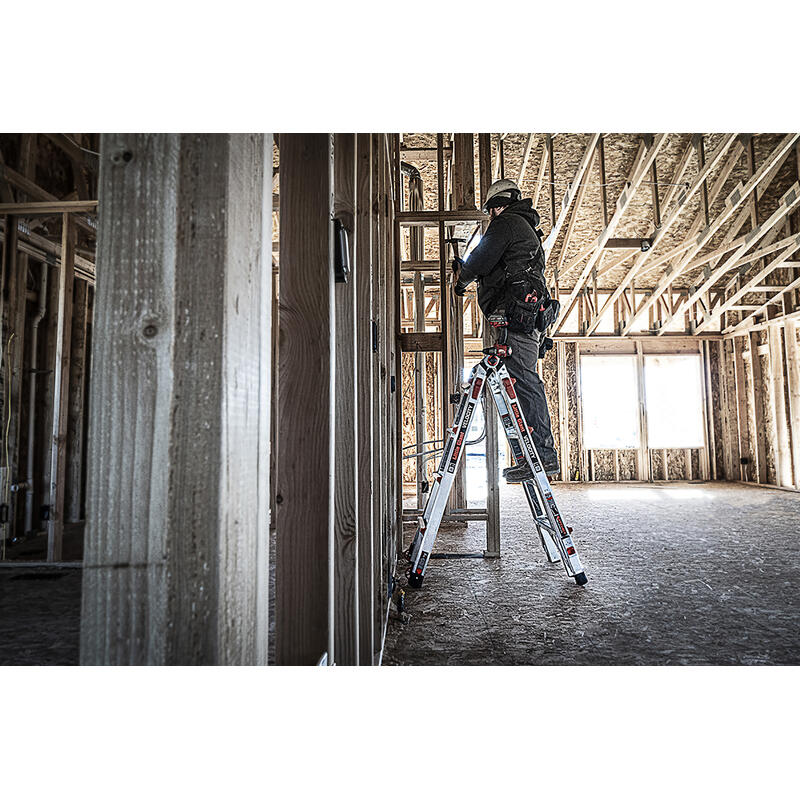

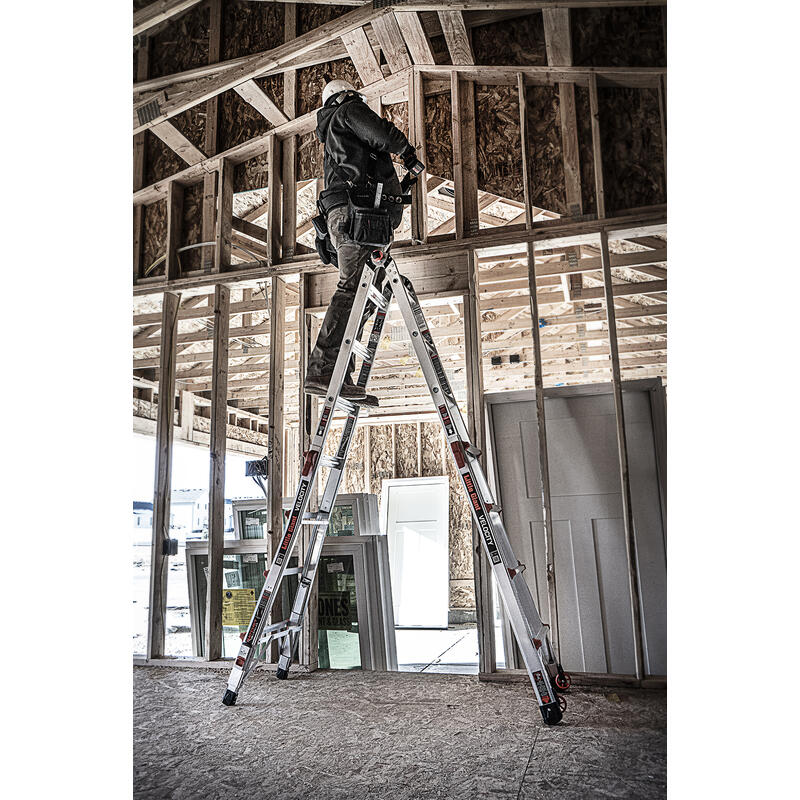

The best part about the Little Giant multi-position ladders is that it accomplishes multiple tasks with one ladder. Set up the Dark Horse in A-frame, extension, 90-degree, staircase and trestle-and-plank* positions, for a versatile, easy climbing experience.

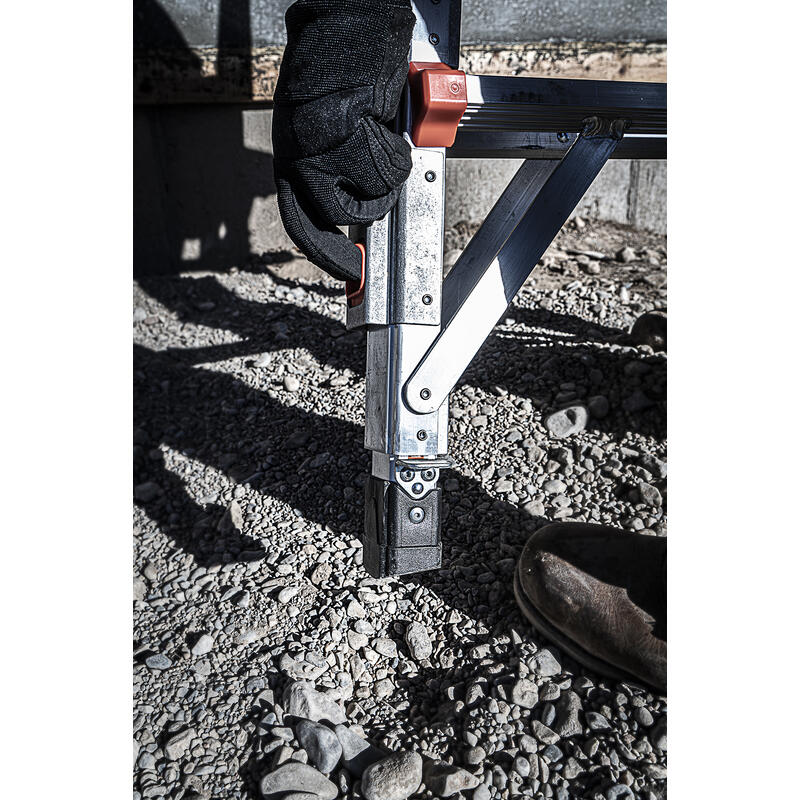

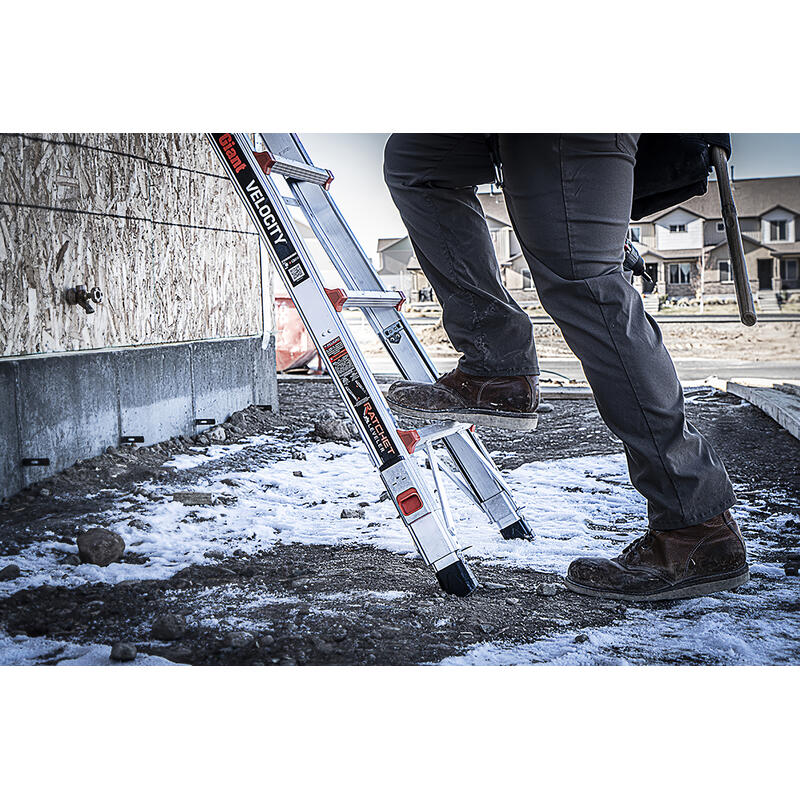

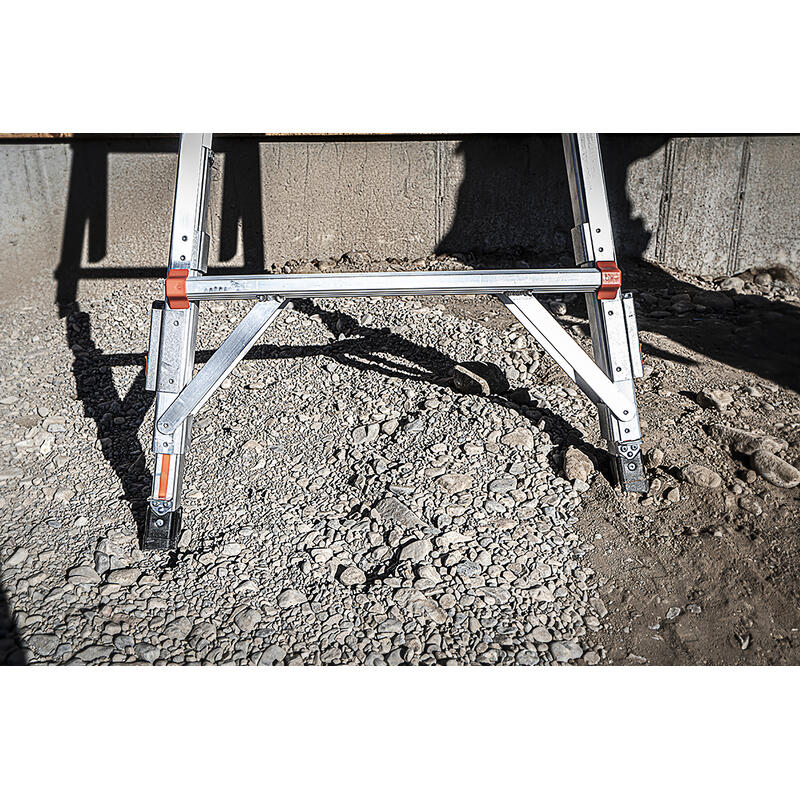

Ratchet™ Levelers

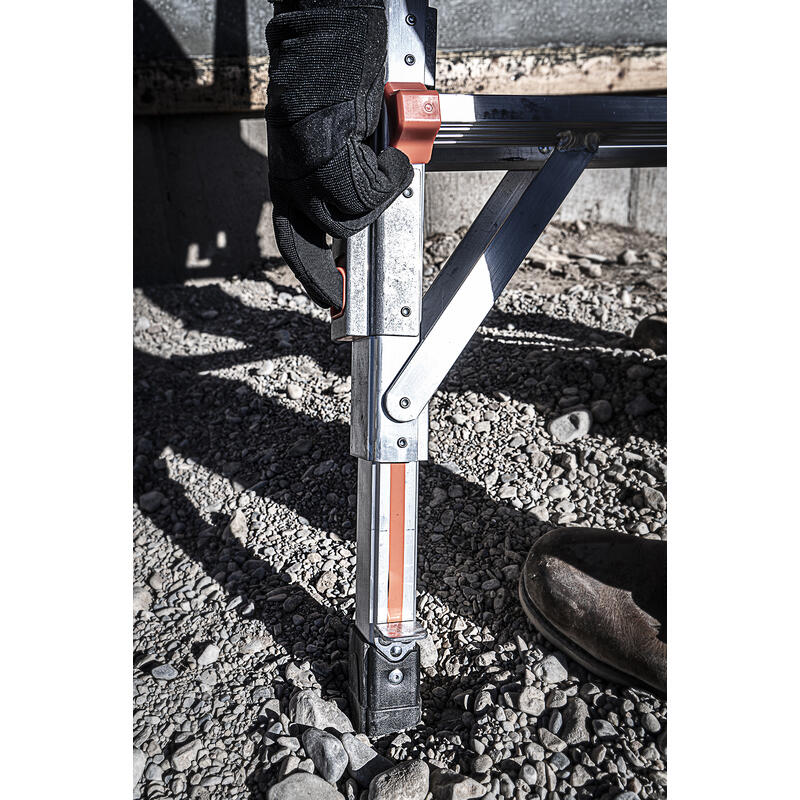

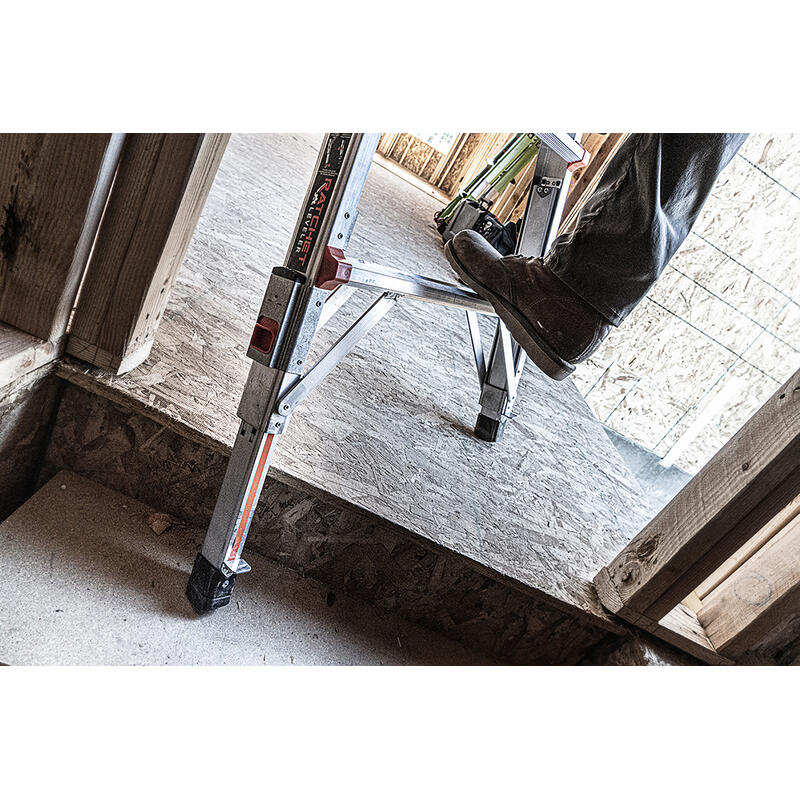

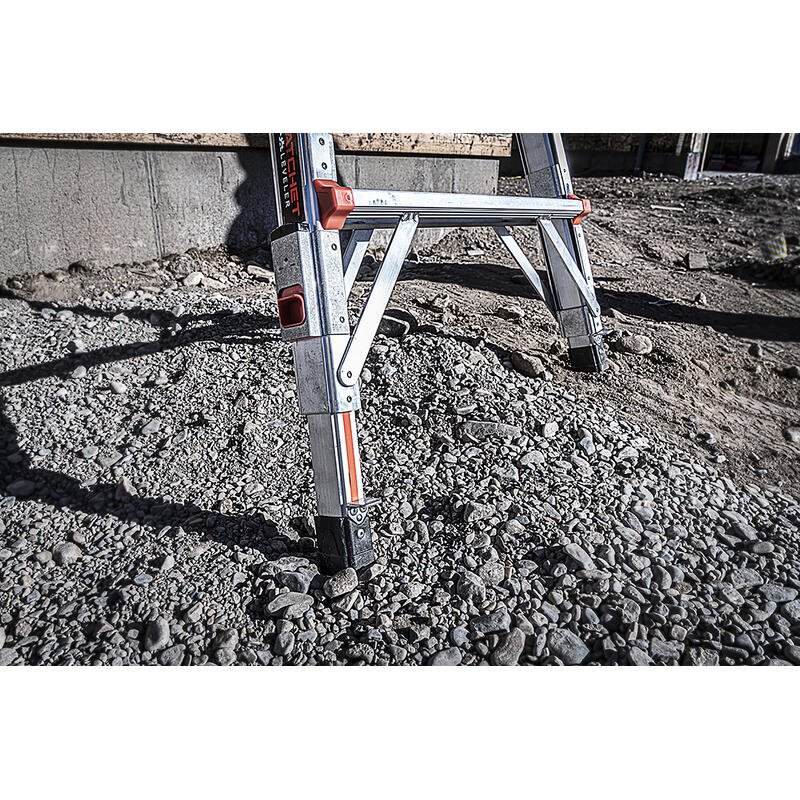

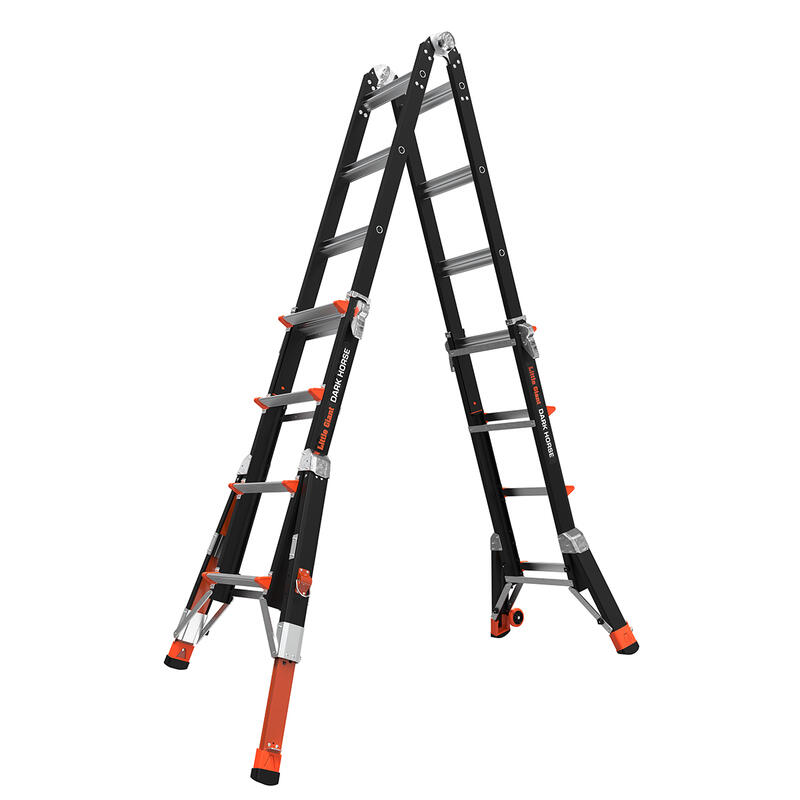

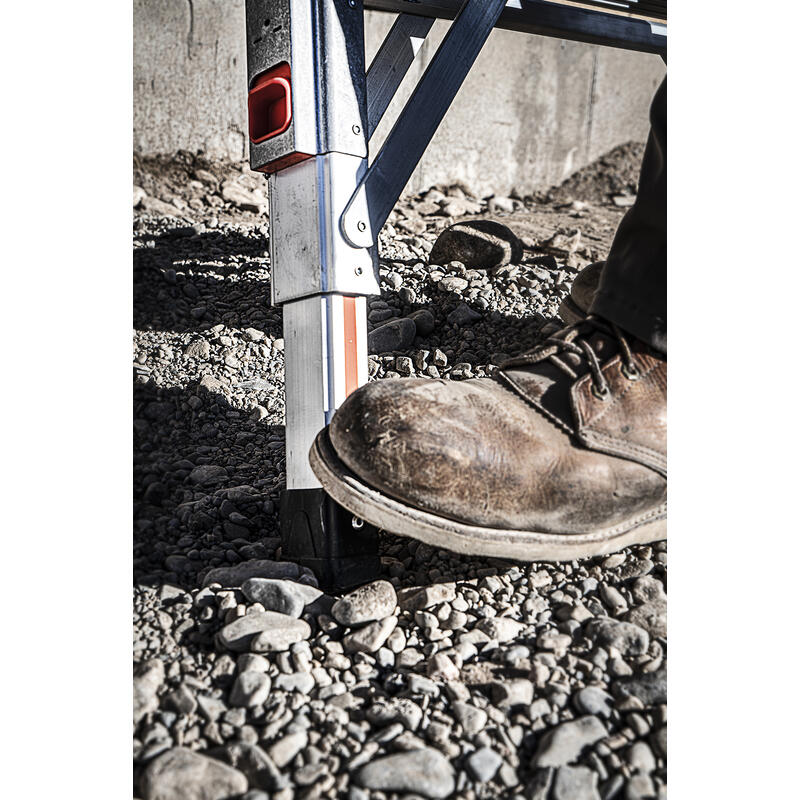

Not every worksite has level ground. With the optional Ratchet™ levelers, you can ensure that your ladder is stable before you start climbing.



Non-Conductive Fiberglass Ladder with Side-Tip Stability

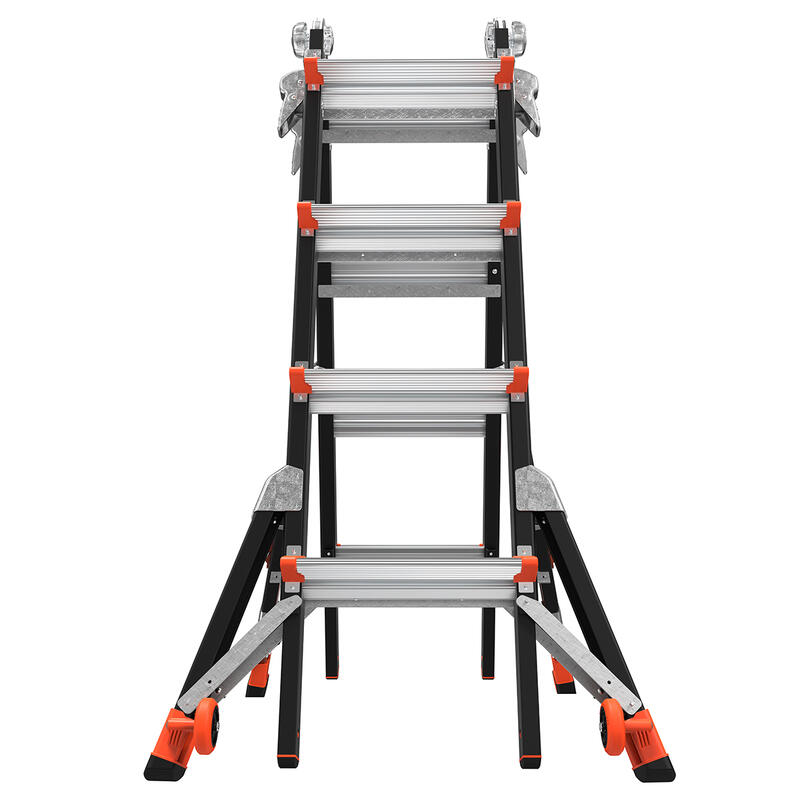

Made from durable, non-conductive fiberglass, this ladder is ideal for most jobs. It also features a wide-flared base for increased side-tip stability to prevent falls from accidental overreaching.



Other Benefits

The Dark Horse meets or exceeds all OSHA and ANSI standards. It is available as a IA 300 lb. rated ladder, and it is also available as a 13’ IAA ladder rated to hold 375 lbs.



*Plank not included

Specifications
Product Category Dark Horse
Extension Lock Cast Aluminum Rock Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IA - Extra Heavy Duty
Feet Standard non-marring (snap-on)

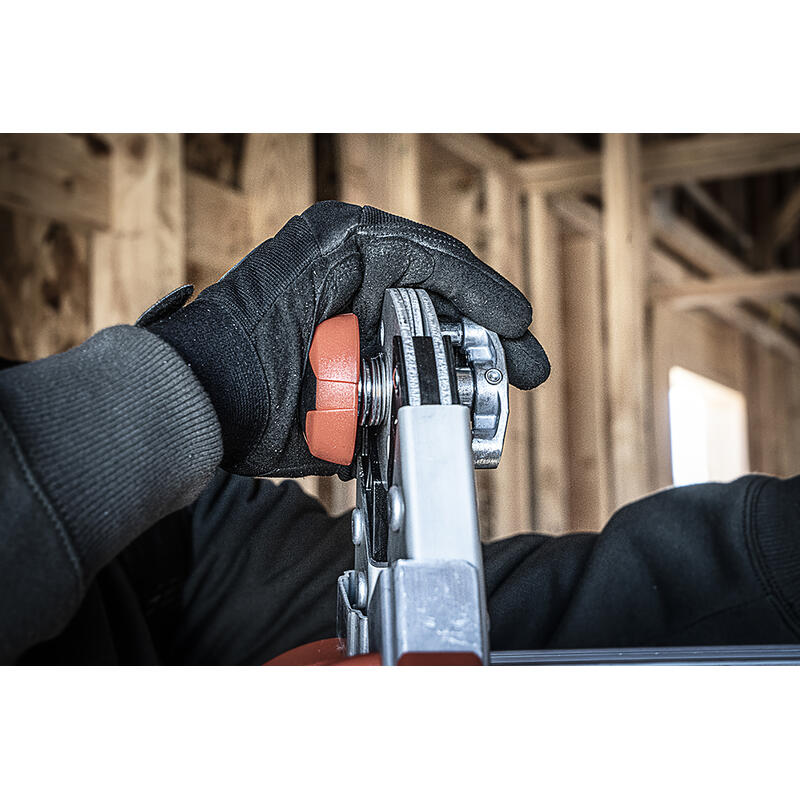

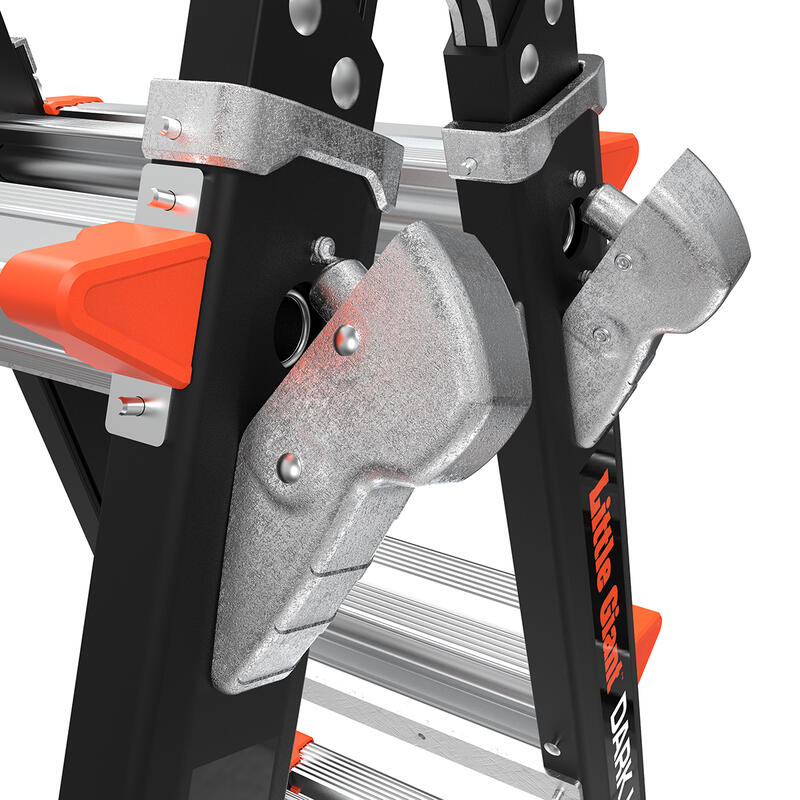

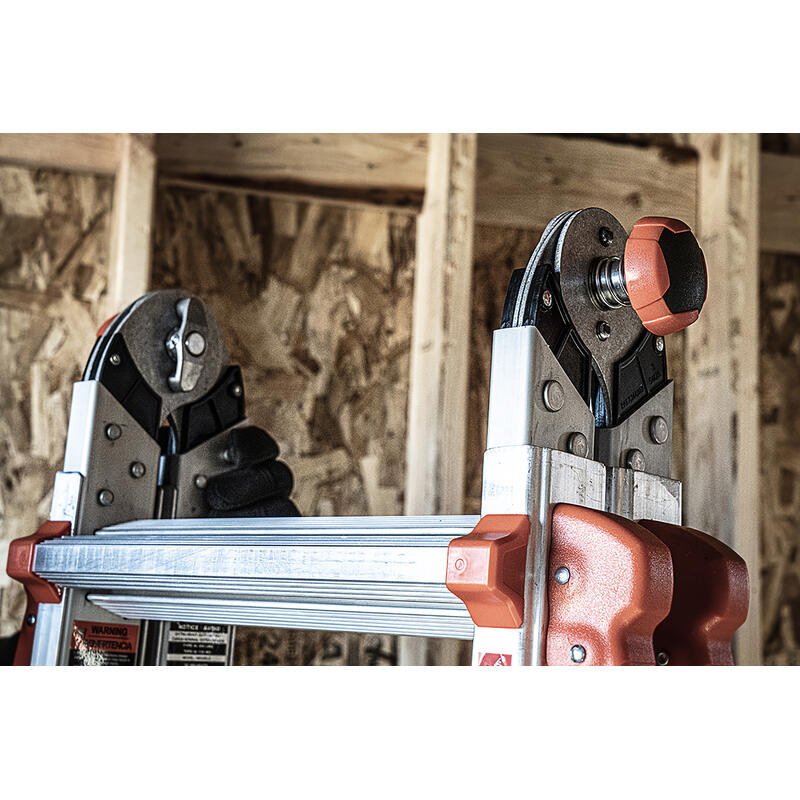

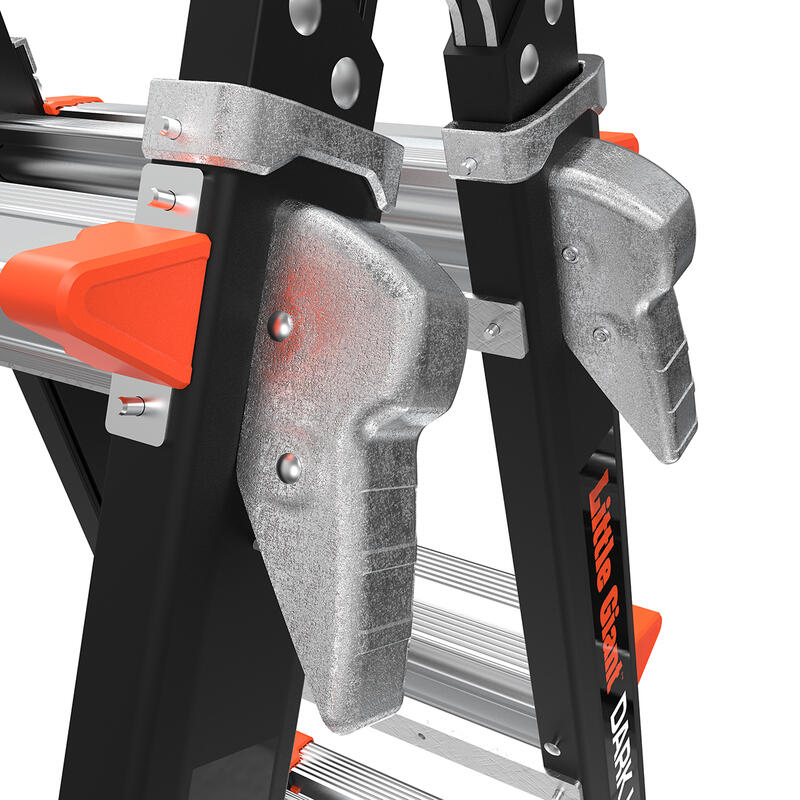

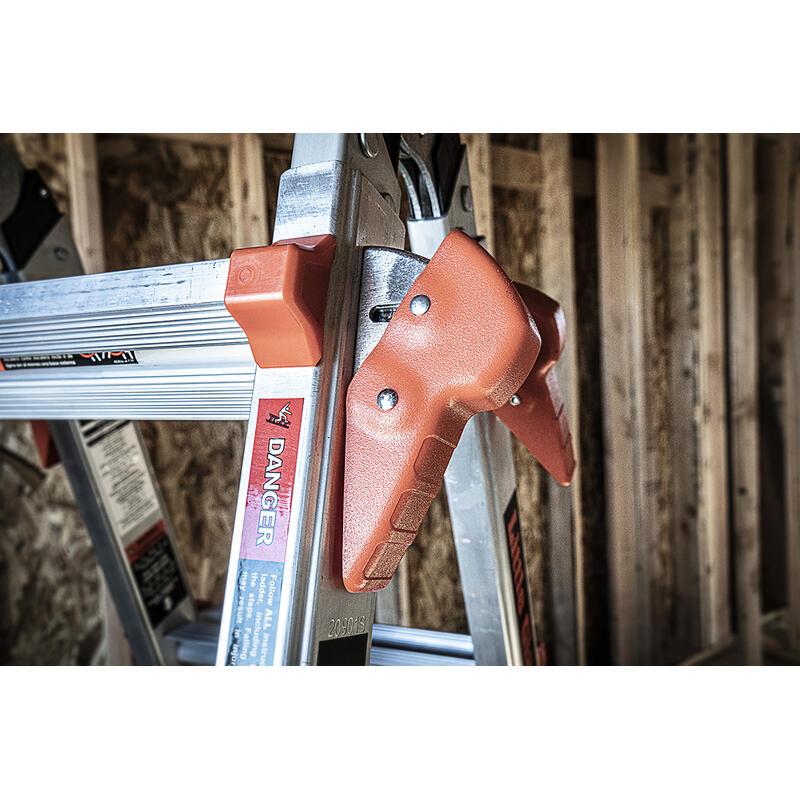

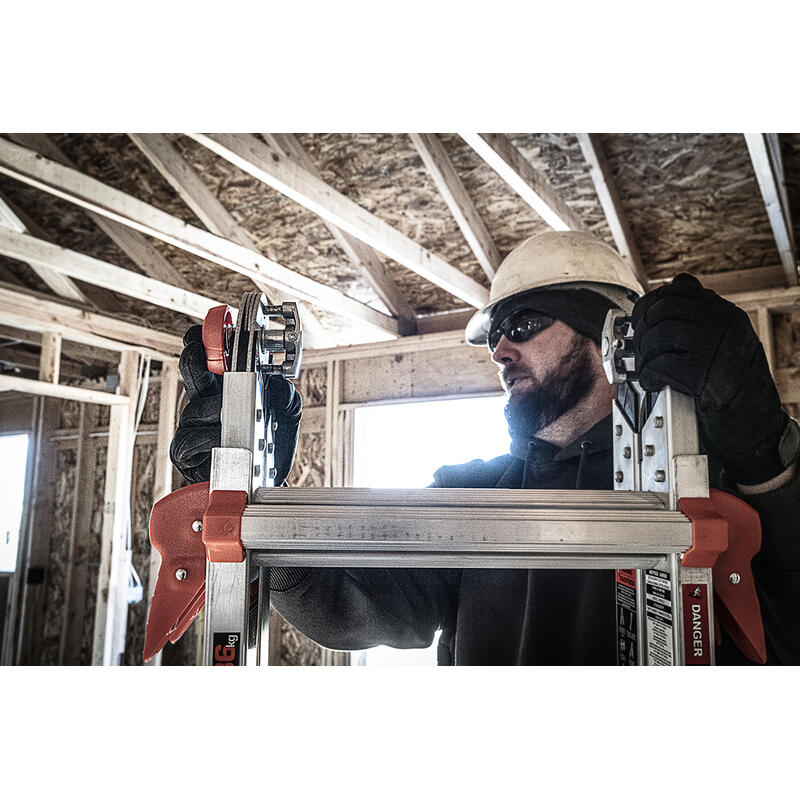

Hinge Lock Cast Aluminum / Triple Locking Hinge
Material Fiberglass
Load Capacity 300 lbs.
Spreader System Hinge Lock
Ladder Type Telescoping - Articulated
Warranty 1-Year
Size 9' - 15' 2.74 m - 4.57 m
Inside Clear Width 1 ft. 32 cm

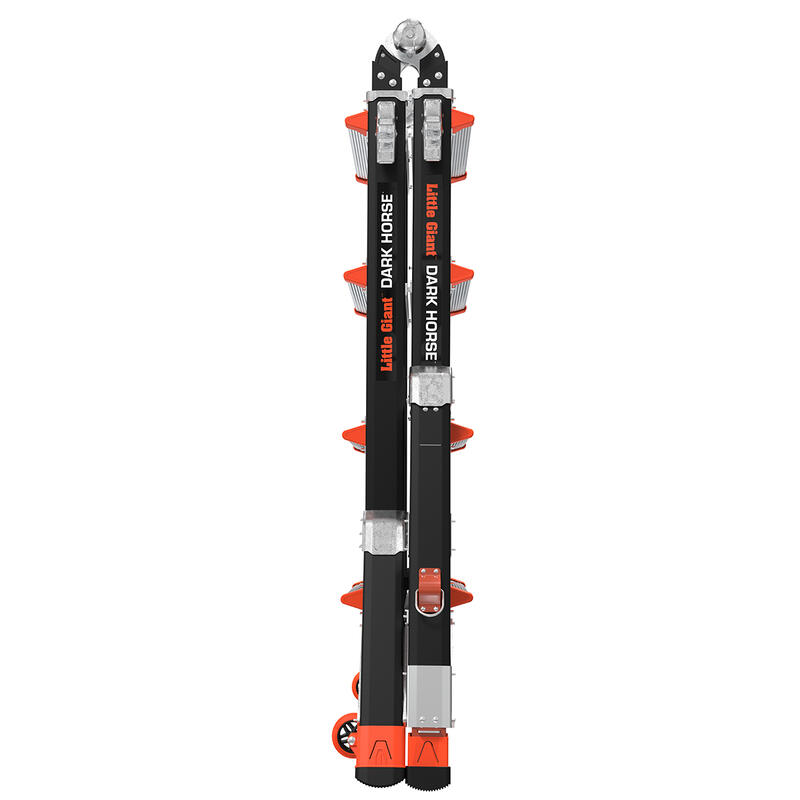

Storage Height 4 ft. 7 in. 1.40 m
Storage Width at Base 2 ft. 5 in. 74 cm
Storage Depth 10 in. 25 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 3 in. 10 cm
Top Width 1 ft. 5 in. 45 cm
Product Weight 51 lbs. 23.13 kg
Features
Scaffolding Position Yes

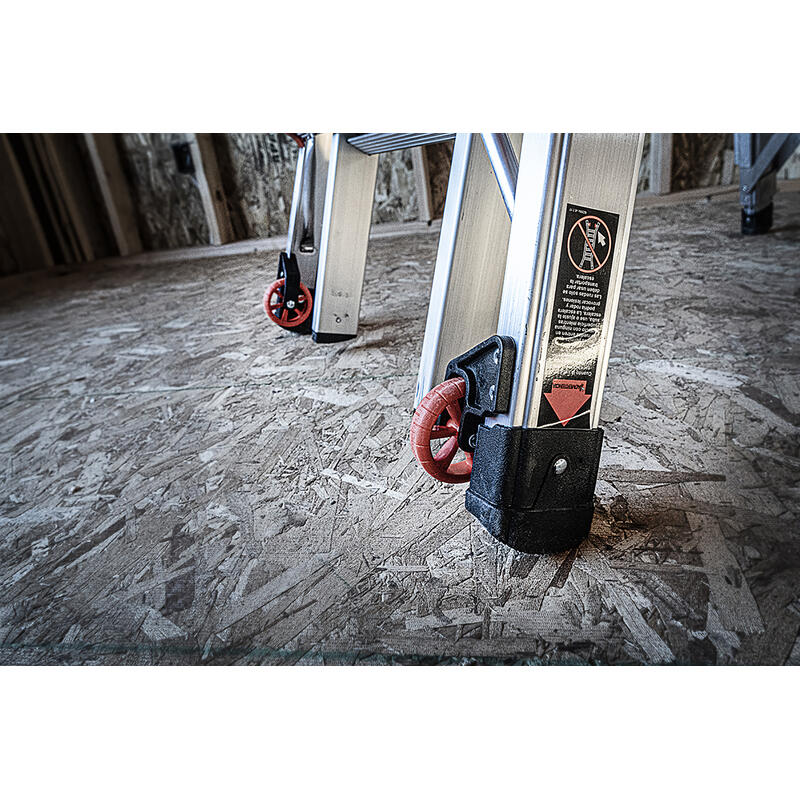

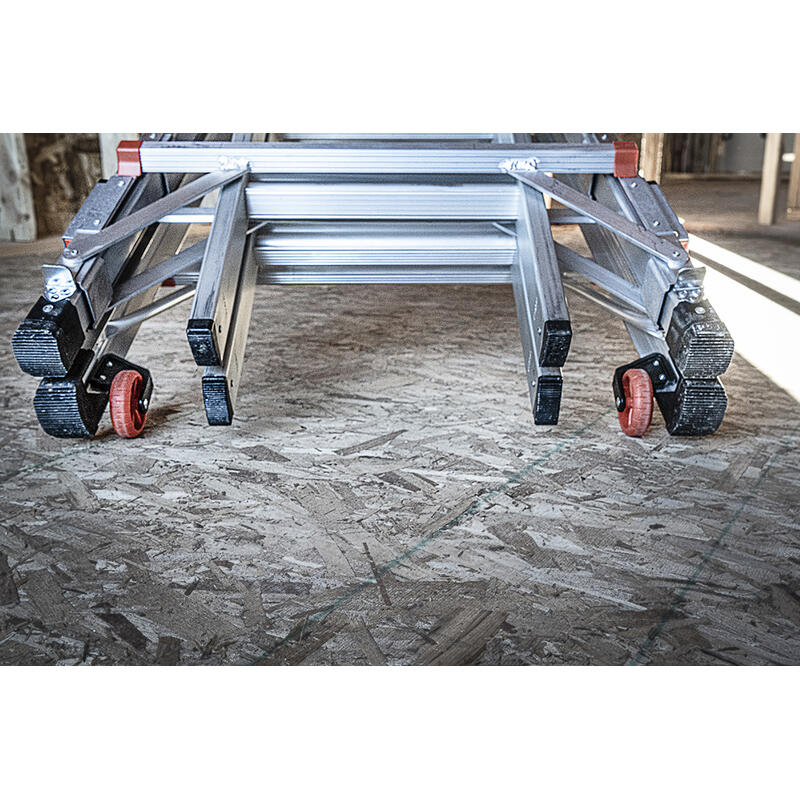

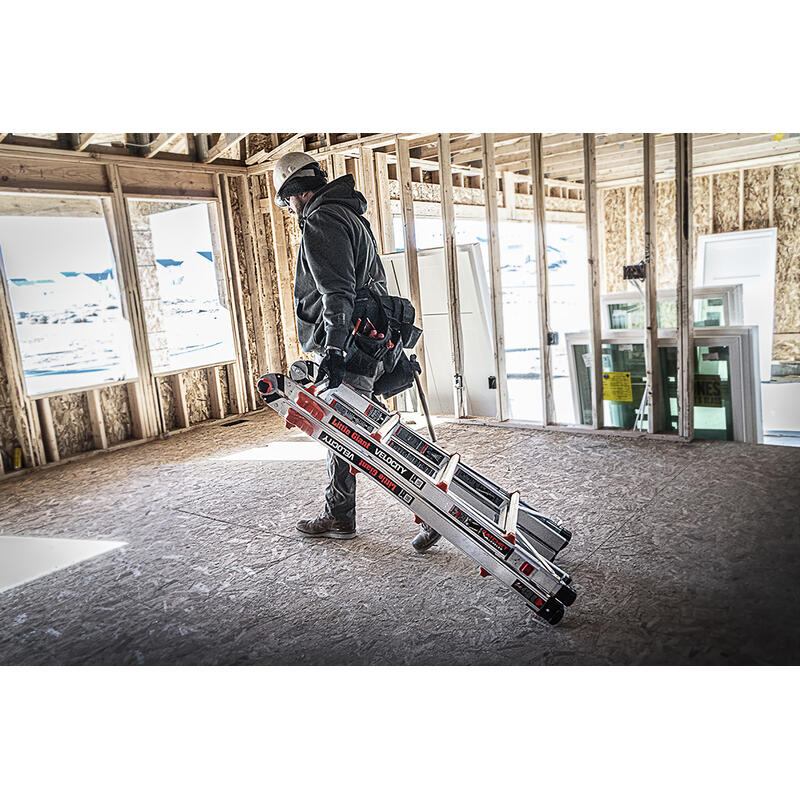

Tip-N-Glide Wheels Yes
90° Position Yes
Shipping
Freight Class 110 - Ladders and/or Accessories
Ship Length 56" 4' 8"
Ship Width 29" 2' 5"
Ship Height 10" 10"
Ship Weight 56.7 lbs.
HTS Code 3926.90.9930
Step Ladder
Stepladder Size 4' 6" - 7' 6" 1.37 m - 2.29 m
Highest standing level Max 4 ft. 10 in. 1.47 m
Highest standing level Min 1 ft. 11 in. 60 cm
Maximum Footprint 5 ft. 2 in. 1.57 m
Minimum Footprint 3 ft. 4 in. 1.02 m
Max Reach 11 ft. 4 in. 3.45 m

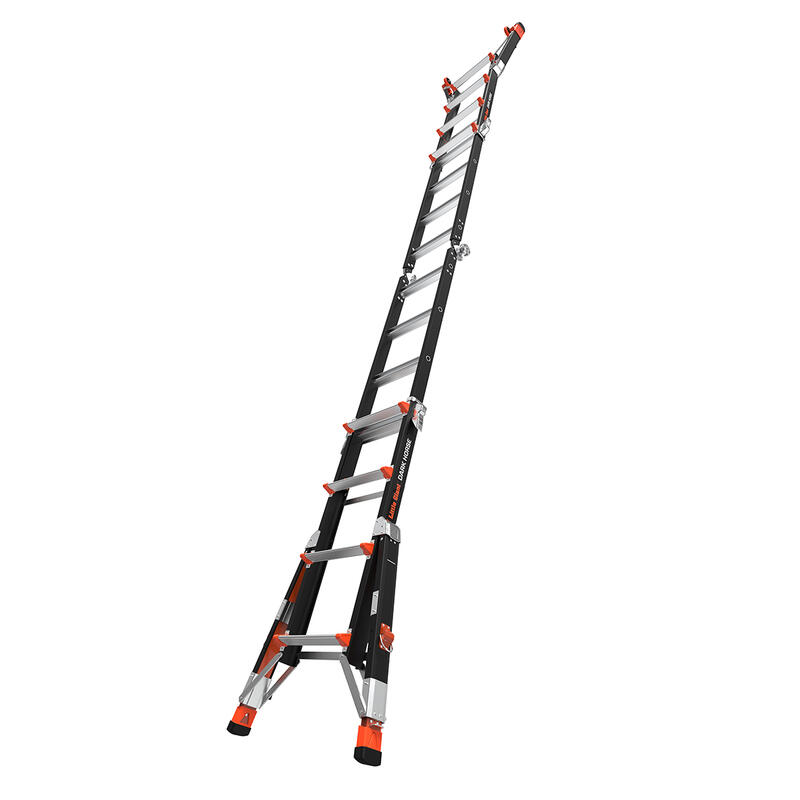

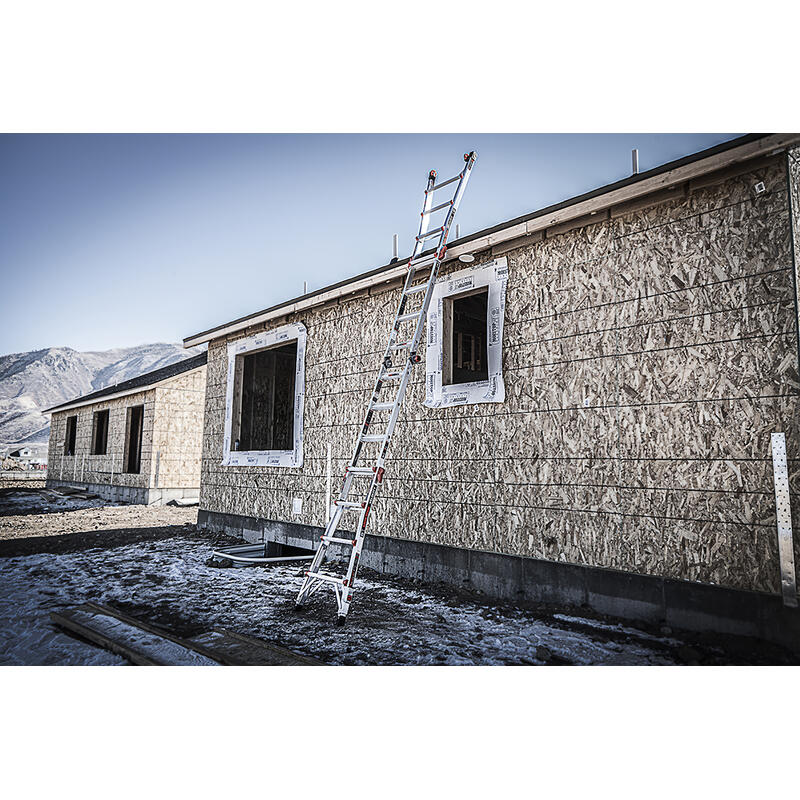

Single / Extension
Extension Total Length of Sections 17 ft. 2 in. 5.23 m
Extension Max Reach 18 ft. 1 in. 5.51 m
Single / Extension Highest Standing Level Max 11 ft. 7 in. 3.53 m
Single / Extension Highest Standing Level Min 5 ft. 9 in. 1.75 m
Single / Extension Max Working Length 14 ft. 11 in. 4.55 m
Single / Extension Min Working Length 8 ft. 11 in. 2.72 m
