15296-001
Combo SXE

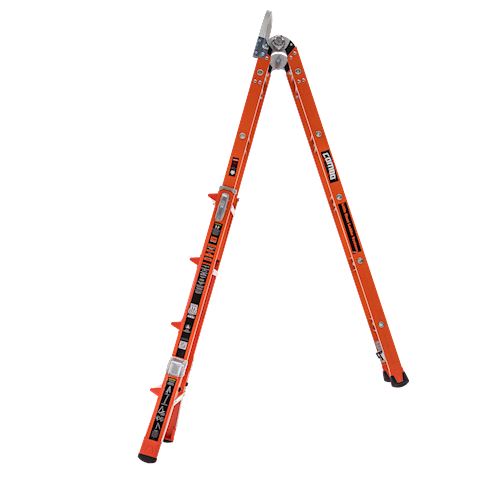

COMBO SXE, Model 13 - ANSI Type IAA - 375 lb rated, fiberglass articulated extendable ladder with V-rung

Dowload Specsheet
Download Media Package

No manuals have been assigned to this product

  • Model Number: 10104 - Work Platform
  • Model Number: 10104V - EPIC STEP, 375 lb capacity, accessory for articulated extendable ladders
  • Model Number: 10111 - WingSpan Wall Standoff
  • Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, accessories for articulated extendable ladders
  • Model Number: 10160-001 - QUANTUM STEP platform, 300 lb capacity, accessory for articulated extendable ladders
  • Model Number: 15012 - Project Tray
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15086-001 - Accessory pack, QUANTUM STEP platform and FUEL TANK vertical paint tray
  • Model Number: 15087 - Accessory pack, Work Platform and Project Tray, accessories for articulated extendable ladders
  • Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
  • Model Number: 15097 - Ladder Rack
  • Constructed of nonconductive, high-strength, lightweight fiberglass
  • Fully articulating and telescoping combination ladder, the only one of its kind
  • Provides versatile, strong yet lightweight climbing solution for dozens of applications

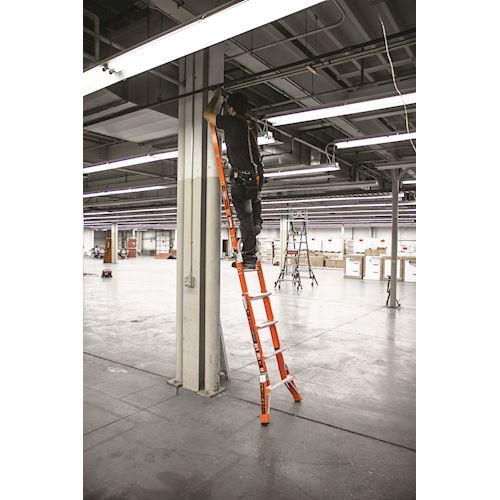

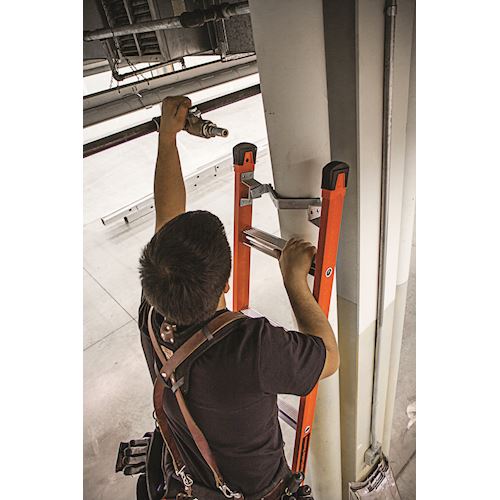

  • Straight side allows operator access to wall or ceiling trusses and roof or attic access ports

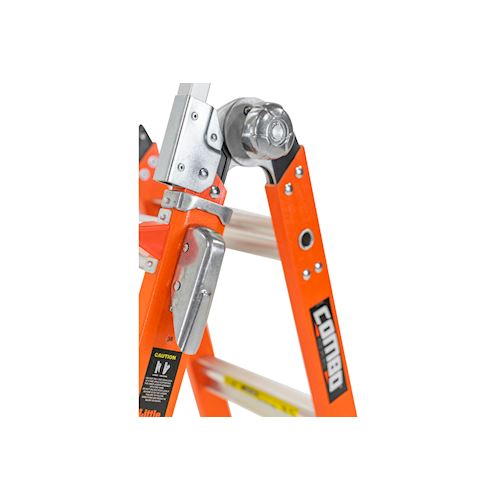

  • Triple-Locking™ hinge
  • Cast aluminum Rock Lock™ fasteners for easy adjustment

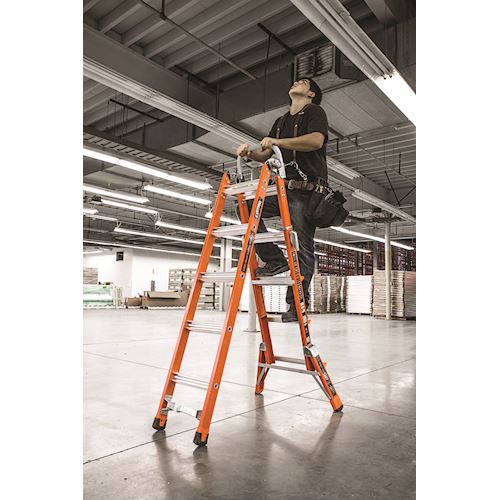

  • Two-sided, two-person stepladder

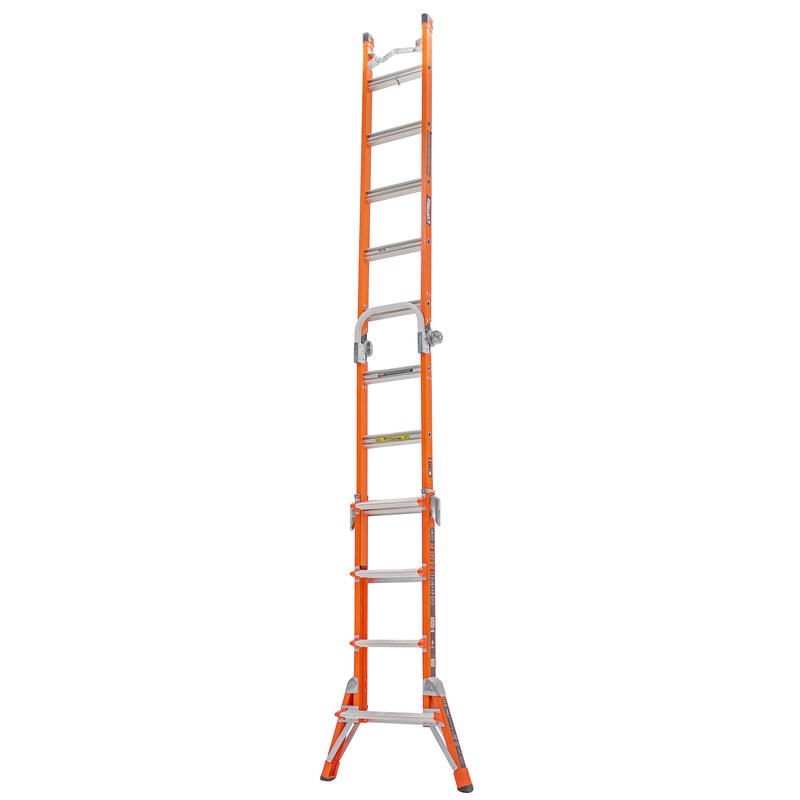

  • Adjustable wide-base extension ladder

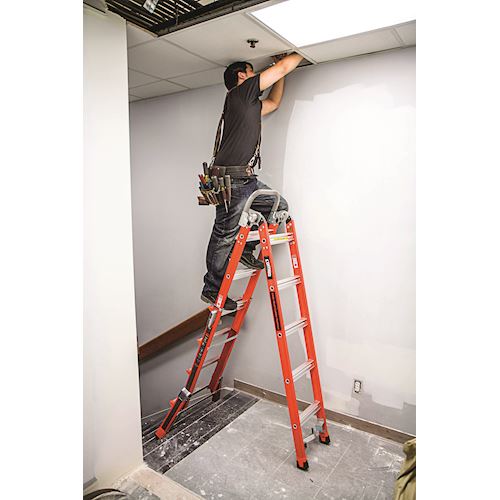

  • 90-degree position allows closer access to work surfaces
  • Independently adjusting sides allow for use on stairs and uneven surfaces

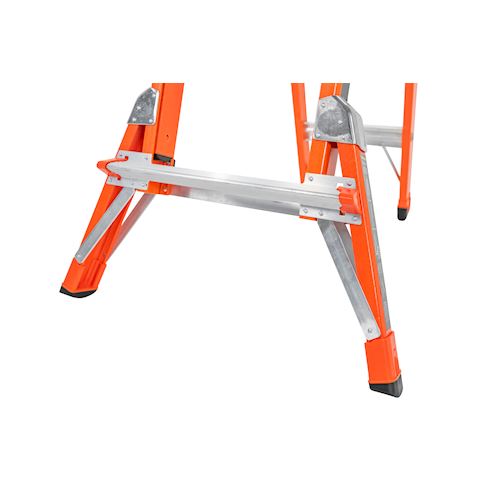

  • Wide-flared side offers side-tip stability

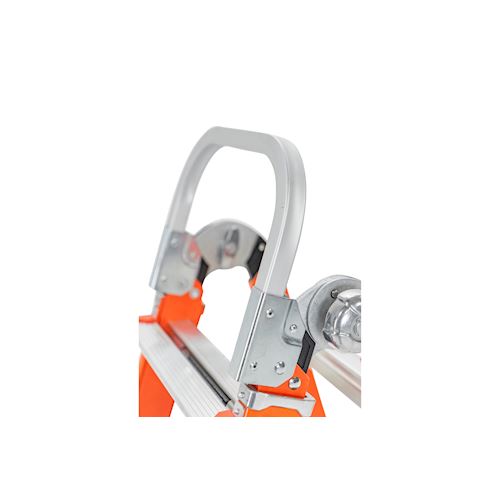

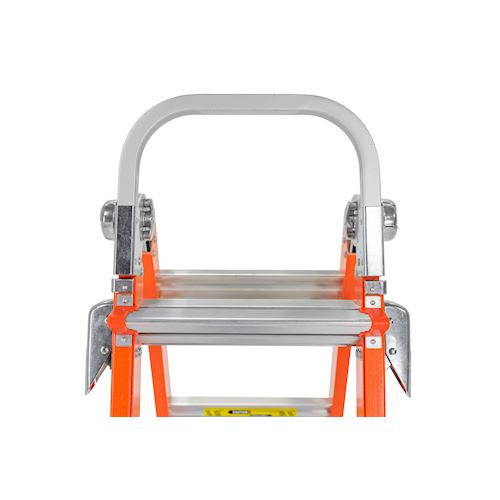

  • Handrail / kneebar for stability and easy adjustment
  • Rail shield bracket and shoe protects fiberglass rails from damage and weather
  • Co-molded nonslip rubber wall pads protect working surfaces and provide superior stability
  • Co-molded snap on feet
  • Weather-resistant UV-inhibiting compound in fiberglass resin for extended outdoor use
  • Meets or exceeds all OSHA and ANSI standards for safety
  • 1-year limited warranty
  • ANSI-rated IAA 375-lbs rating
  • Available in a M12 or M13
Specifications
Product Category Combo SXE
Extension Lock Cast Aluminum Rock Locks
Country Assembled China
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Standard non-marring (snap-on)
Hinge Lock Cast Aluminum / Triple Locking Hinge
Material Fiberglass
Load Capacity 375 lbs.
90° Ladder Yes
Scaffolding Position No
Spreader System Hinge Lock
Tip-N-Glide Wheels No
Ladder Type Telescoping - Articulated
Warranty 1-Year
Size 10' - 13' 3.05 m - 3.96 m
Inside Clear Width 1 ft. 32 cm

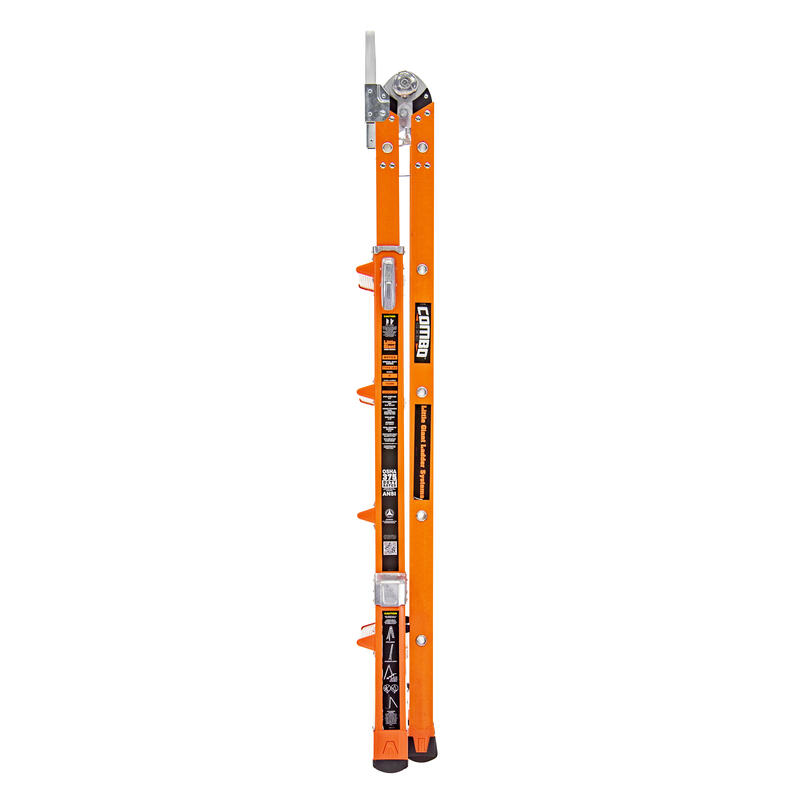

Storage Height 6 ft. 1.83 m
Storage Width at Base 2 ft. 5 in. 74 cm
Storage Depth 8 in. 20 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 10 cm
Top Width 1 ft. 5 in. 45 cm
Product Weight 33 Lbs.
Shipping
Freight Class 250 - Ladders and/or Accessories
Ship Length 73"
Ship Width 30"
Ship Height 8"
Ship Weight 40 Lbs.
HTS Code 3926.90.9930
Step Ladder
Highest standing level Max 3 ft. 10 in. 1.17 m
Highest standing level Min 3 ft. 10 in. 1.17 m
Maximum Footprint 4 ft. 1.22 m
Minimum Footprint 4 ft. 1.22 m
Max Reach 10 ft. 4 in. 3.15 m
Single / Extension
Extension Total Length of Sections 12 ft. 6 in. 3.81 m
Extension Max Reach 16 ft. 3 in. 4.95 m
Single / Extension Highest Standing Level Max 9 ft. 9 in. 2.97 m
Single / Extension Max Working Length 12 ft. 3.66 m
