15610-192
Lunar

LUNAR, 28' - ANSI Type IA - 300 lb rated, fiberglass extension ladder with cable hooks, V-rung and center pulley

Dowload Specsheet
Download Media Package

Lunar Extension Type IA

The Lunar extension ladder with Litewave™ technology is the lightest non-conductive fiberglass extension ladder in the world. The Lunar is rated for extra heavy duty use (Type IA – 300 lbs) and is available in 20, 24, and 28-foot models. The Lunar is the only extension ladder in the world constructed with Little Giant’s unique Litewave black resin-fiberglass composite rail technology, resulting in an industrial-strength ladder that weighs as much as 30% less than ordinary extension ladders. Also, Lunar’s exclusive black resin-fiberglass rails resist fading from UV damage longer than any comparable materials.



Lunar Extension Type IAA

The Lunar extension ladder with Litewave™ technology is the lightest non-conductive fiberglass extension ladder in the world. The Lunar is rated for special duty use (Type IAA – 375 lbs) and is available in 20, 24, and 28-foot models. The Lunar is the only extension ladder in the world constructed with Little Giant’s unique Litewave black resin-fiberglass composite rail technology, resulting in an industrial-strength ladder that weighs as much as 30% less than ordinary extension ladders. Also, Lunar’s exclusive black resin-fiberglass rails resist fading from UV damage longer than any comparable materials.



Specifications
Product Category Lunar
Extension Lock Rung Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IA - Extra Heavy Duty
Feet Standard pick foot
Hinge Lock None
Material Fiberglass
Load Capacity 300 lbs.
Spreader System None
Ladder Type Extension
Warranty 1-Year
Size 28' 8.53 m
Storage Height 14 ft. 7 in. 4.45 m
Storage Width at Base 1 ft. 6 in. 46 cm
Storage Depth 7 in. 18 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 11 cm
Product Weight 60 lbs. 27.21 kg
Features
Scaffolding Position No
Tip-N-Glide Wheels No
90° Position No
Shipping
Freight Class 300 - AL and/or FG Ladder
Ship Length 177"
Ship Width 22"
Ship Height 7"
Ship Weight 65 lbs.
HTS Code 3926.90.9930
Single / Extension
Extension Total Length of Sections 27 ft. 11 in. 8.51 m
Extension Max Reach 27 ft. 5 in. 8.36 m
Single / Extension Highest Standing Level Max 20 ft. 11 in. 6.38 m
Single / Extension Max Working Length 25 ft. 7.62 m


Customers who bought this item also bought

15130-001D Hero Image
15130-001D

SELECT STEP, 5'-8' model - ANSI Type IAA - 375 lb rated, fiberglass adjustabl...

15144-186 Hero Image
15144-186

CONQUEST, Model 17 - ANSI Type IA - 300 lb rated, fiberglass articulated exte...

15234-001D Hero Image
15234-001D

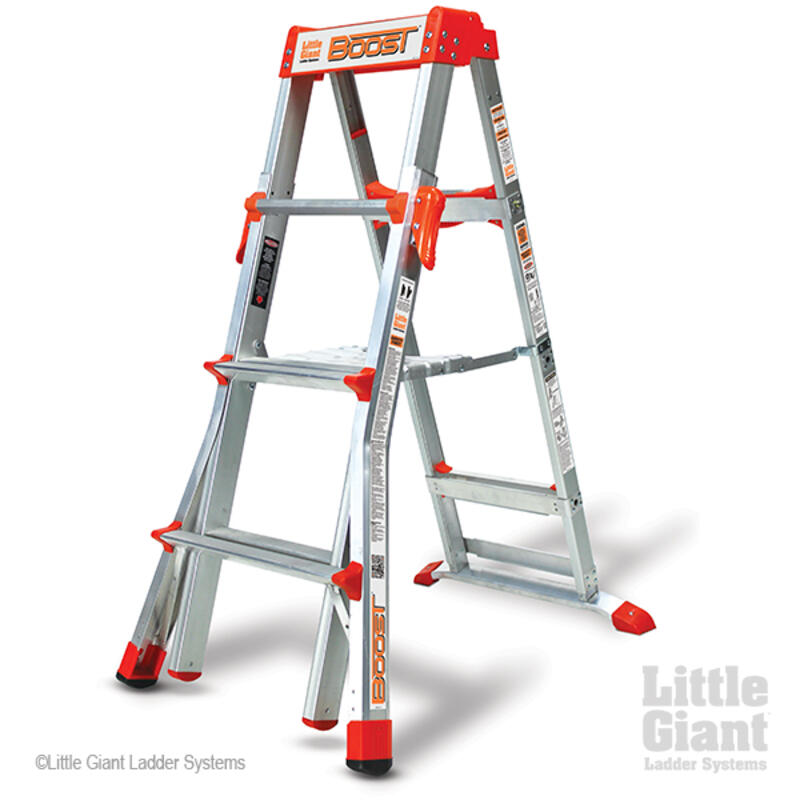

BOOST, 4'-6' ALUMINUM LADDER, TYPE IA - BROWN BOX
