15786-303
DS-XL Double-Sided

DS-XL, 6' model - ANSI Type IAA - 375 lb rated, double-sided fiberglass stepladder

Download Media Package

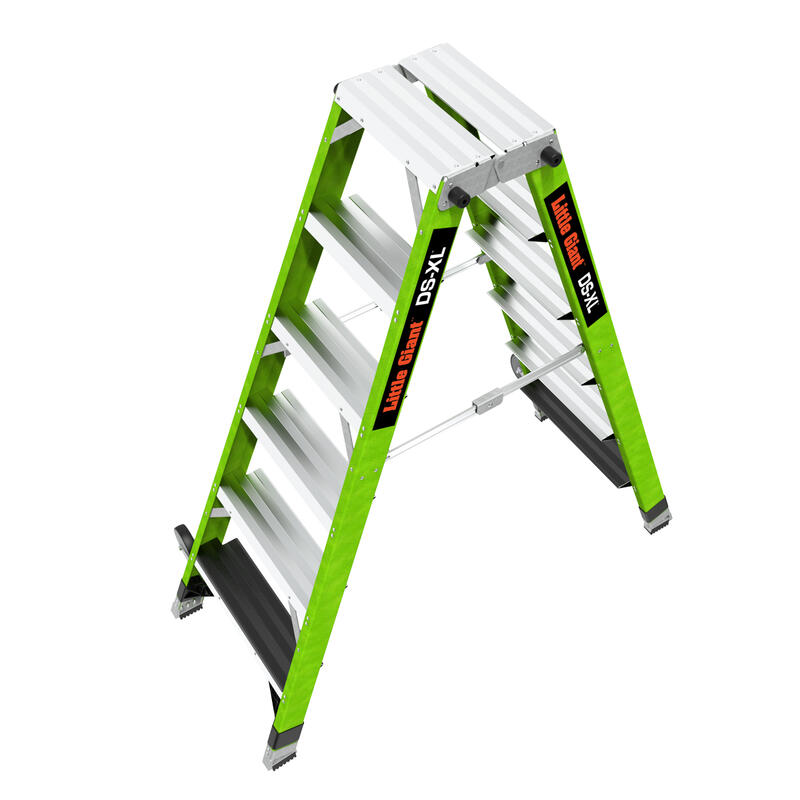

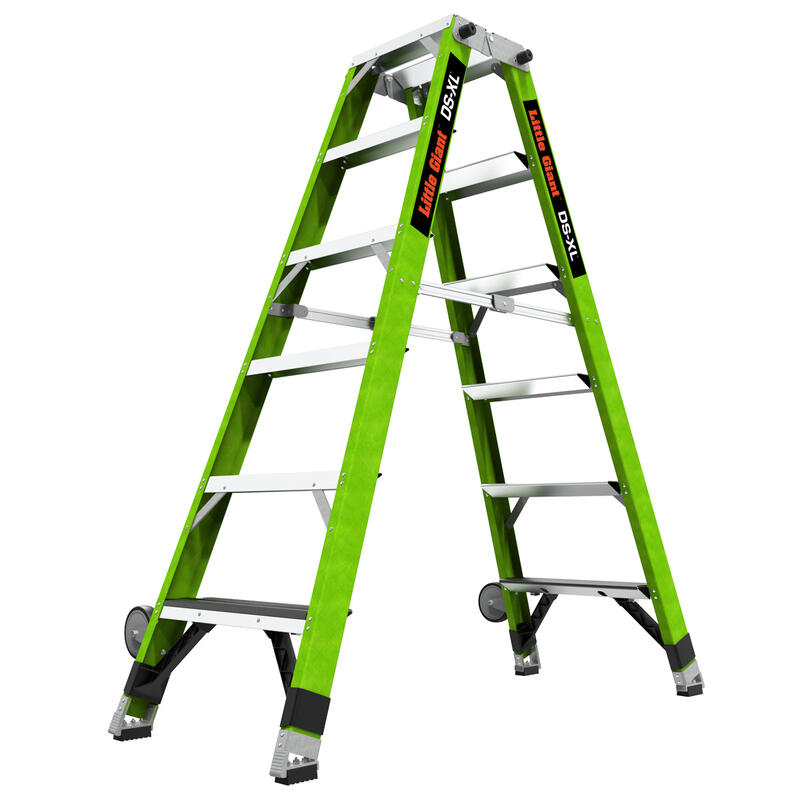

DS-XL™



Double-Sided Hi-Viz Green Stepladder

The DS-XL™ is designed as a true two-person stepladder. With its wide steps, both users will feel comfortable while working atop the ladder. Made with Hi-Viz Green fiberglass, the ladder is non-conductive, and the color promotes safety, as it is the most visible color to the human eye.



Shock Absorbing

When you’re transporting a ladder, it can be easy to accidentally damage it. To help keep your ladder in optimal condition, we made it more shock-absorbent. With shock-absorbing rail shields and leg braces, the ladder has increased durability. Rubber impact bumpers protect the ladder’s fiberglass from damage in the event of tipping during transit.



Benefits

As a two-person ladder, the DS-XL is equipped with double-sided Ground Cue®, which helps keep the users safe while descending the ladder. With an audible “click” on the bottom step of each side of the ladder, you will always be sure that you have safely reached the ground before stepping off. Equipped with Tip & Glide™ wheels, this ladder has improved mobility when transporting it from place to place.



Specs.

The DS-XL meets or exceeds all OSHA and ANSI standards, and with a Type IAA rating, it is certified to hold 375 lbs. on both sides. It is available in 6’ and 8’ models.



Specifications
Product Category DS-XL Double-Sided
Extension Lock None
Country Assembled China
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Permanent foot with replaceable pad
Hinge Lock None
Material Fiberglass
Load Capacity 375 lbs.
90° Ladder No
Scaffolding Position No
Spreader System None
Tip-N-Glide Wheels Yes
Ladder Type Double-Sided A-Frame
Warranty 1-Year
Size 6' 1.83 m
Storage Height 6 ft. 2 in. 1.88 m
Storage Width at Base 2 ft. 61 cm
Storage Depth 10 in. 27 cm
Inner Rung Depth 5 in. 13 cm
Shipping
Freight Class 250 - Ladders and/or Accessories
Ship Length 75"
Ship Width 24½"
Ship Height 11"
Ship Weight 44 Lbs.
HTS Code 3926.90.9930
Step Ladder
Highest standing level Max 3 ft. 9 in. 1.16 m
Highest standing level Min 3 ft. 9 in. 1.16 m
Maximum Footprint 5 ft. 1.52 m
Minimum Footprint 5 ft. 1.52 m
Max Reach 10 ft. 3 in. 3.14 m
