16324-246
Lunar

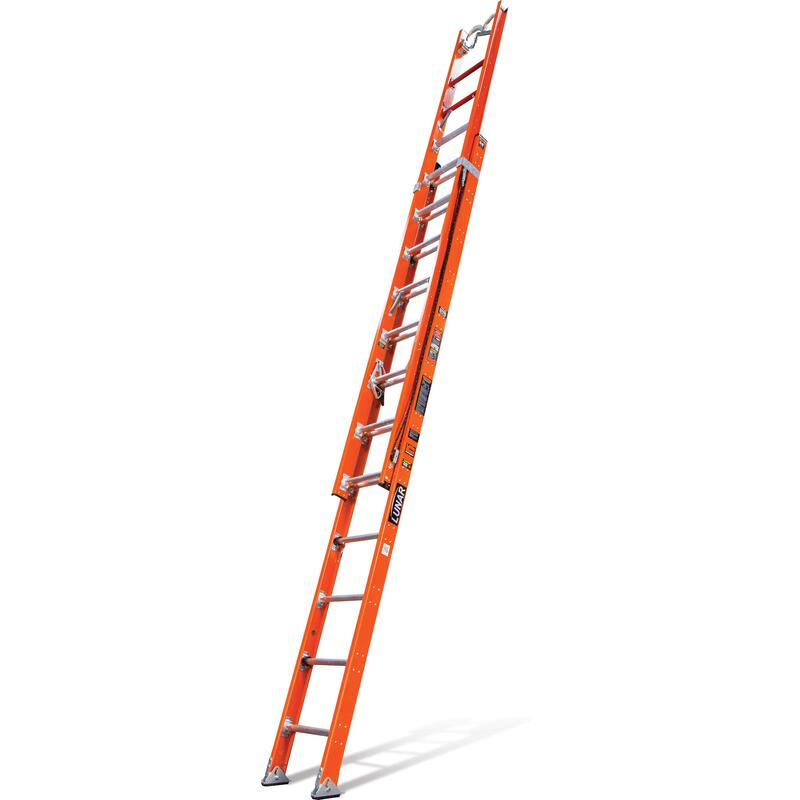

LUNAR, 24' - ANSI Type IAA - 375 lb Rated, Fiberglass Extension Ladder with all D-rung, Pole Strap and RATCHET Levelers

Dowload Specsheet
Download Media Package
Download Notice Label

Lunar Extension Type IA

The Lunar extension ladder with Litewave™ technology is the lightest non-conductive fiberglass extension ladder in the world. The Lunar is rated for extra heavy duty use (Type IA – 300 lbs) and is available in 20, 24, and 28-foot models. The Lunar is the only extension ladder in the world constructed with Little Giant’s unique Litewave black resin-fiberglass composite rail technology, resulting in an industrial-strength ladder that weighs as much as 30% less than ordinary extension ladders. Also, Lunar’s exclusive black resin-fiberglass rails resist fading from UV damage longer than any comparable materials.



Lunar Extension Type IAA

The Lunar extension ladder with Litewave™ technology is the lightest non-conductive fiberglass extension ladder in the world. The Lunar is rated for special duty use (Type IAA – 375 lbs) and is available in 20, 24, and 28-foot models. The Lunar is the only extension ladder in the world constructed with Little Giant’s unique Litewave black resin-fiberglass composite rail technology, resulting in an industrial-strength ladder that weighs as much as 30% less than ordinary extension ladders. Also, Lunar’s exclusive black resin-fiberglass rails resist fading from UV damage longer than any comparable materials.



Specifications
Product Category Lunar
Extension Lock Rung Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Standard pick foot
Hinge Lock None
Material Fiberglass
Load Capacity 375 lbs.
Spreader System None
Ladder Type Extension
Warranty 1-Year
Size 24' 7.32 m
Storage Height 12 ft. 8 in. 3.86 m
Storage Width at Base 1 ft. 10 in. 57 cm
Storage Depth 7 in. 18 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 11 cm
Product Weight 53 lbs. 24.04 kg
Features
Scaffolding Position No
Tip-N-Glide Wheels No
90° Position No
Shipping
Freight Class 300 - AL and/or FG Ladder
HTS Code 3926.90.9930
Single / Extension
Extension Total Length of Sections 24 ft. 7.32 m
Extension Max Reach 23 ft. 7 in. 7.19 m
Single / Extension Highest Standing Level Max 17 ft. 2 in. 5.23 m
Single / Extension Max Working Length 21 ft. 6.40 m


Customers who bought this item also bought

10310BAD Hero Image
10310BAD

SAFETY STEP, 3-Step Model - ANSI Type IA - 300 lb Rated, Aluminum Step Stool...

Little Giant Ladders Brand Image
12322D

XTREME, Model 22 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendab...

15125-001D Hero Image
15125-001D

SELECT STEP, 5'-8' Model - ANSI Type IA - 300 lb Rated, Aluminum Adjustable S...

14016-001D Hero Image
14016-001D

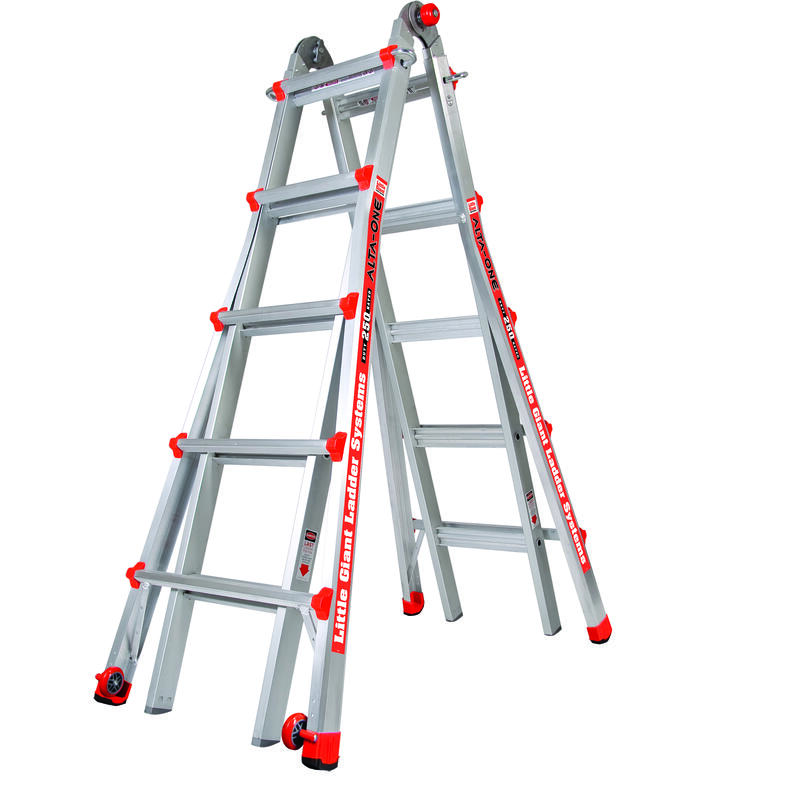

ALTA-ONE, Model 22 - ANSI Type I - 250 lb Rated, Aluminum Articulated Extenda...

15273-001D Hero Image
15273-001D

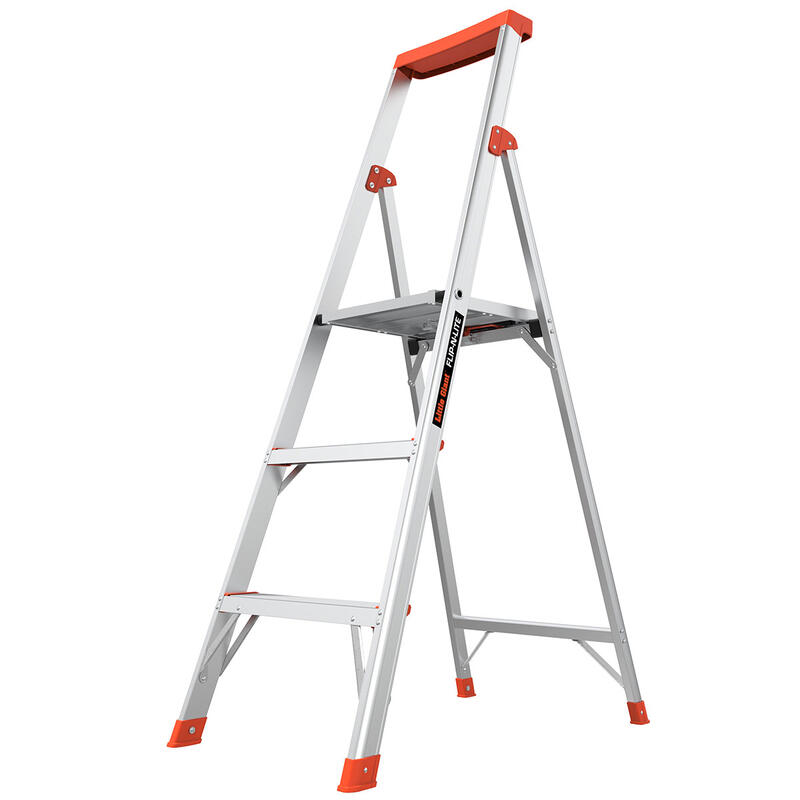

FLIP-N-LITE, 5' Model - ANSI Type IA - 300 lb Rated, Aluminum Stepladder
