17924-264
HyperLite

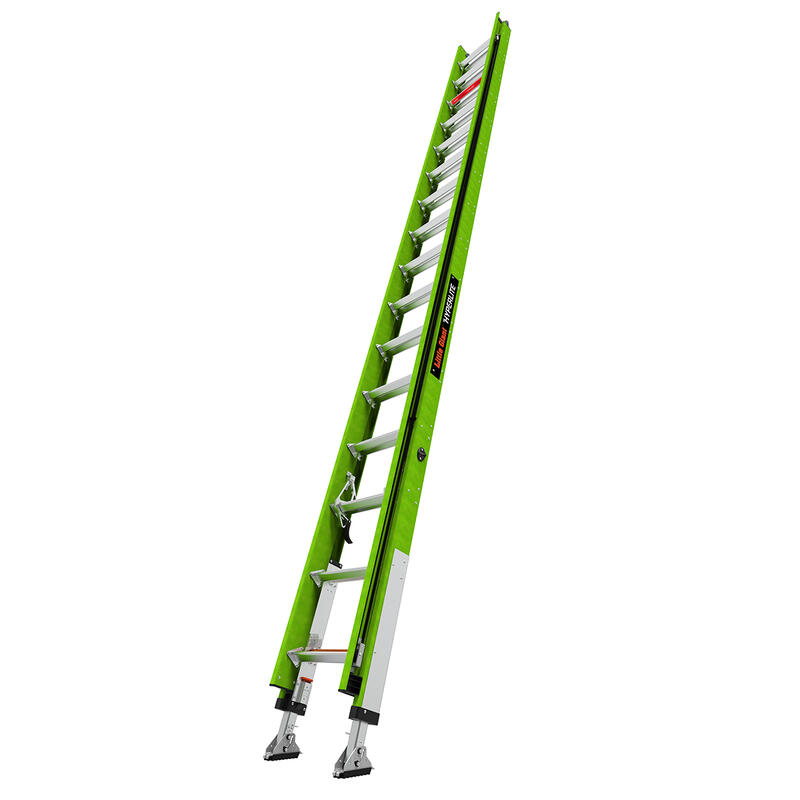

HYPERLITE, 24' - ANSI Type IAA - 375 lb rated, fiberglass extension ladder with RATCHET levelers

Dowload Specsheet
Download Media Package

  • Model Number: 11750 - PETZL ASAP accessory kit - ASAP Ascender and ASAP'SORBER - for HYPERLITE limited arrest system
  • Model Number: 11751 - PETZL ASAP accessory kit - ASAP Ascender and ASAP'SORBER, including top bag with stabilizer straps, and bottom bag with strap - for HYPERLITE pole-use limited arrest system
  • Model Number: 15083 - GROUND CUE accessory/replacement for HYPERLITE and SUMOSTANCE with HYPERLITE technology extension ladders
  • Model Number: 15097 - Ladder Rack
  • Model Number: 19103 - Wall pad accessory for HYPERLITE and SUMOSTANCE with HYPERLITE technology ladders
  • Model Number: 31855 - Replacement kit, bottom strap and bag for HYPERLITE and SUMOSTANCE with HYPERLITE technology ladders with limited arrest system
  • Model Number: 19103 - Wall pad accessory for HYPERLITE and SUMOSTANCE with HYPERLITE technology ladders

HyperLite®



Using a tall extension ladder can be intimidating, but with the right ladder, it doesn’t have to be. The Little Giant® HyperLite® was designed with safety and ease of use in mind, so you can focus on the task-at-hand, rather than worrying about your ladder.



Lightweight

The HyperLite is an ultra-lightweight, non-conductive fiberglass ladder. Most extension ladders are incredibly heavy; and carrying them can cause injuries from the weight; but this ladder weighs up to 40 percent less than traditional fiberglass ladders.



Double Pulley

In the past, extension ladders’ pulley systems were in the way and tough to use. We moved the pulley to the side of the ladder and incorporated double pulleys to make operation simple. Getting enough leverage to raise the ladder is fast and easy.

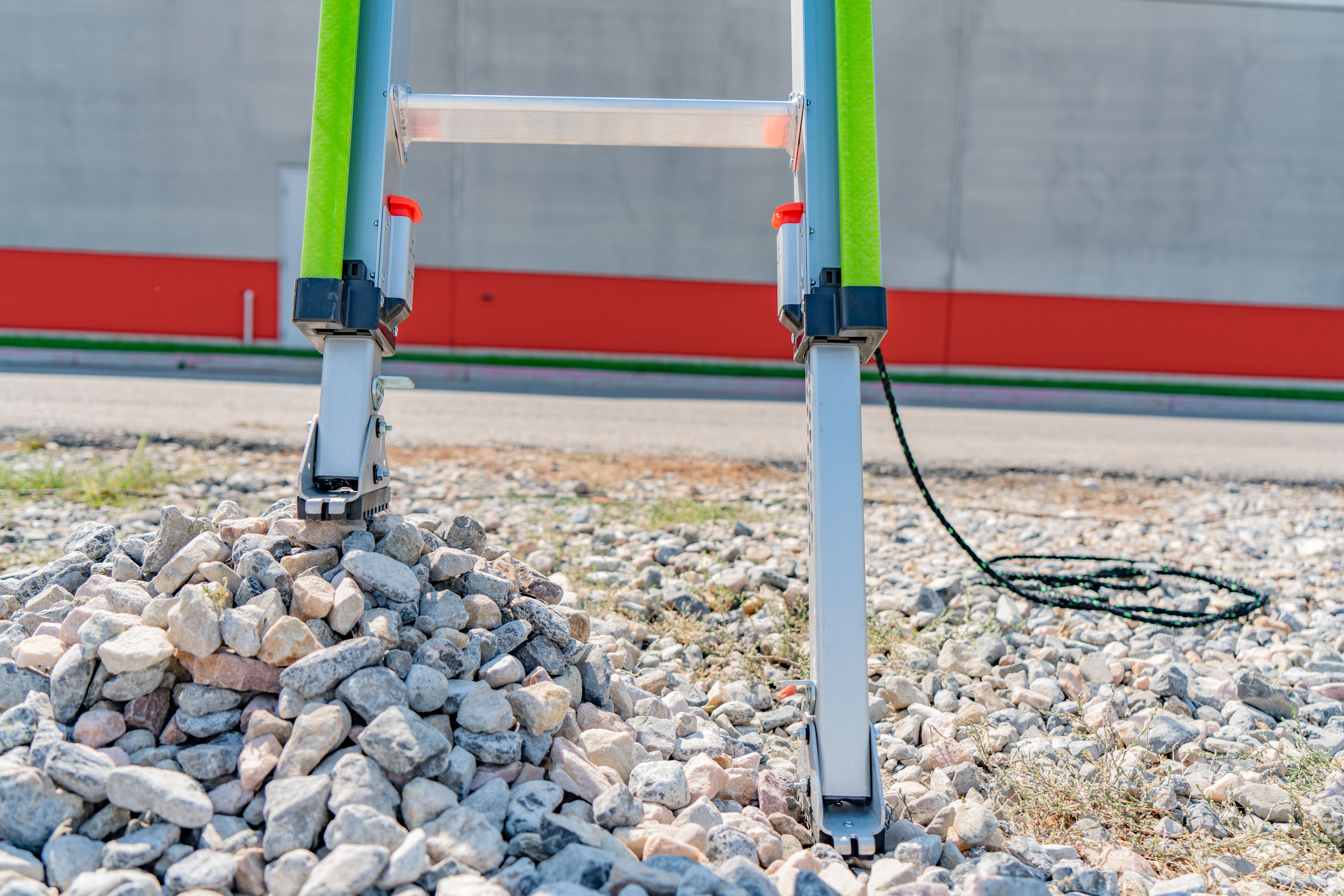

Leveling

Little-Known Fact: having your ladder level off by just 1 inch at the bottom causes a 9-inch lean at the top of a 19-foot ladder. If safety is the goal, and it should be, the bubble levels on the HyperLite are a useful tool to ensure that your ladder is level before climbing.



Other Benefits

Made with our patent-pending Hi-Viz green fiberglass, you can avoid incidents associated with walking or driving into the extension ladder. Ground Cue® helps when descending the ladder, signaling when you have reached the bottom rung. With wide rungs, the ladder is more comfortable than others, decreasing foot fatigue from standing atop a ladder.

The HyperLite meets or exceeds all OSHA and ANSI standards. The ANSI 1A ladders are rated to hold 300 lbs. on the 16’, 20’, 24’, 28’, 36’, 40’ models. Our ANSI 1AA ladders are rated to hold 375 lbs. on 16’, 20’, 24’, 28’, 32’ models.



Specifications
Product Category HyperLite
Extension Lock Rung Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Standard pick foot
Hinge Lock None
Material Fiberglass
Load Capacity 375 lbs.
90° Ladder No
Scaffolding Position No
Spreader System None
Tip-N-Glide Wheels No
Ladder Type Extension
Warranty 1-Year
Size 24' 7.32 m
Inside Clear Width 1 ft. 2 in. 36 cm
Storage Height 12 ft. 11 in. 3.94 m
Storage Width at Base 1 ft. 5 in. 45 cm
Storage Depth 6 in. 15 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 10 cm
Top Width 1 ft. 5 in. 44 cm
Product Weight 50 Lbs.
Shipping
Freight Class 300 - AL and/or FG Ladder
Ship Length 152"
Ship Width 18½"
Ship Height 7"
Ship Weight 53.6 Lbs.
HTS Code 3926.90.9930
Single / Extension
Extension Total Length of Sections 24 ft. 1 in. 7.34 m
Extension Max Reach 23 ft. 9 in. 7.24 m
Single / Extension Highest Standing Level Max 17 ft. 3 in. 5.26 m
Single / Extension Highest Standing Level Min 8 ft. 8 in. 2.64 m
Single / Extension Max Working Length 21 ft. 8 in. 6.60 m
Single / Extension Min Working Length 12 ft. 9 in. 3.89 m
