18316-303V
HyperLite

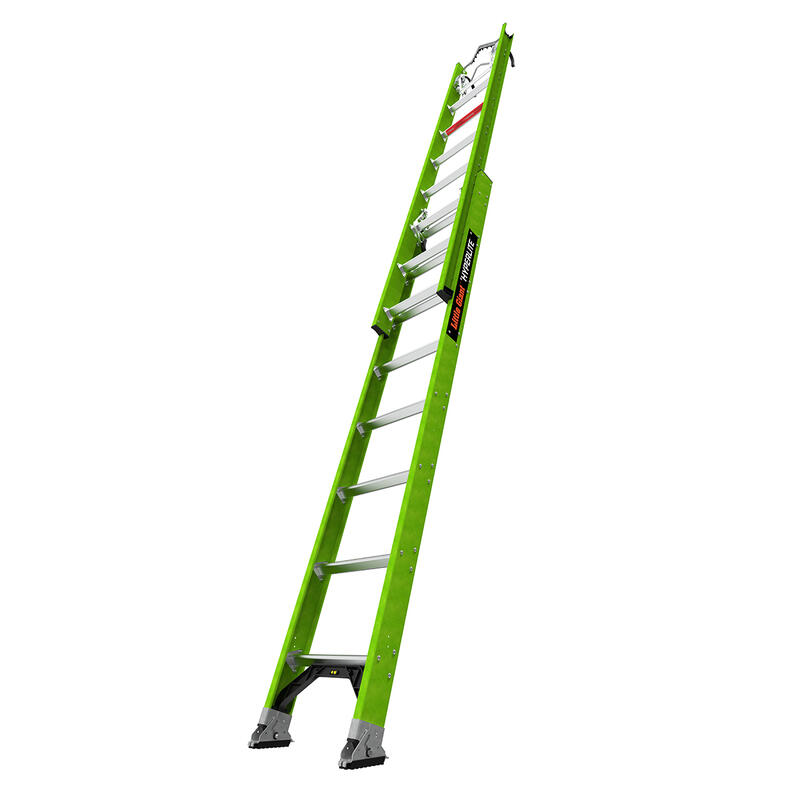

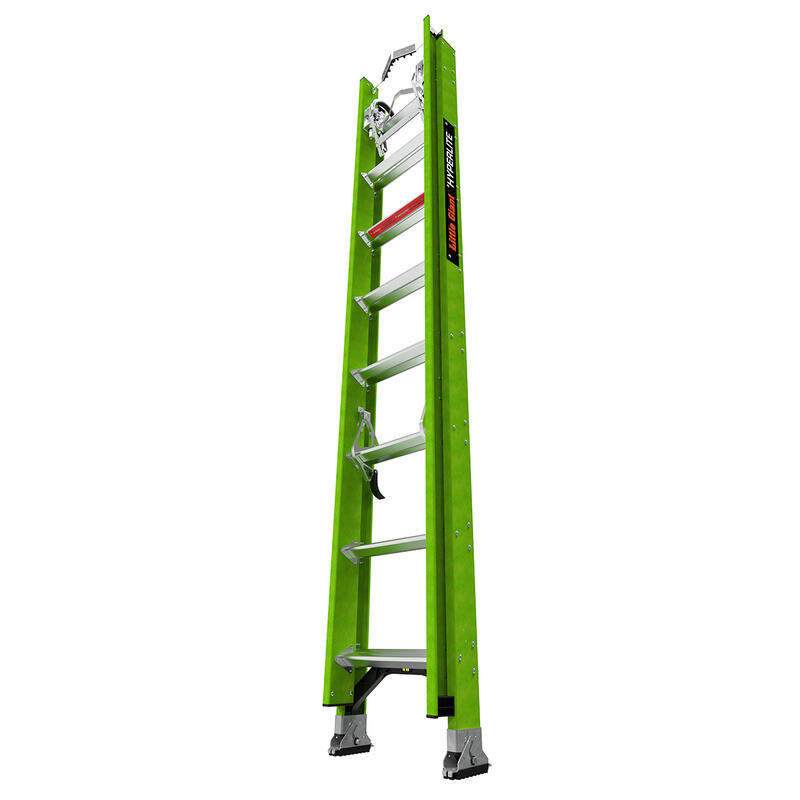

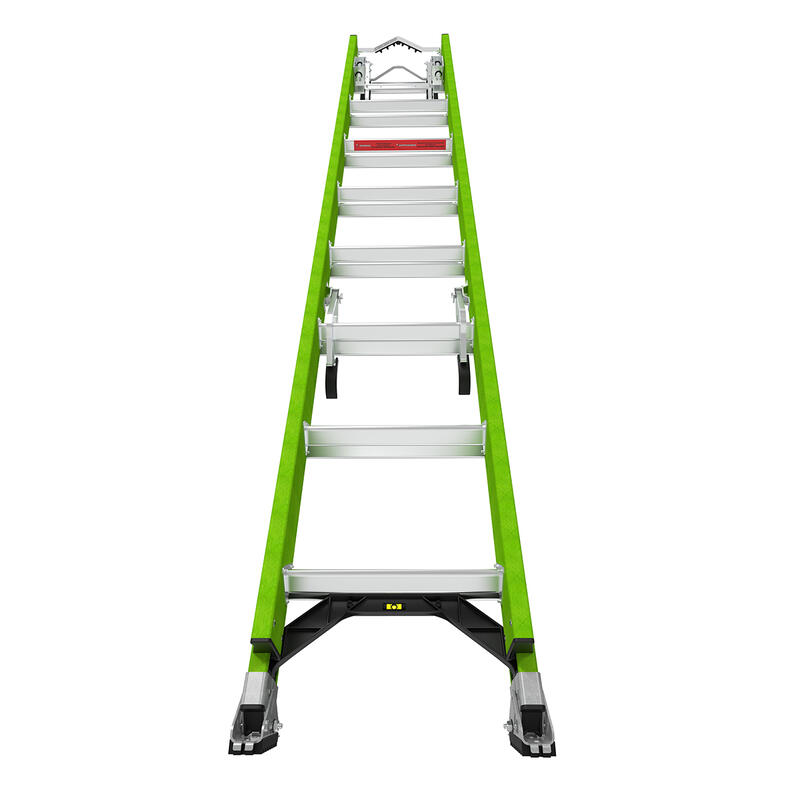

HYPERLITE, 16' - CSA Grade IA - 300 lb/136 kg Rated, Fiberglass Extension Ladder with Cable Hooks, CLAW and V-bar

Dowload Specsheet
Download Media Package

  • Model Number: 11750 - PETZL ASAP Accessory Kit - ASAP Ascender and ASAP'SORBER - for HYPERLITE Limited Arrest System
  • Model Number: 11751 - PETZL ASAP Accessory Kit - ASAP Ascender and ASAP'SORBER, Including Top Bag with Stabilizer Straps, and Bottom Bag with Strap - for HYPERLITE Pole-Use Limited Arrest System
  • Model Number: 15083 - GROUND CUE Accessory/replacement for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Extension Ladders
  • Model Number: 15097 - Ladder Rack
  • Model Number: 19103 - Wall Pad Accessory for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Ladders
  • Model Number: 31855 - Replacement Kit, bottom Strap and bag for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Ladders with Limited Arrest System

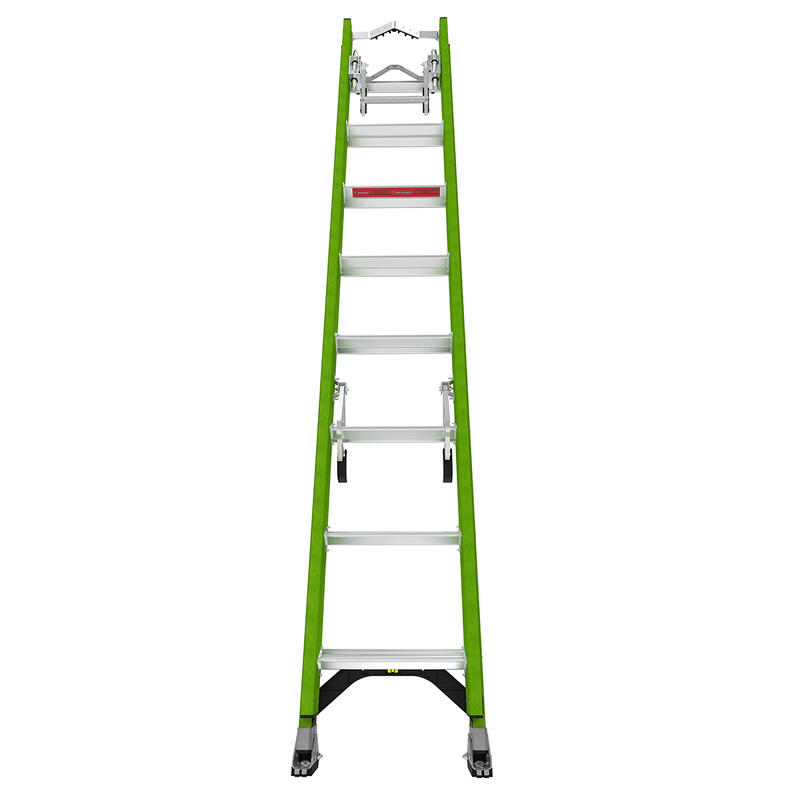

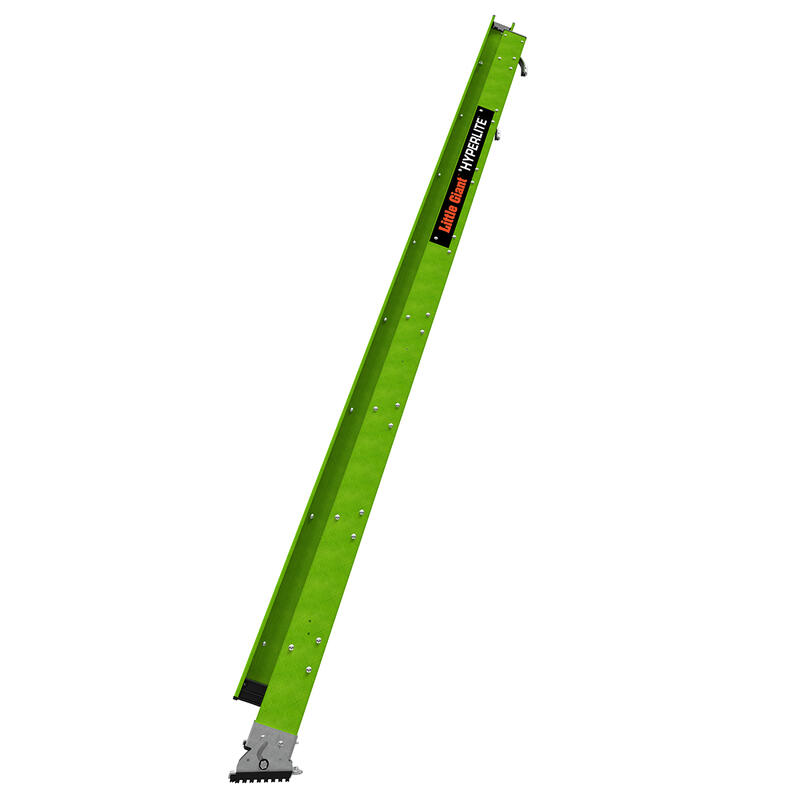

HyperLite Extension Ladder

  • Lightweight patent-pending design helps prevent common injuries like torn rotator cuffs, herniated disks, ankle and knee ligament tears from loading and unloading or carrying heavy traditional extension ladders
  • Nonconductive fiberglass construction provides additional safety while working around electricity
  • Patent-pending HyperLite weighs up to 40 percent less than ordinary fiberglass extension ladders without sacrificing strength or stability, depending on size
  • 16 rungs provide average maximum reach of 15’11”.*
  • Approximately 20 percent† more rigid than ordinary extension ladders
  • Roof line indicator for quick, safe setup

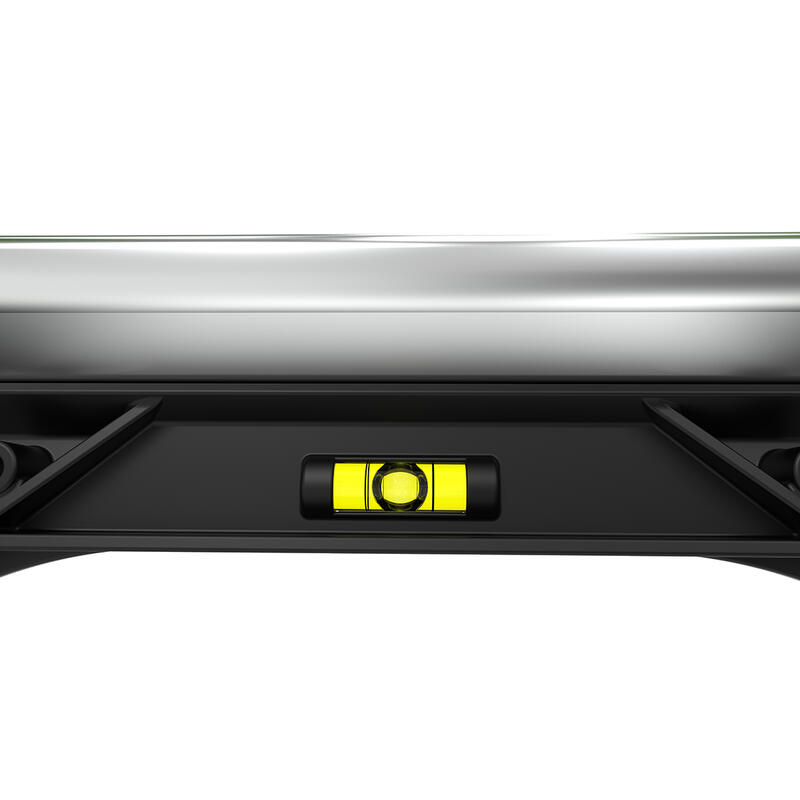

  • Convenient side-to-side level bubble help ensure a safe setup
  • Wide, flat, slip-resistant rungs provide great comfort and reduce foot fatigue
  • Solid-riveted plate rung construction is stronger, more durable, and easier to replace
  • Side-mounted, dual-pulley system reduces the effort required to raise the fly section by 45 percent and removes the trip hazard caused by traditional center-pulley rope systems
  • Braided rope is larger, softer and more durable than ordinary ladder rope
  • Interlocking side rails with internal rail guides on both the bottom of fly section and top of base section for easy glide during operation
  • No protruding external guides in the way as you ascend and descend

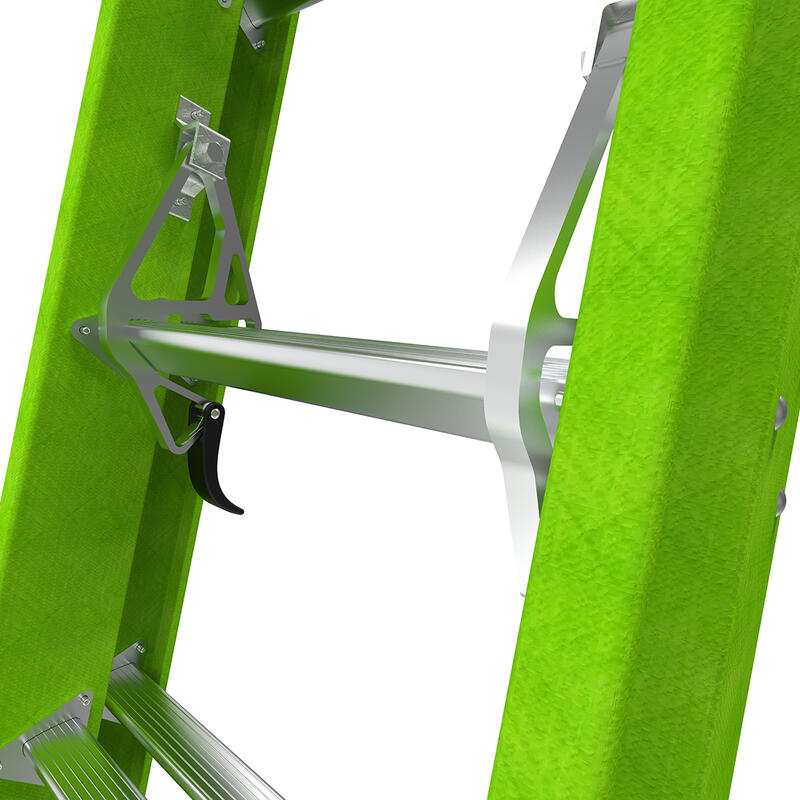

  • Spring-assisted heavy-duty extruded aluminum rung locks for smooth, secure operation

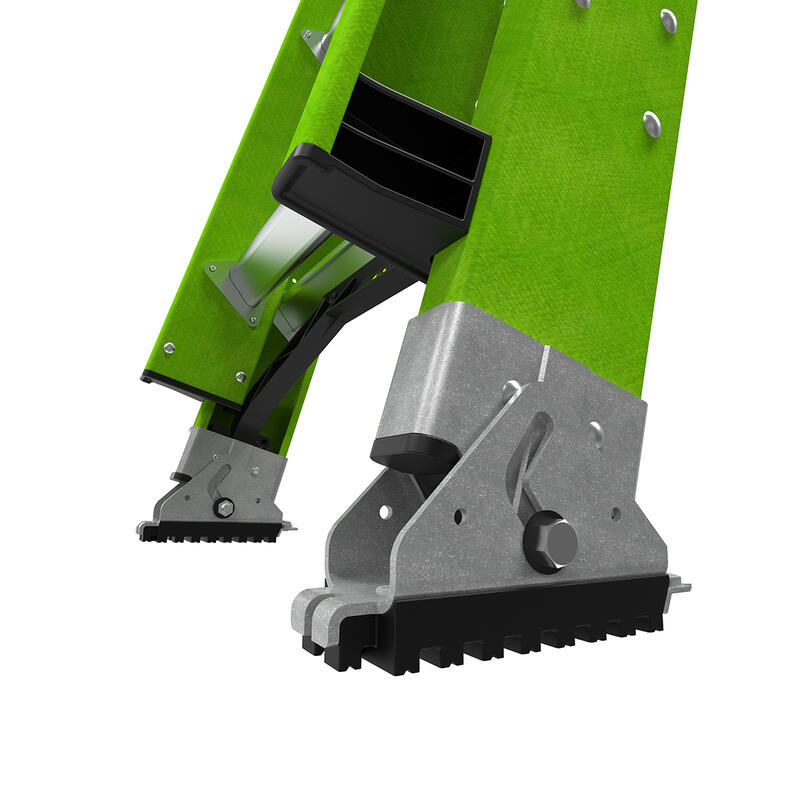

  • Ladder feet are set in spike position
  • Engineered nail notch in the shoe allows you to secure the ladder to prevent slide outs for added peace of mind
  • Heavy-duty swivel foot

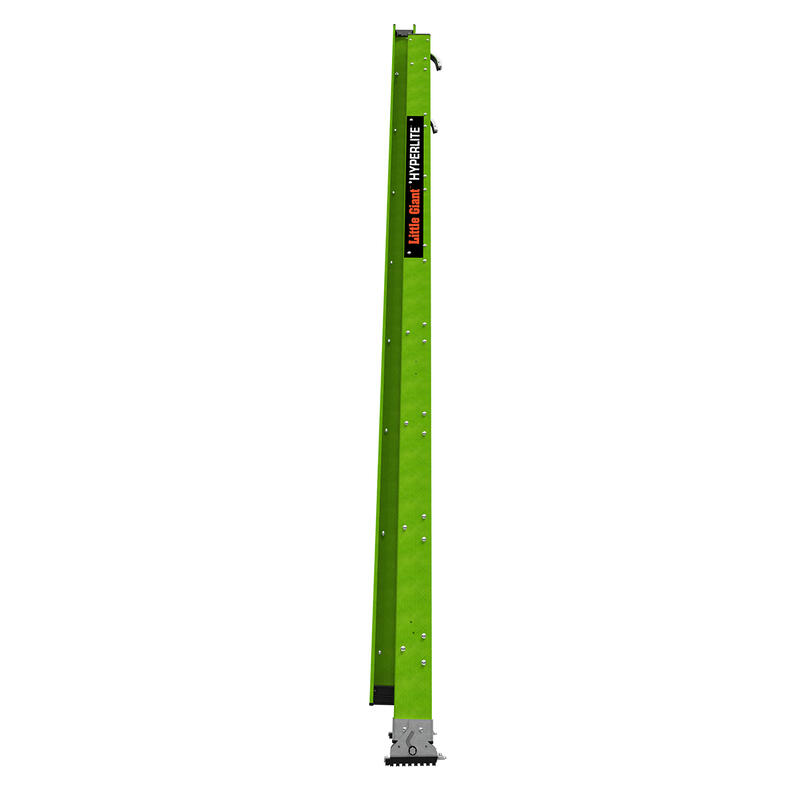

  • Patent-pending Hi-Viz green rail prevents catastrophic accidents caused by people who walk or drive into an extension ladder while in use
  • The patent-pending Ground Cue™ prevents injuries by signaling the user when it is safe to dismount the ladder
  • Rail shield bracket and shoe protects fiberglass rails from damage and weather
  • High-strength polymer molded leg brace for increased stability
  • Co-molded nonslip rubber wall pads protect working surfaces and provide superior stability
  • Weather-resistant UV-inhibiting compound in fiberglass resin for extended outdoor use
  • Meets or exceeds all OSHA and ANSI standards for safety
  • 1-year limited warranty
  • Also available in the following duty ratings and sizes: Extra Heavy Duty Type IA - 300 lbs: 16’, 20’, 24’, 28’, 32', 36' and 40'.  Special Duty Type IAA - 375 lbs: 16’, 20’, 24’, 28’ and 32'
  • The leading brand in ladder versatility, safety and innovation

* Based on an average height of 5’6” and a 1’ reach.

† Based on tests performed in a controlled ANSI-compliant test lab

Cable Hook and V-Rung and Claw Bullet Points

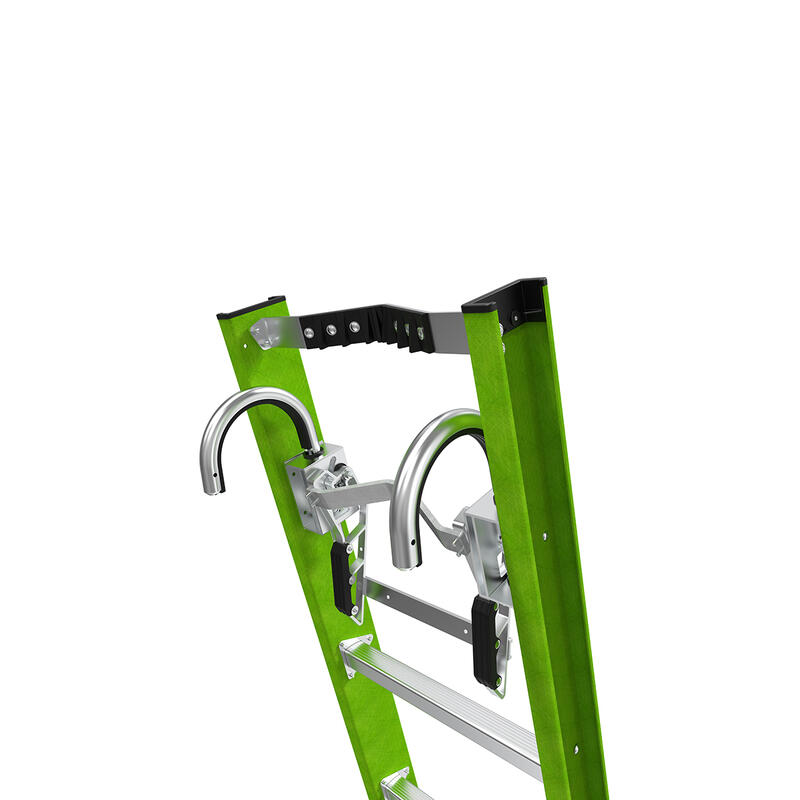

  • Rubber-lined aluminum cable hook to secure to power strand
  • Nylon Pull Strap with rubber pad to prevent slippage on rounded utility pole
  • Little Giant Claw® fastening system secures to the utility line or other anchor point while the operator stands on the ground
  • The Claw’s clamp mechanism is activated by the weight of the ladder and becomes even more securely fastened when bearing the weight of the operator.
  • Aluminum bar with rubber pad to prevent slippage on rounded utility pole
  •



Specifications
Product Category HyperLite
Extension Lock Rung Locks
Country Assembled USA
Marketing Language English / French
Duty Rating Type IA - Extra Heavy Duty
Feet Standard pick foot
Hinge Lock None
Material Fiberglass
Load Capacity 300 lbs.
Spreader System None
Ladder Type Extension
Warranty 1-Year
Size 16' 4.88 m
Inside Clear Width 1 ft. 2 in. 36 cm
Storage Height 8 ft. 7 in. 2.62 m
Storage Width at Base 1 ft. 6 in. 47 cm
Storage Depth 6 in. 15 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 10 cm
Top Width 1 ft. 5 in. 44 cm
Product Weight 35 lbs. 15.87 kg
Features
Scaffolding Position No
Tip-N-Glide Wheels No
90° Position No
Shipping
Freight Class 300 - AL and/or FG Ladder
Ship Length 104" 8' 8"
Ship Width 18½" 1' 6½"
Ship Height 7" 7"
Ship Weight 39.6 lbs.
HTS Code 3926.90.9930
Single / Extension
Extension Total Length of Sections 16 ft. 2 in. 4.93 m
Extension Max Reach 15 ft. 10 in. 4.83 m
Single / Extension Highest Standing Level Max 9 ft. 4 in. 2.84 m
Single / Extension Highest Standing Level Min 4 ft. 7 in. 1.41 m
Single / Extension Max Working Length 13 ft. 5 in. 4.09 m
Single / Extension Min Working Length 8 ft. 6 in. 2.59 m
