18503-243
Cage-Adjustable

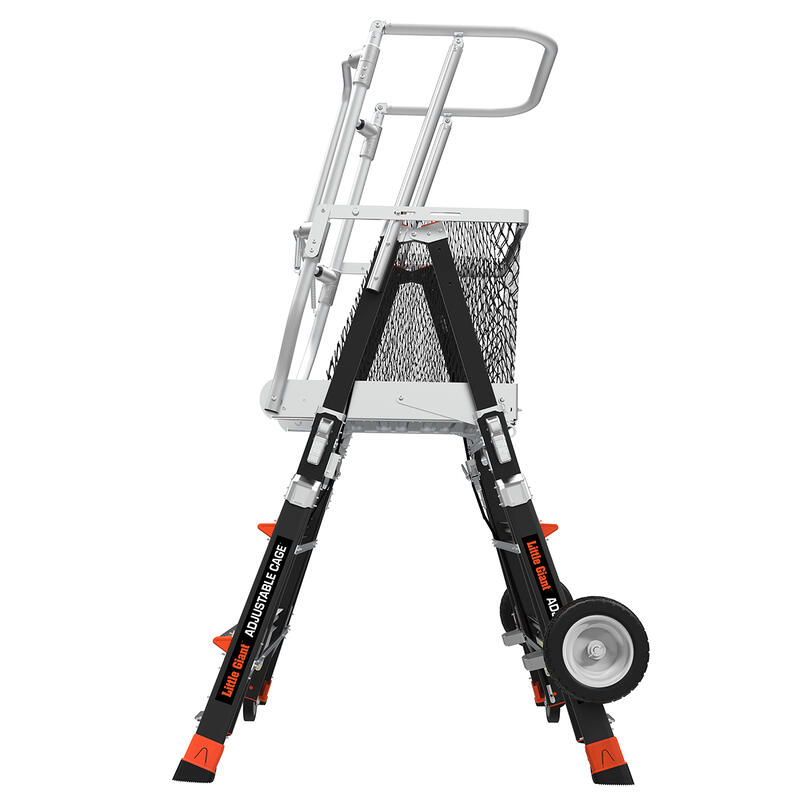

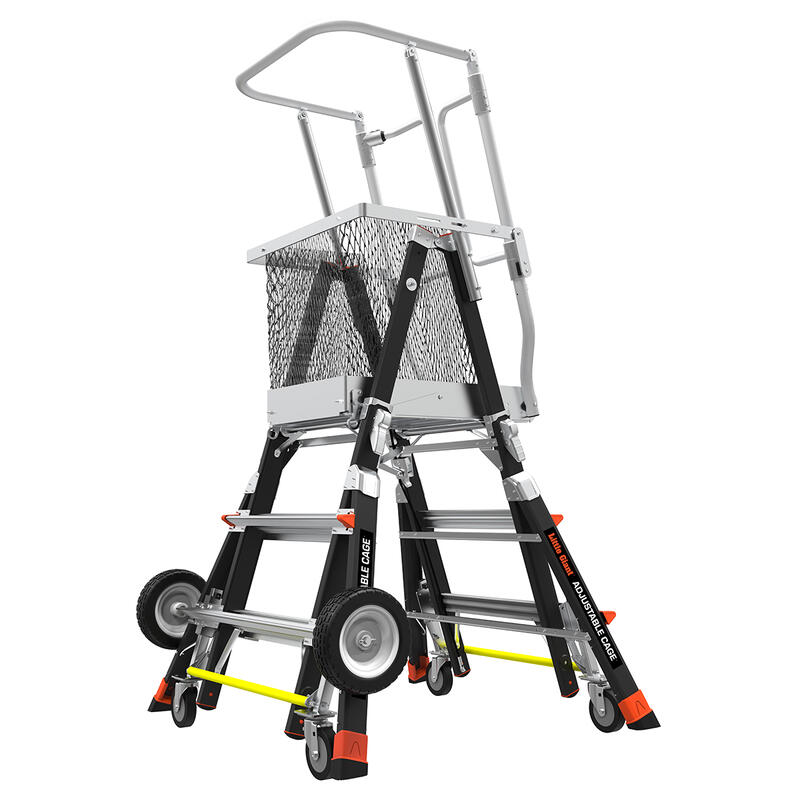

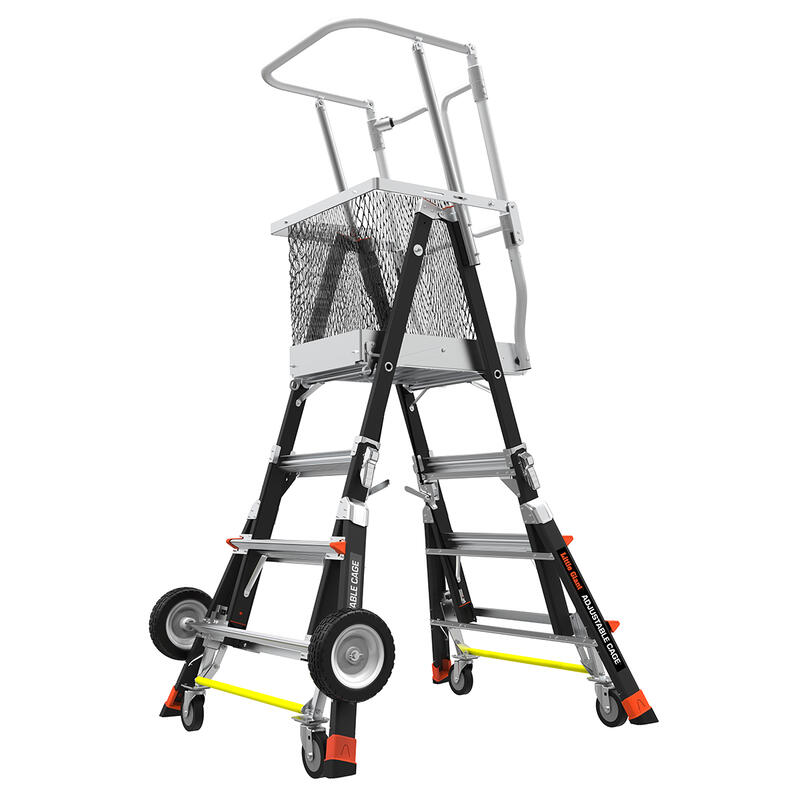

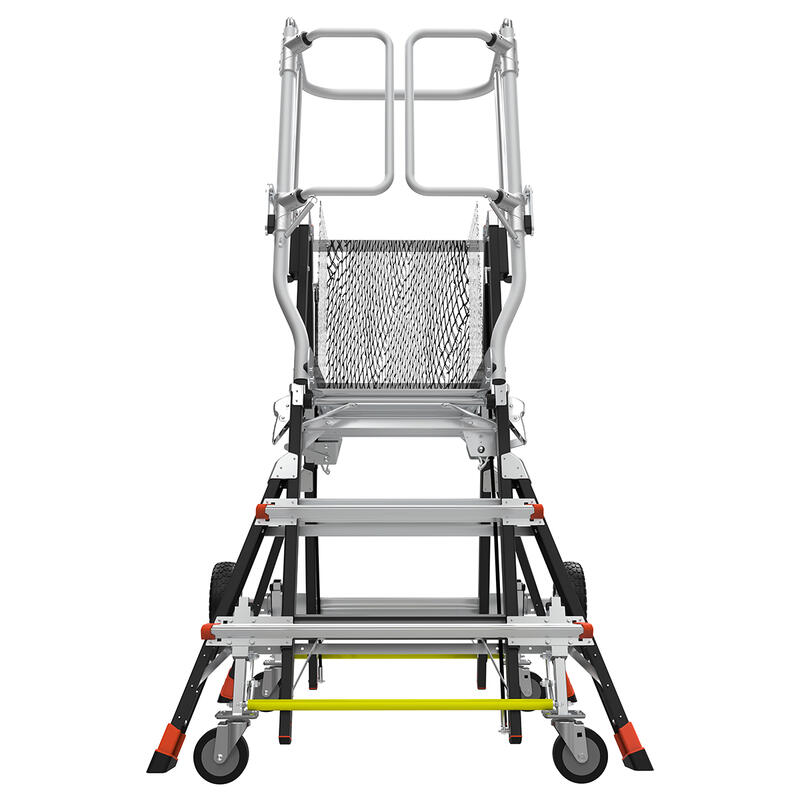

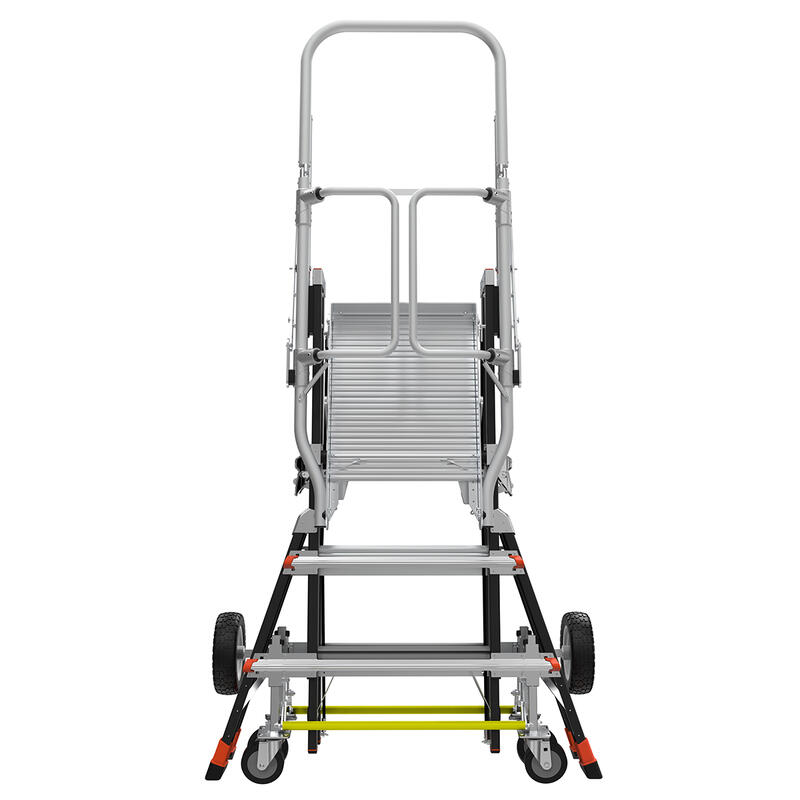

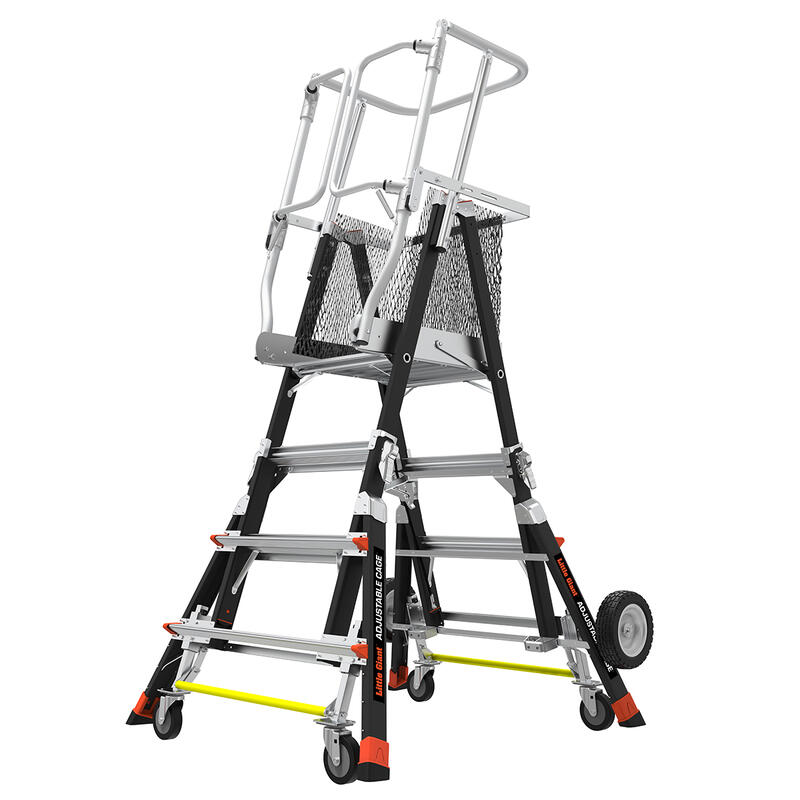

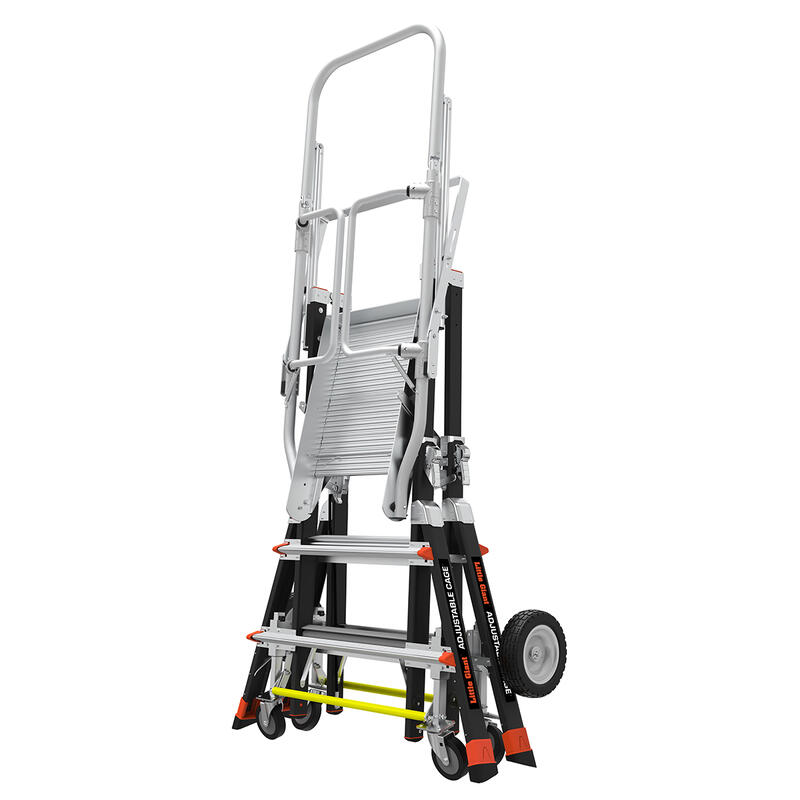

CAGE, 3'-5' Model - ANSI Type IAA - 375 lb Rated, Fiberglass Adjustable Enclosed Elevated Platform with all-terrain Wheels and Wheel Lift

Dowload Specsheet
Download Media Package
Download Box Label
Download Notice Label

  • Model Number: 15072 - Saddle Bag
  • Model Number: 15074 - CAGE TIP & GLIDE/Side-Tip Wheels
  • Model Number: 15076 - CAGE Wheel Lift Kit
  • Model Number: 15074 - CAGE TIP & GLIDE/Side-Tip Wheels
  • Model Number: 15076 - CAGE Wheel Lift Kit

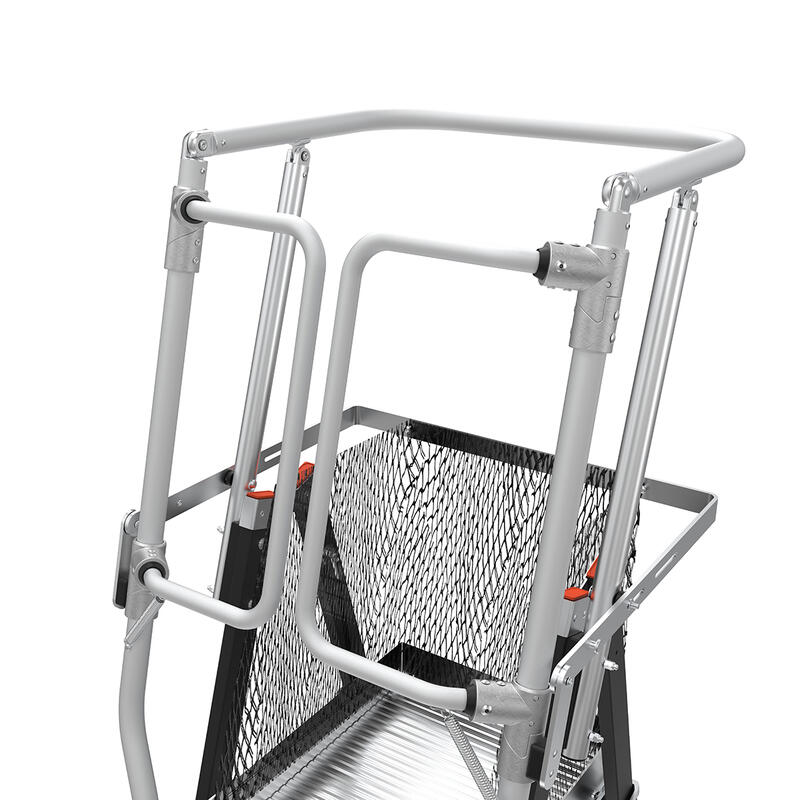

  • Fully enclosed platform eliminates the need to tie off while complying with industry tie-off rules
  • Nonconductive fiberglass construction provides additional safety while working around electricity
  • Independently telescoping sides adjust for use on sloping ground, uneven surfaces and stairs
  • Easily adjusts to multiple heights to adapt to almost any job
  • Portable and light enough to work on weight-limited stages and upper floors

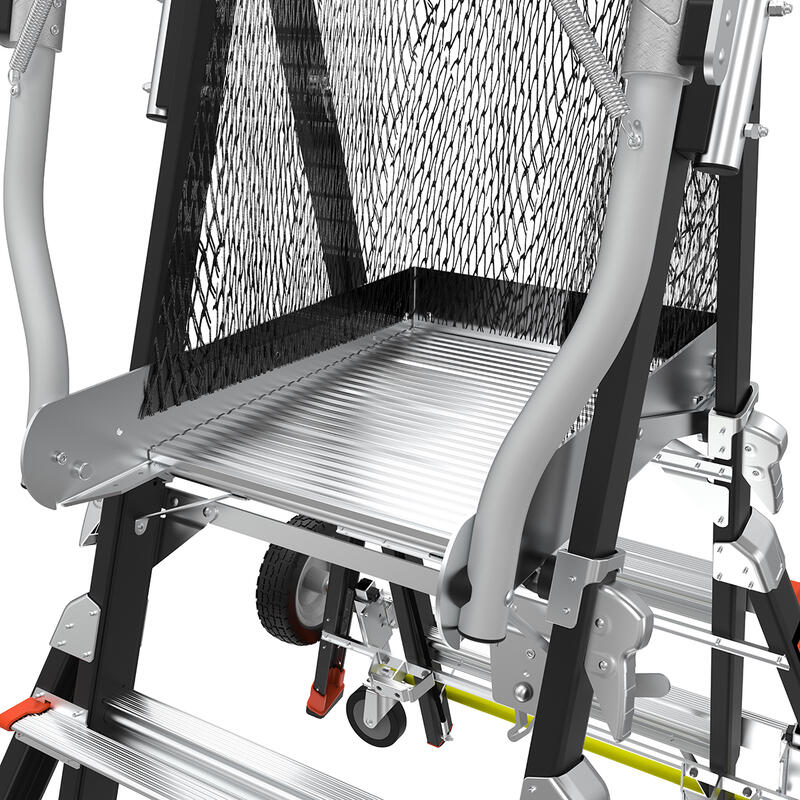

  • Toe-board, netting and platform help prevent objects from falling, protecting workers below

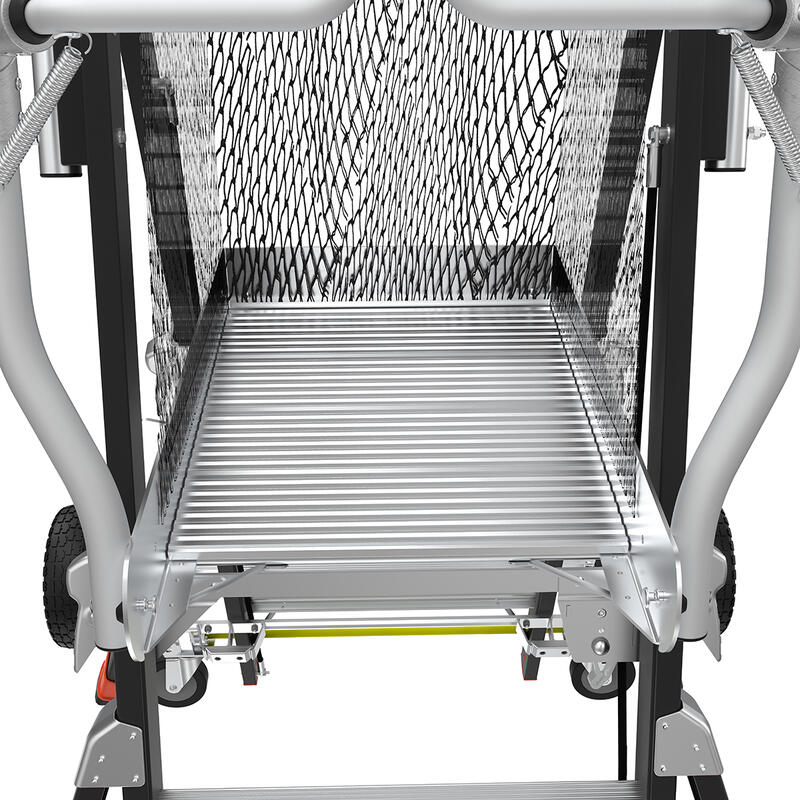

  • Large 18.125” x 21.988” platform

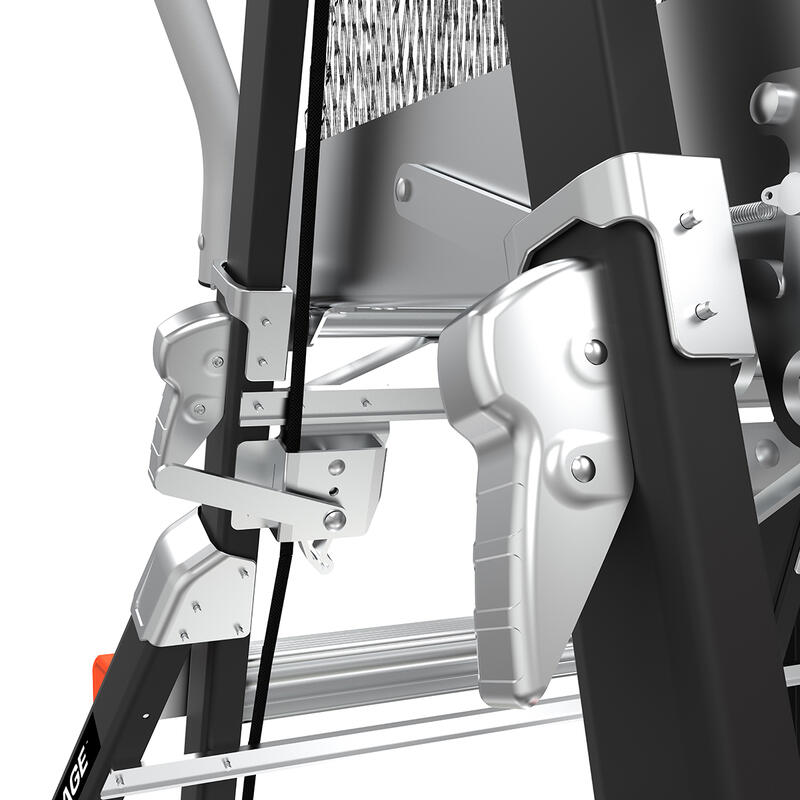

  • Durable, cast aluminum Rock Lock™ adjusters
  • Descent Control™ rope brake system allows for controlled lowering of the ladder sections
  • Wide 1.5” flat climbing rungs
  • Optional Ratchet™ Levelers adjust 8.675” in increments of .425” for effortless leveling on uneven terrain

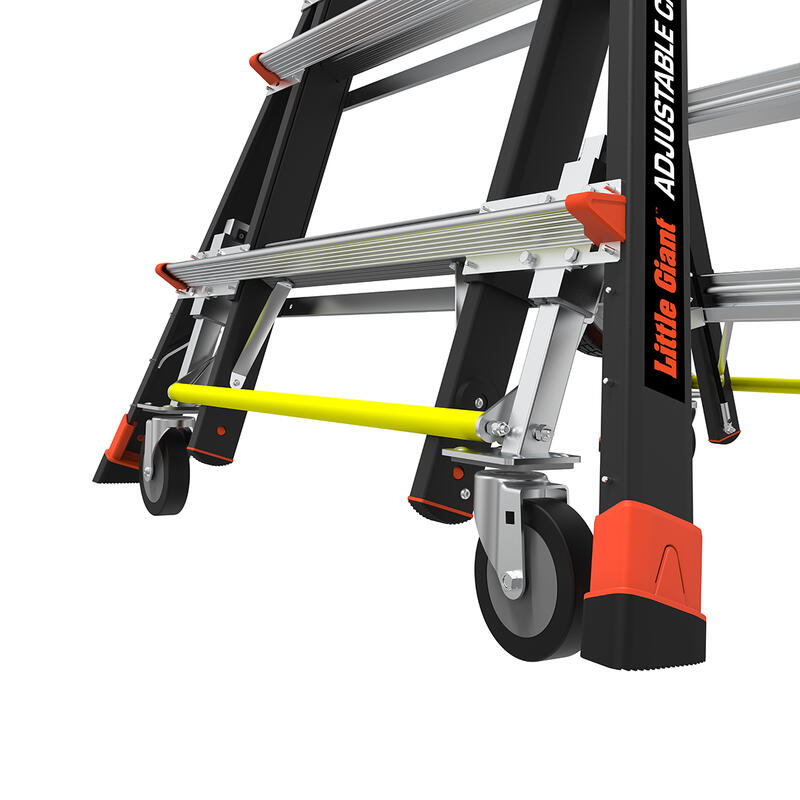

  • Optional Wheel Lift™ casters with 5” wheels allows for easy on-the-job transportation
  • Large, 5” Tip & Glide™ wheels make it easy for one person to move the ladder from job to job
  • Optional 10” all-terrain pneumatic Tip & Glide wheels work great on loose dirt and gravel
  • Adjustable outriggers improve stability and increase the base width to 84” on level ground
  • Compatible with Wheel Lift casters and Cage Tool Bag Little Giant Accessories
  • Meets or exceeds ANSI IAA testing for platform type ladders
  • Complies with OSHA standards for guardrail fall protection systems
  • CSA compliant
  • Available in the following adjustable sizes: 3-5’, 5-9’, and 8-14’



Include in 8-14 bullet points:

  • On the 8-14’ Cage, a modified Descent Control rope brake system additionally facilitates a controlled way to completely extend the ladder
Specifications
Product Category Cage-Adjustable
Extension Lock Cast Aluminum Rock Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Standard non-marring (snap-on)
Hinge Lock None
Material Fiberglass
Load Capacity 375 lbs.
Spreader System Platform
Ladder Type Cage - Telescoping Platform
Warranty 1-Year
Size 3' - 5' 91 cm - 1.52 m
Inside Clear Width 1 ft. 8 in. 52 cm

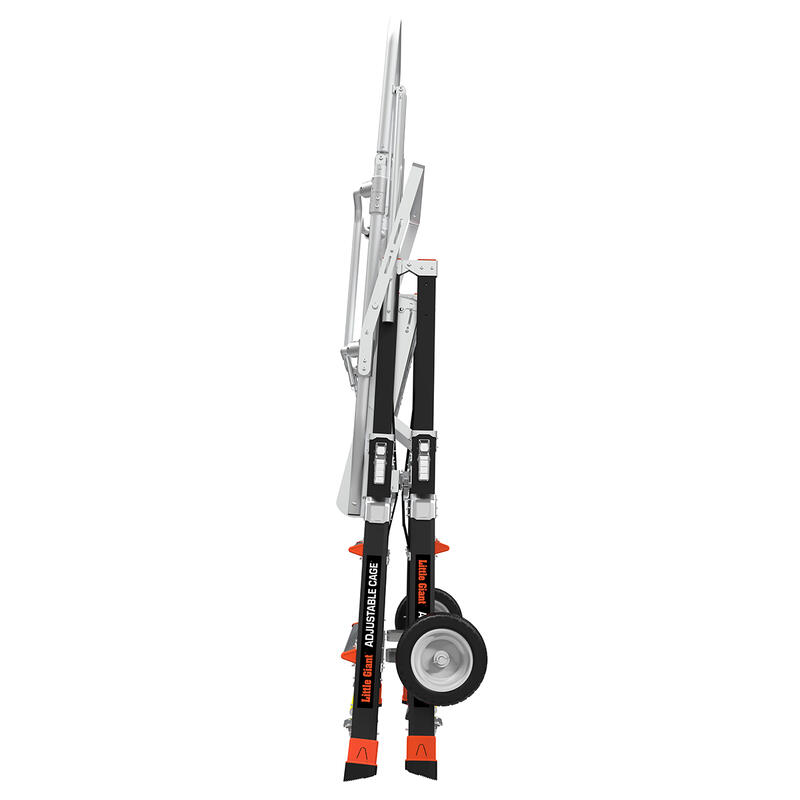

Storage Height 7 ft. 10 in. 2.39 m
Storage Width at Base 3 ft. 11 in. 1.19 m
Storage Depth 1 ft. 5 in. 44 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 3 in. 10 cm
Top Width 2 ft. 2 in. 66 cm
Product Weight 107 lbs. 48.53 kg
Features
Scaffolding Position No
Tip-N-Glide Wheels Yes
90° Position No
Cage
Kick Plate Height 3 in. 9 cm
Mid Rail Height 1 ft. 10 in. 57 cm
Guardrail Height 3 ft. 9 in. 1.14 m
Shipping
Freight Class 300 - AL and/or FG Ladder
Ship Length 123" 10' 3"
Ship Width 46" 3' 10"
Ship Height 23" 1' 11"
Ship Weight 107 lbs.
Ship Volume 75.31 CuFt.
HTS Code 3926.90.9930
Step Ladder
Stepladder Size 3' - 5' 0.91 m - 1.52 m
Highest standing level Max 4 ft. 11 in. 1.50 m
Highest standing level Min 3 ft. 91 cm
Maximum Footprint 5 ft. 11 in. 1.80 m
Minimum Footprint 3 ft. 9 in. 1.14 m
Max Reach 11 ft. 5 in. 3.48 m
