18515-461
Cage-Adjustable

CAGE, 8'-14' Model - ANSI Type IAA - 375 lb Rated, Fiberglass Adjustable Enclosed Elevated Platform with Wheel Lift and extra Outriggers - Japanese

Download Media Package

Data Feed:

Manuals

No manuals have been assigned to this product

Base Sku: 18515 -- CAGE, 8'-14', IAA, FIBERGLASS LADDER

Compatible Accessories

Model Number: 15072 - Saddle Bag
Model Number: 15074 - CAGE TIP & GLIDE/Side-Tip Wheels
Model Number: 15076 - CAGE Wheel Lift Kit

Included Accessories

Model Number: 15074 - CAGE TIP & GLIDE/Side-Tip Wheels
Model Number: 15076 - CAGE Wheel Lift Kit

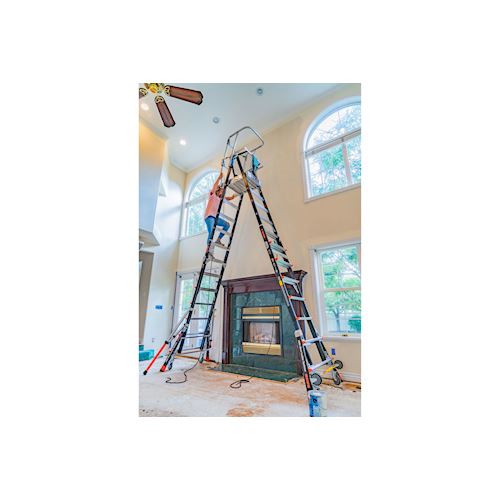

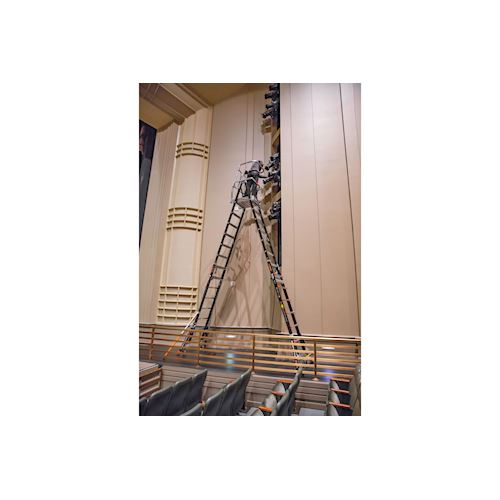

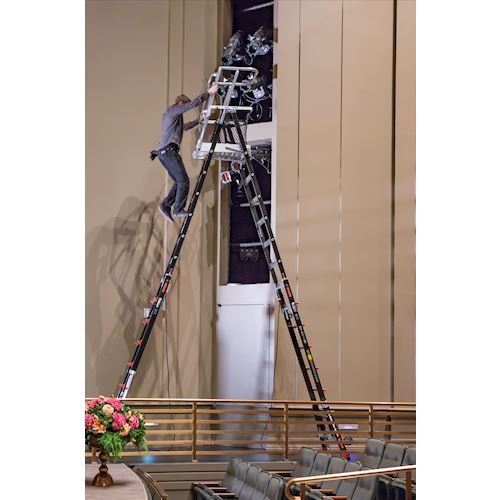

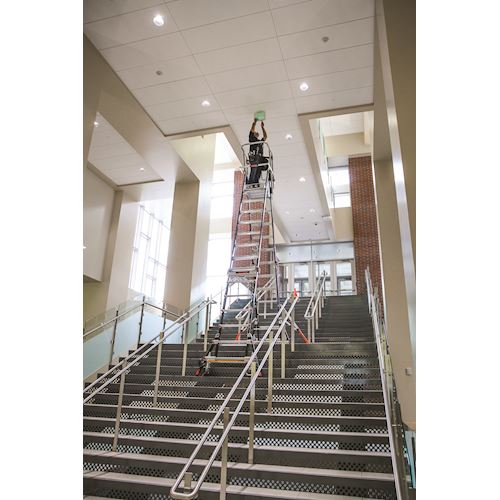

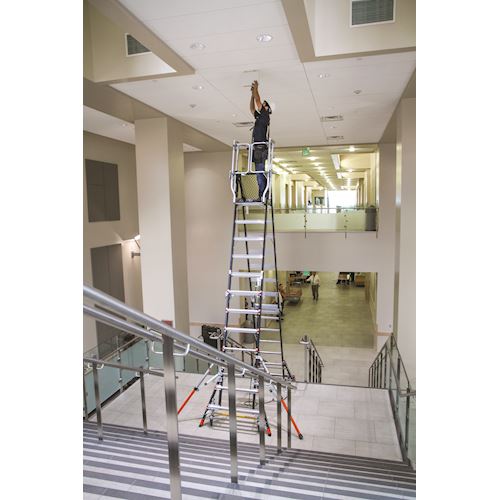

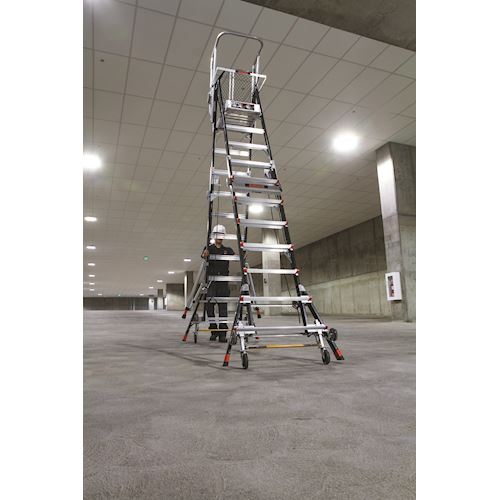

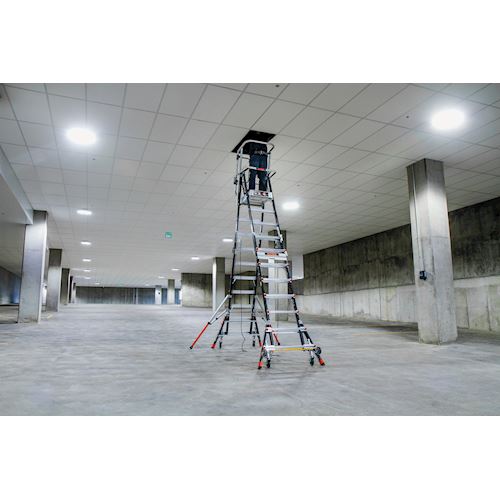

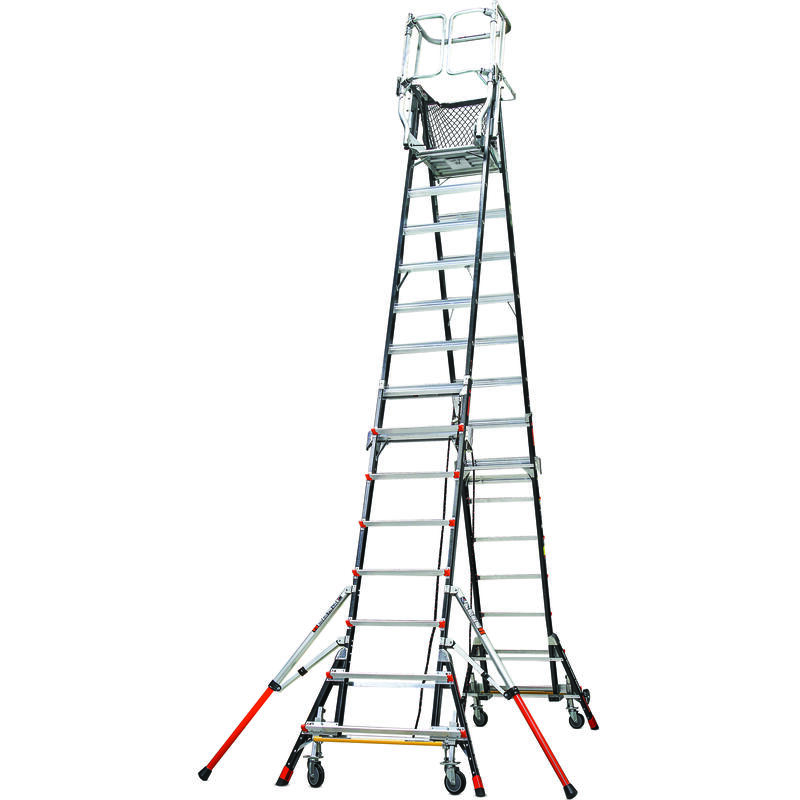

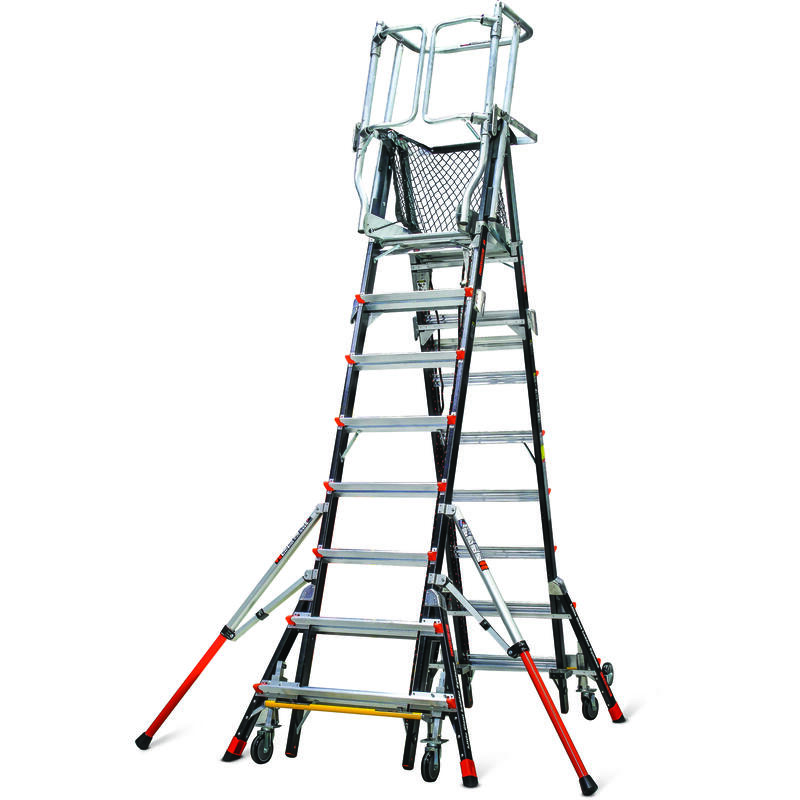

Adjustable Safety Cage™

Many industries require professionals to tie off at an anchor point when working at certain heights. This standard helps keep people safe, but it can be a difficult standard to maintain. The OSHA-compliant Little Giant® Adjustable Safety Cage™ eliminates the need to tie-off, making jobs faster, safer, and less expensive than many scaffolding options.

How it Works

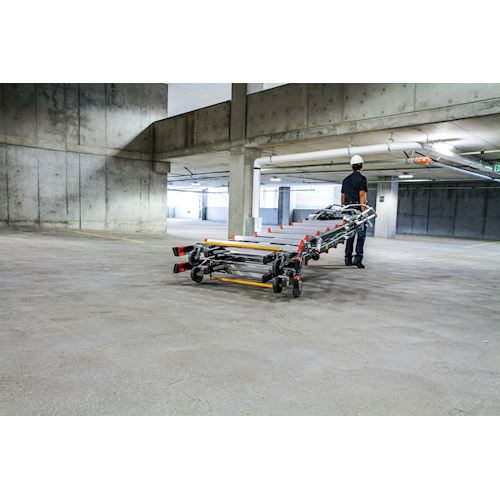

Constructed from a non-conductive fiberglass-resin composite, the Adjustable Safety Cage is fully adjustable and easy to transport with its Tip & Glide™ Wheels. The setup is fast and simple enough to be performed by a single individual. Equipped with adjustable outriggers for stability, you are sure to feel secure and safe. The Adjustable Safety Cage is also equipped with Wheel Lift™ casters* to easily move the cage while fully deployed.

Specs

The Adjustable Safety Cage meets or exceeds all OSHA and ANSI standards and is rated IAA to hold 375 lbs.

*Available on most models.

Specifications
Product Category	Cage-Adjustable
Extension Lock	Cast Aluminum Rock Locks
Country Assembled	USA
Marketing Language	Japanese
Duty Rating	Type IAA - Special Duty
Feet	Standard non-marring (snap-on)
Hinge Lock	None
Material	Fiberglass
Load Capacity	375 lbs.
Spreader System	Platform
Ladder Type	Cage - Telescoping Platform
Warranty	1-Year
Size	8' - 14'	2.44 m - 4.27 m
Inside Clear Width	1 ft. 8 in.	52 cm

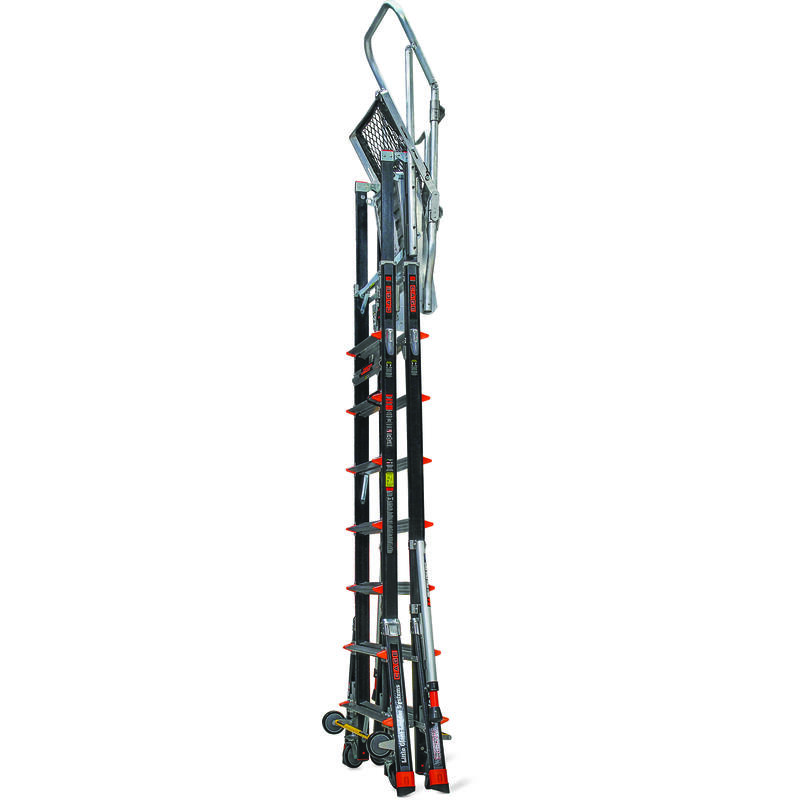

Storage Height	12 ft. 9 in.	3.89 m
Storage Width at Base	3 ft. 10 in.	1.17 m
Storage Depth	1 ft. 5 in.	43 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	3 in.	10 cm
Top Width	2 ft. 2 in.	66 cm
Product Weight	100 lbs.	45.35 kg

Features
Scaffolding Position	No
Tip-N-Glide Wheels	Yes
90° Position	No

Cage
Kick Plate Height	3 in.	9 cm
Mid Rail Height	1 ft. 10 in.	57 cm
Guardrail Height	3 ft. 9 in.	1.14 m

Shipping
Freight Class	300 - AL and/or FG Ladder
Ship Length	168"	14'
Ship Width	46"	3' 10"
Ship Height	25"	2' 1"
Ship Weight	100 lbs.
HTS Code	3926.90.9930

Step Ladder
Stepladder Size	8' - 14'	2.44 m - 4.27 m
Highest standing level Max	13 ft. 5 in.	4.09 m
Highest standing level Min	7 ft. 8 in.	2.35 m
Maximum Footprint	10 ft. 6 in.	3.20 m
Minimum Footprint	6 ft. 8 in.	2.04 m
Max Reach	19 ft. 11 in.	6.07 m
