12122-880U
REX

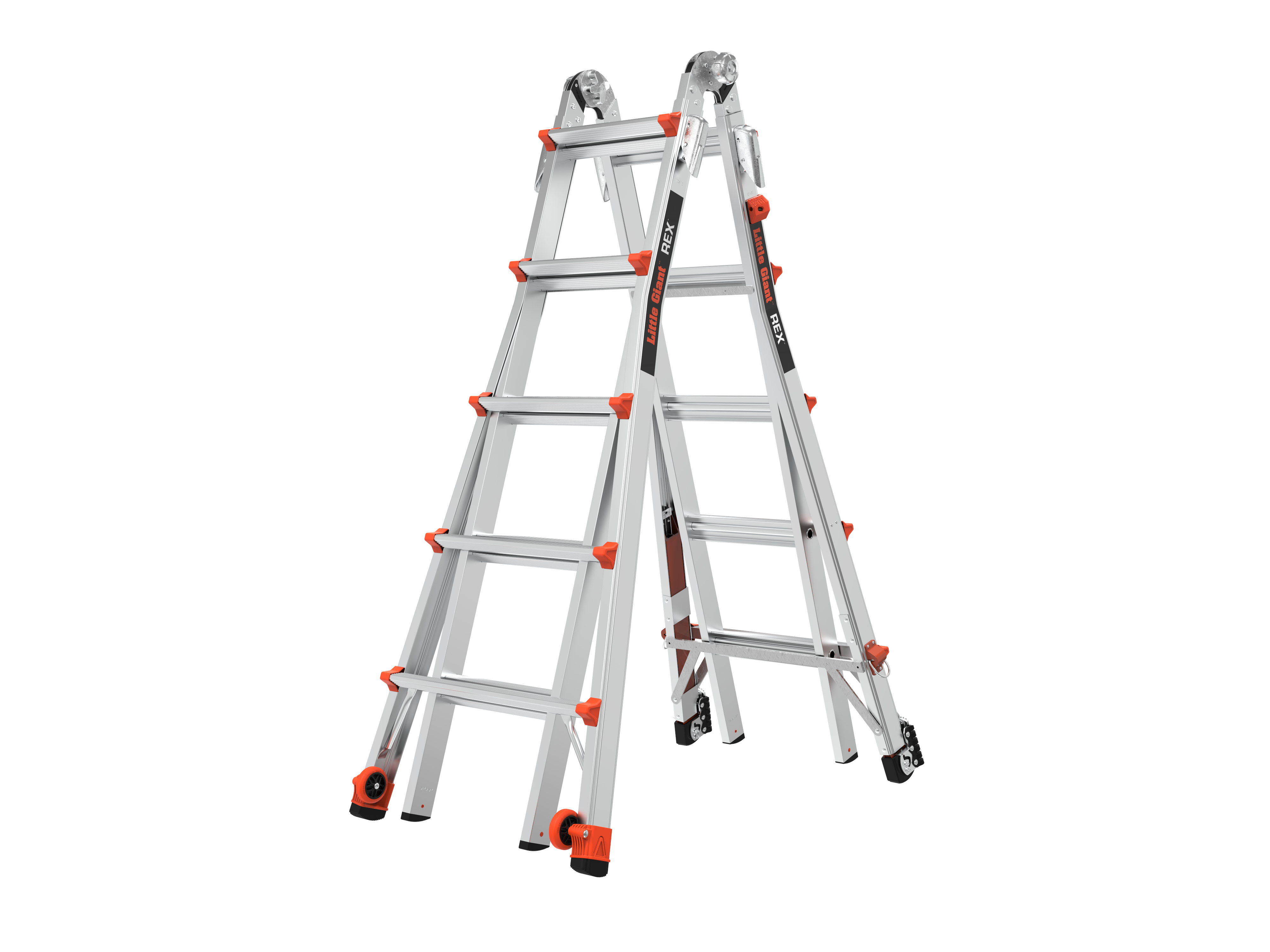

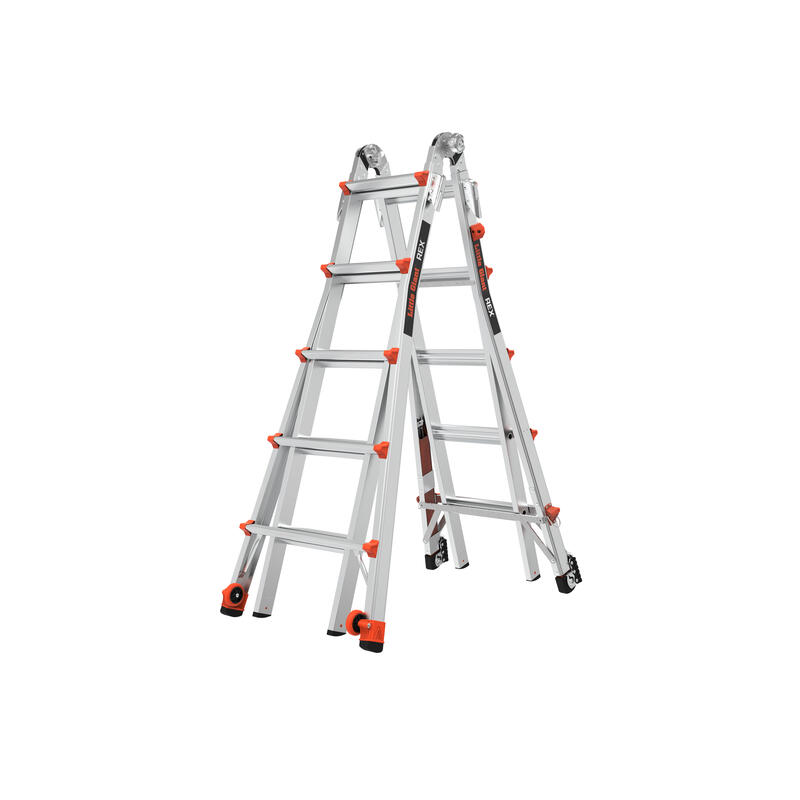

REX, Model 22 - ANSI Type IAA - 375 lb Rated, Aluminum Articulated Extendable Ladder, with 3-position foot, double-angle level and RATCHET Levelers

Download Media Package

Data Feed:

83367 v5 6.23 Manual Articulated Extandable

Base Sku: 12122-880 -- REX, Model 22 - ANSI Type IAA - 375 lb Rated, Aluminum Articulated Extendable Ladder, with 3-position foot, double-angle level and RATCHET Levelers

Specifications
Product Category	REX
Extension Lock	Cast Aluminum Rock Locks
Country Assembled	USA
Marketing Language	English / Spanish
Duty Rating	Type IAA - Special Duty
Feet	3-position pick foot
Hinge Lock	None
Material	Aluminum
Load Capacity	375 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	Limited Lifetime
Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Inside Clear Width	1 ft.	32 cm
Storage Height	5 ft. 7 in.	1.70 m
Storage Width at Base	2 ft. 3 in.	69 cm
Storage Depth	9 in.	23 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	3 in.	9 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	63 lbs.	28.57 kg

Features
Scaffolding Position	Yes
Tip-N-Glide Wheels	No
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Highest standing level Max	6 ft. 8 in.	2.03 m
Highest standing level Min	2 ft. 11 in.	89 cm
Maximum Footprint	6 ft. 4 in.	1.94 m
Minimum Footprint	3 ft. 11 in.	1.21 m
Max Reach	13 ft. 2 in.	4.01 m

Single / Extension
Extension Total Length of Sections	21 ft. 2 in.	6.45 m
Extension Max Reach	22 ft.	6.71 m
Single / Extension Highest Standing Level Max	15 ft. 6 in.	4.72 m
Single / Extension Highest Standing Level Min	7 ft. 10 in.	2.39 m
Single / Extension Max Working Length	18 ft. 11 in.	5.77 m
Single / Extension Min Working Length	10 ft. 11 in.	3.33 m
