13480B-001
King Kombo

KING KOMBO, 5' - ANSI Type I - 250 lb Rated, with Rotating Wall Pad and QUAD POD - Black

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

KING KOMBO Professional Manual - Canada - English/French

KING KOMBO Industrial Manual - Canada - English/French

Compatible Accessories

Model Number: 15097 - Ladder Rack
Model Number: 15104 - QUAD POD 2.0, variable shape leaning tool tray for KING KOMBO Ladders

Included Accessories

Model Number: 15101 - Quad Pod

It’s the pro tool that helps you get stuff done faster than ever. The pinnacle of ladder technology, the King Kombo™ from Little Giant Ladder Systems® is tough as nails and versatile enough for any tradesman. Recognized for its superior safety and innovation, the King Kombo is the most awarded ladder ever, having received awards at the 2019 Pro Tool Innovation Awards, 2019 OH&S New Product of the Year Awards, SAFE Awards from the National Association of Homebuilders and more.

3-IN-1 LADDER

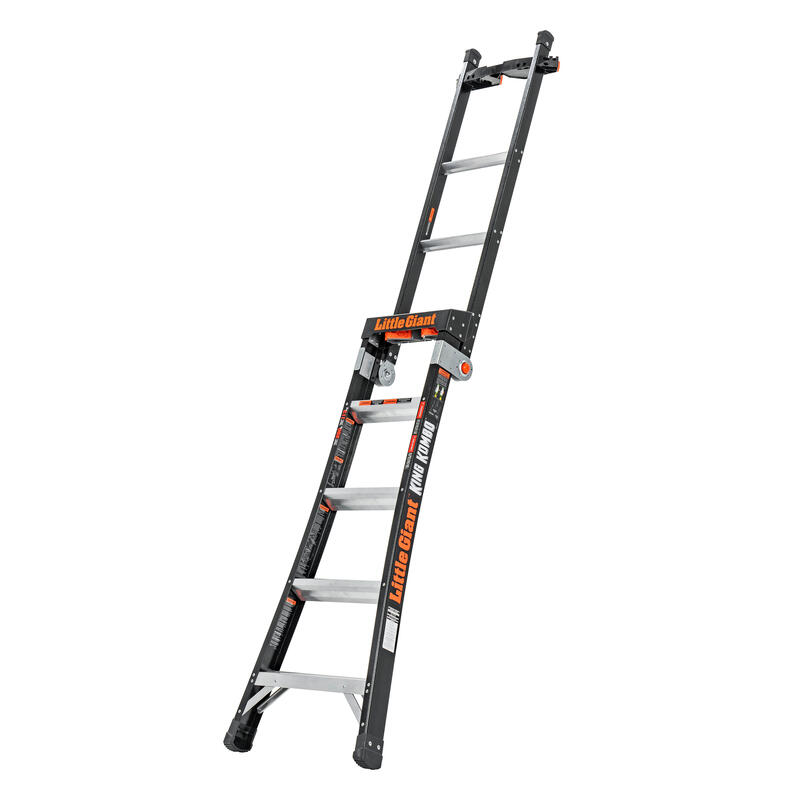

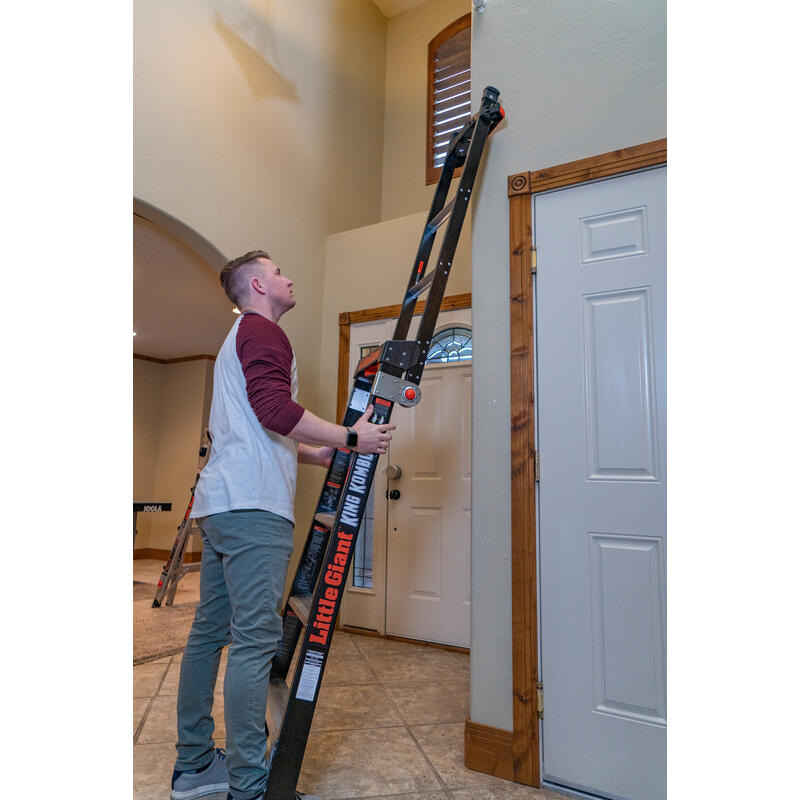

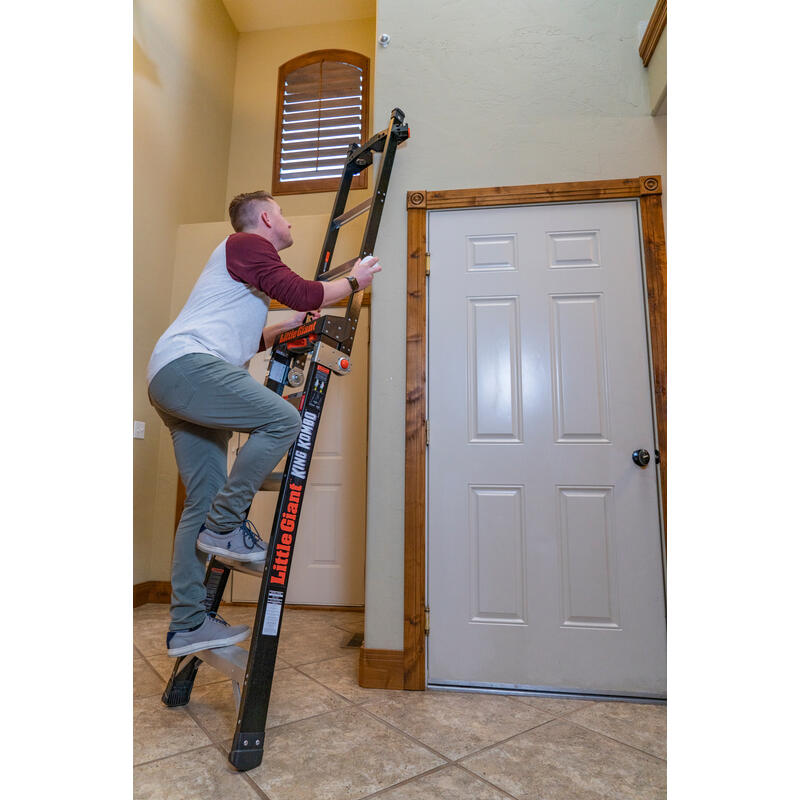

1. EXTENSION

With the functional rear section in the extension position, you can easily reach those high places, even roof and attic access ports.

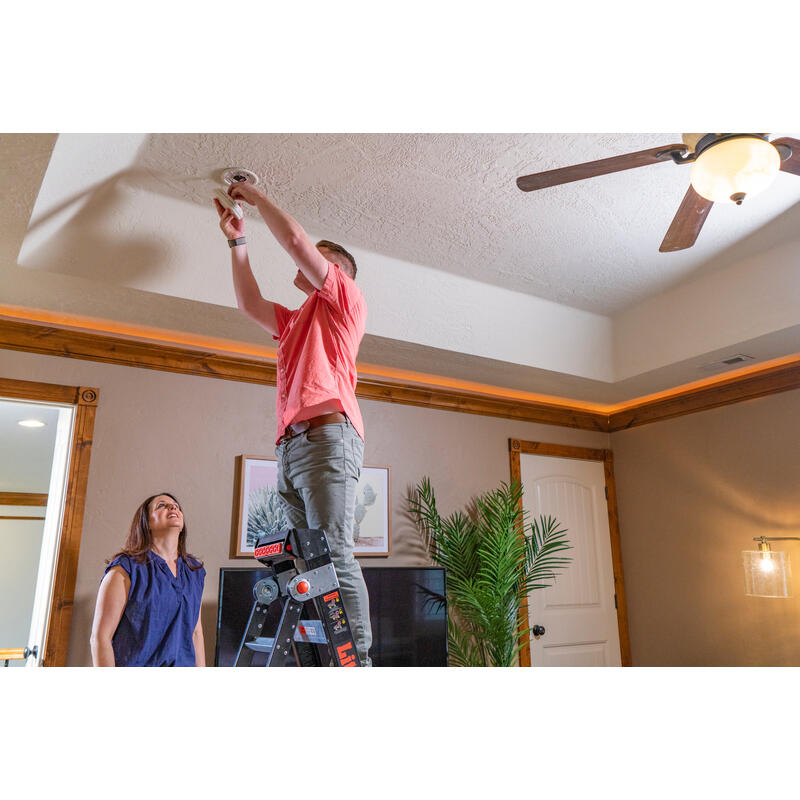

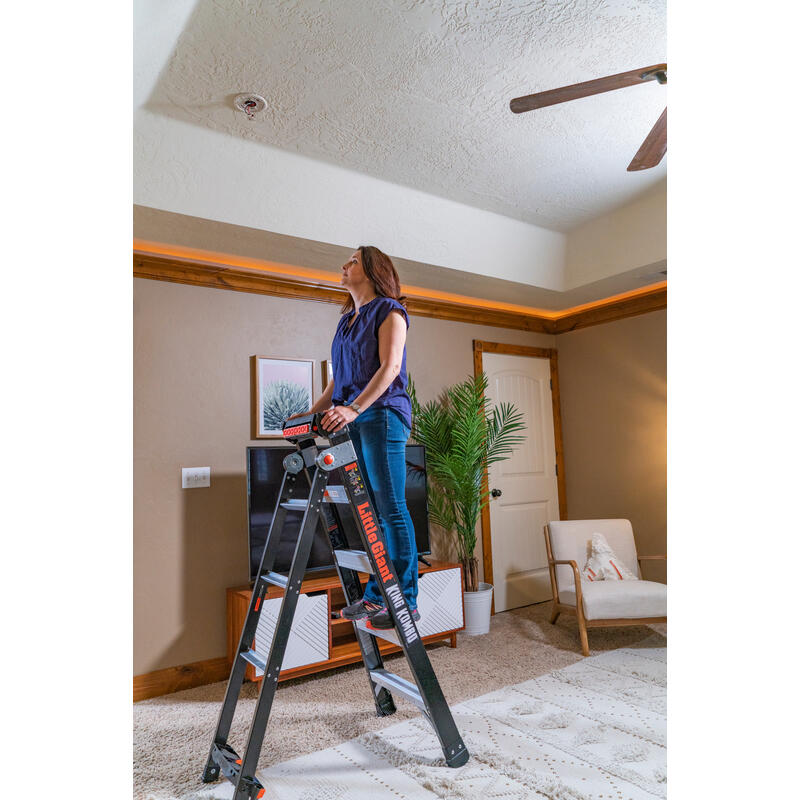

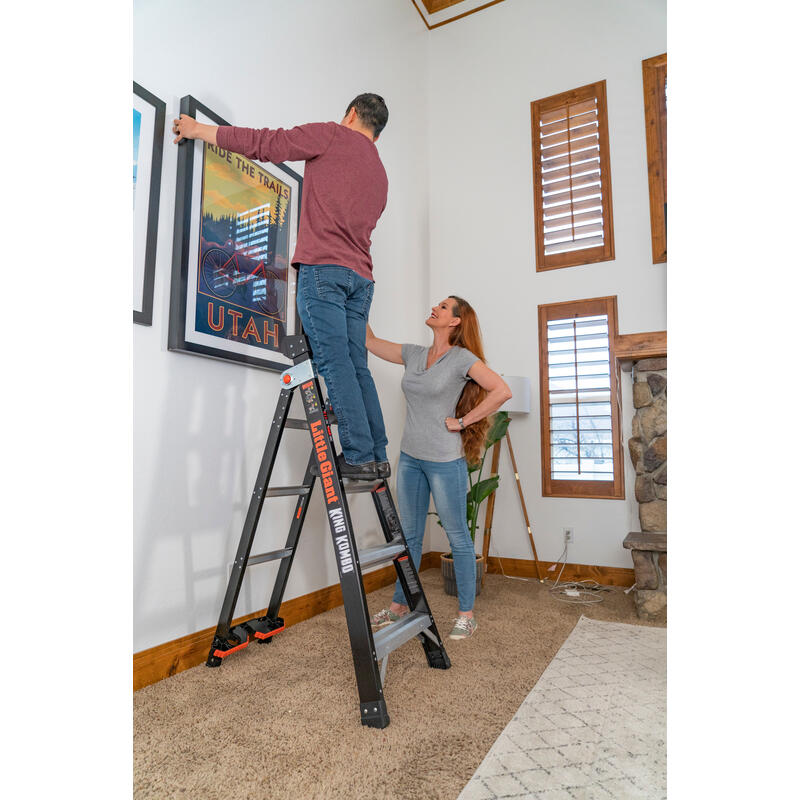

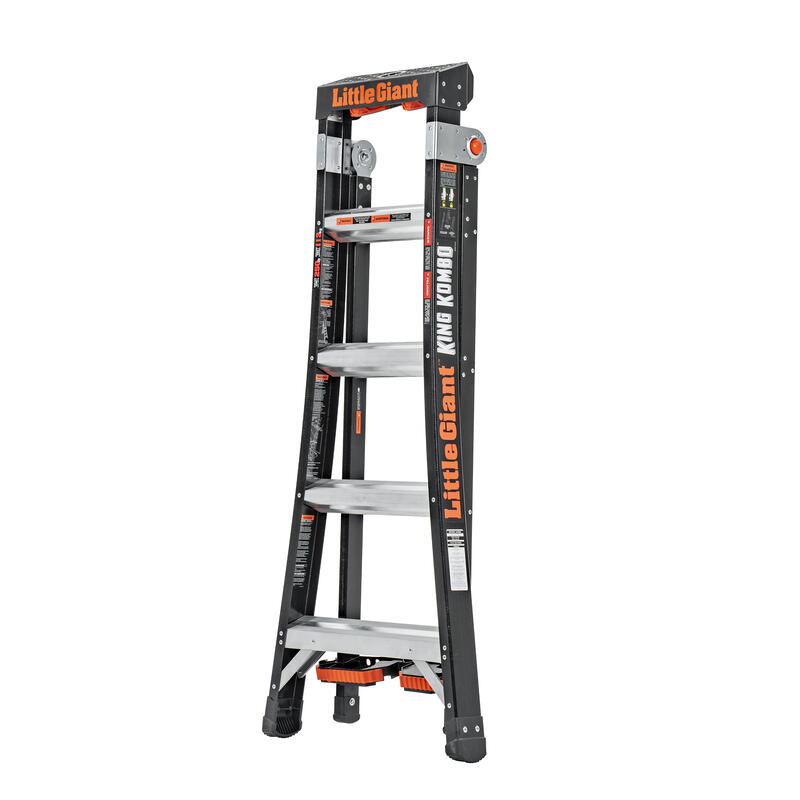

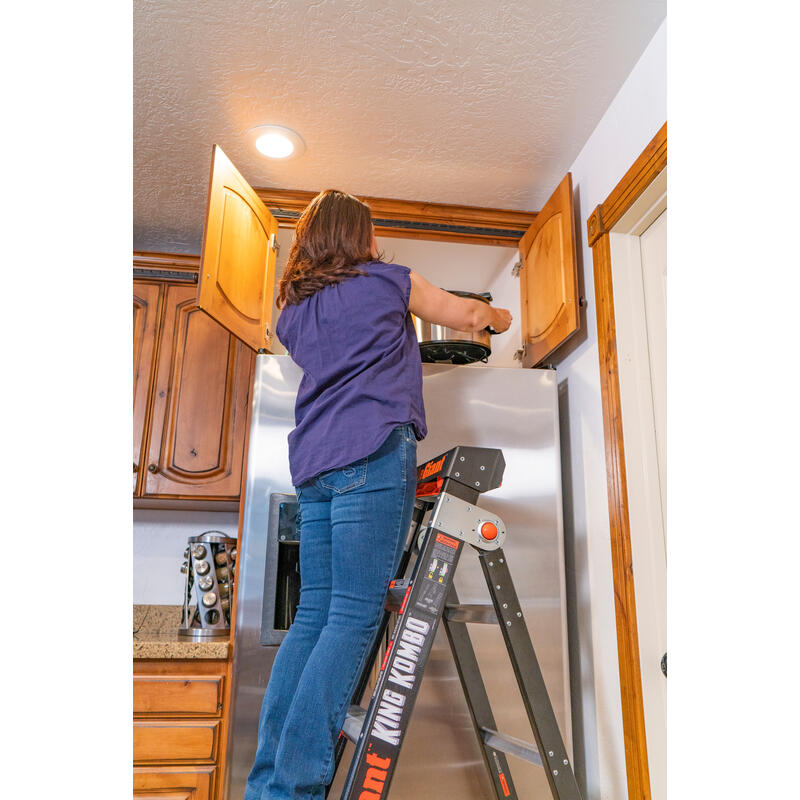

2. STEPLADDER

This ladder features a wide-flared base for sturdy climbing and a narrow backside to fit between studs.

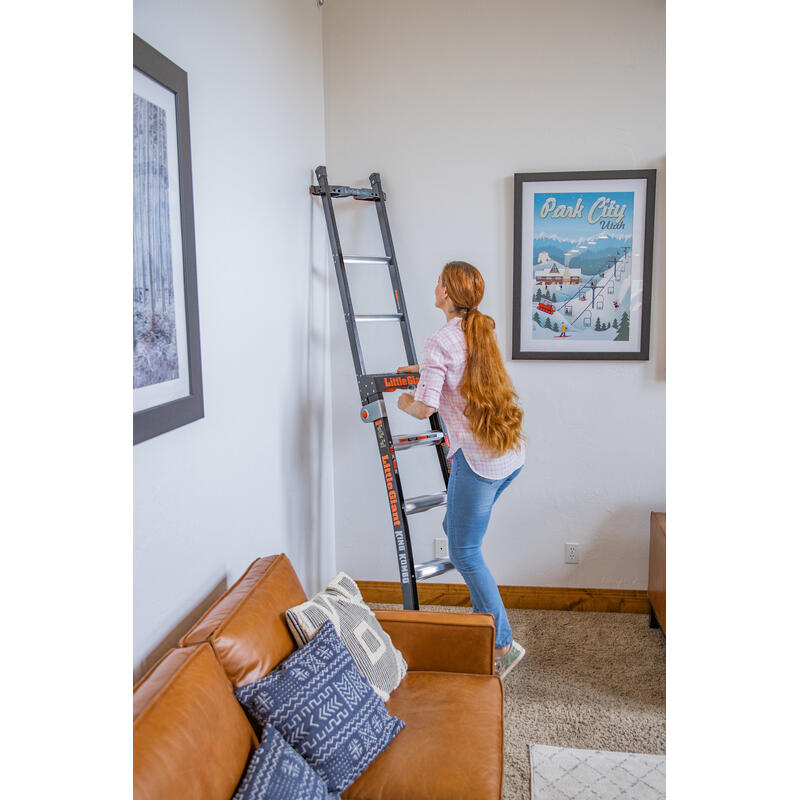

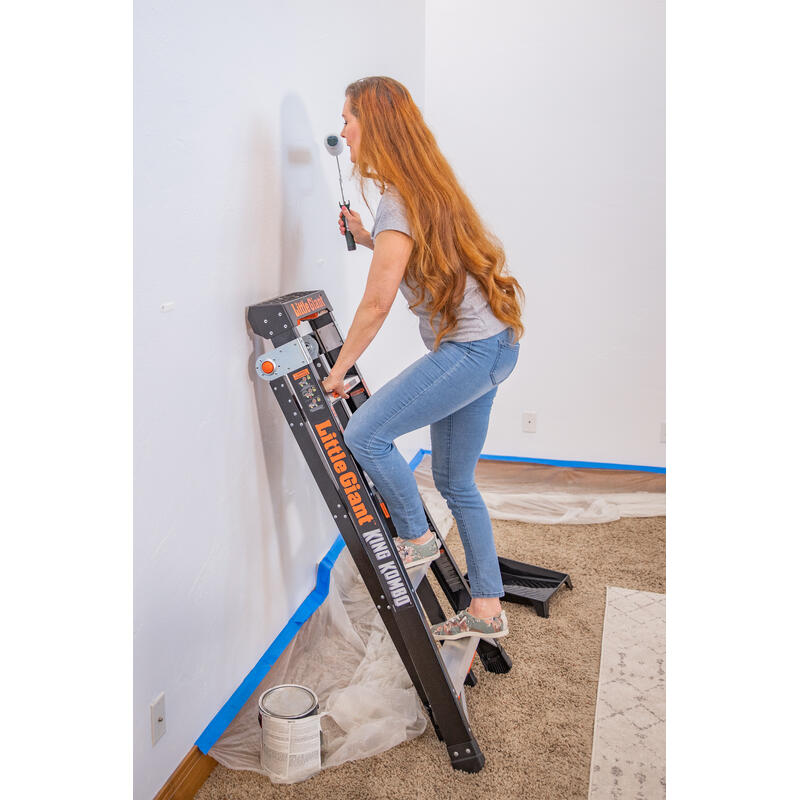

3. LEANING

The King Kombo is an OSHA/ANSI compliant leaning ladder. Safely lean your ladder, so you can get closer to your work.

FEATURES

ROTATING WALL PAD

The crowning gem of the King Kombo is its rotating wall pad. Now, you can safely set up your ladder on inside and outside corners, walls and studs with ease.

FIELD REPLACEABLE FEET

Field-replaceable feet allow for easy foot replacement on the job site. Save time and energy, while getting the job done with ease.

1. PRO

1. INDUSTRIAL

TECHNICAL

FITS BETWEEN STUDS

The extension side of the ladder has straight-line legs that are narrow enough to fit between studs. Access tight workspaces between wall studs, ceiling trusses and roof or attic access ports.

Specifications
Product Category	King Kombo
Extension Lock	None
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type I - Heavy Duty
Feet	Std non-marring (screw-on/rivet mix)

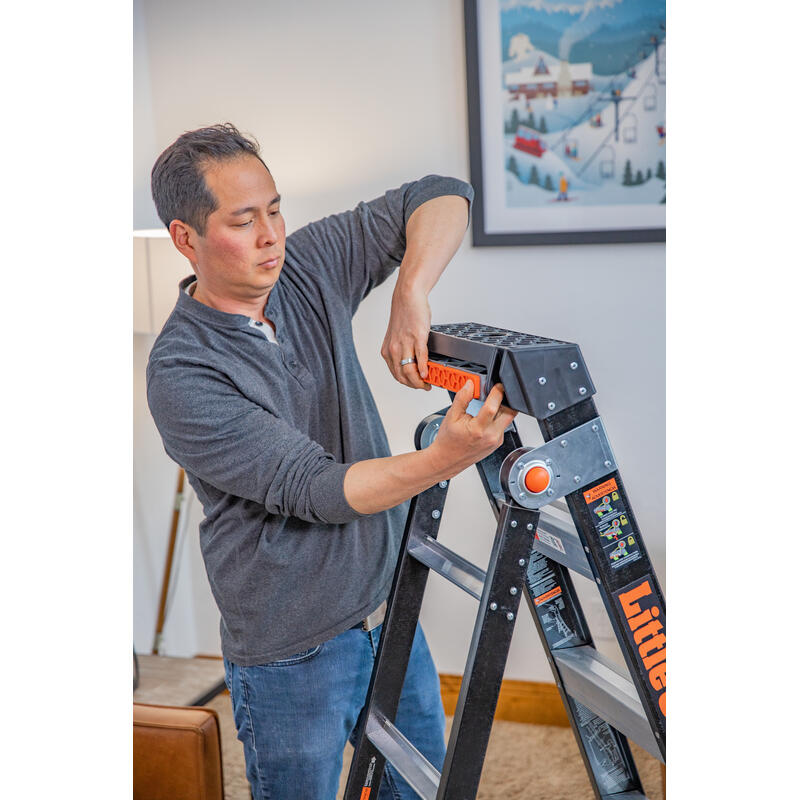

Hinge Lock	Push Button
Material	Fiberglass
Load Capacity	250 lbs.
Spreader System	Hinge Lock
Ladder Type	3-in-1 All-Access Ladder
Warranty	1-Year
Size	5'	1.52 m
Inside Clear Width	1 ft.	31 cm

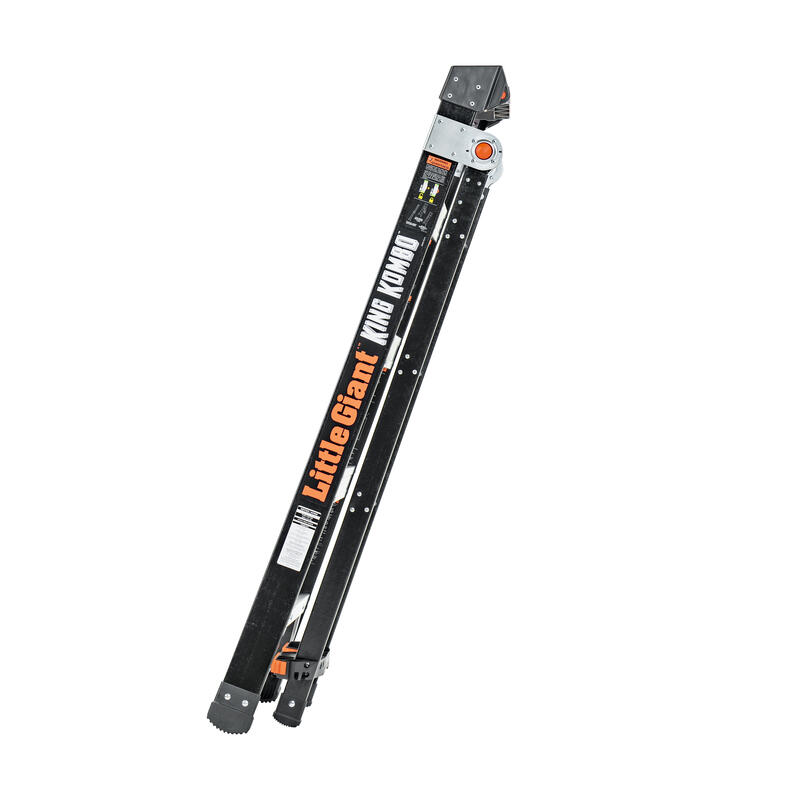

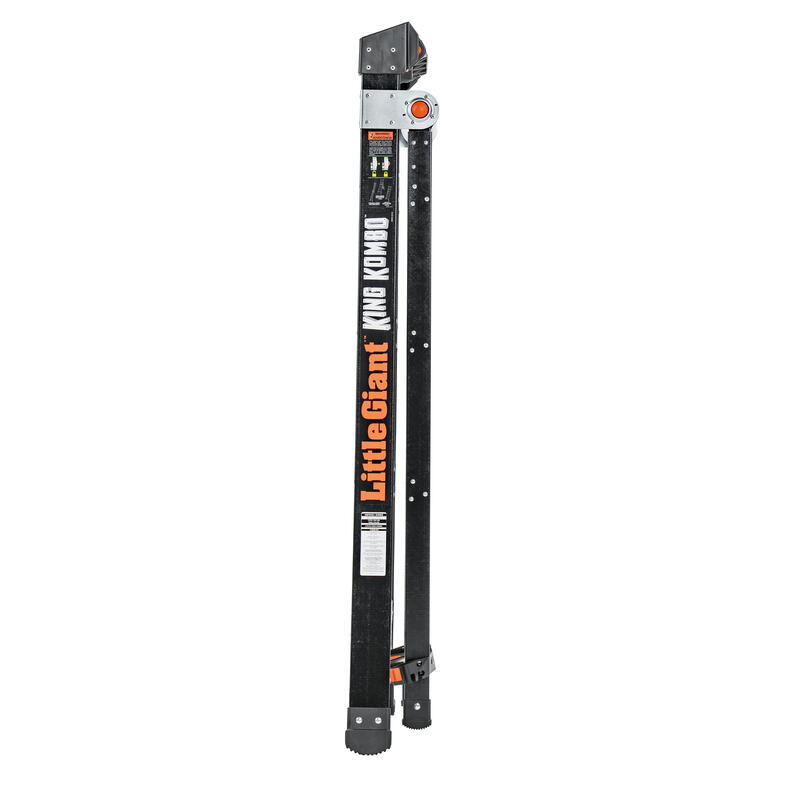

Storage Height	5 ft. 1 in.	1.55 m
Storage Width at Base	2 ft.	62 cm
Storage Depth	7 in.	18 cm
Inner Rung Depth	3 in.	8 cm
Outer Rung Depth	3 in.	8 cm
Double Rung Depth	6 in.	15 cm
Top Width	1 ft. 3 in.	38 cm
Product Weight	20 lbs.	9.07 kg

Features
Scaffolding Position	No
Tip-N-Glide Wheels	No
90° Position	No

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	3926.90.9930

Step Ladder
Stepladder Size	5'	1.52 m
Highest standing level Max	2 ft. 10 in.	86 cm
Highest standing level Min	2 ft. 10 in.	86 cm
Maximum Footprint	3 ft.	91 cm
Minimum Footprint	3 ft.	91 cm
Max Reach	9 ft. 4 in.	2.84 m

Single / Extension
Extension Total Length of Sections	9 ft. 6 in.	2.90 m
Extension Max Reach	11 ft. 4 in.	3.45 m
Single / Extension Highest Standing Level Max	4 ft. 10 in.	1.47 m
Single / Extension Highest Standing Level Min	2 ft. 10 in.	86 cm
Single / Extension Max Working Length	7 ft. 11 in.	2.41 m
Single / Extension Min Working Length	5 ft.	1.52 m

Leaning Stepladder Position
Highest Standing Level	1 ft. 11 in.	58 cm
Max Reach	8 ft. 5 in.	2.57 m
