14317-001
LT

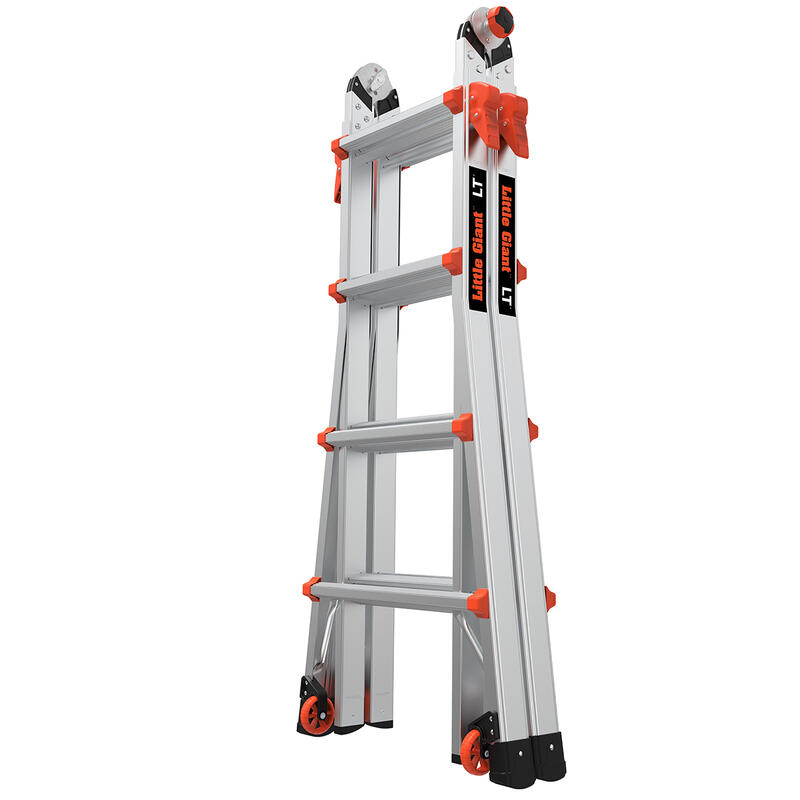

LT, Model 17 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendable Ladder

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

No manuals have been assigned to this product

Compatible Accessories

Model Number: 10104 - Work Platform
Model Number: 10111 - WingSpan Wall Standoff
Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, Accessories for Articulated Extendable Ladders
Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15012 - Project Tray
Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 15040-001 - Cargo Hold
Model Number: 15047-002 - TOOL TRAY, Project Tray, Compatible with Multi-position Ladder Family - Retail Packaging
Model Number: 15050-001 - FUEL TANK, vertical paint tray, Ladder Accessory
Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
Model Number: 15097 - Ladder Rack
Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 26999 - TRESTLE BRACKETS, Rail Connectors, Articulating Ladder Accessory (Leveler Compatibility)

LT

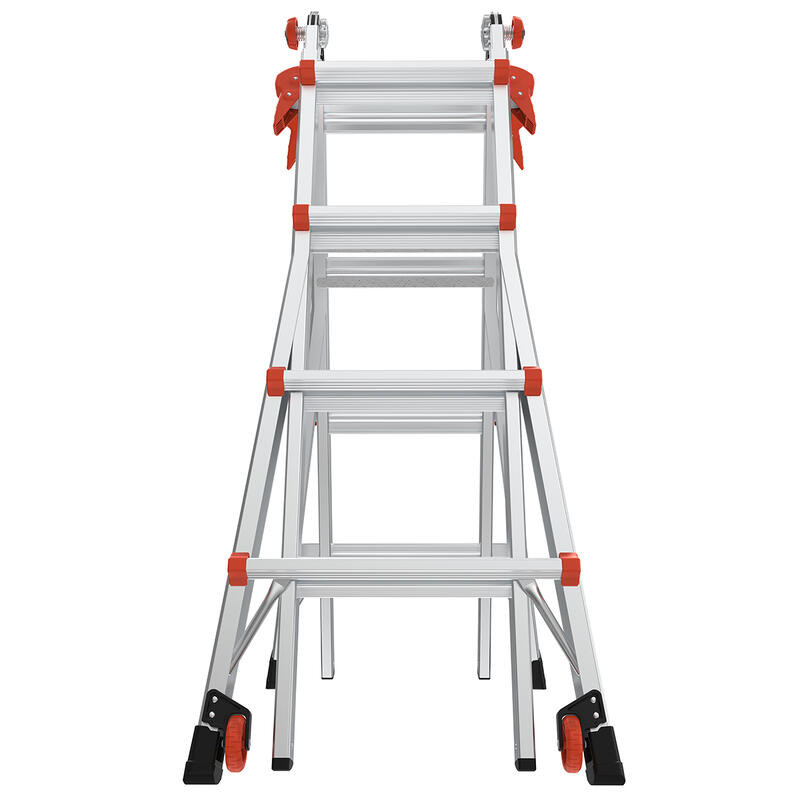

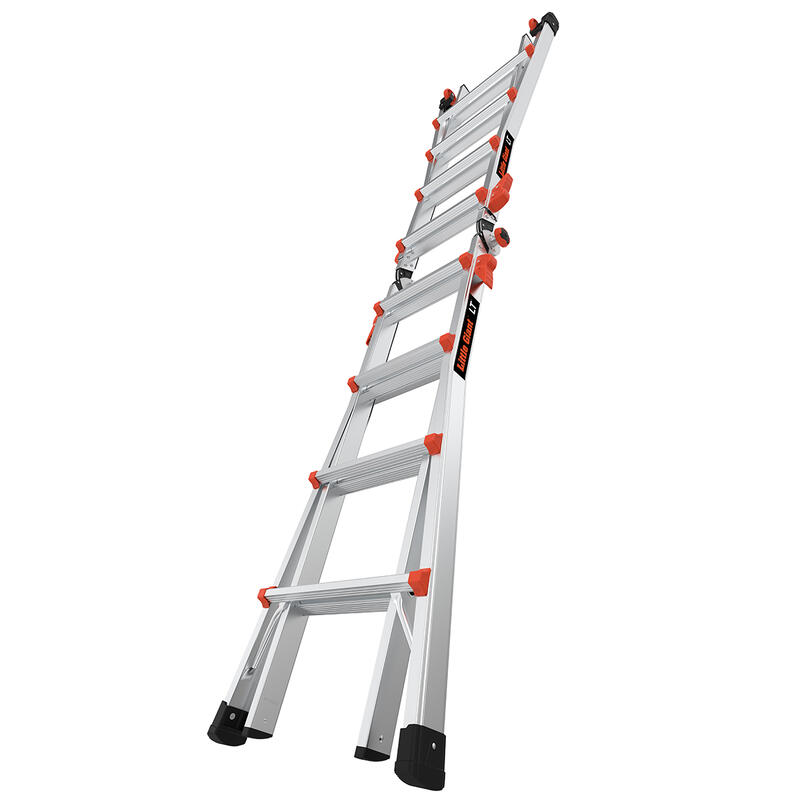

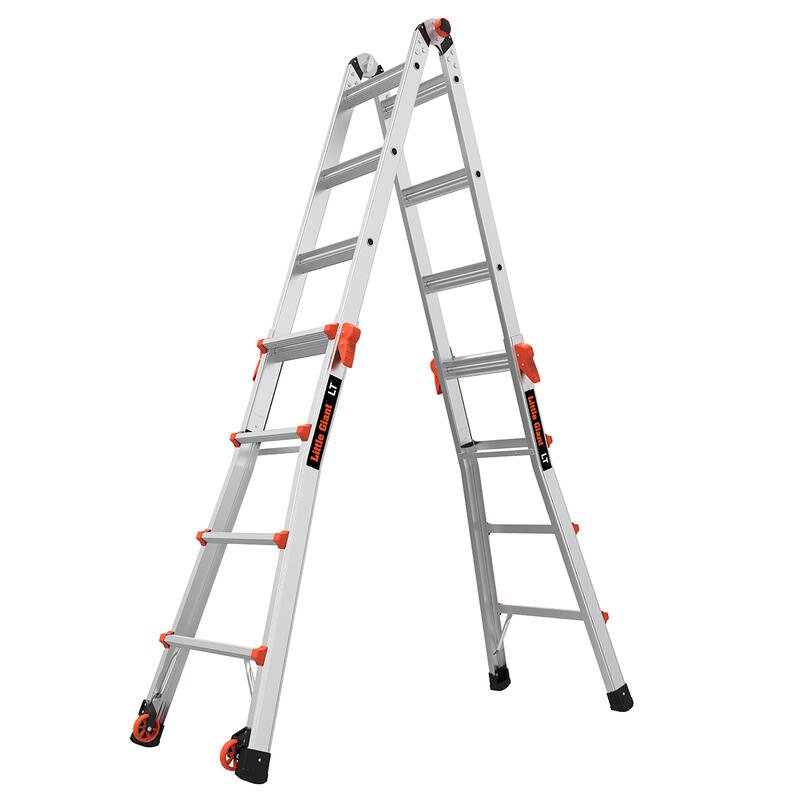

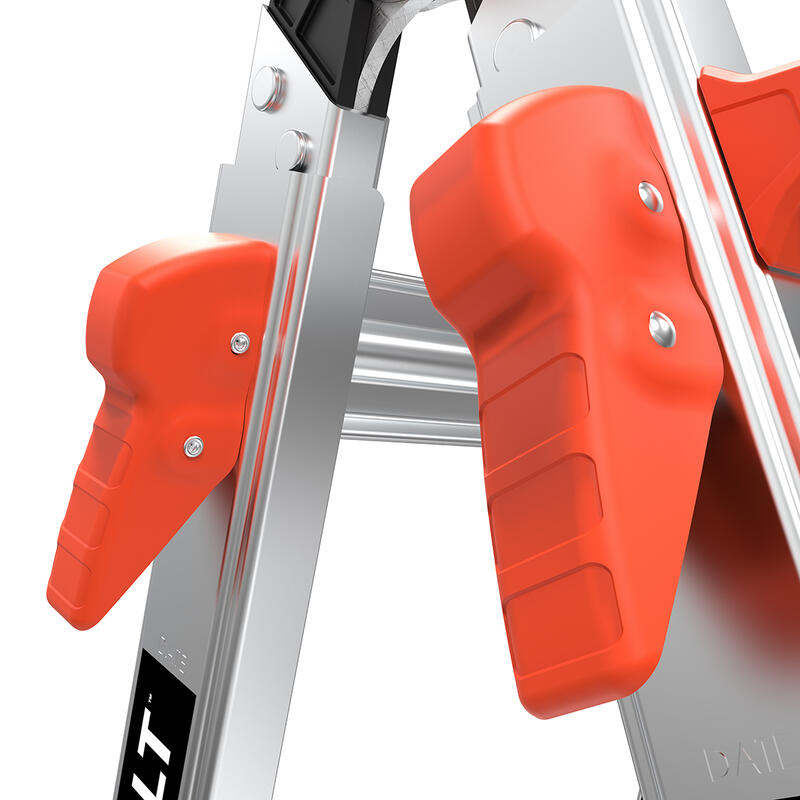

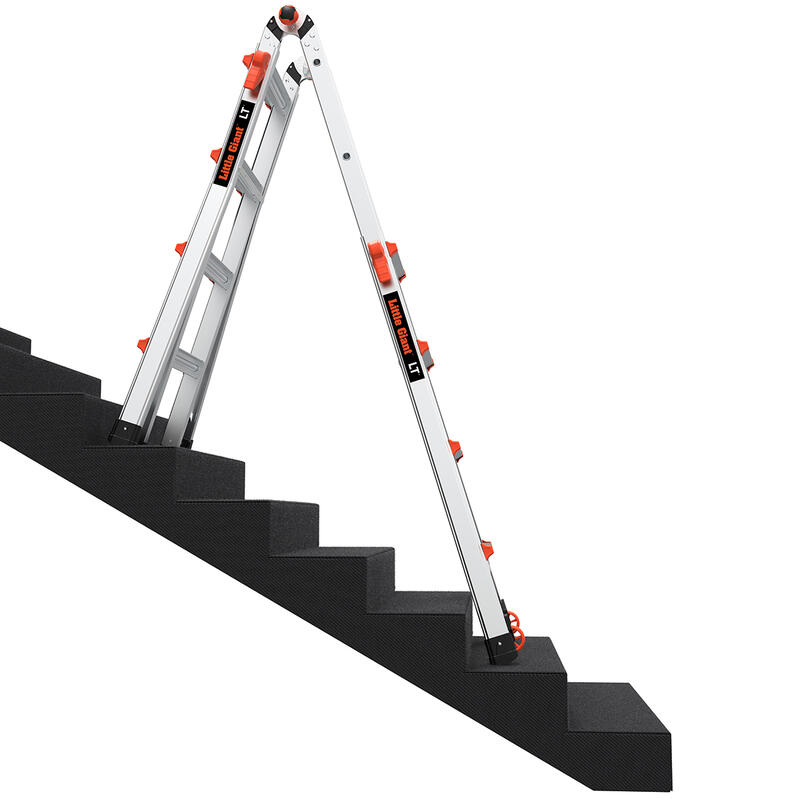

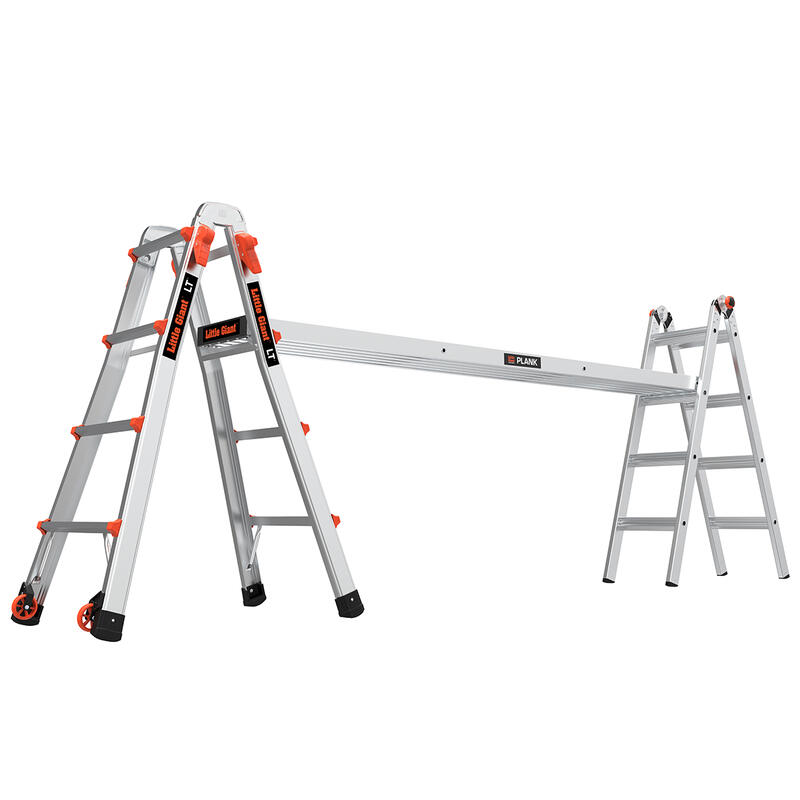

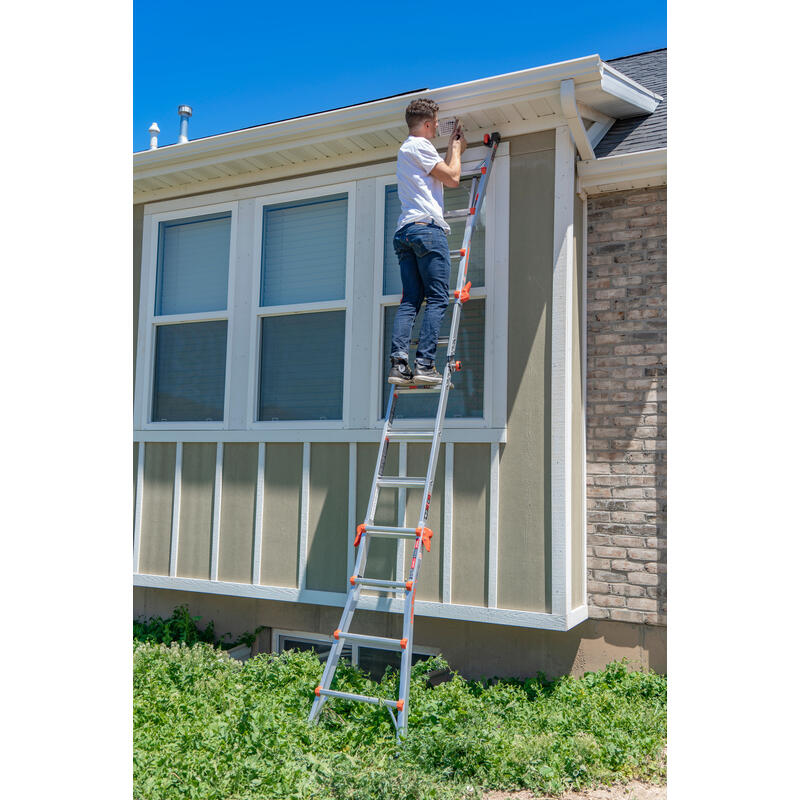

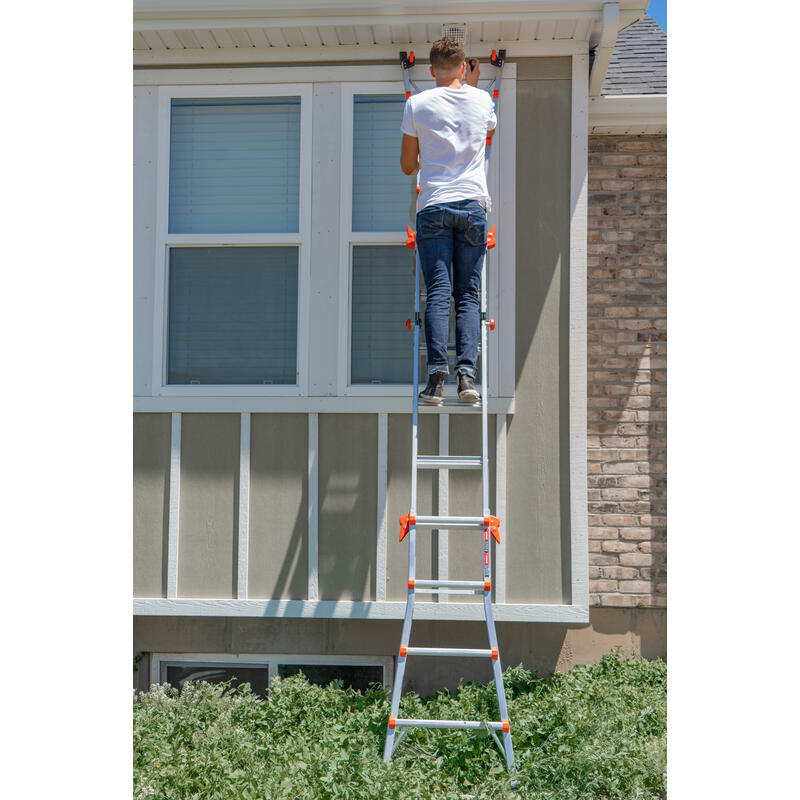

The Little Giant LT multipurpose ladder system includes several innovative features such as the dual-pin hinge and the easy-to-use Rock Locks for quick adjustment. You can use LT Model in many unique configurations— an A-frame, extension, staircase and 90-degree ladder, and with Trestle Brackets (sold separately) to form a trestle-and-plank scaffolding system. The LT’s wide-flared legs and aerospace-grade aluminum construction provide an unmatched feeling of safety and stability. The Little Giant LT is rated to hold 300 pounds on both sides and is a true two-person ladder. The wide-flared legs offer improved side-tip stability and create a wide, stabile footprint at the top of your extension ladder. The LT meets or exceeds all OSHA, ANSI, and CSA standards and is rated Type IA – 300 lbs.

Specifications
Product Category	LT
Extension Lock	Plastic Rock Locks
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (riveted)
Hinge Lock	Plastic / Triple Locking Hinge
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	Limited Lifetime
Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Inside Clear Width	1 ft.	32 cm

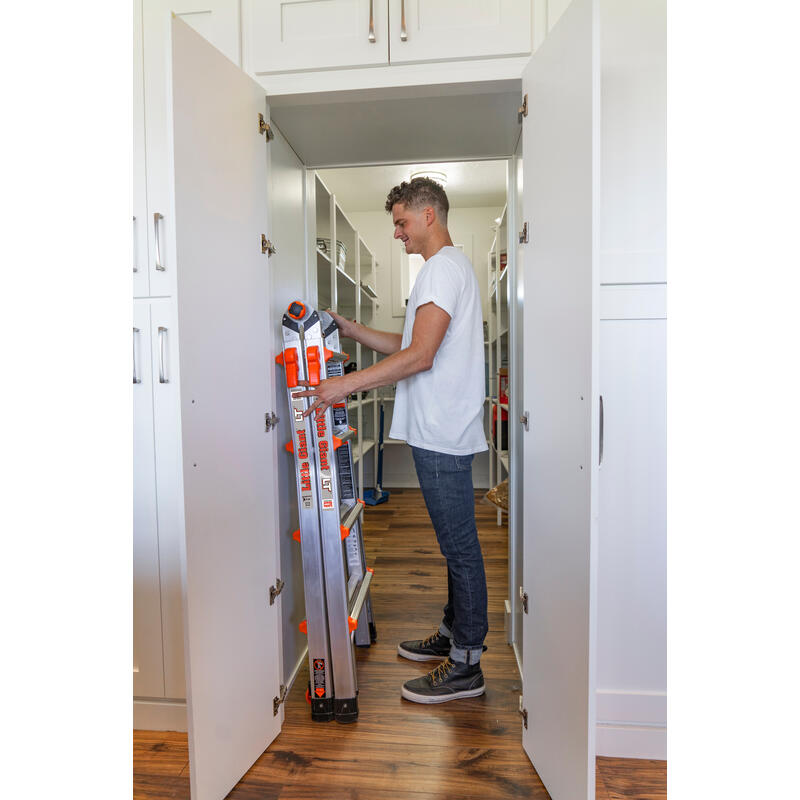

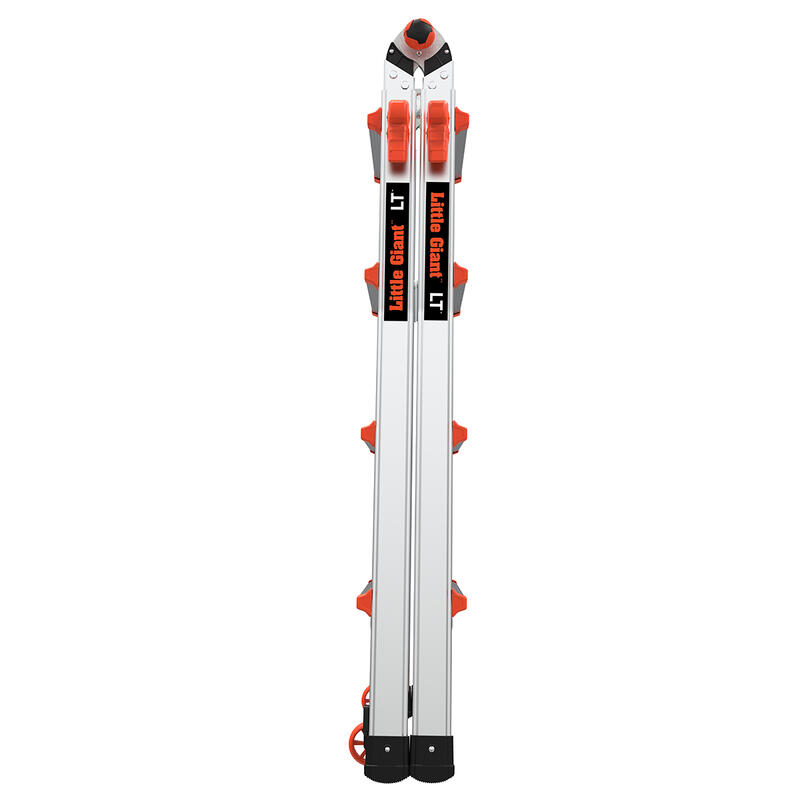

Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft.	61 cm
Storage Depth	8 in.	22 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	3 cm
Double Rung Depth	3 in.	8 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	31 lbs.	14.06 kg

Features
Scaffolding Position	Yes

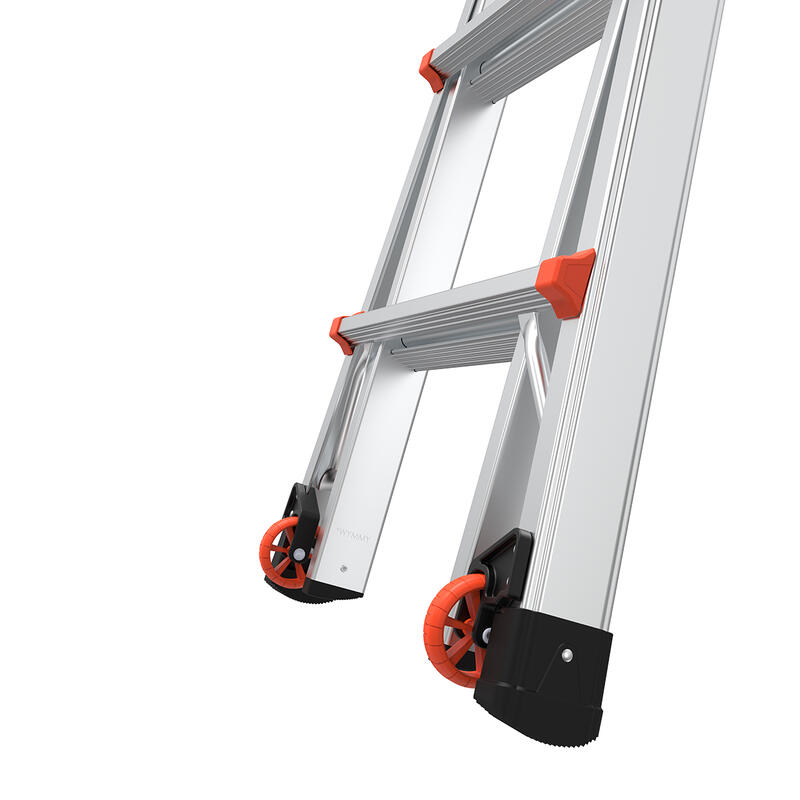

Tip-N-Glide Wheels	Yes

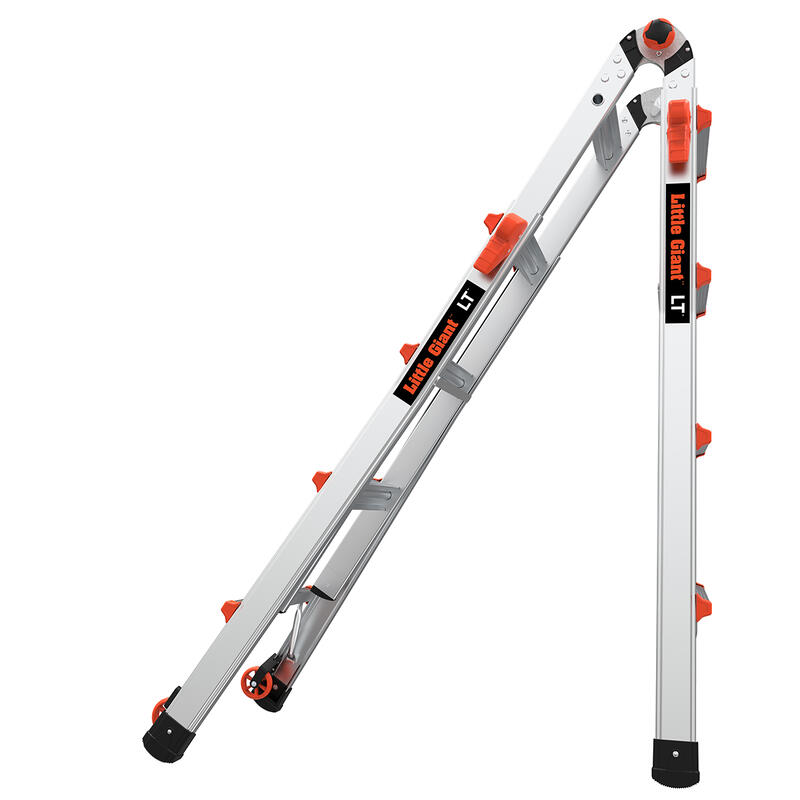

90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

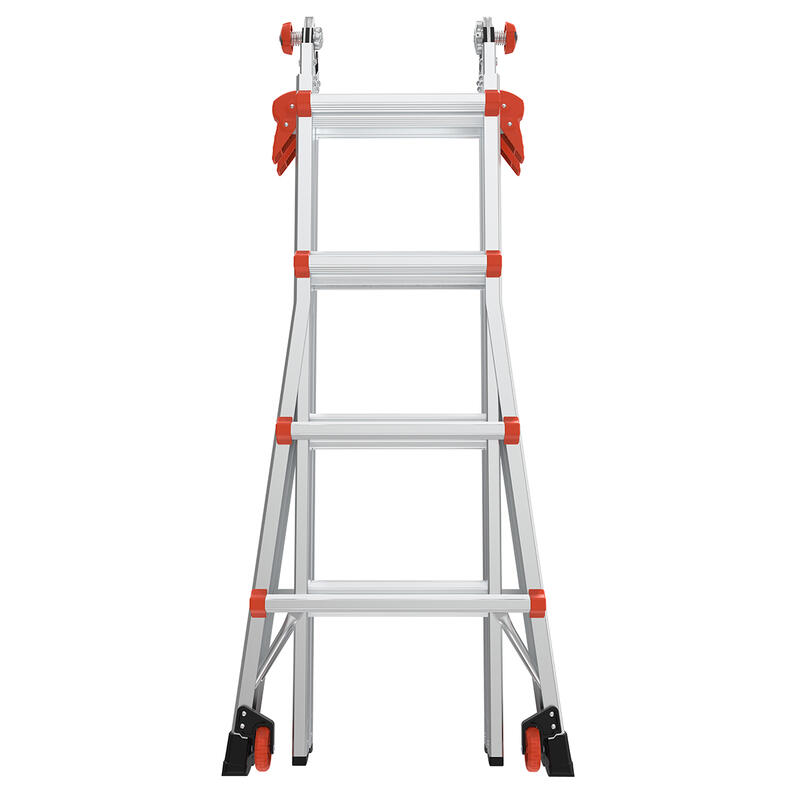

Step Ladder
Stepladder Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Highest standing level Max	4 ft. 10 in.	1.47 m
Highest standing level Min	1 ft. 11 in.	60 cm
Maximum Footprint	5 ft. 2 in.	1.58 m
Minimum Footprint	3 ft. 4 in.	1.03 m
Max Reach	11 ft. 4 in.	3.45 m

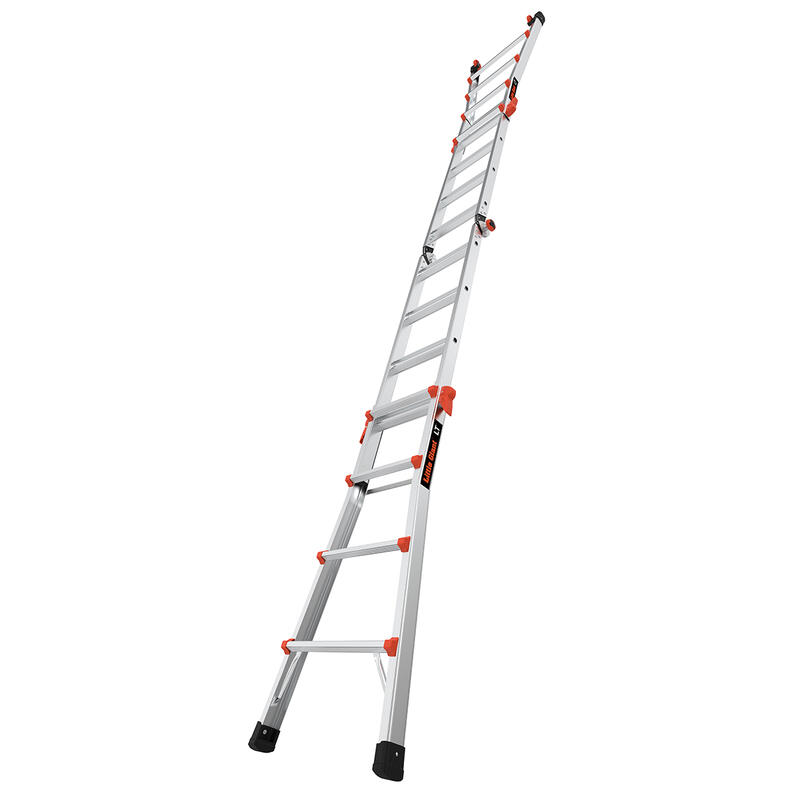

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 1 in.	5.51 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
