15417-001TH
Velocity

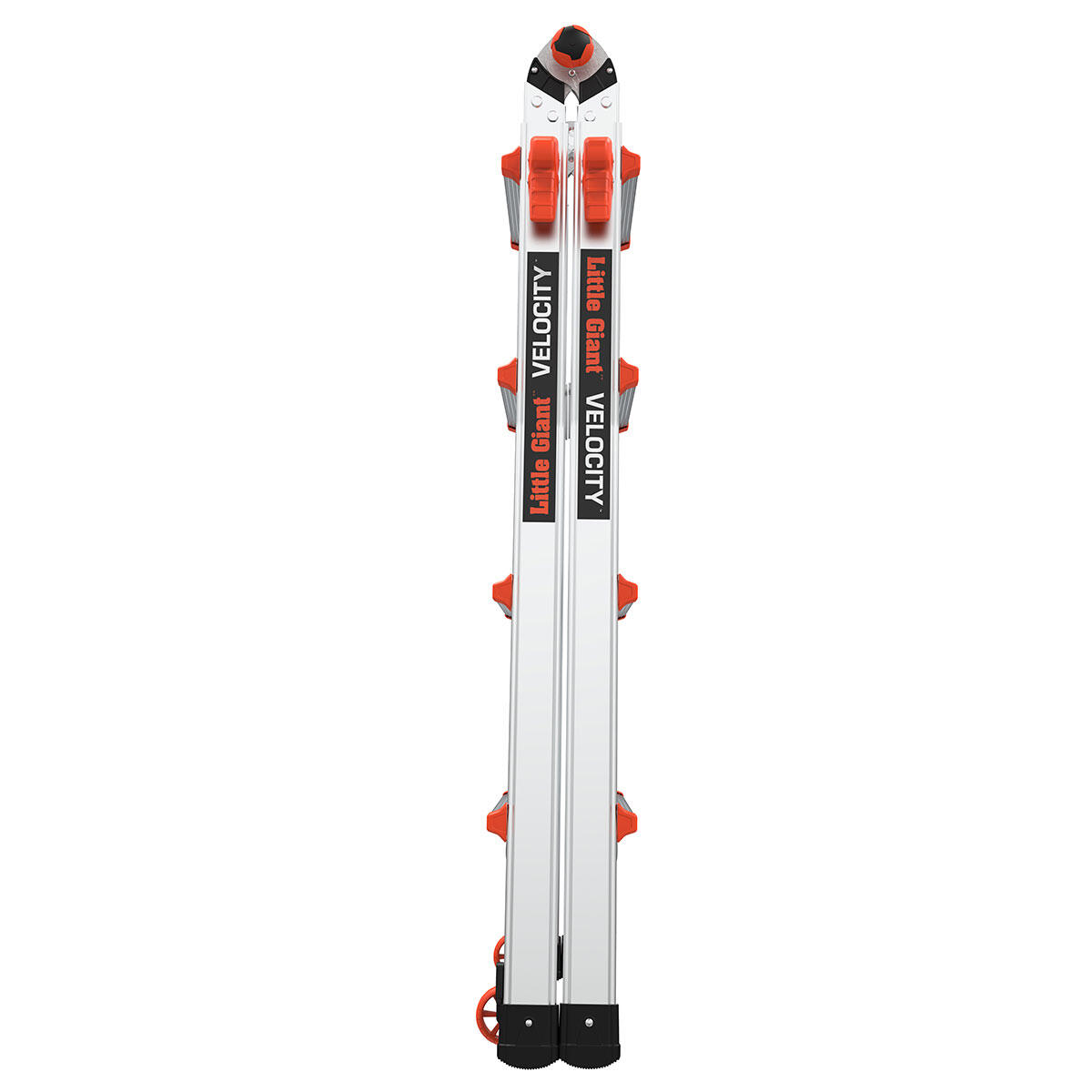

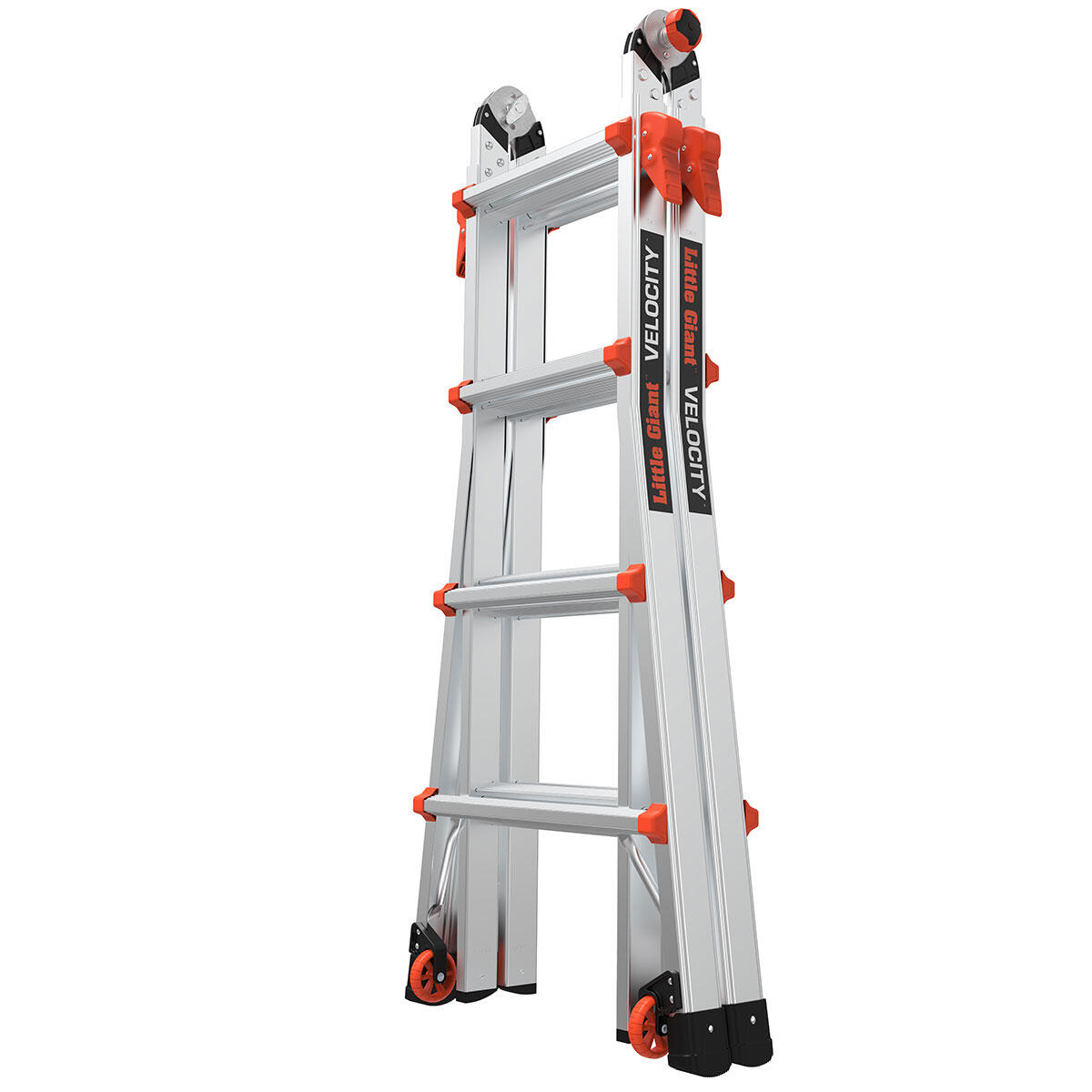

VELOCITY, Model 17 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendable Ladder - Third

Dowload Specsheet

Download Media Package

Data Feed:

Manuals

No manuals have been assigned to this product

Velocity with Ratchet Levelers

If you need a rugged, do-it-all ladder, the Velocity™ from Little Giant Ladder Systems® is the perfect piece of climbing equipment. This lightweight, multi-position ladder will help you get stuff done faster and more efficiently than the average stepladder. .

Multi-Position Ladder

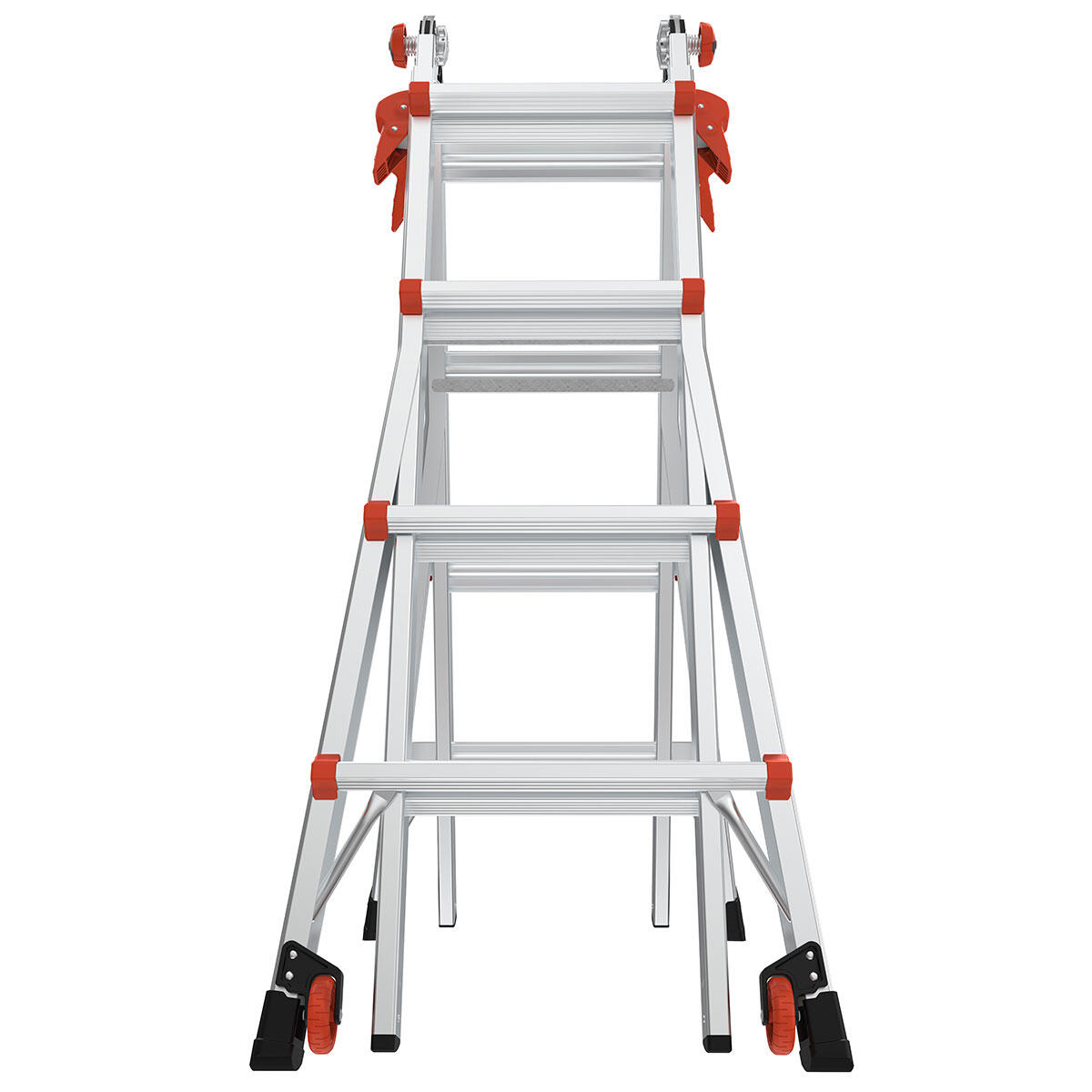

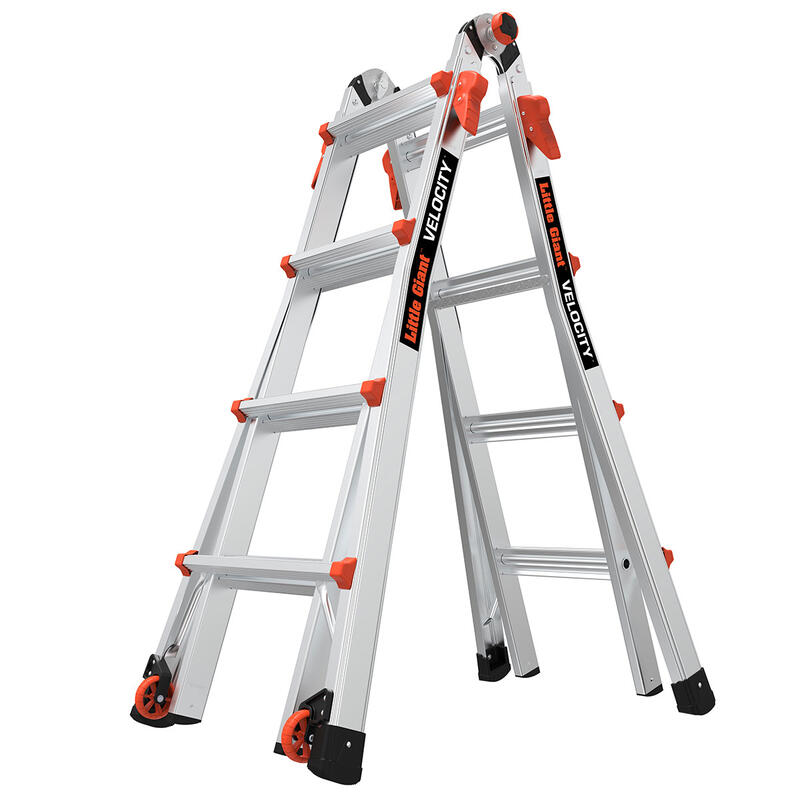

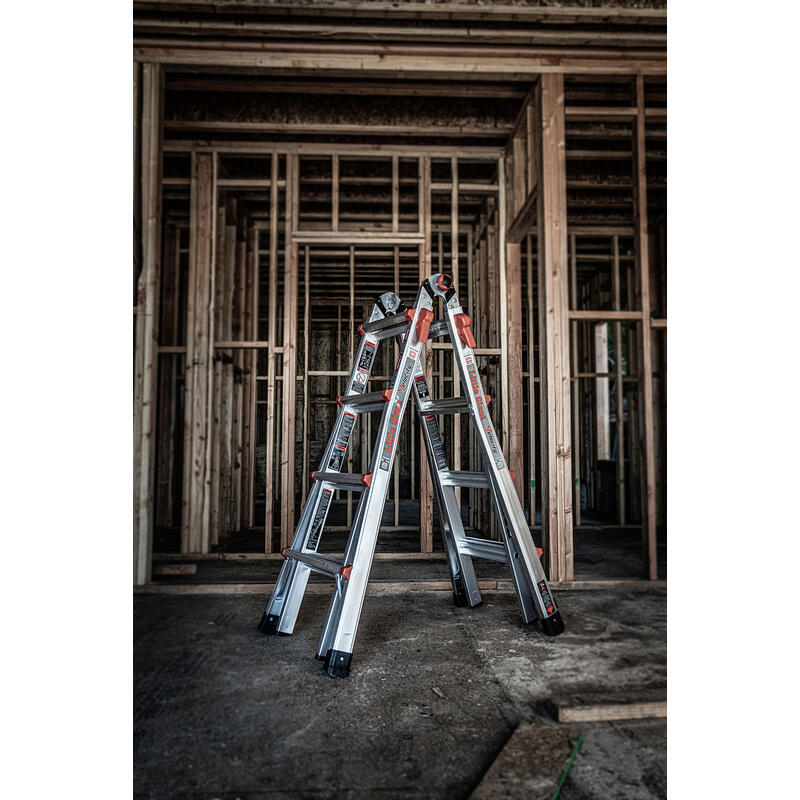

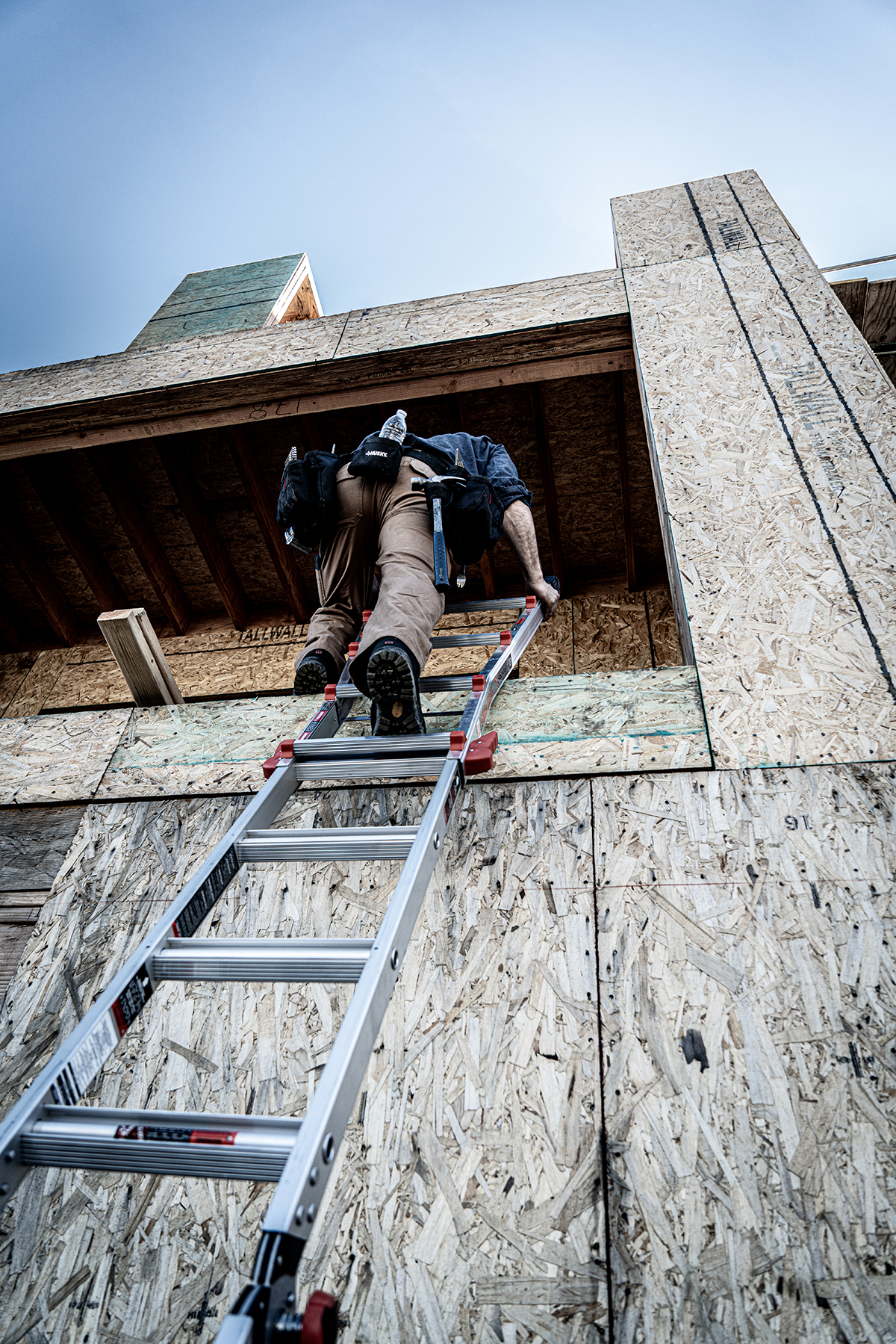

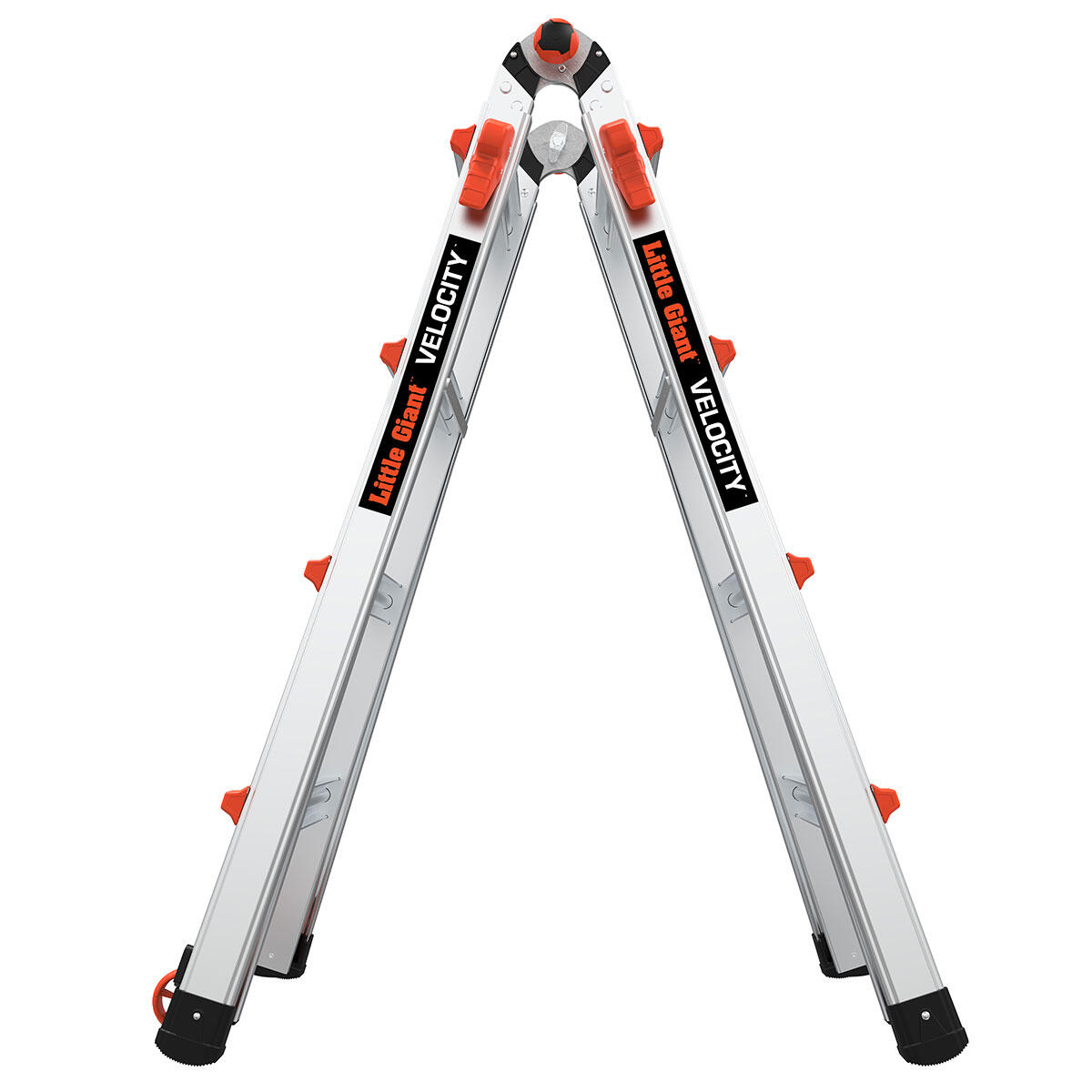

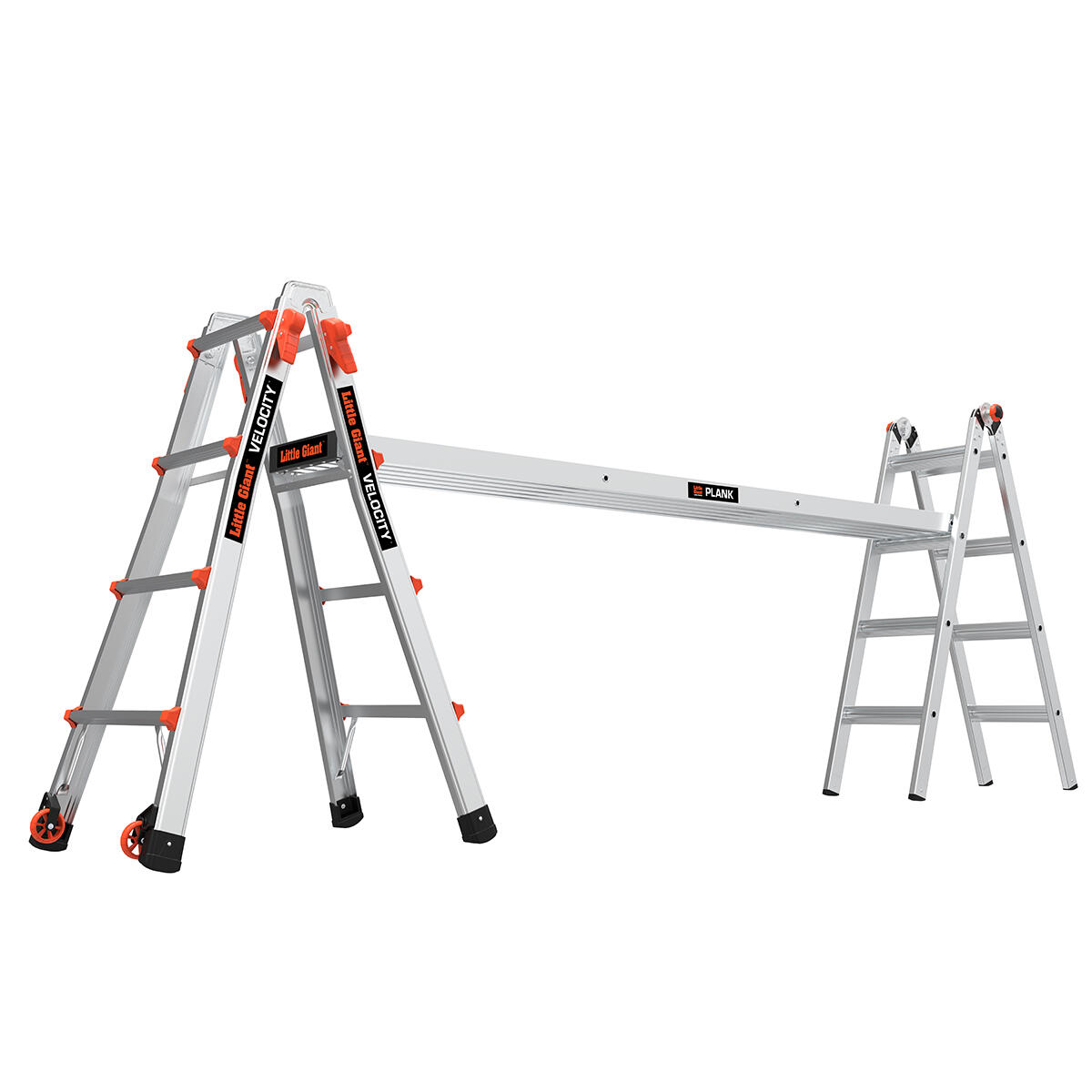

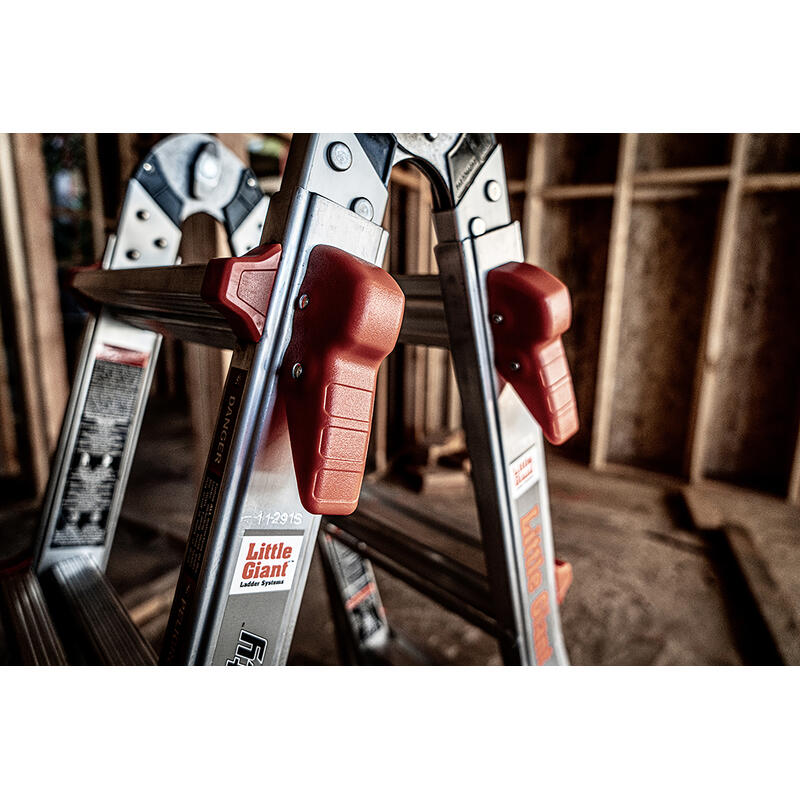

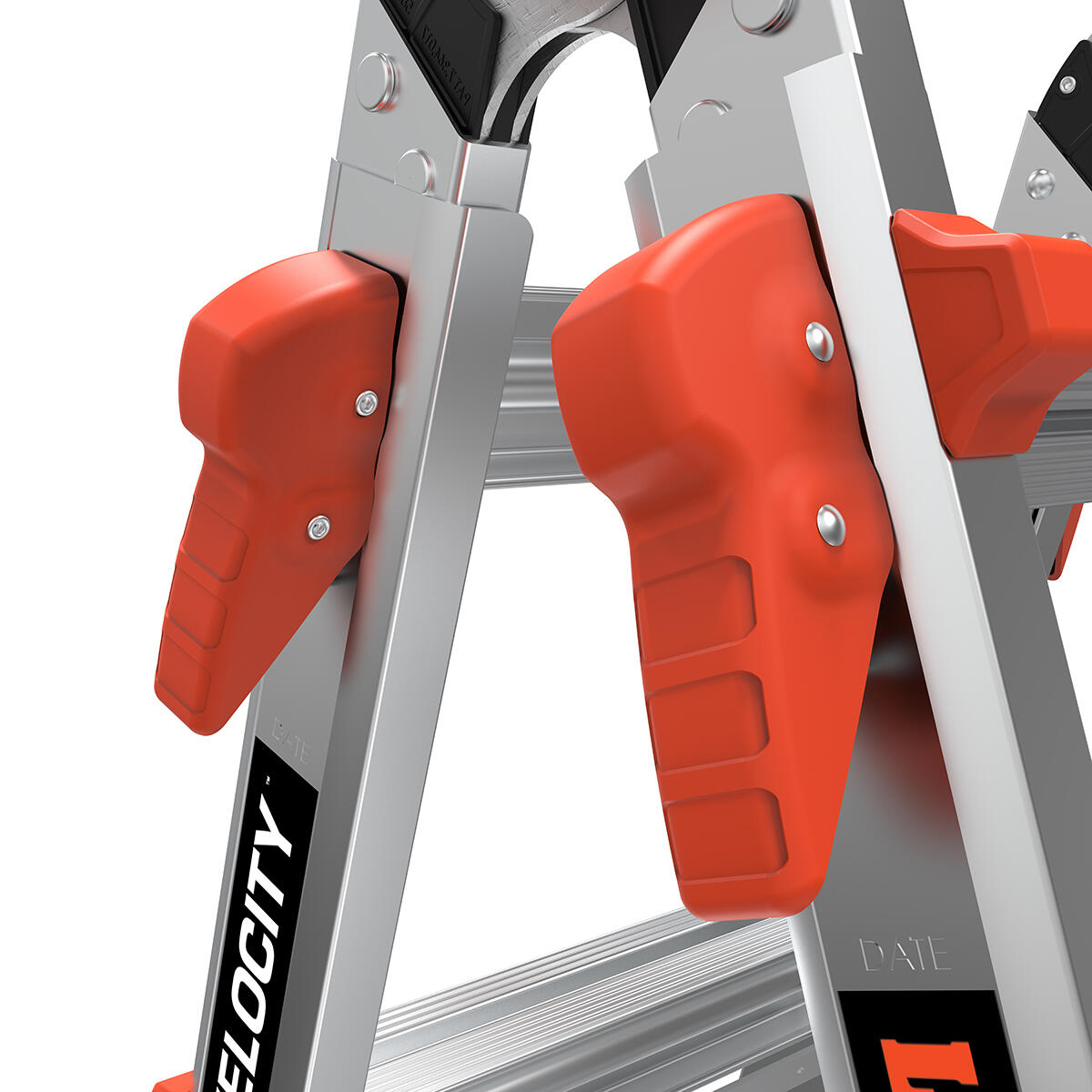

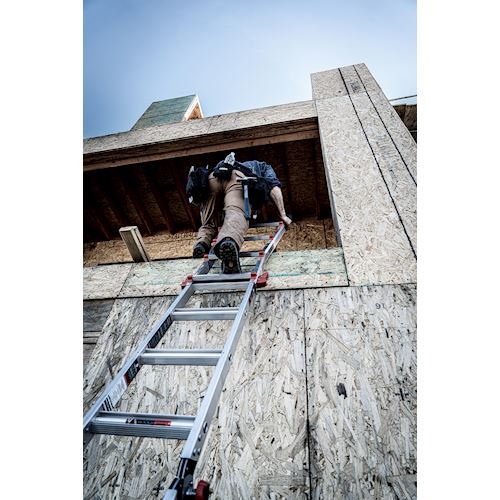

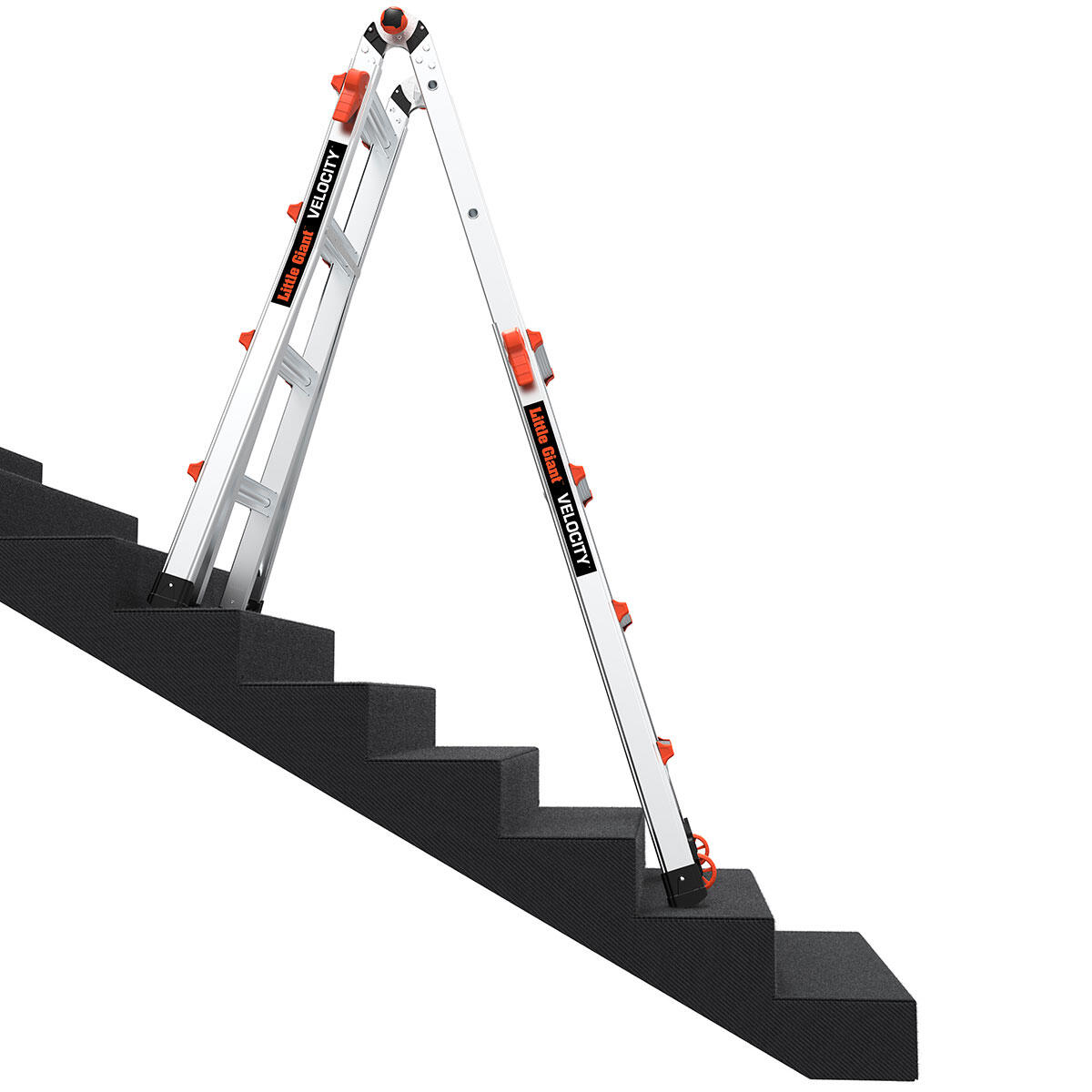

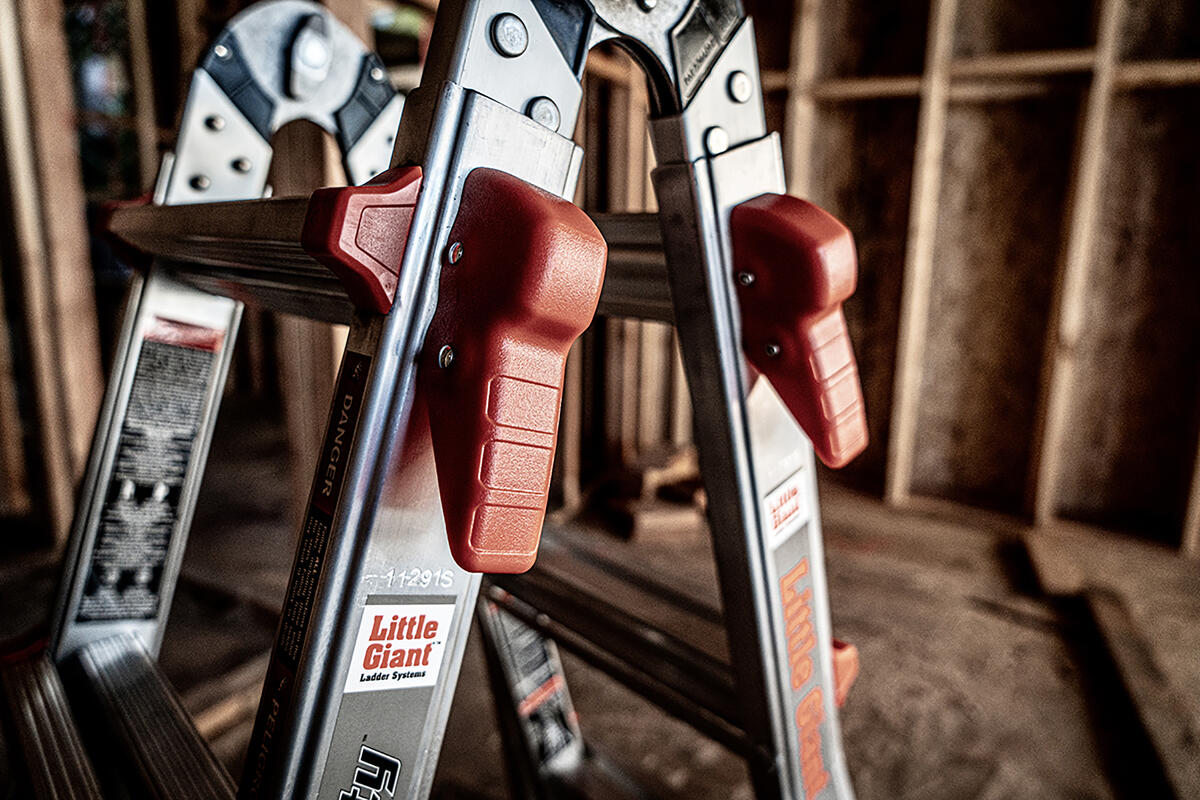

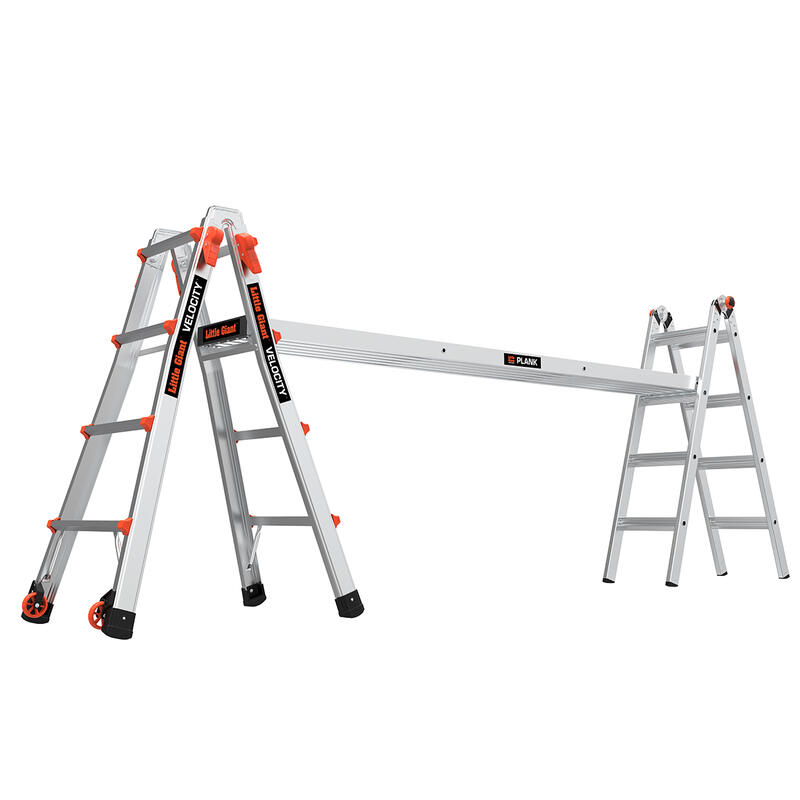

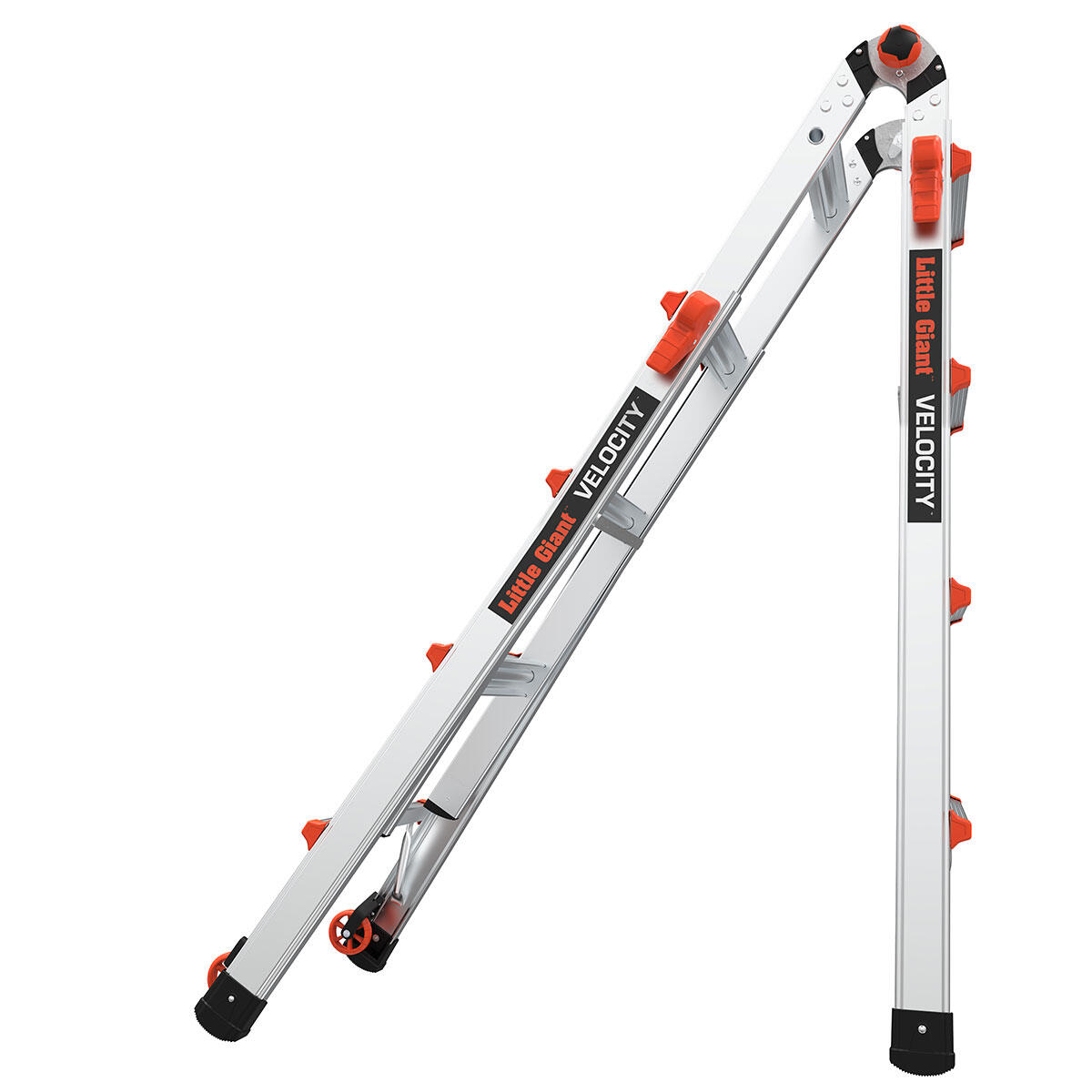

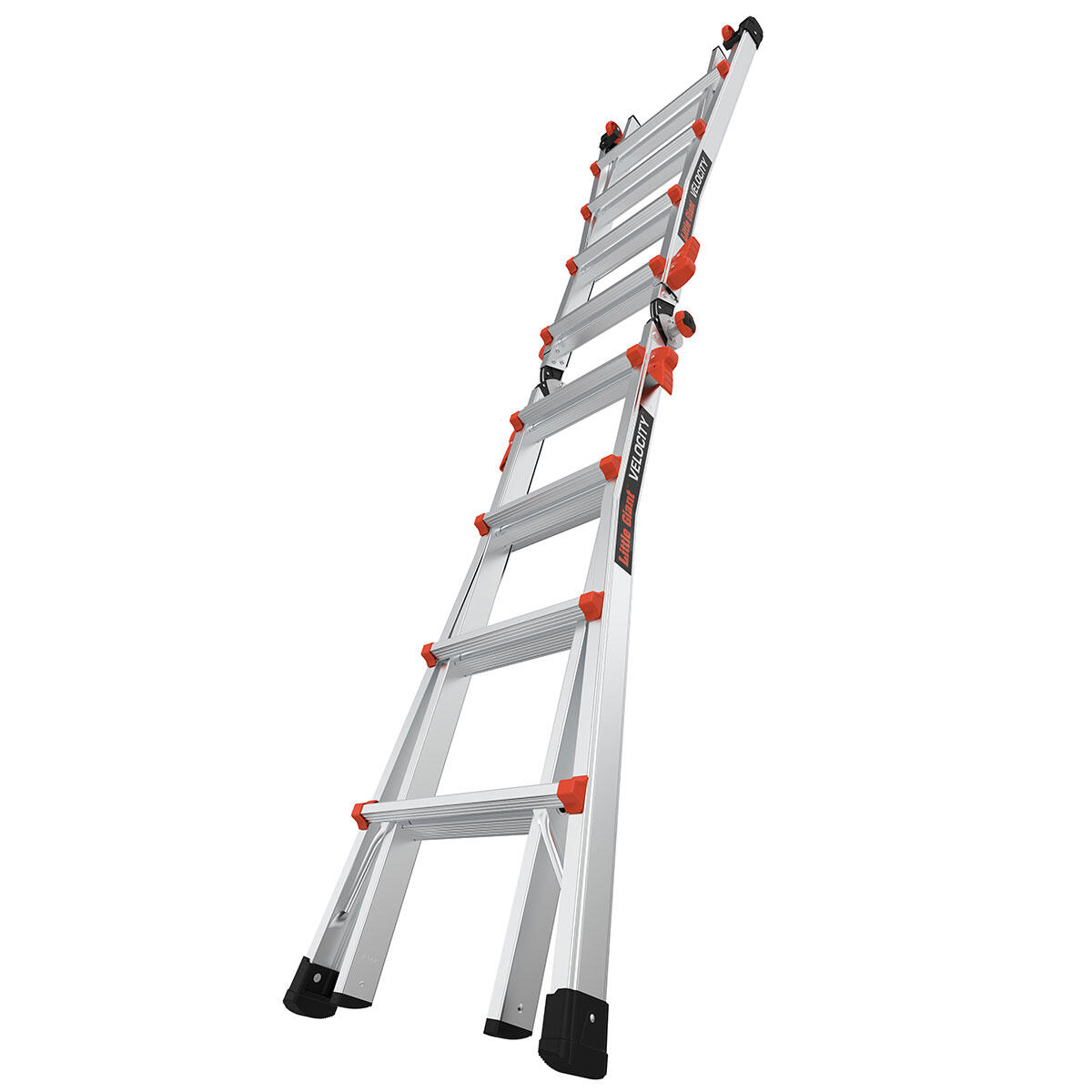

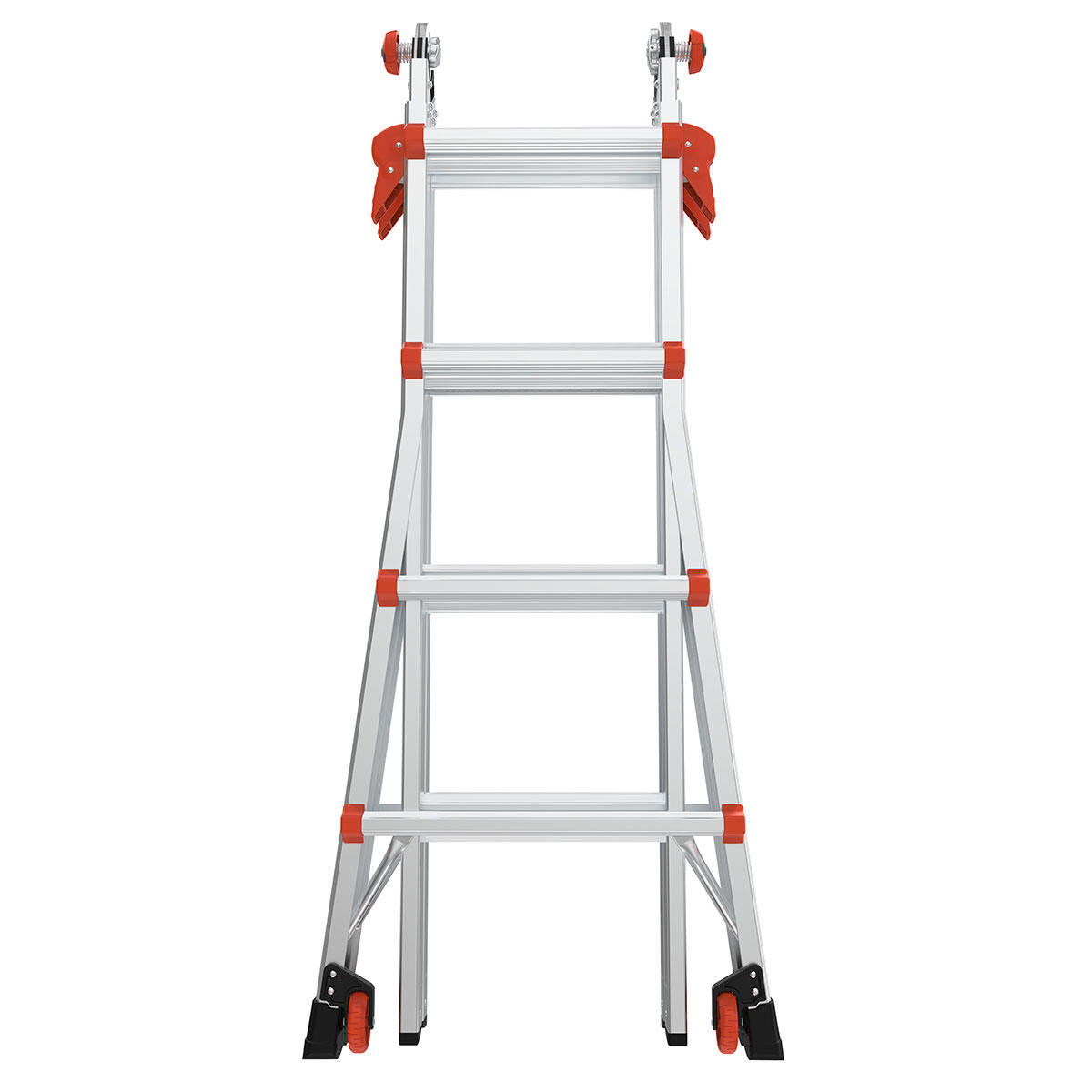

Why carry multiple ladders when you can just carry one? The Velocity is a multi-position ladder that can be set up as an A-frame ladder, extension ladder, staircase ladder, 90-degree ladder or trestle-and-plank* scaffolding. Easy-to-use Rock Lock® adjusters move the inner section of the ladder to the height you need.

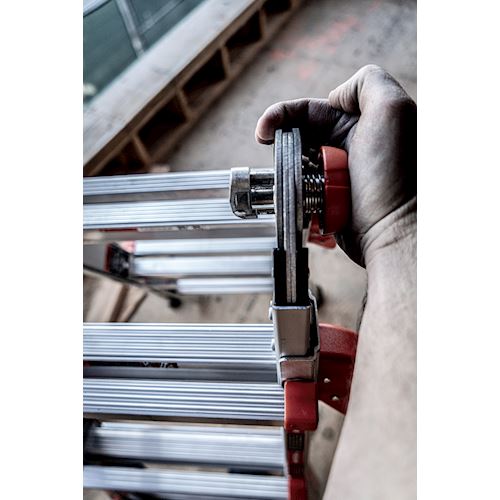

Ratchet™ Leg Levelers

The Velocity’s integrated Ratchet™ leg levelers seamlessly solve the problem of using a ladder on uneven terrain. If you are setting up a ladder on a spot where the ground is slanted, causing the ladder to lean or wobble, simply extend the Ratchet leg levelers to meet the ground. You will get your work done faster and safer.

Features

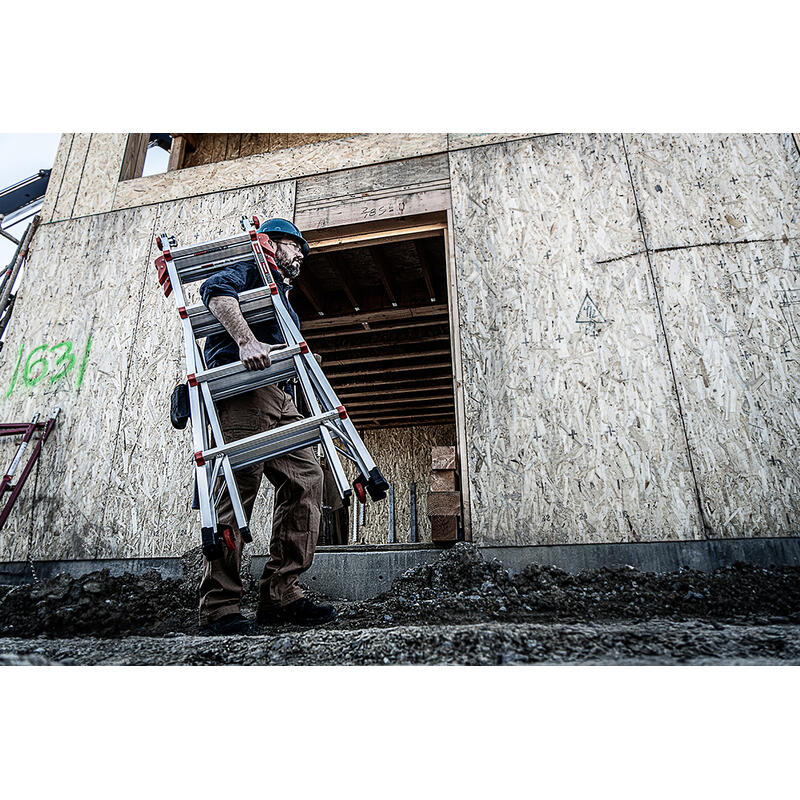

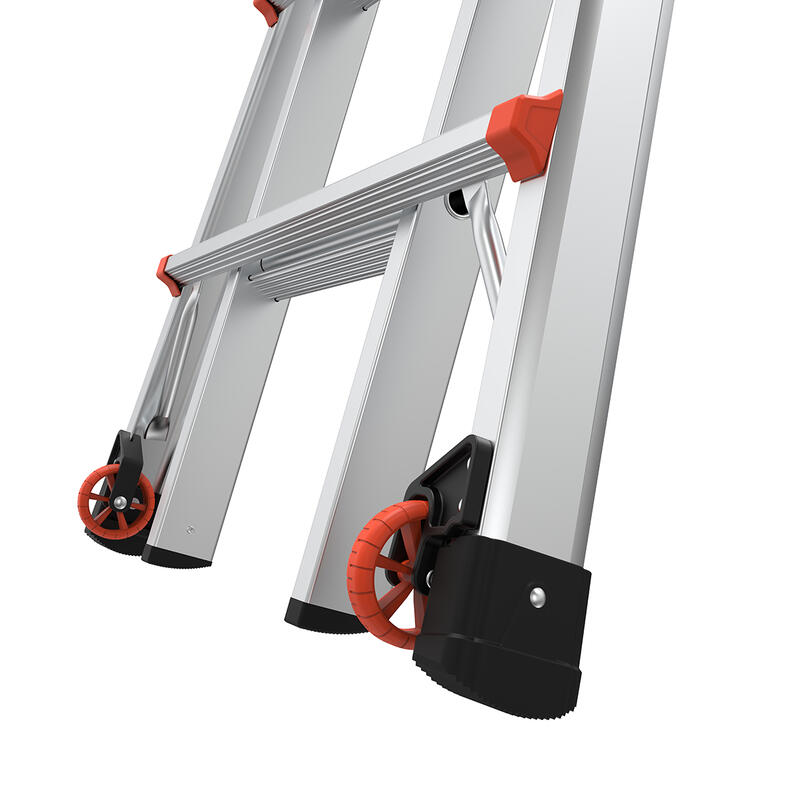

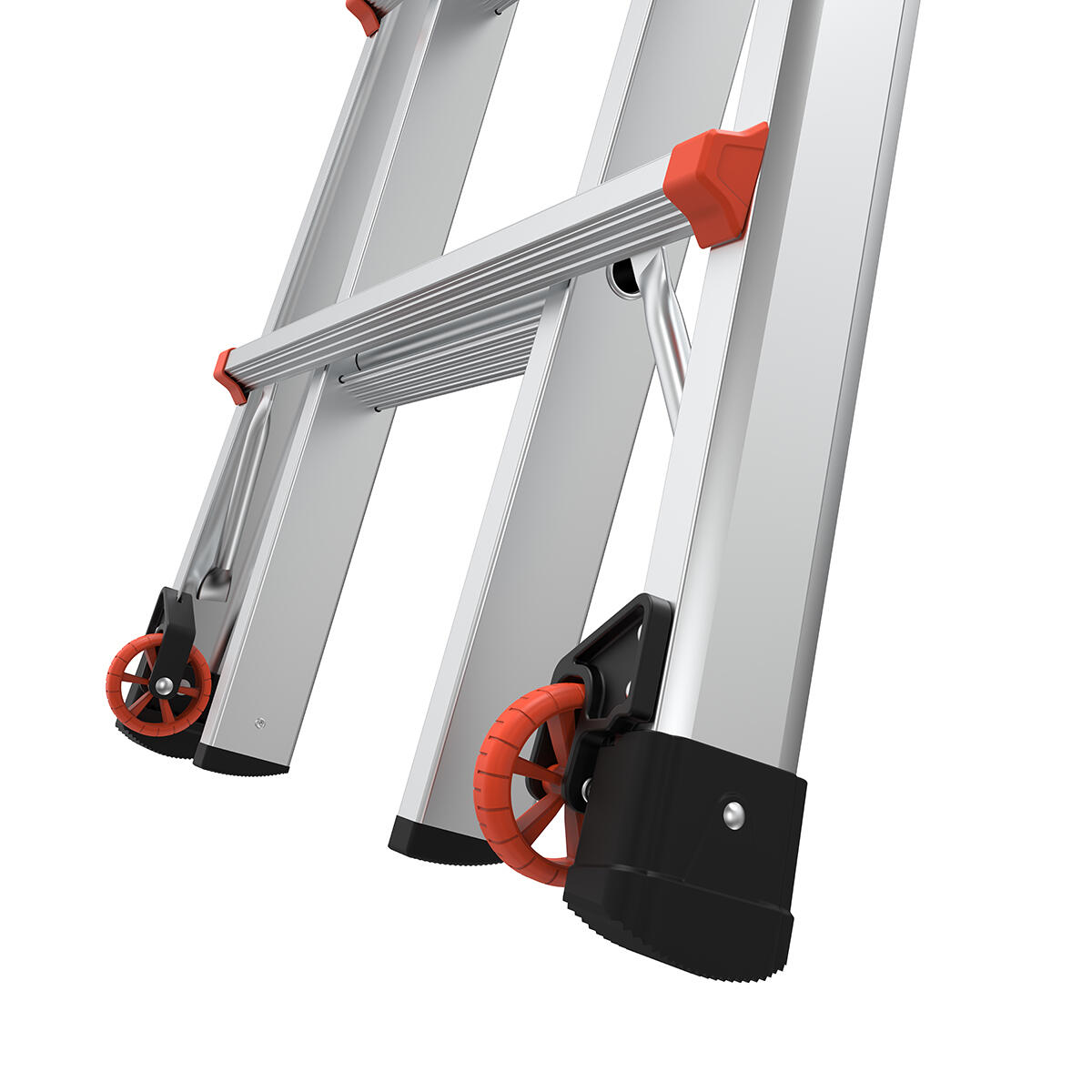

Carrying a ladder for extended periods can put a strain on the body, which is why the Velocity features Little Giant’s Tip & Glide™ wheels. When you need to move the ladder from place to place, simply tip the ladder on its wheels and roll it to your destination. More speed, less fatigue.

Duty Rating

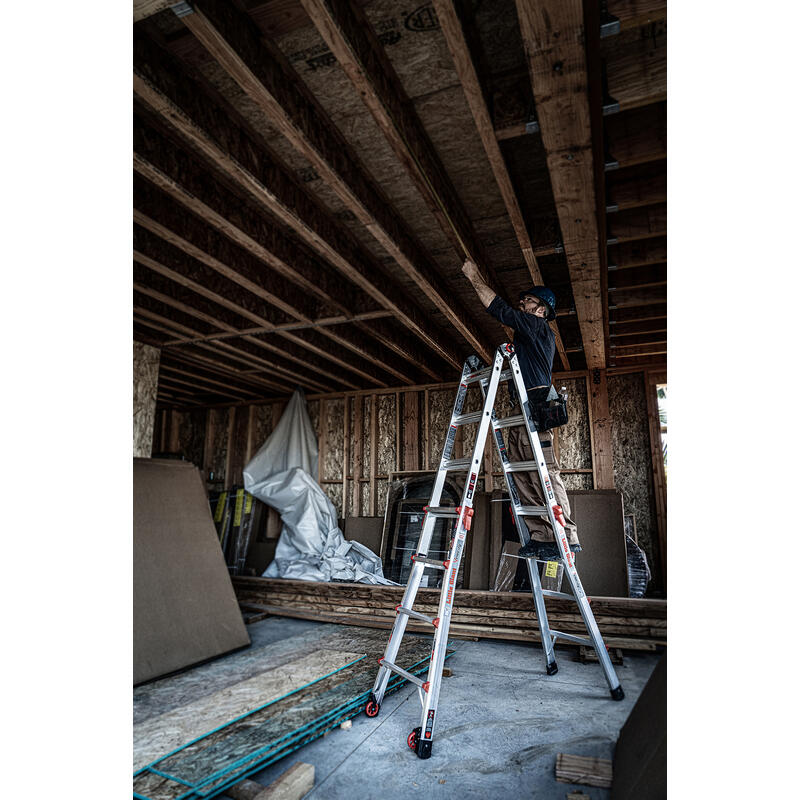

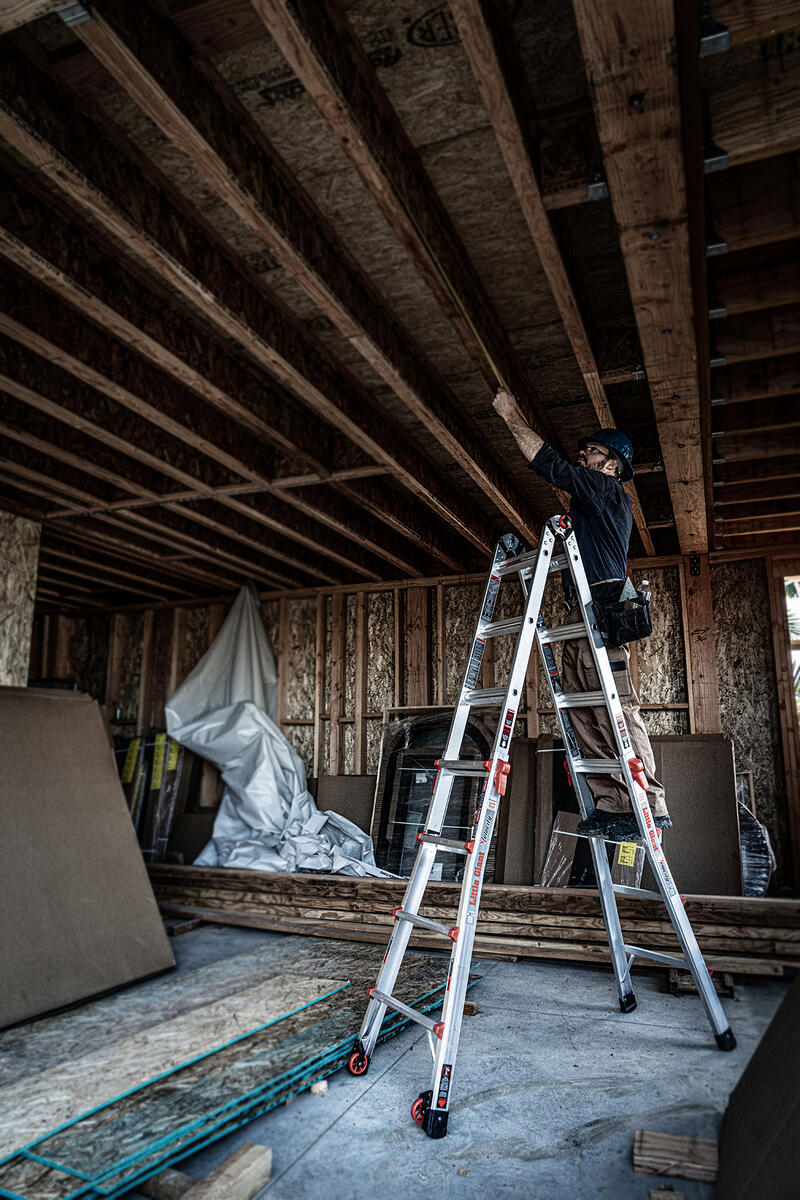

The Little Giant Velocity ladder meets or exceeds all OSHA and ANSI standards and is rated Type IA to hold 300 lbs. in all configurations; and in its A-frame position, it is rated as a two-person ladder, holding 300 lbs. on both sides.

*Plank not included

**Tip & Glide Wheels not included on 13' Velocity

Specifications
Product Category	Velocity
Extension Lock	Plastic Rock Locks
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (riveted)

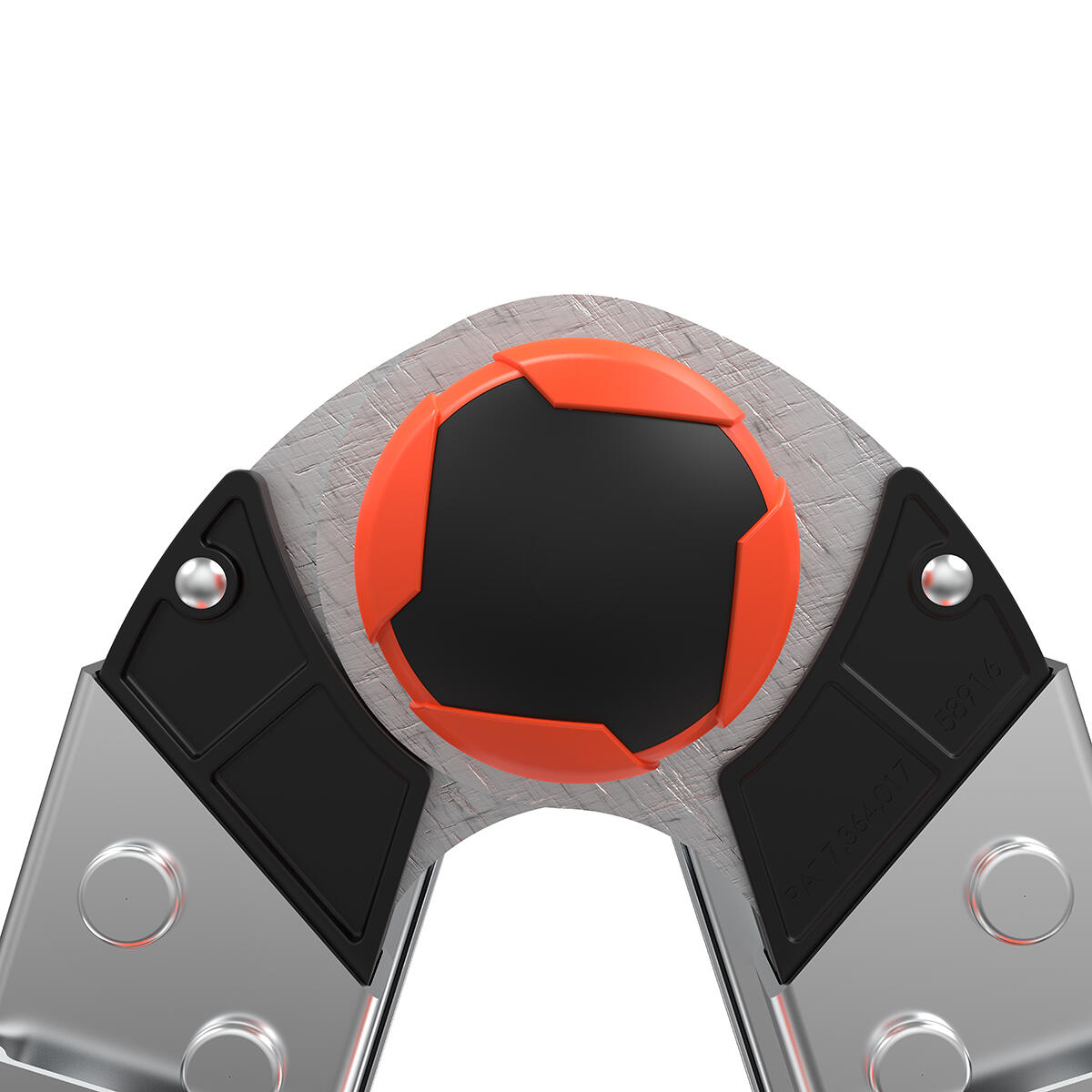

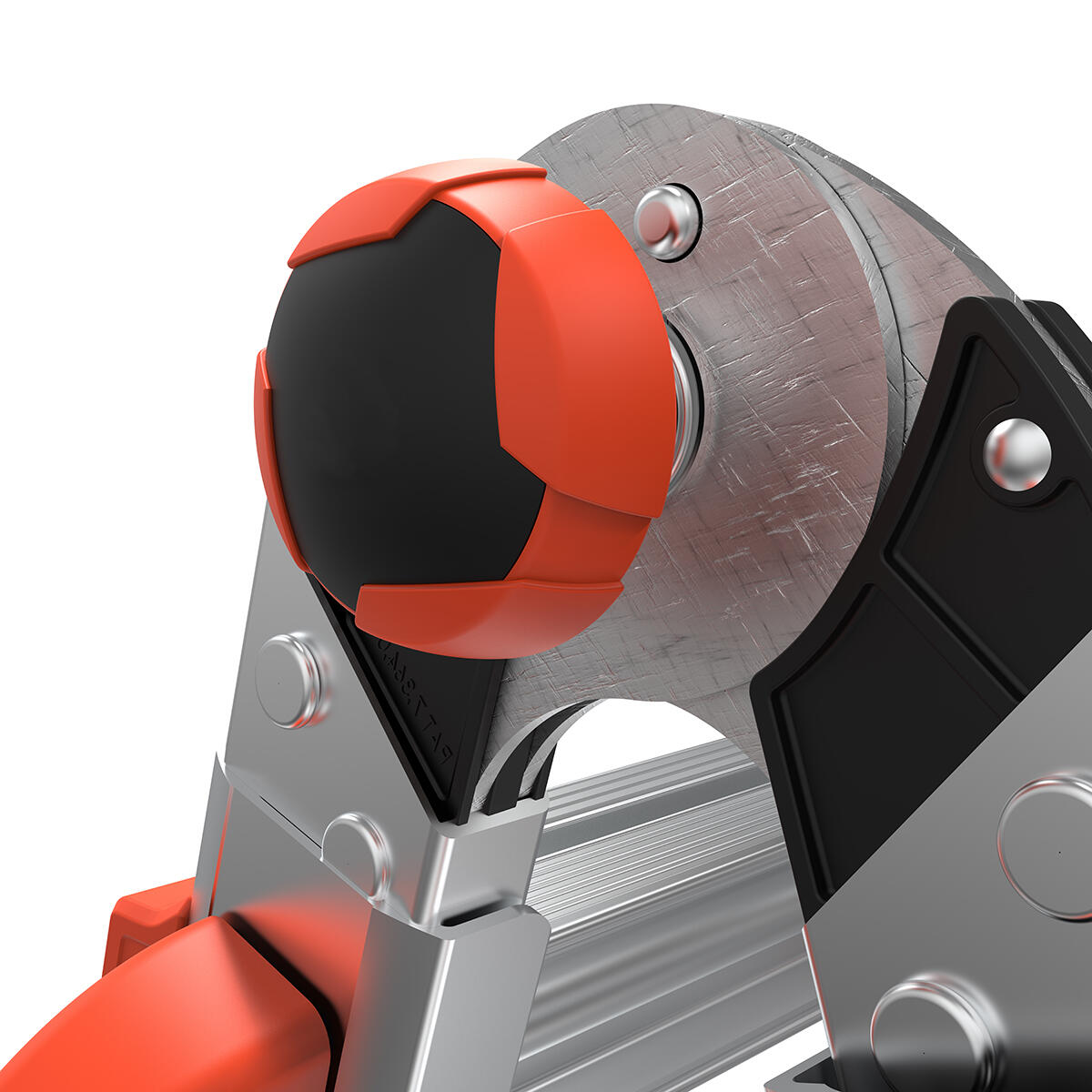

Hinge Lock	Plastic / Triple Locking Hinge
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	Limited Lifetime
Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Inside Clear Width	1 ft.	32 cm

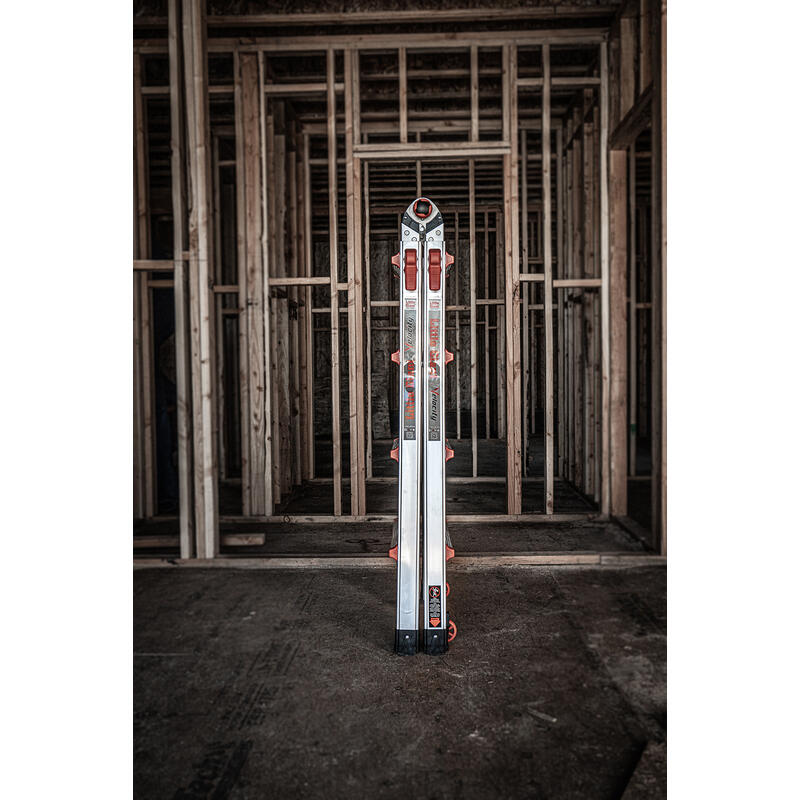

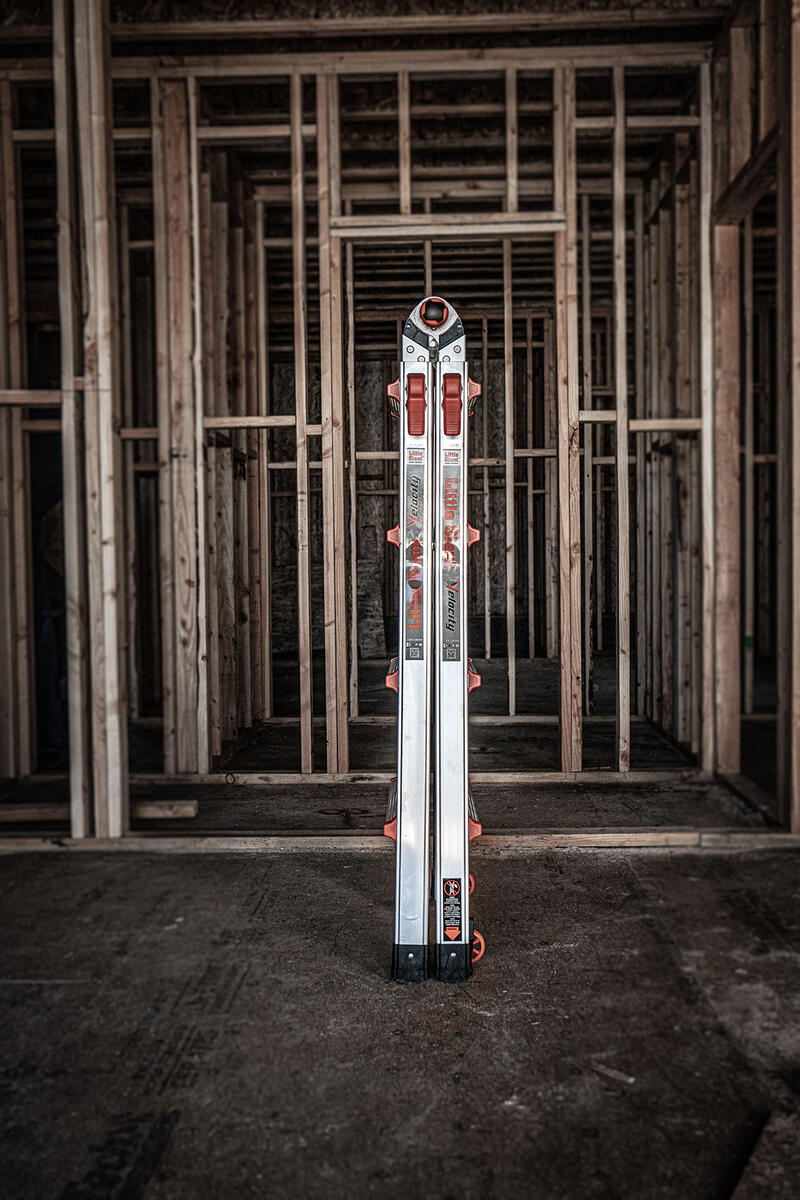

Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft.	61 cm
Storage Depth	8 in.	22 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	3 cm
Double Rung Depth	3 in.	8 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	30.5 lbs.	13.83 kg

Features
Scaffolding Position	Yes
Tip-N-Glide Wheels	No
90° Position	Yes

Shipping
Freight Class	175 - Class 175
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Highest standing level Max	4 ft. 10 in.	1.47 m
Highest standing level Min	1 ft. 11 in.	60 cm
Maximum Footprint	5 ft. 2 in.	1.58 m
Minimum Footprint	3 ft. 4 in.	1.03 m
Max Reach	11 ft. 4 in.	3.45 m

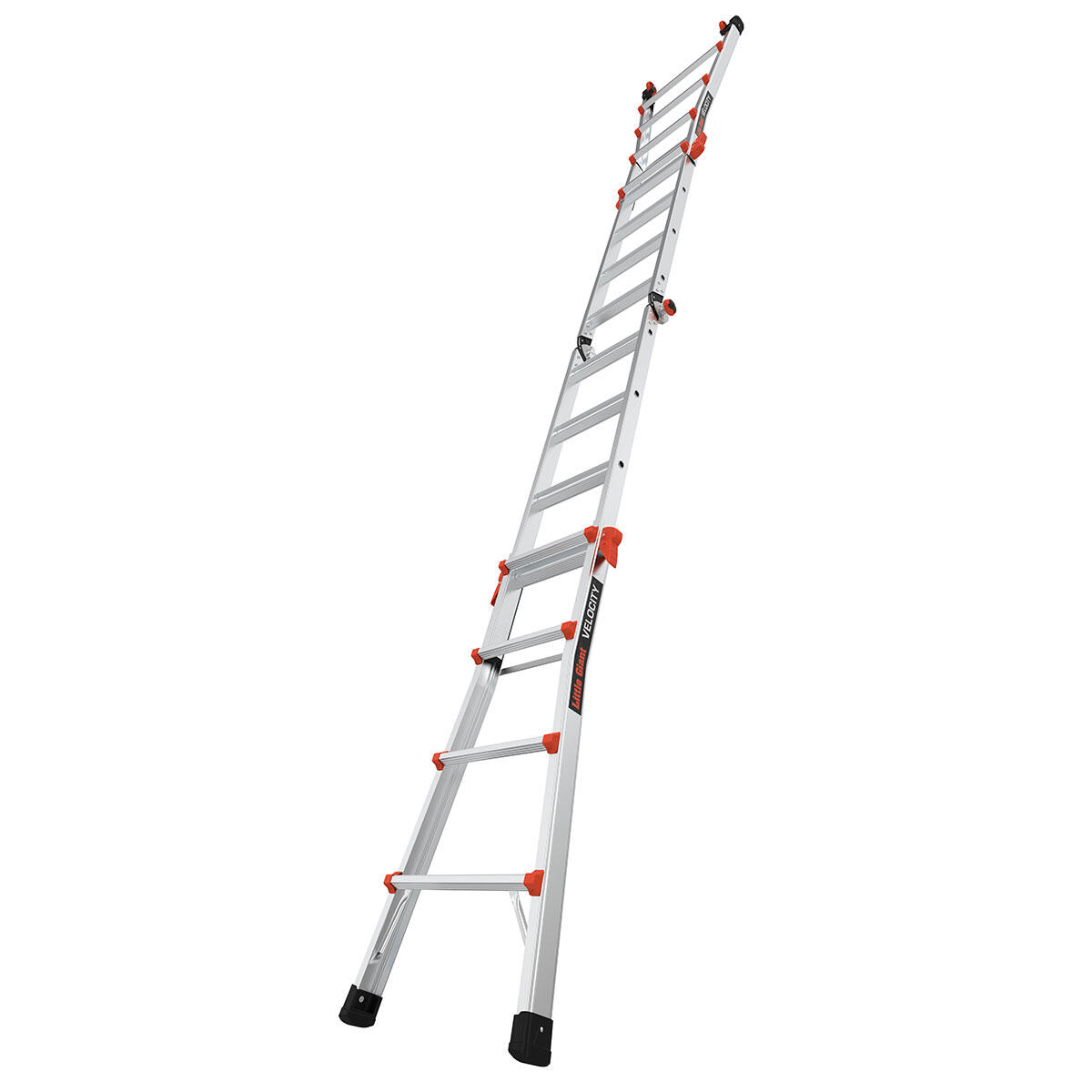

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 1 in.	5.51 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
