DS-XL Double-Sided

DS-XL, 8' Model - CSA Grade IAA - 375 lb/170 kg Rated, double-sided Fiberglass Stepladder with Side-tip Wheels and GROUND CUE

Download Media Package
Download Box Label
Download Notice Label

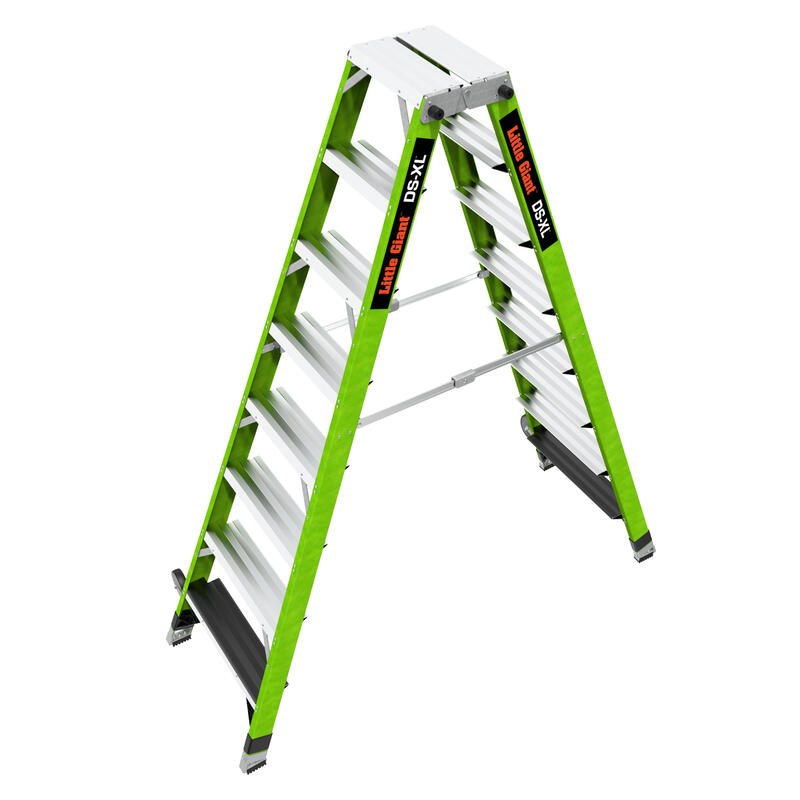

Double-Sided Hi-Viz Green Stepladder

The DS-XL™ is designed as a true two-person stepladder. With its wide steps, both users will feel comfortable while working atop the ladder. Made with Hi-Viz Green fiberglass, the ladder is non-conductive, and the color promotes safety, as it is the most visible color to the human eye.


Shock Absorbing

When you’re transporting a ladder, it can be easy to accidentally damage it. To help keep your ladder in optimal condition, we made it more shock-absorbent. With shock-absorbing rail shields and leg braces, the ladder has increased durability. Rubber impact bumpers protect the ladder’s fiberglass from damage in the event of tipping during transit.



As a two-person ladder, the DS-XL is equipped with double-sided Ground Cue®, which helps keep the users safe while descending the ladder. With an audible “click” on the bottom step of each side of the ladder, you will always be sure that you have safely reached the ground before stepping off. Equipped with Tip & Glide™ wheels, this ladder has improved mobility when transporting it from place to place.



The DS-XL meets or exceeds all OSHA and ANSI standards, and with a Type IAA rating, it is certified to hold 375 lbs. on both sides. It is available in 6’ and 8’ models.


Product Category DS-XL Double-Sided
Extension Lock None
Country Assembled China
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Permanent foot with replaceable pad
Hinge Lock None
Material Fiberglass
Load Capacity 375 lbs.
Spreader System None
Ladder Type Double-Sided A-Frame
Warranty 1-Year
Size 8' 2.44 m
Inside Clear Width 1 ft. 1 in. 35 cm
Storage Height 8 ft. 2 in. 2.49 m
Storage Width at Base 2 ft. 3 in. 69 cm
Storage Depth 10 in. 27 cm
Inner Rung Depth 5 in. 13 cm
Top Width 1 ft. 3 in. 38 cm
Product Weight 47 lbs. 21.32 kg
Scaffolding Position No
Tip-N-Glide Wheels Yes
90° Position No
Freight Class 300 - AL and/or FG Ladder
Ship Length 98½" 8' 2½"
Ship Width 27½" 2' 3½"
Ship Height 11" 11"
Ship Weight 56.5 lbs.
Ship Volume 17.24 CuFt.
HTS Code 3926.90.9930
Step Ladder
Stepladder Size 8' 2.44 m
Highest standing level Max 5 ft. 8 in. 1.73 m
Highest standing level Min 5 ft. 8 in. 1.73 m
Maximum Footprint 6 ft. 5 in. 1.96 m
Minimum Footprint 6 ft. 5 in. 1.96 m
Max Reach 12 ft. 2 in. 3.71 m
