16007T-803
Leveler Pro

LVLR BLCK PRO,M17,1A,AL W/RCHT & TRY-RTL

Download Media Package

Download Notice Label

Data Feed:

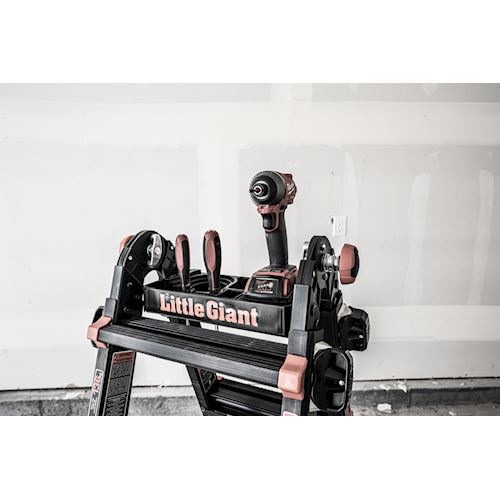

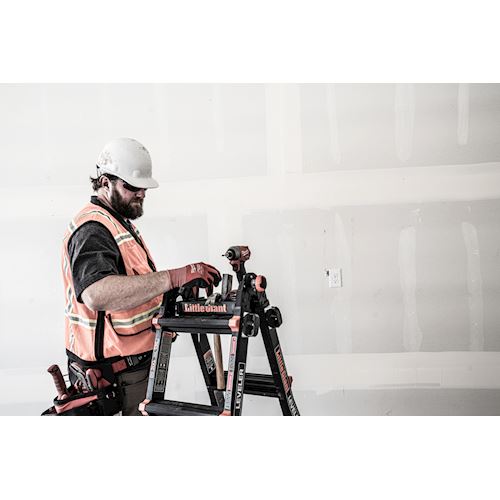

Model Number: 15047-002 - TOOL TRAY, Project Tray, Compatible with Multi-position Ladder Family - Retail Packaging

Specifications
Product Category	Leveler Pro
Extension Lock	Rapid Lock
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	None

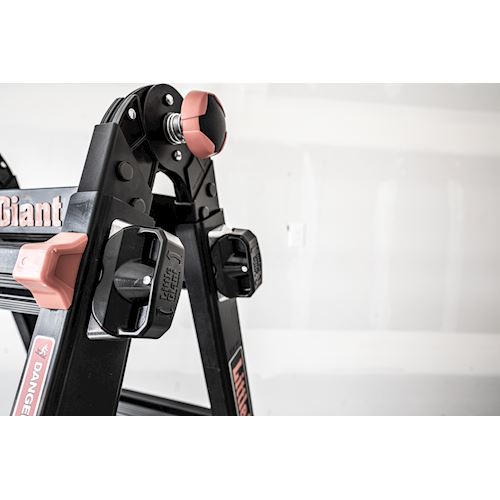

Hinge Lock	Plastic / Triple Locking Hinge
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	Limited Lifetime
Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Inside Clear Width	1 ft.	32 cm
Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft.	61 cm
Storage Depth	8 in.	22 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	3 cm
Double Rung Depth	3 in.	8 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	35.5 lbs.	16.1 kg

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 1 in.	5.51 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
