17616-248
Marketing Material

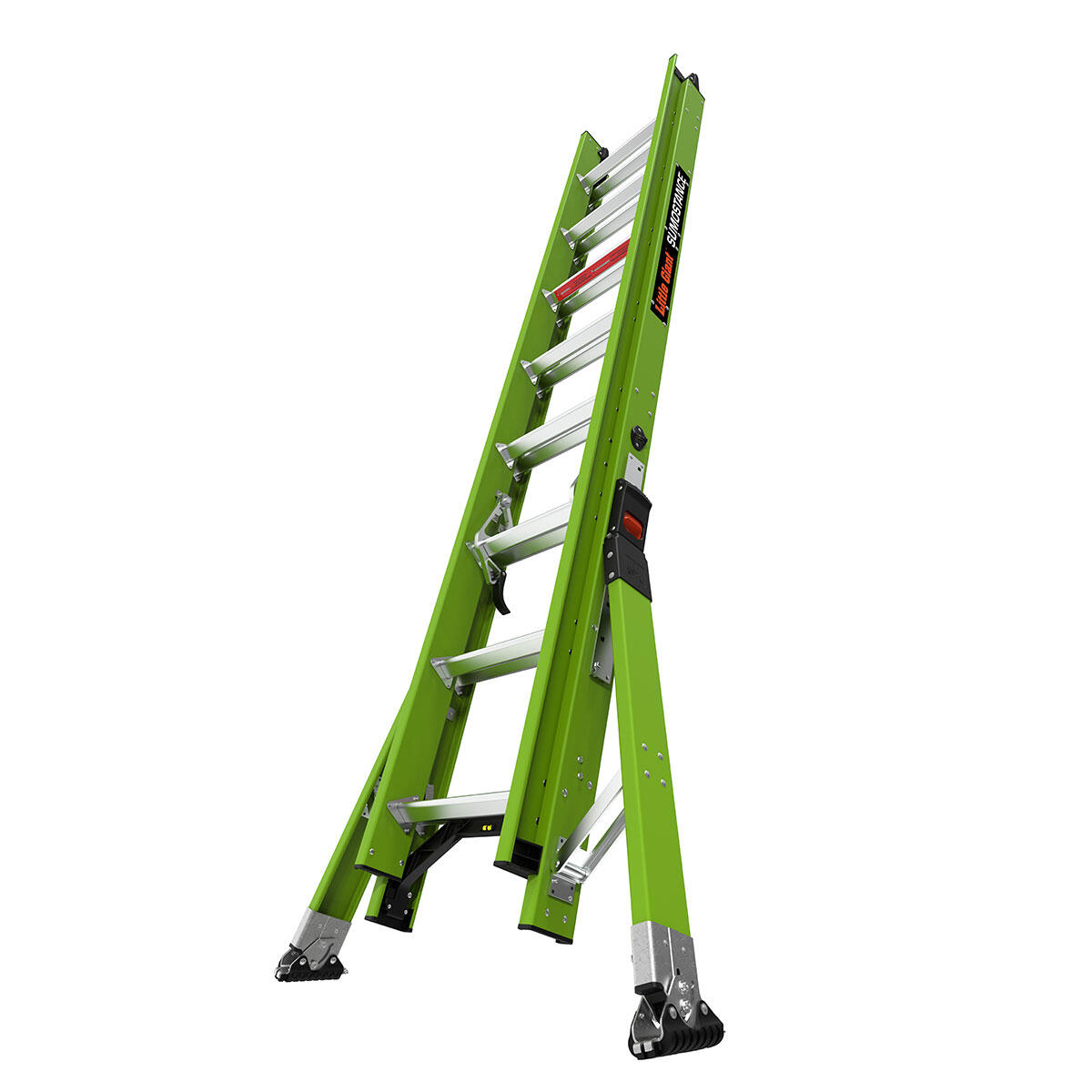

SUMOSTANCE with HYPERLITE Technology, 16' - ANSI Type IAA - 375 lb Rated, Fiberglass Extension Ladder with Cable Hooks, CLAW, Pole Strap, Rope and Pulley and SURE-SET Feet - Show Sample Only

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

No manuals have been assigned to this product

Specifications
Product Category	Marketing Material
Extension Lock	Rung Locks
Country Assembled	USA
Marketing Language	English / Spanish
Duty Rating	Type IAA - Special Duty

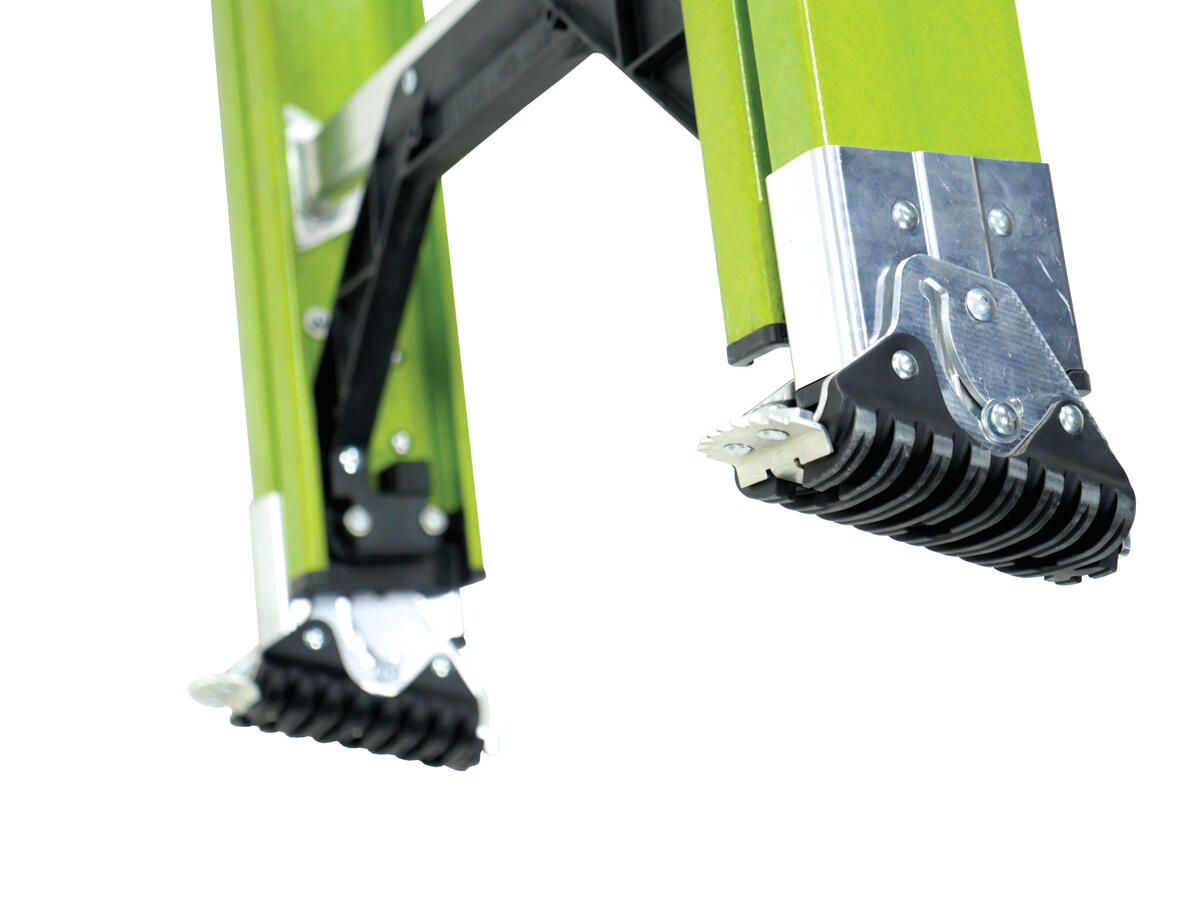

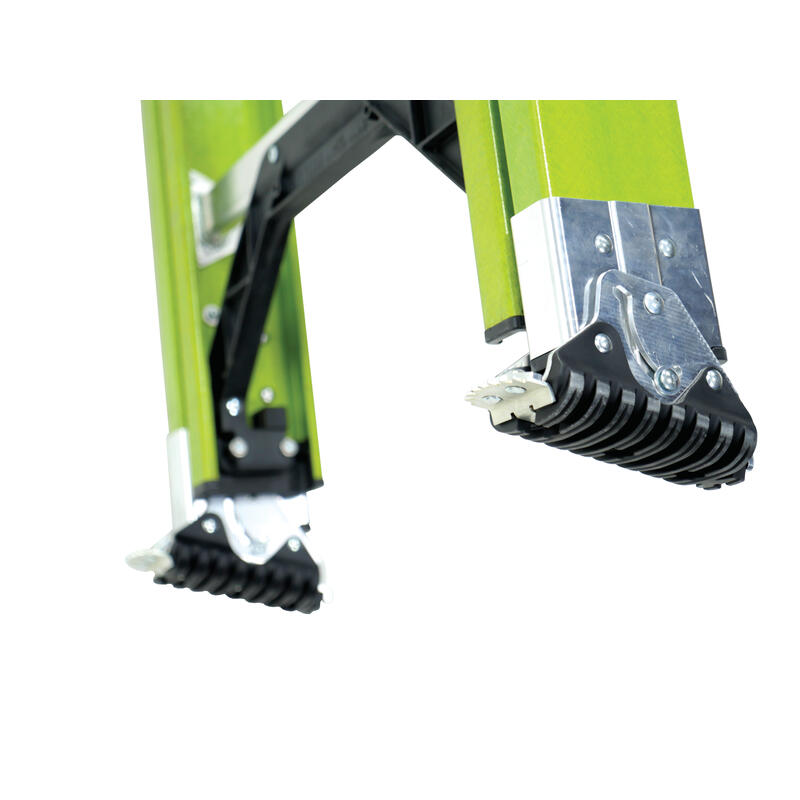

Feet	Dual-position SURE-SET™ pick foot
Hinge Lock	None
Material	Fiberglass
Load Capacity	375 lbs.
Spreader System	None
Ladder Type	Extension
Warranty	1-Year
Size	16'	4.88 m
Inside Clear Width	1 ft. 2 in.	36 cm
Storage Height	8 ft. 9 in.	2.67 m
Storage Width at Base	1 ft. 10 in.	56 cm
Storage Depth	6 in.	15 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	4 in.	10 cm
Top Width	1 ft. 5 in.	44 cm
Product Weight	50 lbs.	22.68 kg

Features
Scaffolding Position	No
Tip-N-Glide Wheels	No
90° Position	No

Shipping
Freight Class	300 - AL and/or FG Ladder
HTS Code	3926.90.9930

Single / Extension
Extension Total Length of Sections	16 ft. 2 in.	4.93 m
Extension Max Reach	16 ft. 3 in.	4.95 m
Single / Extension Highest Standing Level Max	9 ft. 9 in.	2.97 m
Single / Extension Highest Standing Level Min	5 ft.	1.52 m
Single / Extension Max Working Length	13 ft. 10 in.	4.22 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
