17924
HyperLite

HYPERLITE, 24' - ANSI Type IAA - 375 lb Rated, Fiberglass Extension Ladder with GROUND CUE and SURE-SET Feet

Dowload Specsheet
Download Media Package
Download Box Label
Download Notice Label

  • Model Number: 11750 - PETZL ASAP Accessory Kit - ASAP Ascender and ASAP'SORBER - for HYPERLITE Limited Arrest System
  • Model Number: 11751 - PETZL ASAP Accessory Kit - ASAP Ascender and ASAP'SORBER, Including Top Bag with Stabilizer Straps, and Bottom Bag with Strap - for HYPERLITE Pole-Use Limited Arrest System
  • Model Number: 15083 - GROUND CUE Accessory/replacement for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Extension Ladders
  • Model Number: 15097 - Ladder Rack
  • Model Number: 19103 - Wall Pad Accessory for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Ladders
  • Model Number: 31855 - Replacement Kit, bottom Strap and bag for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Ladders with Limited Arrest System
  • Model Number: 15083 - GROUND CUE Accessory/replacement for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Extension Ladders
  • Model Number: 19103 - Wall Pad Accessory for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Ladders

Using a tall extension ladder can be intimidating, but with the right ladder, it doesn’t have to be. The Little Giant® HyperLite® was designed with safety and ease of use in mind, so you can focus on the task-at-hand, rather than worrying about your ladder.

BENEFITS

1. LIGHTWEIGHT

More speed, less fatigue. We made the Hyperlite out of lightweight fiberglass so you can move your ladder with ease.

2. SPIKE FEET

Spike feet add extra stability on job sites and can be used in either the pad or spike foot position.

3. FLAT COMFORT RUNGS

Minimize foot fatigue. The HyperLite's flat rungs increase comfort while working on the ladder.



FEATURES

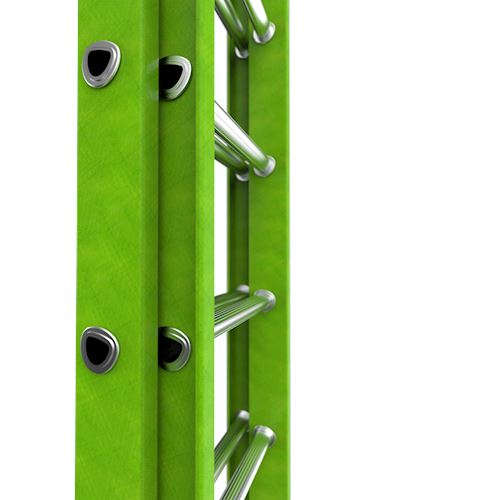

NON-CONDUCTIVE FIBERGLASS

Keep your feet free. The ladder's pulley was moved to the side for safety, and its double-pulleys make operation simple. Getting enough leverage to raise the ladder is fast and easy.



DOUBLE-PULLEY SYSTEM

It's truly a ladder built for the trades. Made from lightweight, durable fiberglass, you can confidently work around electricity without fear of conductivity.



BUBBLE LEVEL

Having a ladder's level off by just 1 inch at the bottom causes a 9-inch lean at the top of a 19-foot ladder. The ladder's integrated bubble level helps set up for safer climbing.

Specifications
Product Category HyperLite
Extension Lock Rung Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Dual-position SURE-SETâ„¢ pick foot
Hinge Lock None
Material Fiberglass
Load Capacity 375 lbs.
Spreader System None
Ladder Type Extension
Warranty 1-Year
Size 24' 7.32 m
Inside Clear Width 1 ft. 2 in. 36 cm
Storage Height 12 ft. 9 in. 3.89 m
Storage Width at Base 1 ft. 6 in. 47 cm
Storage Depth 6 in. 15 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 10 cm
Top Width 1 ft. 5 in. 44 cm
Product Weight 45 lbs. 20.41 kg
Features
Scaffolding Position No
Tip-N-Glide Wheels No
90° Position No
Shipping
Freight Class 300 - AL and/or FG Ladder
Ship Length 152" 12' 8"
Ship Width 18½" 1' 6½"
Ship Height 7" 7"
Ship Weight 48.6 lbs.
Ship Volume 11.39 CuFt.
HTS Code 3926.90.9930
Single / Extension
Extension Total Length of Sections 24 ft. 1 in. 7.34 m
Extension Max Reach 23 ft. 7 in. 7.19 m
Single / Extension Highest Standing Level Max 17 ft. 1 in. 5.21 m
Single / Extension Highest Standing Level Min 8 ft. 6 in. 2.59 m
Single / Extension Max Working Length 21 ft. 5 in. 6.53 m
Single / Extension Min Working Length 12 ft. 7 in. 3.84 m
