18509-460
Cage-Adjustable

CAGE, 5'-9' Model - ANSI Type IAA - 375 lb Rated, Fiberglass Adjustable Enclosed Elevated Platform with Wheel Lift - Japanese

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

No manuals have been assigned to this product

Base Sku: 18509 -- CAGE, 5'-9', IAA FIBERGLASS LADDER

Compatible Accessories

Model Number: 15072 - Saddle Bag
Model Number: 15074 - CAGE TIP & GLIDE/Side-Tip Wheels
Model Number: 15076 - CAGE Wheel Lift Kit

Included Accessories

Model Number: 15074 - CAGE TIP & GLIDE/Side-Tip Wheels
Model Number: 15076 - CAGE Wheel Lift Kit

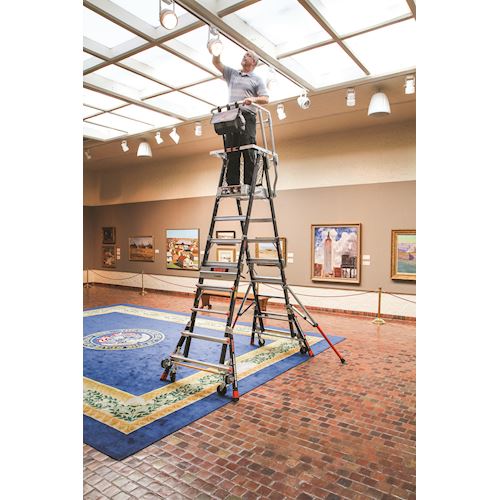

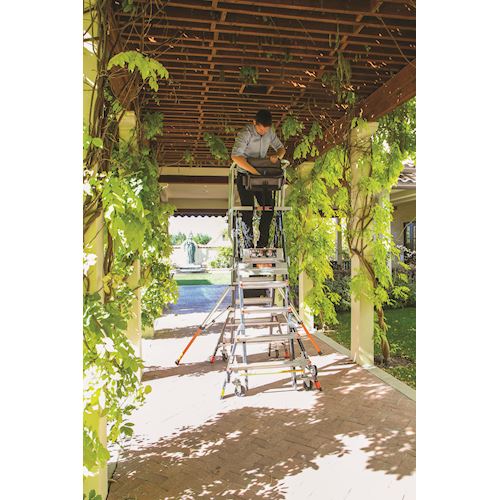

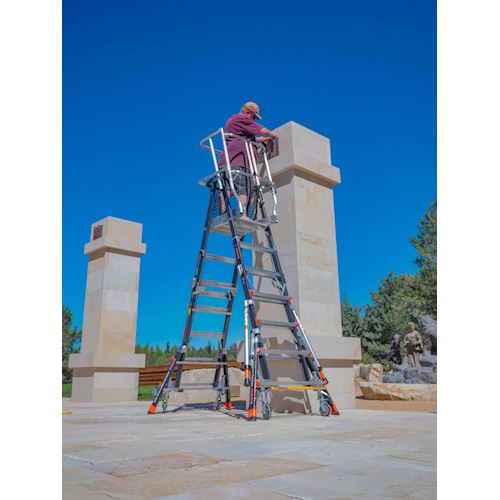

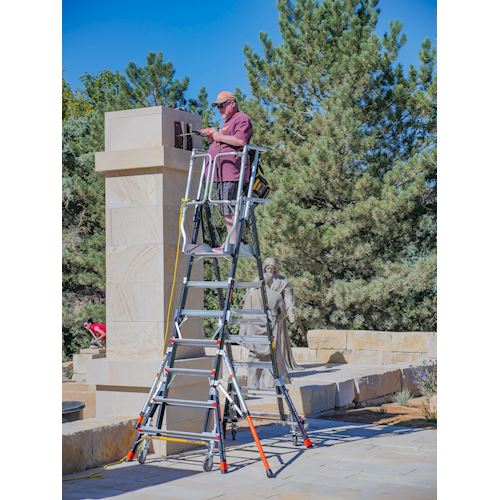

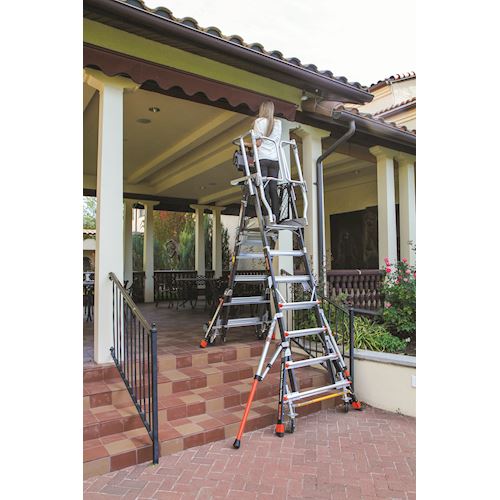

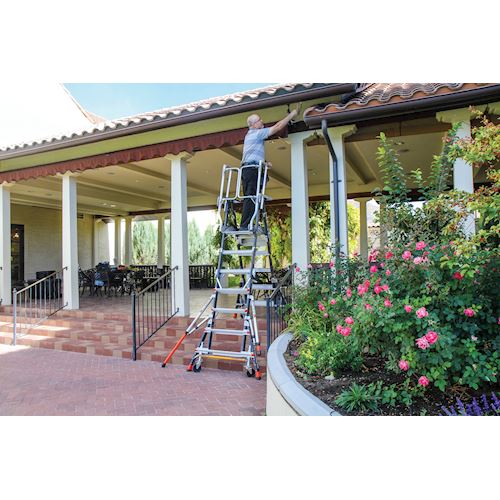

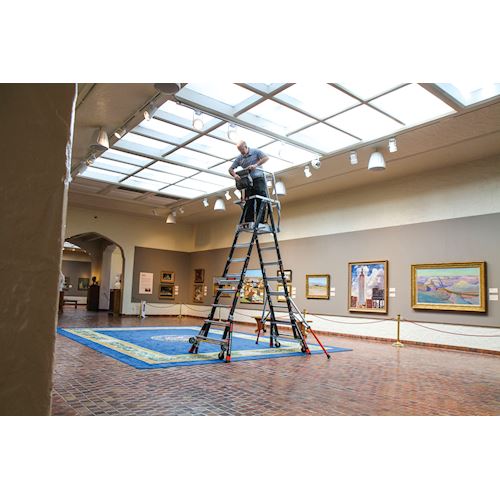

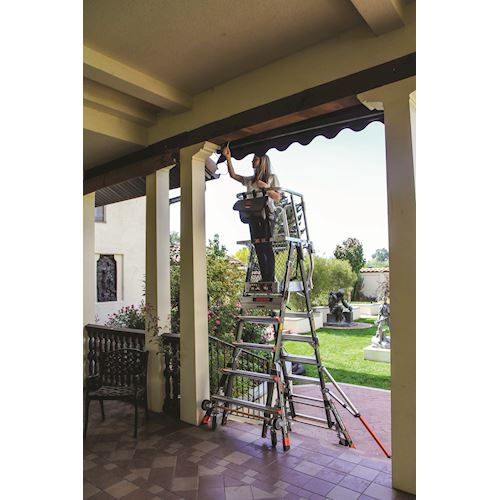

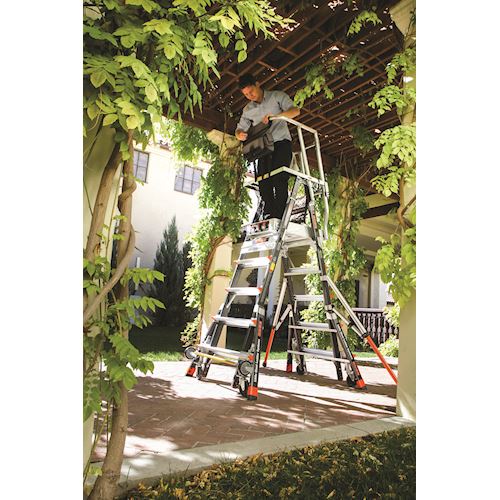

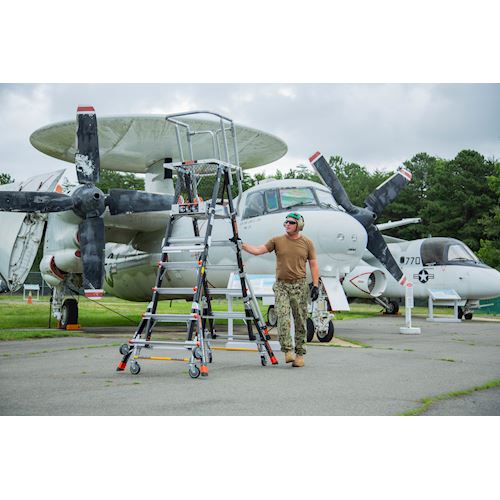

Adjustable Safety Cage™

Many industries require professionals to tie off at an anchor point when working at certain heights. This standard helps keep people safe, but it can be a difficult standard to maintain. The OSHA-compliant Little Giant® Adjustable Safety Cage™ eliminates the need to tie-off, making jobs faster, safer, and less expensive than many scaffolding options.

GUARDRAIL SYSTEM

The fully enclosed guardrail system on the Adjustable Safety Cage eliminates tie-off requirements.

WHEEL LIFT

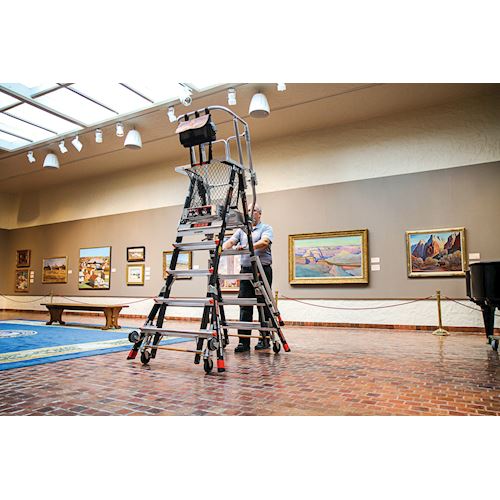

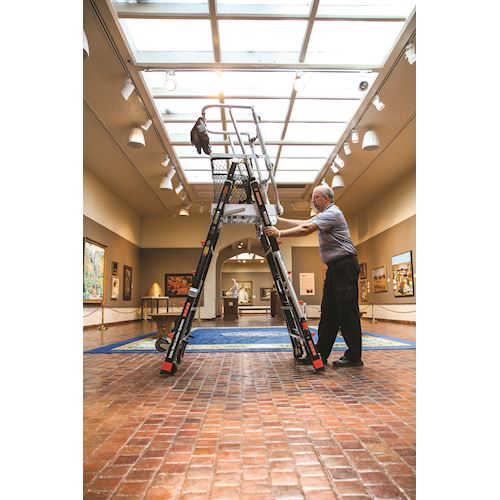

Wheel Lift casters allow for safe, easy movement, even when Adjustable Safety Cage is fully deployed.

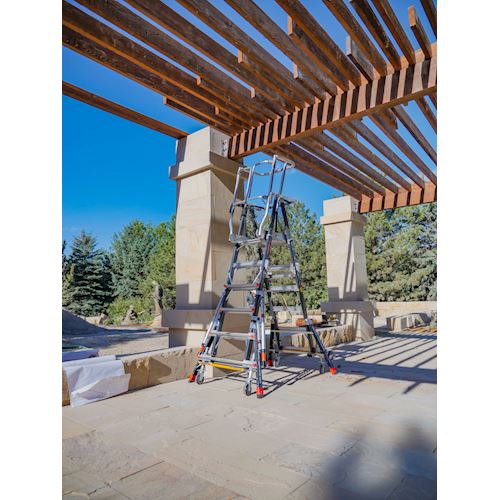

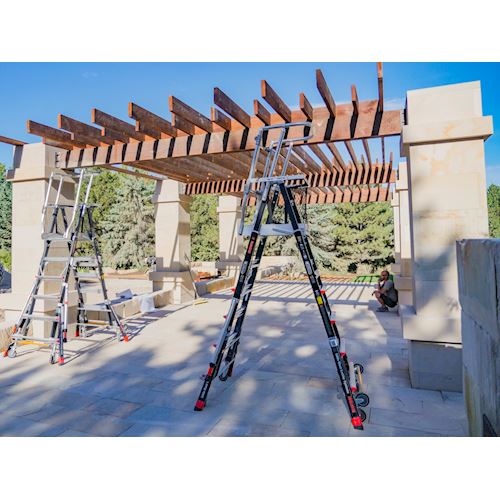

ADJUSTABLE OUTRIGGERS

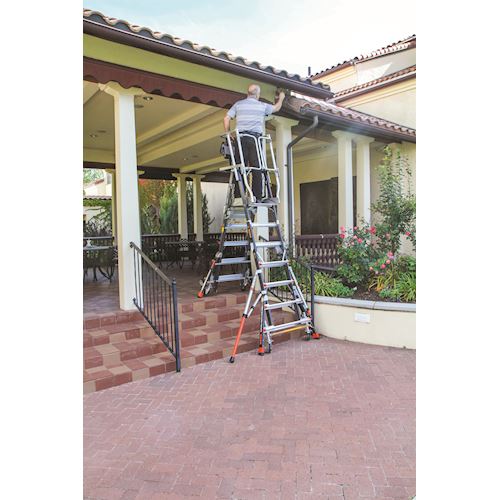

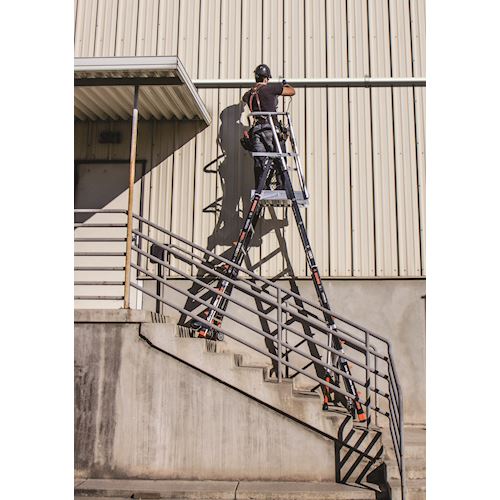

Adjustable outriggers increase the footprint of the Cage, adding additional side-tip stability

Specifications
Product Category	Cage-Adjustable
Extension Lock	Cast Aluminum Rock Locks
Country Assembled	USA
Marketing Language	Japanese
Duty Rating	Type IAA - Special Duty
Feet	Standard non-marring (snap-on)
Hinge Lock	None
Material	Fiberglass
Load Capacity	375 lbs.
Spreader System	Platform
Ladder Type	Cage - Telescoping Platform
Warranty	1-Year
Size	5' - 9'	1.52 m - 2.74 m
Inside Clear Width	1 ft. 8 in.	52 cm
Storage Height	9 ft. 10 in.	3.00 m
Storage Width at Base	3 ft. 10 in.	1.17 m
Storage Depth	1 ft. 5 in.	43 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	3 in.	10 cm
Top Width	2 ft. 2 in.	66 cm
Product Weight	100 lbs.	45.35 kg

Features
Scaffolding Position	No
Tip-N-Glide Wheels	Yes
90° Position	No

Cage
Kick Plate Height	3 in.	9 cm
Mid Rail Height	1 ft. 10 in.	57 cm
Guardrail Height	3 ft. 9 in.	1.14 m

Shipping
Freight Class	300 - AL and/or FG Ladder
Ship Length	118"	9' 10"
Ship Width	46"	3' 10"
Ship Height	11"	11"
Ship Weight	102.612 lbs.
Ship Volume	34½5 CuFt.
HTS Code	3926.90.9930

Step Ladder
Stepladder Size	5' - 9'	1.52 m - 2.74 m
Highest standing level Max	8 ft. 8 in.	2.65 m
Highest standing level Min	4 ft. 11 in.	1.50 m
Maximum Footprint	7 ft. 5 in.	2.26 m
Minimum Footprint	5 ft.	1.52 m
Max Reach	15 ft. 2 in.	4.64 m
