15284-001
AirWing

AIRWING, 4' Model - ANSI Type IAA - 375 lb Rated, Fiberglass Stepladder

Dowload Specsheet

Download Media Package

Data Feed:

Manuals

AIRWING Manual - USA - English/Spanish

Compatible Accessories

Model Number: 15097 - Ladder Rack

AirWing Fiberglass

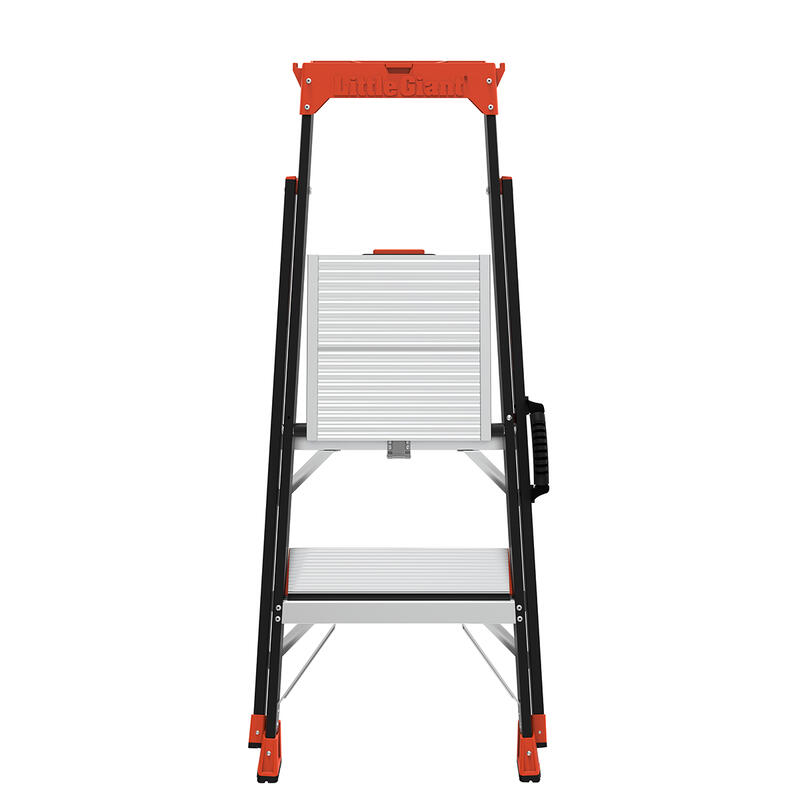

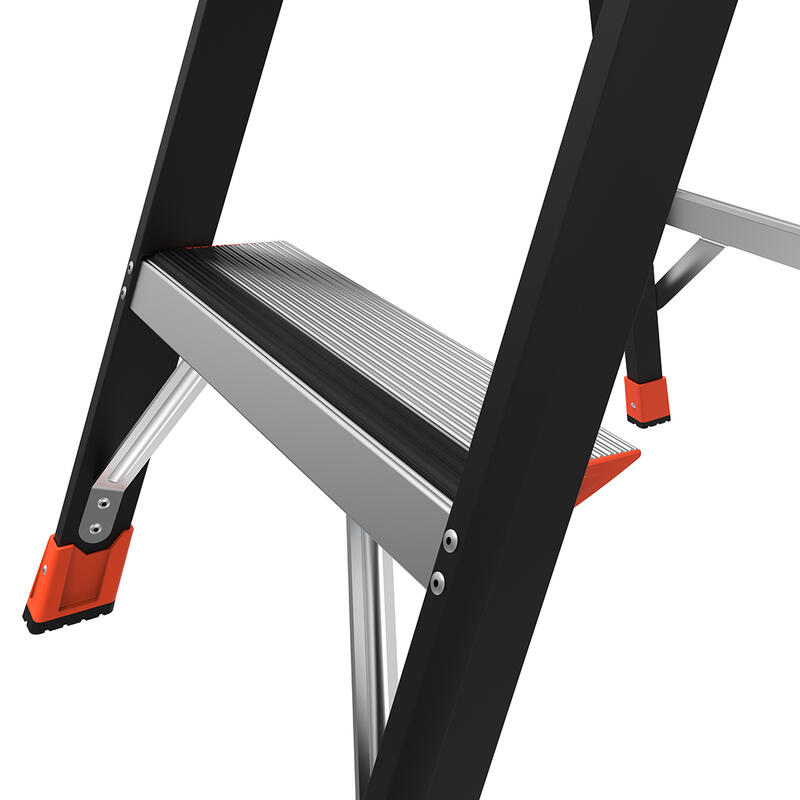

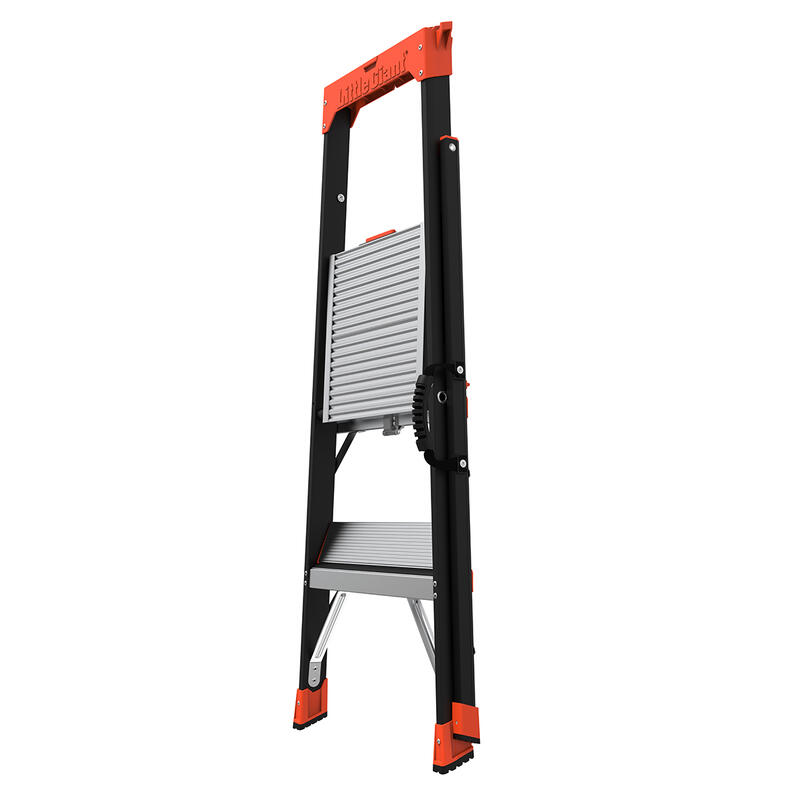

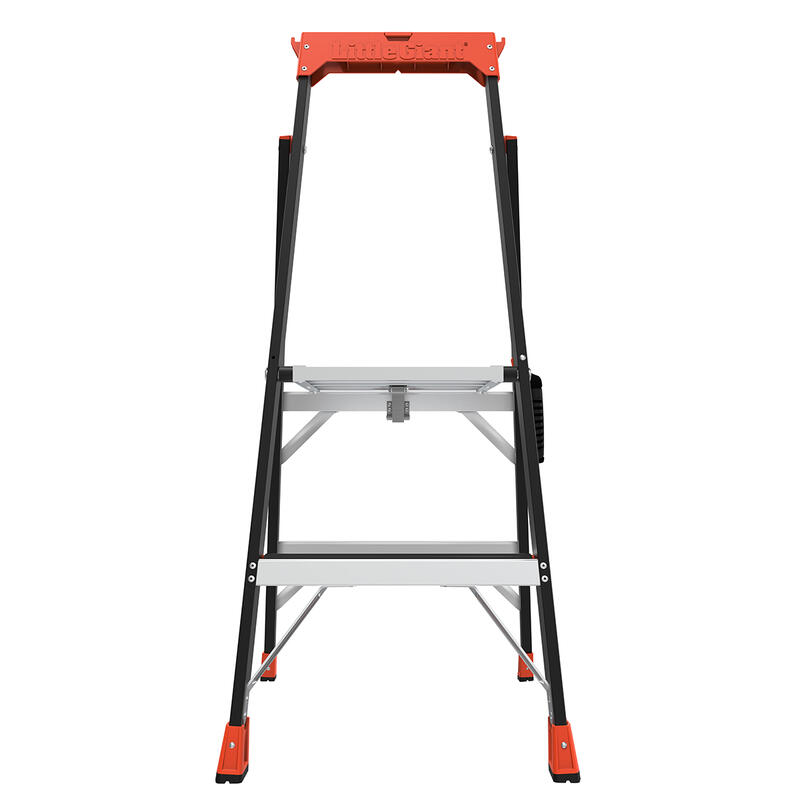

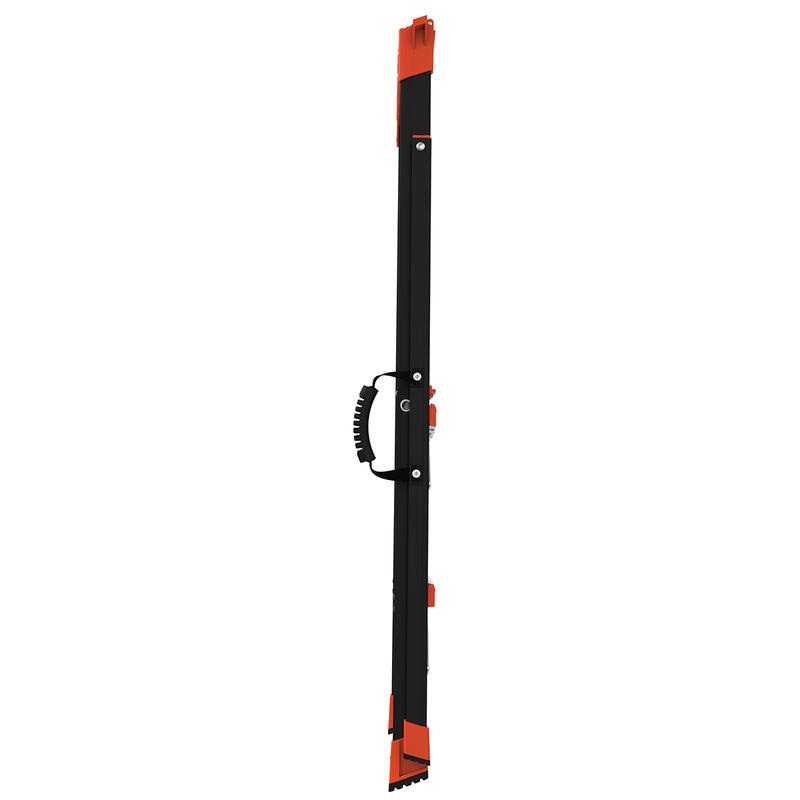

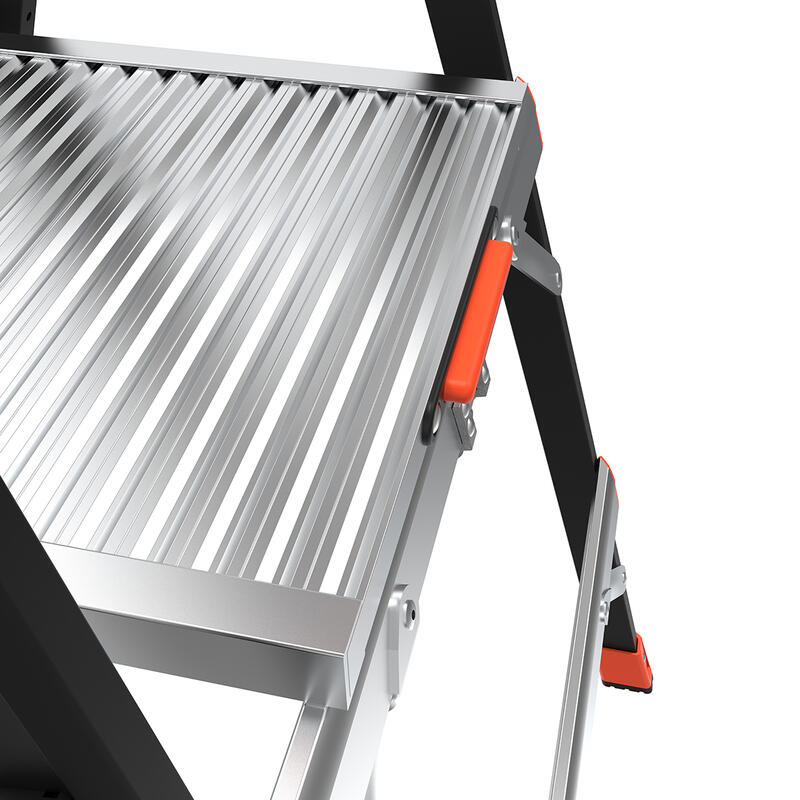

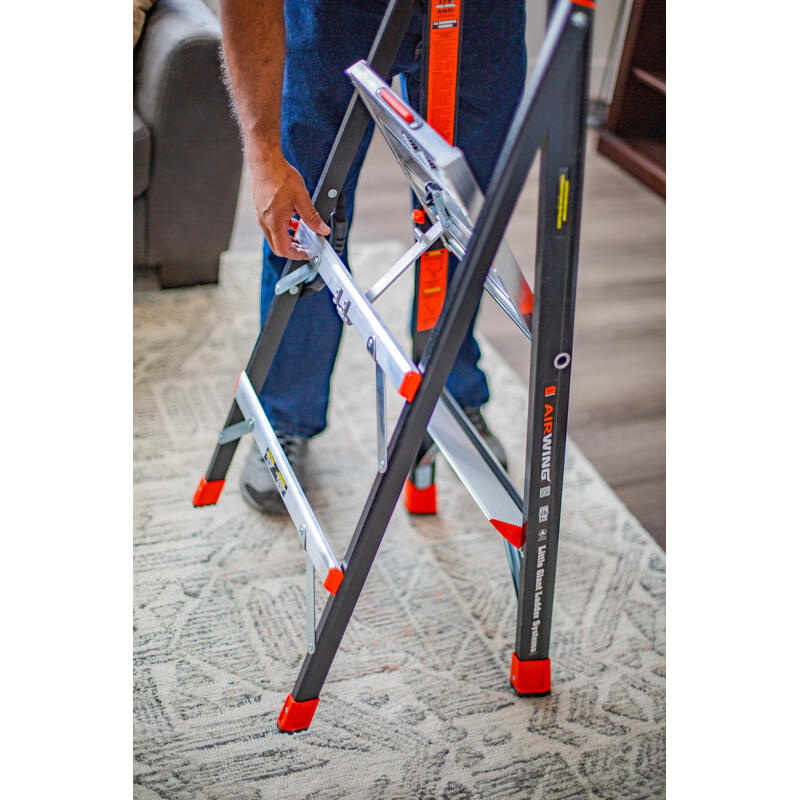

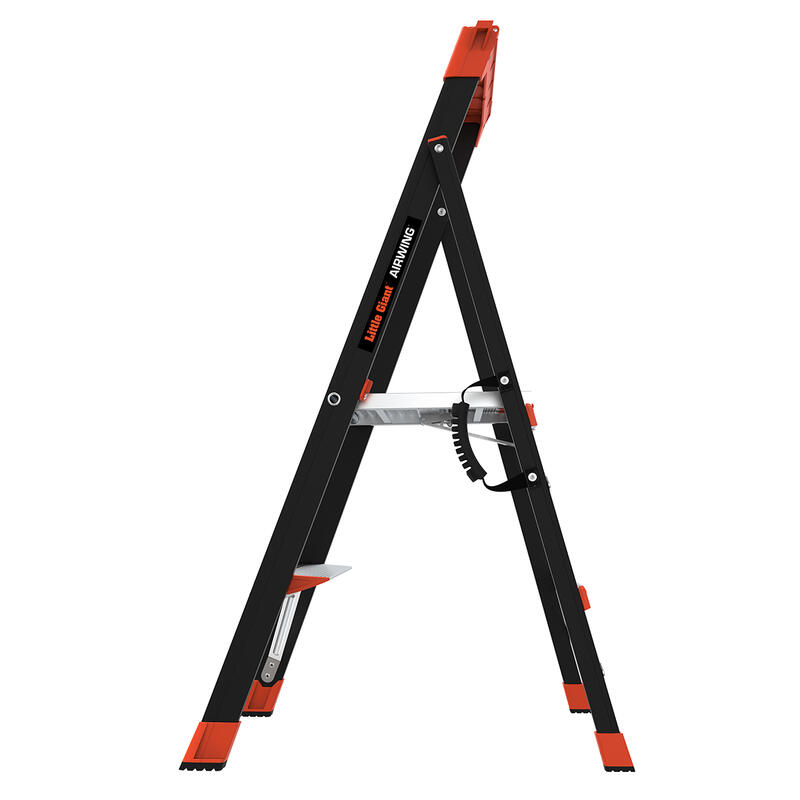

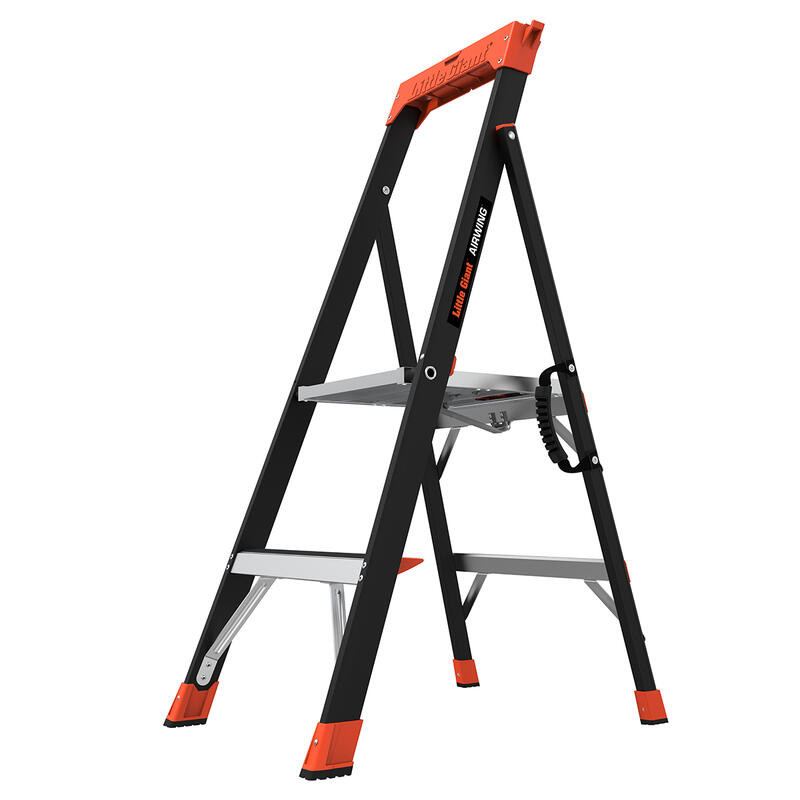

Unlike most lightweight, compact platform stepladders, which are usually engineered for light residential use, the Little Giant AirWing Fiberglass stepladder is engineered to be a safe, highly mobile platform option for tradesmen and industrial professionals. The lightweight, non-conductive fiberglass AirWing opens easily from a 3” storage profile, yet its patent-pending pivoting steps offer comfortable 4.5-inch treads on each rung, with a very spacious, comfortable standing platform at the top. With a lightweight, slim profile and heavy-duty construction, the AirWing is the perfect safe, yet portable climbing solution for any jobsite.

The AirWing Fiberglass Stepladder is available in 4, 5, 6, and 8-foot sizes and has earned a Type IAA – 375-lbs special duty ANSI rating.

Specifications
Product Category	AirWing
Extension Lock	None
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IAA - Special Duty

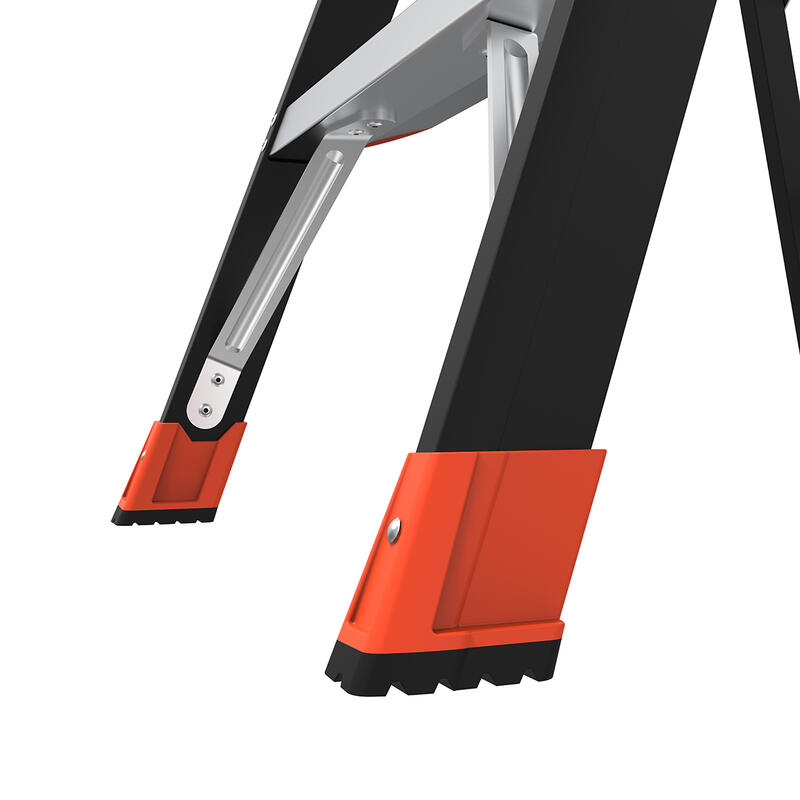

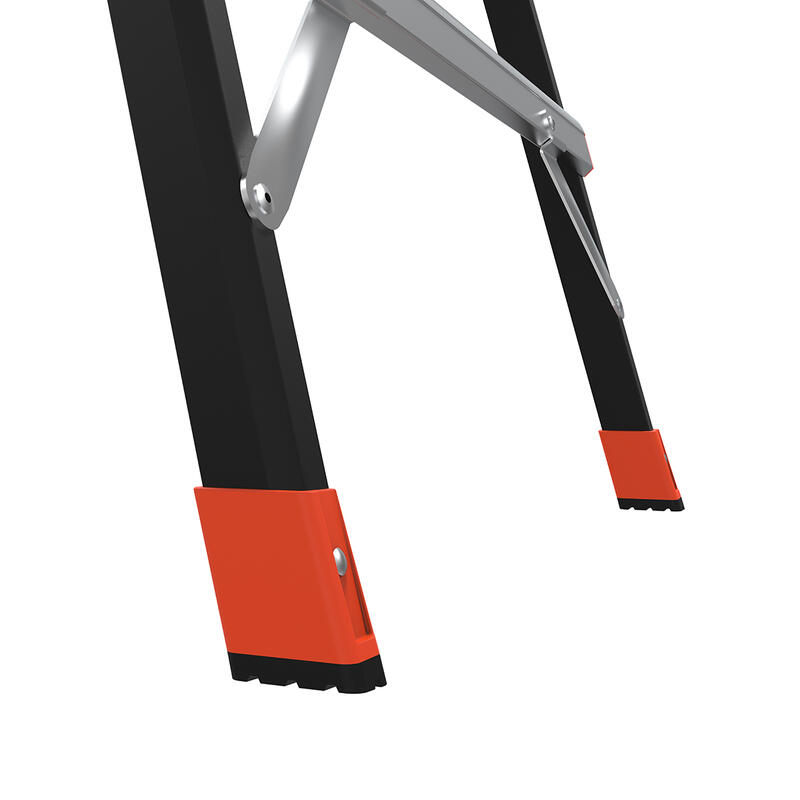

Feet	Standard non-marring (riveted)
Hinge Lock	None
Material	Fiberglass
Load Capacity	375 lbs.
Spreader System	Platform
Ladder Type	Step Ladder
Warranty	1-Year
Size	4'	1.22 m
Inside Clear Width	1 ft. 2 in.	37 cm
Storage Height	4 ft. 2 in.	1.27 m
Storage Width at Base	1 ft. 9 in.	53 cm
Storage Depth	2 in.	6 cm

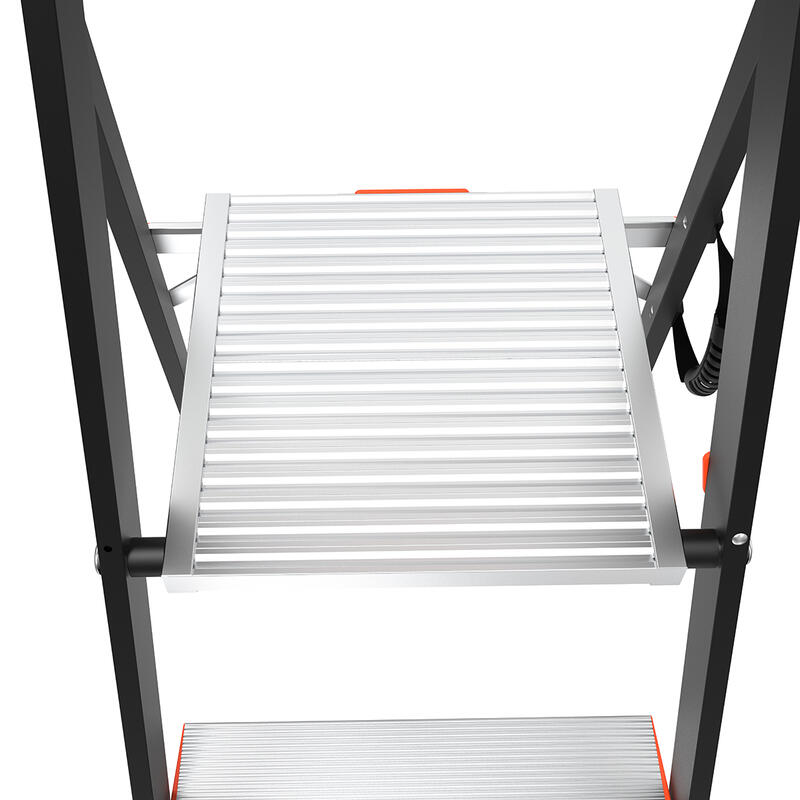

Platform Size	1 ft. 1 in. X 1 ft. 1 in.	33 cm X 33 cm
Top Width	1 ft. 3 in.	38 cm
Product Weight	14 lbs.	6.35 kg

Features
Scaffolding Position	No
Tip-N-Glide Wheels	No
90° Position	No

Shipping
Freight Class	110 - Ladders and/or Accessories
Ship Length	52"	4' 4"
Ship Width	21"	1' 9"
Ship Height	3½"	3½"
Ship Weight	16.2 lbs.
Ship Volume	2.21 CuFt.
HTS Code	3926.90.9930

Step Ladder
Stepladder Size	4'	1.22 m
Highest standing level Max	1 ft. 10 in.	57 cm
Highest standing level Min	1 ft. 10 in.	57 cm
Maximum Footprint	2 ft. 3 in.	69 cm
Minimum Footprint	2 ft. 3 in.	69 cm
Max Reach	8 ft. 5 in.	2.57 m
