18509-817
Cage-Adjustable

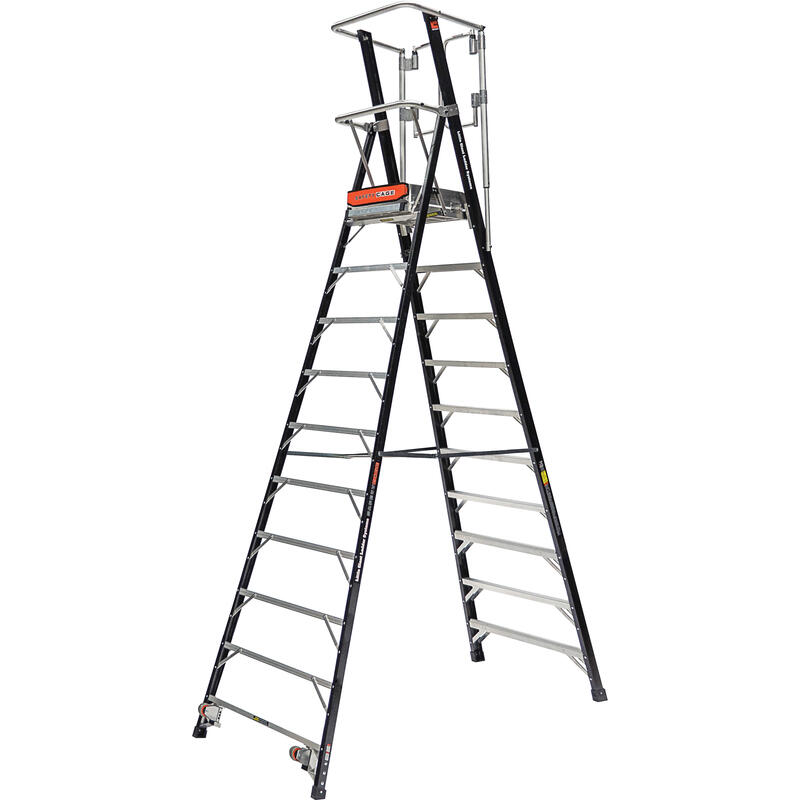

CAGE, 5'-9' model - ANSI Type IAA - 375 lb rated, fiberglass adjustable enclosed elevated platform with wheel lift and RATCHET levelers

Dowload Specsheet
Download Media Package

  • Model Number: 15072 - Saddle Bag
  • Model Number: 15074 - CAGE TIP & GLIDE/side-tip Wheels
  • Model Number: 15076 - CAGE Wheel Lift Kit
  • Model Number: 15074 - CAGE TIP & GLIDE/side-tip Wheels
  • Model Number: 15076 - CAGE Wheel Lift Kit
  • Fully enclosed platform eliminates the need to tie off while complying with industry tie-off rules
  • Nonconductive fiberglass construction provides additional safety while working around electricity
  • Independently telescoping sides adjust for use on sloping ground, uneven surfaces and stairs
  • Easily adjusts to multiple heights to adapt to almost any job
  • Portable and light enough to work on weight-limited stages and upper floors
  • Toe-board, netting and platform help prevent objects from falling, protecting workers below
  • Large 18.125” x 21.988” platform
  • Durable, cast aluminum Rock Lock™ adjusters
  • Descent Control™ rope brake system allows for controlled lowering of the ladder sections
  • Wide 1.5” flat climbing rungs
  • Optional Ratchet™ Levelers adjust 8.675” in increments of .425” for effortless leveling on uneven terrain
  • Optional Wheel Lift™ casters with 5” wheels allows for easy on-the-job transportation
  • Large, 5” Tip & Glide™ wheels make it easy for one person to move the ladder from job to job
  • Optional 10” all-terrain pneumatic Tip & Glide wheels work great on loose dirt and gravel
  • Adjustable outriggers improve stability and increase the base width to 84” on level ground
  • Compatible with Wheel Lift casters and Cage Tool Bag Little Giant Accessories
  • Meets or exceeds ANSI IAA testing for platform type ladders
  • Complies with OSHA standards for guardrail fall protection systems
  • CSA compliant
  • Available in the following adjustable sizes: 3-5’, 5-9’, and 8-14’



Include in 8-14 bullet points:

  • On the 8-14’ Cage, a modified Descent Control rope brake system additionally facilitates a controlled way to completely extend the ladder
Specifications
Product Category Cage-Adjustable
Extension Lock Cast Aluminum Rock Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IAA - Special Duty
Feet Standard non-marring (snap-on)
Hinge Lock None
Material Fiberglass
Load Capacity 375 lbs.
90° Ladder No
Scaffolding Position No
Spreader System Platform
Tip-N-Glide Wheels Yes
Ladder Type Cage - Telescoping Platform
Warranty 1-Year
Size 5' - 9' 1.52 m - 2.74 m
Inside Clear Width 1 ft. 8 in. 52 cm
Storage Height 9 ft. 10 in. 3.00 m
Storage Width at Base 3 ft. 10 in. 1.17 m
Storage Depth 1 ft. 5 in. 43 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 4 in. 10 cm
Top Width 2 ft. 2 in. 66 cm
Product Weight 130 Lbs.
Cage
Kick Plate Height 3 in. 9 cm
Guardrail Height 3 ft. 9 in. 1.14 m
Shipping
Freight Class 300 - AL and/or FG Ladder
Ship Length 118"
Ship Width 46"
Ship Height 11"
Ship Weight 130 Lbs.
HTS Code 3926.90.9930
Step Ladder
Highest standing level Max 8 ft. 8 in. 2.65 m
Highest standing level Min 4 ft. 11 in. 1.50 m
Maximum Footprint 7 ft. 5 in. 2.26 m
Minimum Footprint 5 ft. 1.52 m
Max Reach 15 ft. 2 in. 4.64 m
