10102LG
Classic

CLASSIC, Model 17 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendable Ladder

Dowload Specsheet

Download Media Package

Download Box Label

Data Feed:

Manuals

No manuals have been assigned to this product

Compatible Accessories

Model Number: 10104 - Work Platform
Model Number: 10111 - WingSpan Wall Standoff
Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, Accessories for Articulated Extendable Ladders
Model Number: 10940 - Tip & Glide Wheels
Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15012 - Project Tray
Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 15040-001 - Cargo Hold
Model Number: 15050-001 - FUEL TANK, vertical paint tray, Ladder Accessory
Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
Model Number: 15097 - Ladder Rack
Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 18960-001 - Accessory Pack: Fuel Tank and Trestle Brackets
Model Number: 26044 - Trestle Brackets - Classic/Alta-One

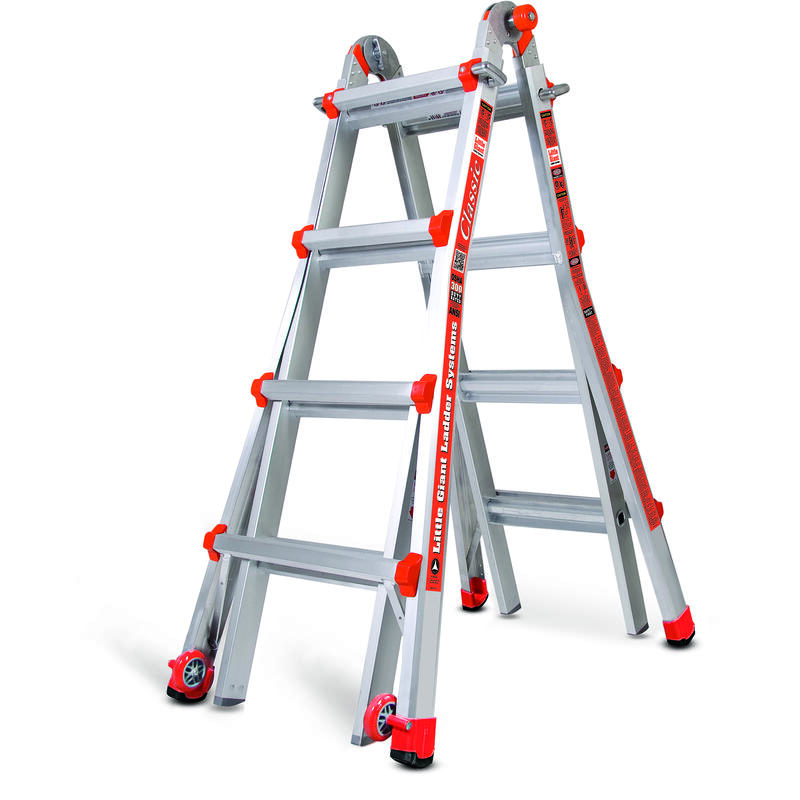

Classic™

You’re a doer! You need a ladder to help you cross projects off your list. The Little Giant® Classic™ is the original multi-position ladder and helps you get to those out of reach places so you can get stuff done. Whether it is painting, framing or general maintenance, you can count on the Classic to help you through your projects.

Multi-Position Ladder

The Classic helps you get your work done quickly and effectively. The ladder can be used in the stepladder, extension, staircase, 90-degree or trestle-and-plank* scaffolding positions, depending on the task at hand. The Lock Tab™ adjusters make adjusting the height of the ladder simple.

Easy to Transport

The Tip & Glide™ wheels let you move the ladder easily from job to job. Simply tip your ladder to engage the wheels and roll it where you need it.

Benefits

The Classic meets or exceeds all OSHA and ANSI standards. It is rated to hold 300 lbs. in all configurations. In the stepladder position, the ladder can hold 300 lbs. on both sides.

*Plank not included

Specifications
Product Category	Classic
Extension Lock	Extra Heavy Duty Lock Tab
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (snap-on)
Hinge Lock	Plastic / Triple Locking Hinge
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	Limited Lifetime
Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Inside Clear Width	1 ft. 1 in.	33 cm
Storage Height	4 ft. 7 in.	1.40 m
Storage Width at Base	2 ft.	61 cm
Storage Depth	9 in.	23 cm
Inner Rung Depth	1 in.	3 cm
Outer Rung Depth	1 in.	3 cm
Double Rung Depth	3 in.	8 cm
Top Width	1 ft. 6 in.	48 cm
Product Weight	35 lbs.	15.87 kg

Features
Scaffolding Position	Yes
Tip-N-Glide Wheels	Yes
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	4' 6" - 7' 6"	1.37 m - 2.29 m
Highest standing level Max	4 ft. 10 in.	1.47 m
Highest standing level Min	1 ft. 11 in.	60 cm
Maximum Footprint	5 ft. 2 in.	1.58 m
Minimum Footprint	3 ft. 4 in.	1.03 m
Max Reach	11 ft. 4 in.	3.45 m

Single / Extension
Extension Total Length of Sections	17 ft. 2 in.	5.23 m
Extension Max Reach	18 ft. 1 in.	5.51 m
Single / Extension Highest Standing Level Max	11 ft. 7 in.	3.53 m
Single / Extension Highest Standing Level Min	5 ft. 9 in.	1.75 m
Single / Extension Max Working Length	14 ft. 11 in.	4.55 m
Single / Extension Min Working Length	8 ft. 11 in.	2.72 m
