12022
Revolution

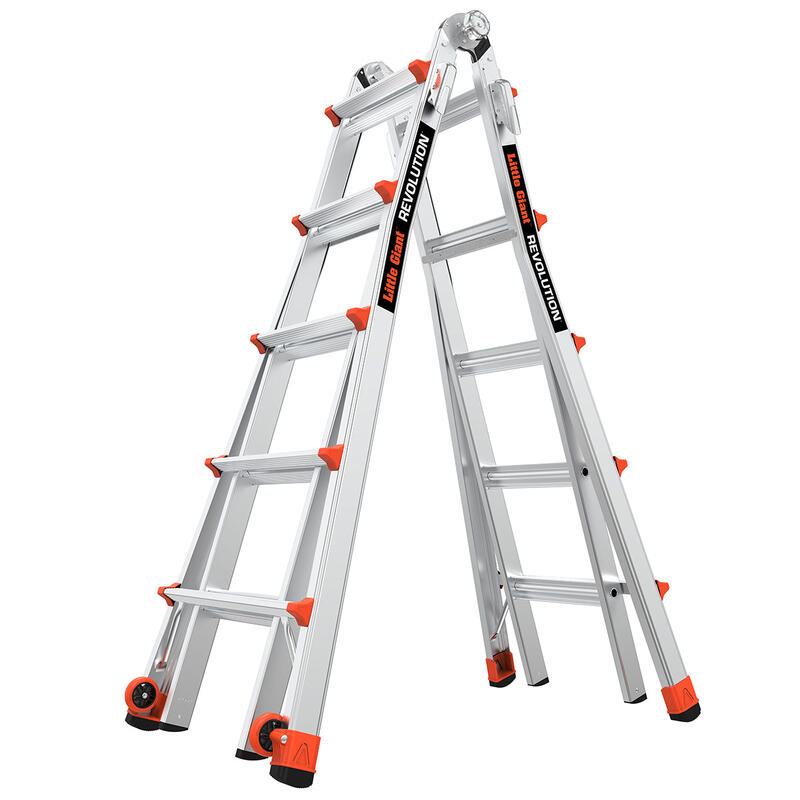

REVOLUTION, Model 22 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendable Ladder with Trestle Brackets

Dowload Specsheet

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

No manuals have been assigned to this product

Compatible Accessories

Model Number: 10104 - Work Platform
Model Number: 10111 - WingSpan Wall Standoff
Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, Accessories for Articulated Extendable Ladders
Model Number: 10170 - PLATFORM PRO, 300 lb Capacity, Accessory for Articulated Extendable Ladders
Model Number: 10940 - Tip & Glide Wheels
Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15012 - Project Tray
Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 15040-001 - Cargo Hold
Model Number: 15047-002 - TOOL TRAY, Project Tray, Compatible with Multi-position Ladder Family - Retail Packaging
Model Number: 15050-001 - FUEL TANK, vertical paint tray, Ladder Accessory
Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
Model Number: 15097 - Ladder Rack
Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 26999 - TRESTLE BRACKETS, Rail Connectors, Articulating Ladder Accessory (Leveler Compatibility)

Included Accessories

Model Number: 26999 - TRESTLE BRACKETS, Rail Connectors, Articulating Ladder Accessory (Leveler Compatibility)

An intense job calls for an intense tool. The Little Giant® Revolution™ ladder helps you complete those heavy-duty tasks. From roofing, to tinning, to general maintenance, the Revolution is the ladder to help you get stuff done.

FEATURES

1. PALM BUTTONS

Move from storage to A-frame to extension ladder configurations by pushing in the ladder's palm buttons.

2. PATENTED METAL ROCK LOCK

Metal Rock Lock adjusters on the ladder's rails allow for quick and easy height and position adjustment.

3. TIP & GLIDE WHEELS

The Revolution's integrated Tip & Glide wheels help you move the ladder easily from place to place.

SCAFFOLDING

The Velocity can be converted into trestle-and-plank scaffolding by removing the outer section of the ladder and connecting it with trestle brackets. Attach a Plank between the two trestles to cover a larger workspace, so you can work faster. (Trestle brackets and Plank sold separately)

ACCESSORIES (Not all compatible accessories included)

1. CARGO HOLD

When working on a ladder, you need a space where you can comfortably put your equipment. Made of ballistic nylon and steel, the Cargo Hold is a sturdy tool pouch that attaches to your ladder to keep tools at hand.

2. WORK PLATFORM

Decrease foot fatigue while working on your ladder. The Work Platform is a ladder accessory that doubles as a comfortable standing platform and tool tray. This accessory is rated to hold up to 375 lbs. (NEVER EXCEED DUTY RATING OF THE LADDER)

3. WINGSPAN

If you need to work around a window, rain gutter or bush, the WingSpan wall standoff attaches to the ladder, allowing you to work around the obstacle, giving you a sturdy surface to work on.

Specifications
Product Category	Revolution
Extension Lock	Cast Aluminum Rock Locks
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (snap-on)
Hinge Lock	None
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	Limited Lifetime
Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Inside Clear Width	1 ft.	32 cm
Storage Height	5 ft. 7 in.	1.70 m
Storage Width at Base	2 ft. 3 in.	69 cm
Storage Depth	9 in.	23 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	3 in.	9 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	40 lbs.	18.14 kg

Features
Scaffolding Position	Yes
Tip-N-Glide Wheels	Yes
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Highest standing level Max	6 ft. 8 in.	2.03 m
Highest standing level Min	2 ft. 11 in.	89 cm
Maximum Footprint	6 ft. 4 in.	1.94 m
Minimum Footprint	3 ft. 11 in.	1.21 m
Max Reach	13 ft. 2 in.	4.01 m

Single / Extension
Extension Total Length of Sections	21 ft. 2 in.	6.45 m
Extension Max Reach	22 ft.	6.71 m
Single / Extension Highest Standing Level Max	15 ft. 6 in.	4.72 m
Single / Extension Highest Standing Level Min	7 ft. 10 in.	2.39 m
Single / Extension Max Working Length	18 ft. 11 in.	5.77 m
Single / Extension Min Working Length	10 ft. 11 in.	3.33 m
