13610-001
King Kombo

KING KOMBO Professional, 6' - ANSI Type IAA - 375 lb Rated, Fiberglass 3-in-1 All-Access Combination Ladder with Rotating Wall Pad

Dowload Specsheet

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Model Number: 15097 - Ladder Rack
Model Number: 15104 - QUAD POD 2.0, variable shape leaning tool tray for KING KOMBO Ladders

King Kombo™

Combination ladder converts to stepladder, extension and leaning ladder configurations.

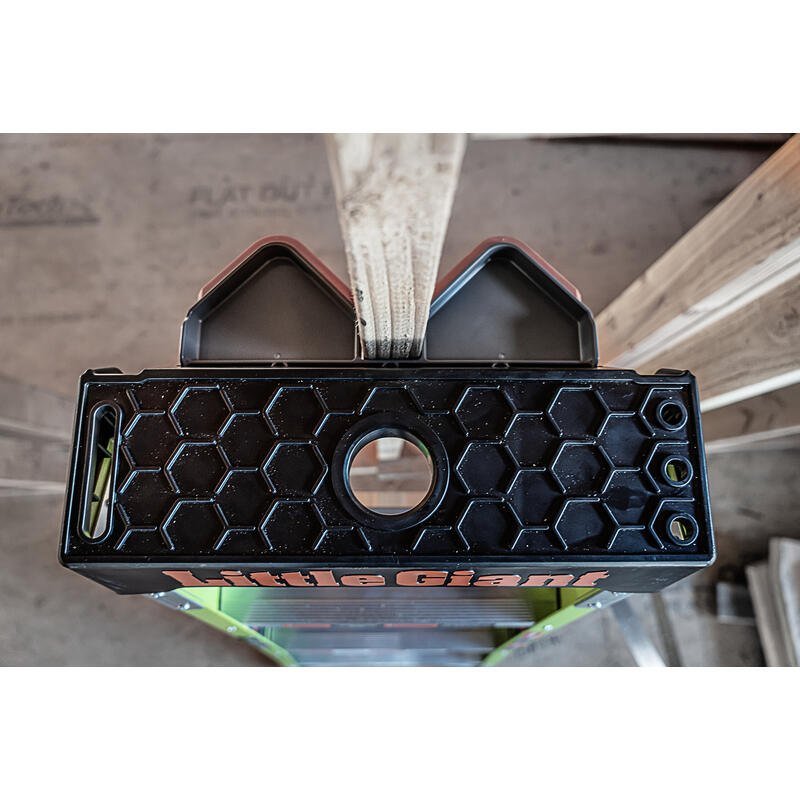

Get closer to your work with the rotating wall pad, which conforms to inside and outside corners, walls and studs.
Climbing side of the ladder features wide-flared legs for side-tip stability.

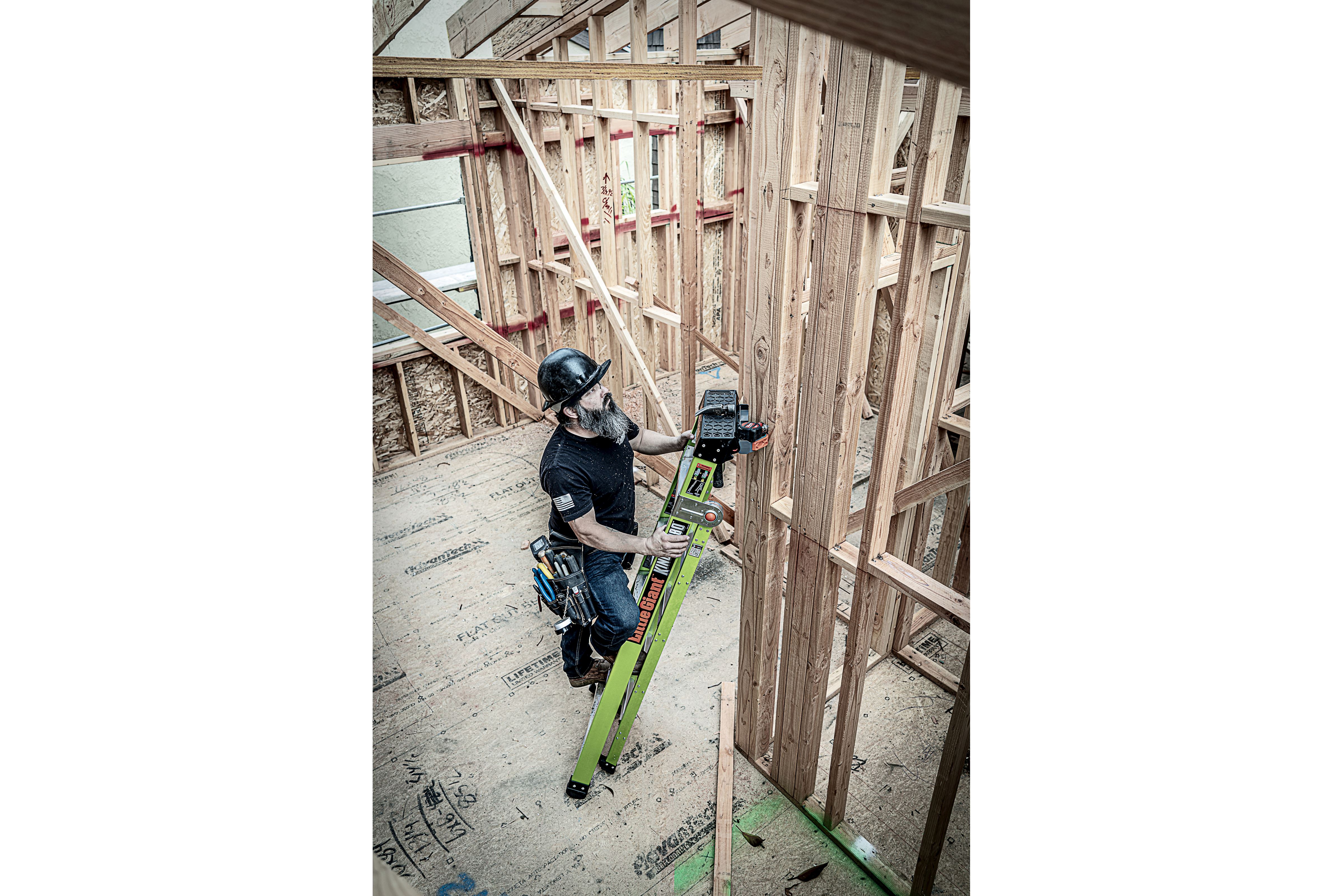

Narrow, functional rear section of the ladder allow you to access tight workspaces, like between wall studs, ceiling trusses and roof or attic access ports.
Non-Conductive Hi-Viz Green Fiberglass increases ladder visibility and is safe to work around electricity.
Ground Cue®* makes an audible click when you have reached the final step of your descent.
Non-marring V-bar* on the extension side of the ladder allows you to set up your ladder on outside corners, walls and studs while in extension configuration.
Field-replaceable feet allow for easy foot replacement on the job site.

*Available on select models

Specifications
Product Category	King Kombo
Extension Lock	None
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IAA - Special Duty
Feet	Standard non-marring (screw-on)
Hinge Lock	Push Button
Material	Fiberglass
Load Capacity	375 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Purpose
Warranty	1-Year
Size	6'	1.83 m
Inside Clear Width	1 ft.	31 cm
Storage Height	6 ft. 1 in.	1.85 m
Storage Width at Base	2 ft. 1 in.	64 cm
Storage Depth	7 in.	18 cm
Inner Rung Depth	3 in.	8 cm
Outer Rung Depth	3 in.	8 cm
Double Rung Depth	6 in.	15 cm
Top Width	1 ft. 3 in.	38 cm
Product Weight	22 lbs.	9.98 kg

Single / Extension
Extension Total Length of Sections	9 ft. 11 in.	3.02 m
Extension Max Reach	13 ft. 1 in.	3.99 m
Single / Extension Highest Standing Level Max	6 ft. 7 in.	2.01 m
Single / Extension Highest Standing Level Min	3 ft. 9 in.	1.14 m
Single / Extension Max Working Length	9 ft. 11 in.	3.02 m
Single / Extension Min Working Length	6 ft.	1.83 m
