14322-001
LT

LT, Model 22 - ANSI Type IA - 300 lb Rated, Aluminum Articulated Extendable Ladder

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

No manuals have been assigned to this product

Compatible Accessories

Model Number: 10104 - Work Platform
Model Number: 10111 - WingSpan Wall Standoff
Model Number: 10116 - Accessory pack, WINGSPAN Wall Standoff and Work Platform, Accessories for Articulated Extendable Ladders
Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15012 - Project Tray
Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 15040-001 - Cargo Hold
Model Number: 15047-002 - TOOL TRAY, Project Tray, Compatible with Multi-position Ladder Family - Retail Packaging
Model Number: 15050-001 - FUEL TANK, vertical paint tray, Ladder Accessory
Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
Model Number: 15089 - Accessory pack, WINGSPAN wall standoff and Ladder Rack
Model Number: 15097 - Ladder Rack
Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 26999 - TRESTLE BRACKETS, Rail Connectors, Articulating Ladder Accessory (Leveler Compatibility)

LT

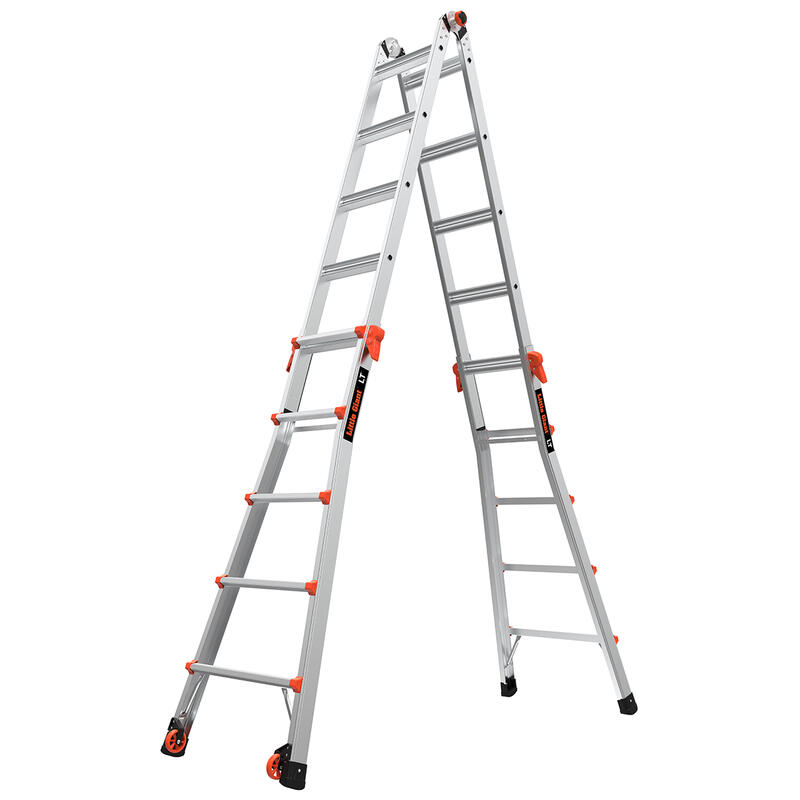

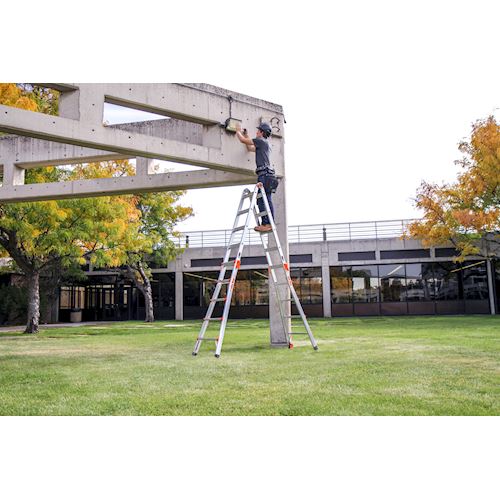

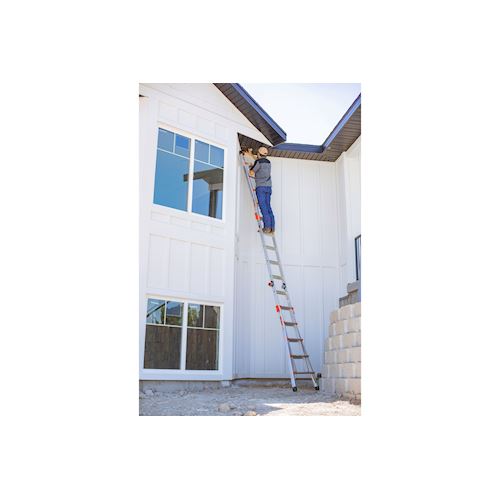

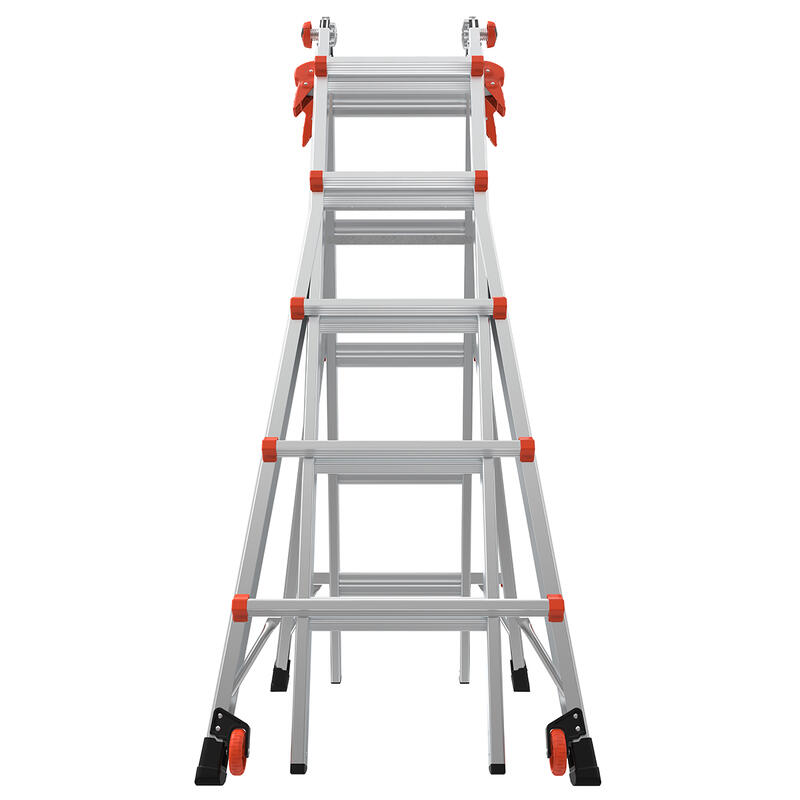

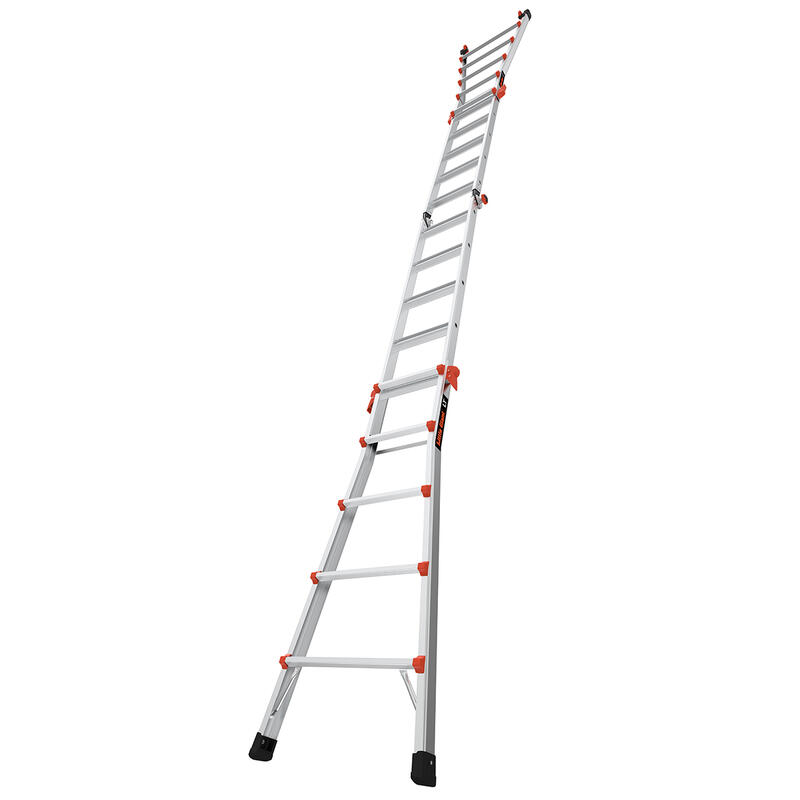

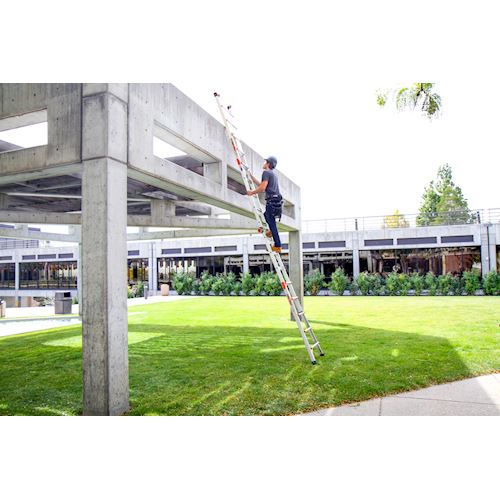

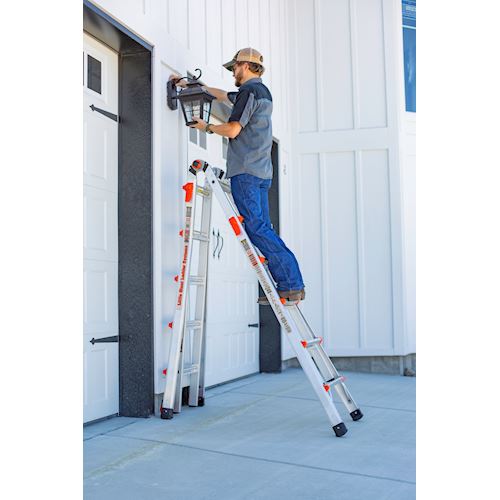

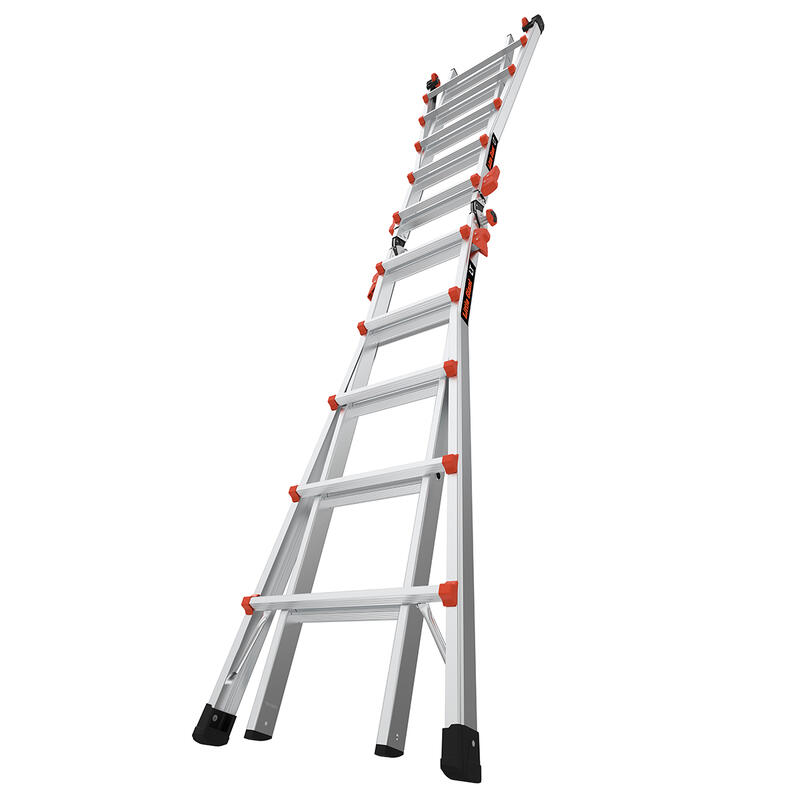

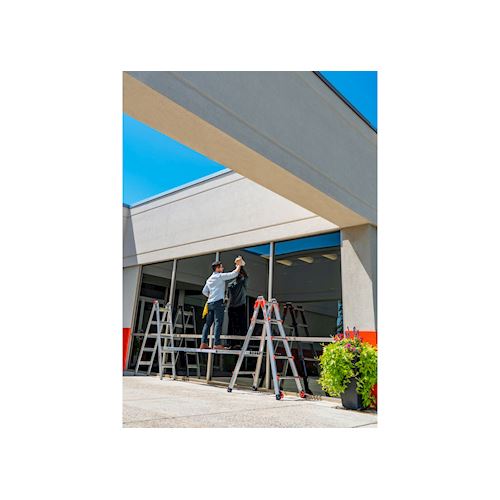

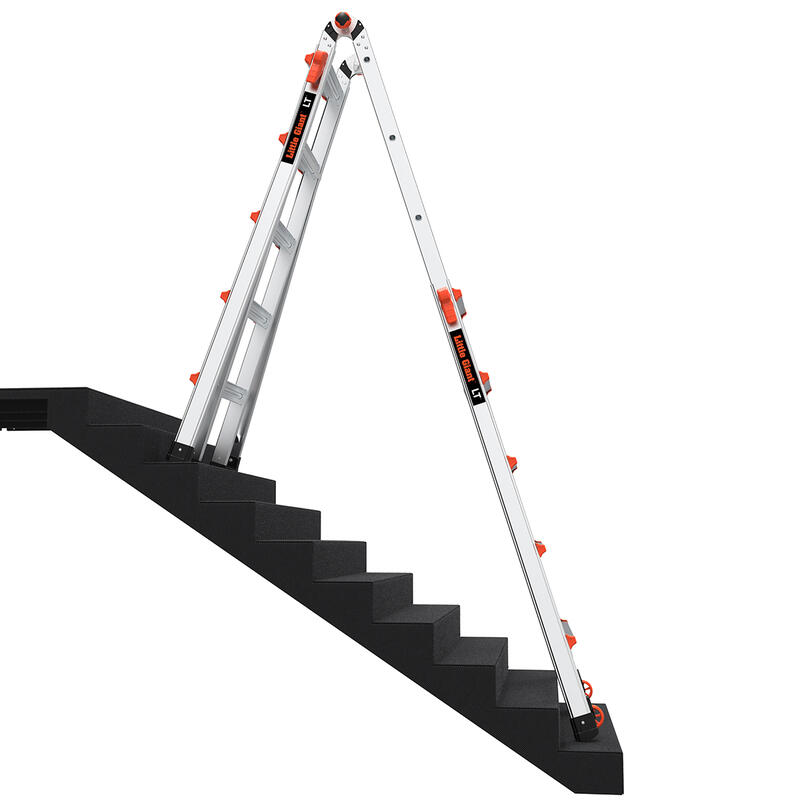

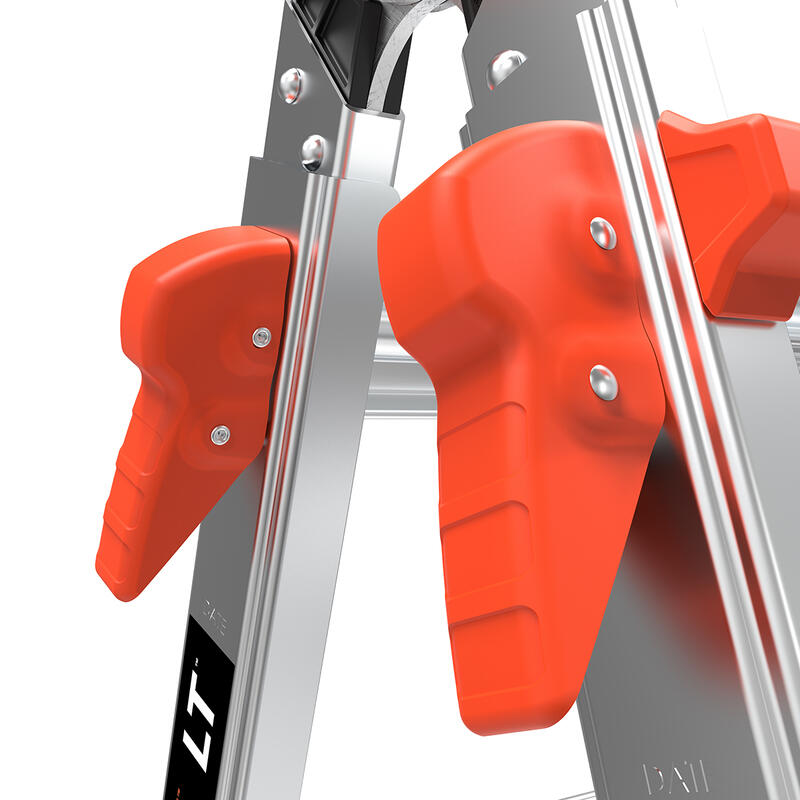

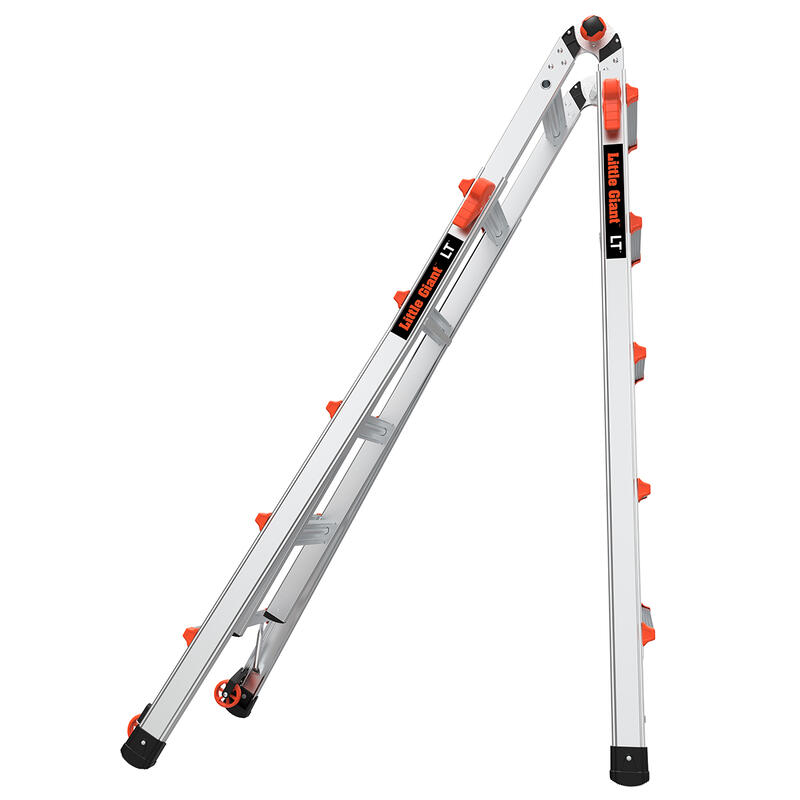

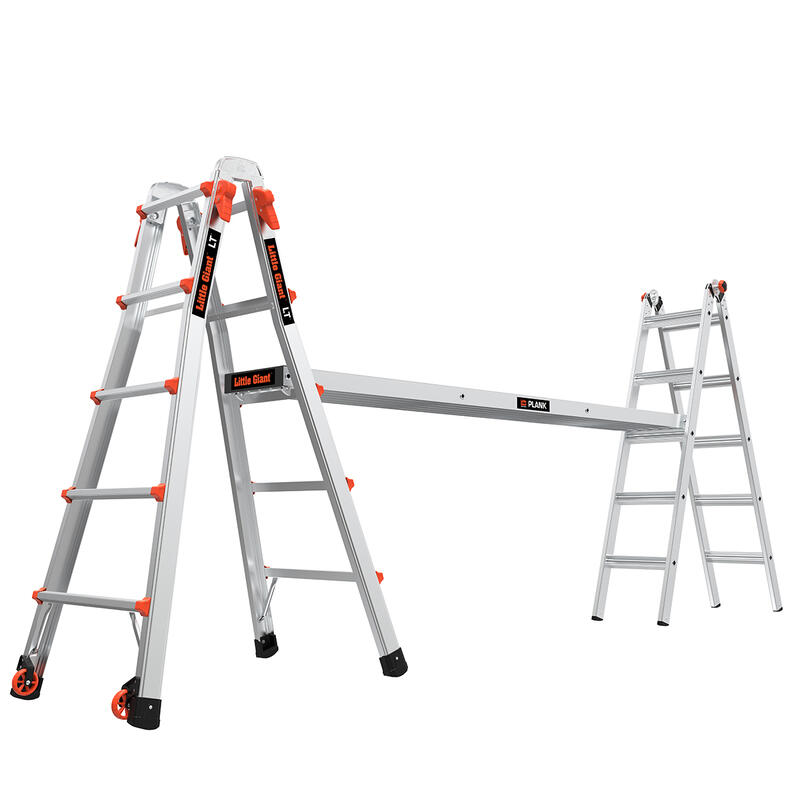

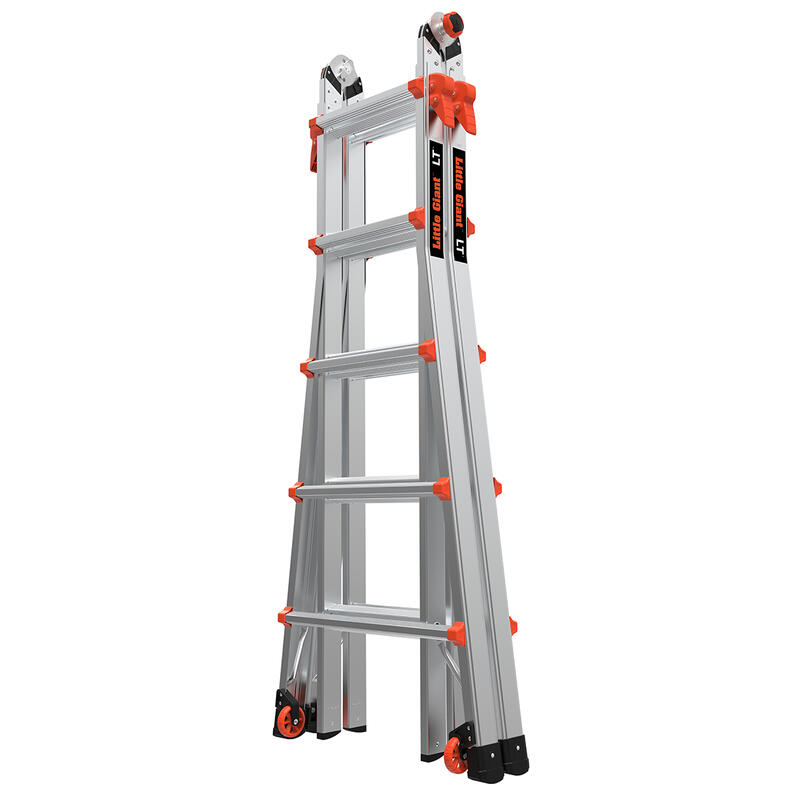

The Little Giant LT multipurpose ladder system includes several innovative features such as the dual-pin hinge and the easy-to-use Rock Locks for quick adjustment. You can use LT Model in many unique configurations— an A-frame, extension, staircase and 90-degree ladder, and with Trestle Brackets (sold separately) to form a trestle-and-plank scaffolding system. The LT’s wide-flared legs and aerospace-grade aluminum construction provide an unmatched feeling of safety and stability. The Little Giant LT is rated to hold 300 pounds on both sides and is a true two-person ladder. The wide-flared legs offer improved side-tip stability and create a wide, stabile footprint at the top of your extension ladder. The LT meets or exceeds all OSHA, ANSI, and CSA standards and is rated Type IA – 300 lbs.

Specifications
Product Category	LT
Extension Lock	Plastic Rock Locks
Country Assembled	China
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (riveted)

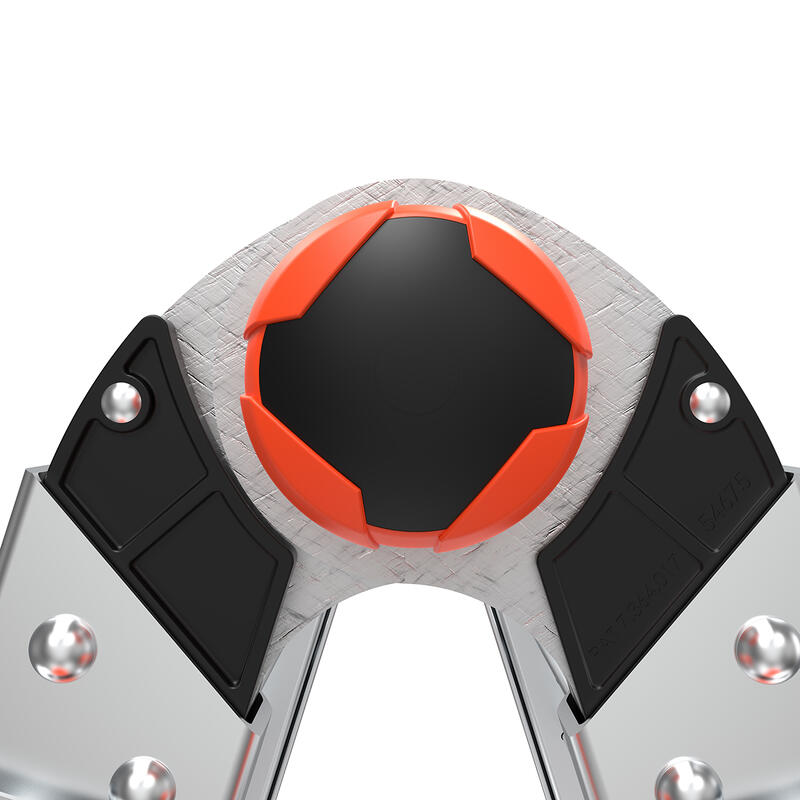

Hinge Lock	Plastic / Triple Locking Hinge
Material	Aluminum
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	Limited Lifetime
Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Inside Clear Width	1 ft.	32 cm
Storage Height	5 ft. 7 in.	1.70 m
Storage Width at Base	2 ft. 3 in.	69 cm
Storage Depth	8 in.	22 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	3 cm
Double Rung Depth	3 in.	8 cm
Top Width	1 ft. 6 in.	46 cm
Product Weight	38 lbs.	17.23 kg

Features
Scaffolding Position	Yes

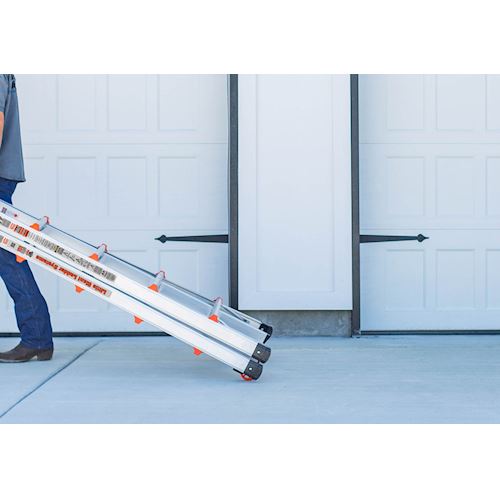

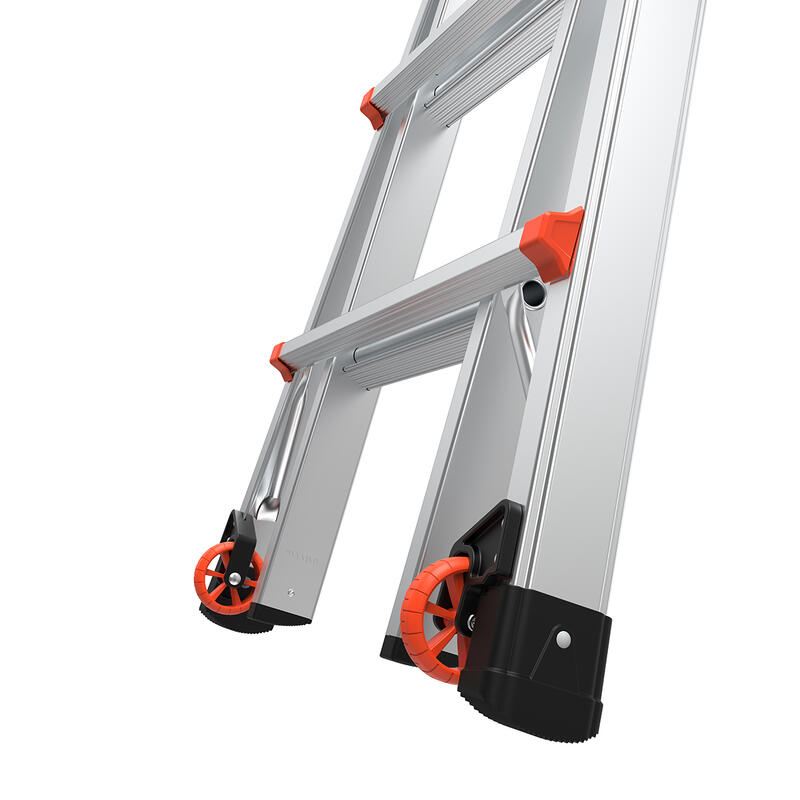

Tip-N-Glide Wheels	Yes
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	7616.99.5190

Step Ladder
Stepladder Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Highest standing level Max	6 ft. 8 in.	2.03 m
Highest standing level Min	2 ft. 11 in.	89 cm
Maximum Footprint	6 ft. 4 in.	1.94 m
Minimum Footprint	3 ft. 11 in.	1.21 m
Max Reach	13 ft. 2 in.	4.01 m

Single / Extension
Extension Total Length of Sections	21 ft. 2 in.	6.45 m
Extension Max Reach	22 ft.	6.71 m
Single / Extension Highest Standing Level Max	15 ft. 6 in.	4.72 m
Single / Extension Highest Standing Level Min	7 ft. 10 in.	2.39 m
Single / Extension Max Working Length	18 ft. 11 in.	5.77 m
Single / Extension Min Working Length	10 ft. 11 in.	3.33 m
