Conquest

CONQUEST, Model 17 - ANSI Type IA - 300 lb Rated, Fiberglass Articulated Extendable Ladder Will Be Discontinued On 11/09/2021 This Item is Replaced by 17117-001

Dowload Specsheet
Download Media Package
Download Box Label
Download Notice Label

No manuals have been assigned to this product

  • Model Number: 10104 - Work Platform
  • Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15012 - Project Tray
  • Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 15040-001 - Cargo Hold
  • Model Number: 15048 - Accessory pack, Ladder Rack and Work Platform
  • Model Number: 15050-001 - Fuel Tank
  • Model Number: 15086-001 - Accessory pack, QUANTUM STEP Platform and FUEL TANK vertical paint tray
  • Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
  • Model Number: 15097 - Ladder Rack
  • Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
  • Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
  • Model Number: 56480 - Trestle Brackets - Dark Horse/Conquest

Conquest™



Access a variety of workspaces Little Giant® Conquest™ ladder. This versatile, multi-position ladder will help you get stuff done efficiently.



Multi-Position Ladder

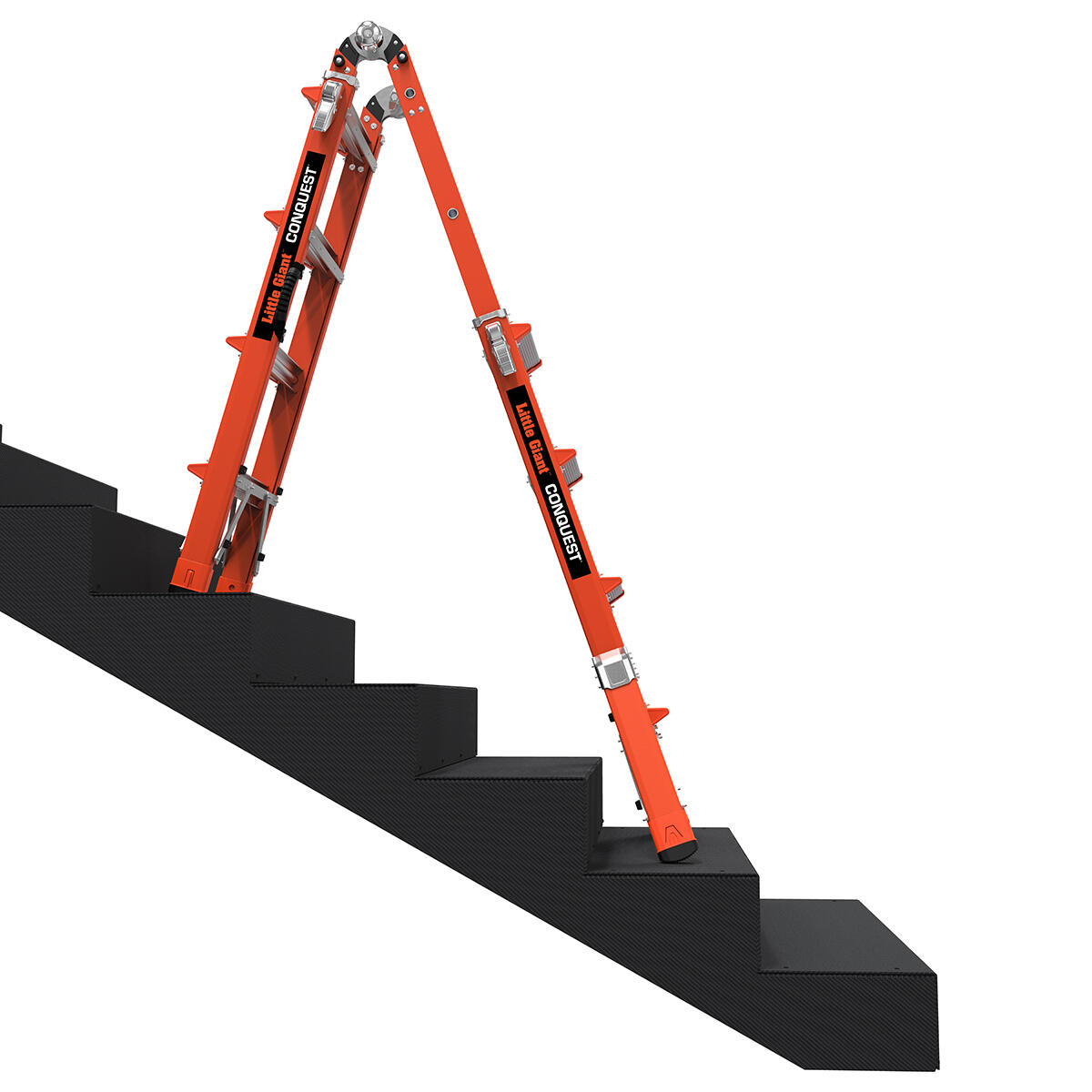

Set up your ladder in a variety of positions to find the right one for your task. The Conquest can be used in stepladder, extension, 90-degree and staircase configurations. With its wide-flared legs, you will feel secure while working, and with the narrow extension and optional V-bar, you can access attics and roofs.



Non-Conductive Fiberglass

Made from durable, non-conductive fiberglass, the Conquest is suited for a variety of jobs. Our fiberglass is lightweight, yet dependable, and with the attached, weight-balanced carrying handle, transportation of the ladder is simple.



Specs

The Conquest meets or exceeds all OSHA and ANSI standards and is Type IA rated to hold 300 lbs. It is available in 17’ and 22’ sizes.



Specifications
Product Category Conquest
Discontinuation Date 11/09/2021
Replacement Item 17117-001
Extension Lock Cast Aluminum Rock Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IA - Extra Heavy Duty
Feet Standard non-marring (snap-on)
Hinge Lock Cast Aluminum / Triple Locking Hinge
Material Fiberglass
Load Capacity 300 lbs.
Spreader System Hinge Lock
Ladder Type Telescoping - Articulated
Warranty 1-Year
Size 9' - 18' 1" 2.74 m - 5.51 m
Inside Clear Width 1 ft. 32 cm
Storage Height 4 ft. 7 in. 1.40 m
Storage Width at Base 2 ft. 5 in. 74 cm
Storage Depth 10 in. 25 cm
Inner Rung Depth 1 in. 4 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 3 in. 10 cm
Top Width 1 ft. 5 in. 45 cm
Product Weight 40 lbs. 18.14 kg
Features
Scaffolding Position Yes
Tip-N-Glide Wheels No
90° Position Yes
Shipping
Freight Class 250 - Ladders and/or Accessories
HTS Code 3926.90.9930
Step Ladder
Stepladder Size 4' 6" - 7' 6" 1.37 m - 2.29 m
Highest standing level Max 4 ft. 10 in. 1.47 m
Highest standing level Min 1 ft. 11 in. 60 cm
Maximum Footprint 5 ft. 2 in. 1.57 m
Minimum Footprint 3 ft. 3 in. 99 cm
Max Reach 11 ft. 4 in. 3.45 m
Single / Extension
Extension Total Length of Sections 17 ft. 2 in. 5.23 m
Extension Max Reach 18 ft. 1 in. 5.51 m
Single / Extension Highest Standing Level Max 11 ft. 7 in. 3.53 m
Single / Extension Highest Standing Level Min 5 ft. 9 in. 1.75 m
Single / Extension Max Working Length 14 ft. 11 in. 4.55 m
Single / Extension Min Working Length 8 ft. 11 in. 2.72 m
