15910-002
Sentinel

SENTINEL, 10' Model - ANSI Type IAA - 375 lb Rated, Fiberglass Stepladder / Leaning Ladder with Rotating Wall Pad Accessory and GROUND CUE - Retail Packaging

Dowload Specsheet

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

SENTINEL Manual - USA - English/Spanish

Base Sku: 15910-001 -- SENTINEL, 10' Model - ANSI Type IAA - 375 lb Rated, Fiberglass Stepladder / Leaning Ladder with Rotating Wall Pad Accessory and GROUND CUE

Compatible Accessories

Model Number: 15097 - Ladder Rack

FEATURES

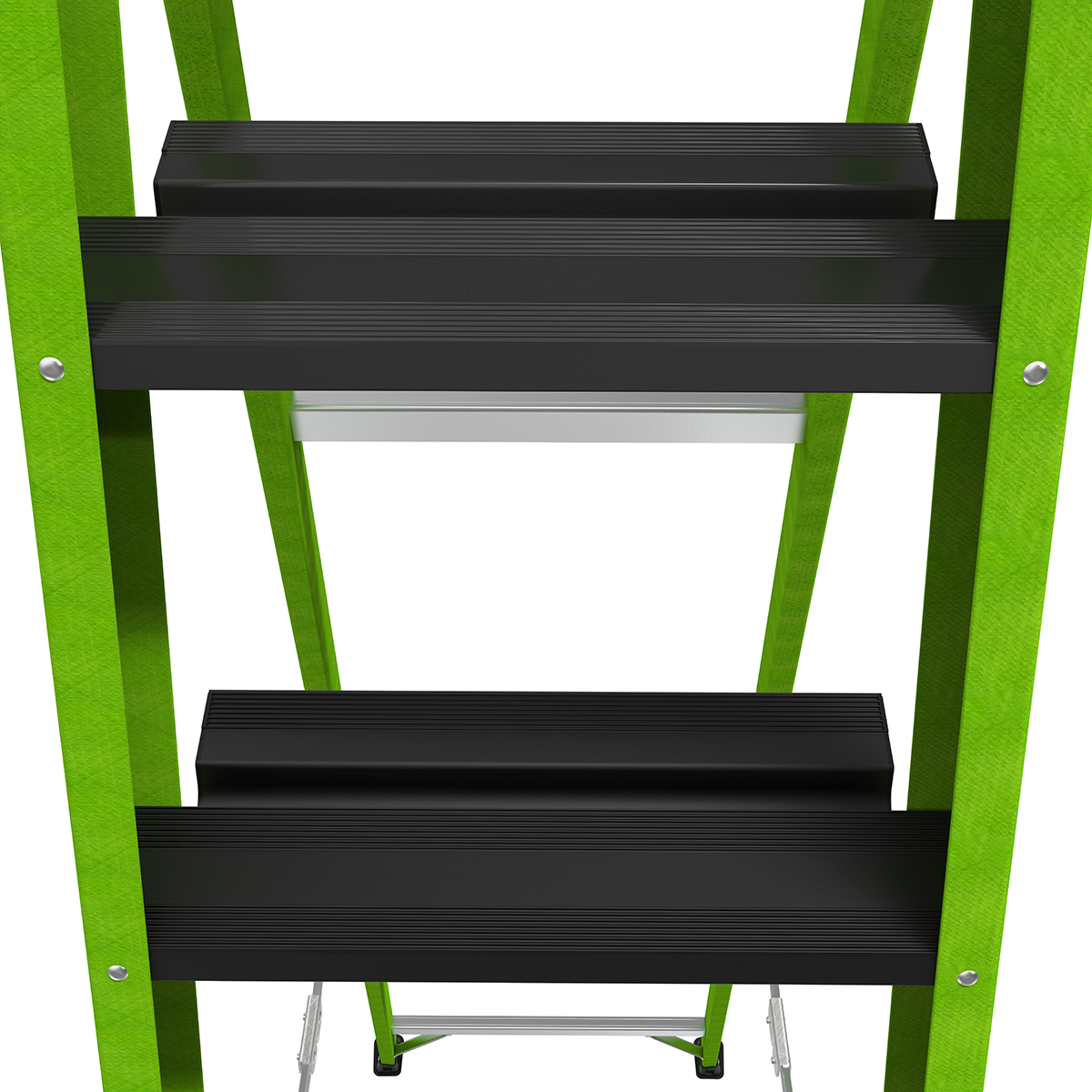

1. EXTRA-WIDE COMFORT STEPS

At 3.12" wide, the steps on the Sentinel are already comfortable, but the very top standing steps is where the Sentinel really shines. The top rungs is set at 6.25" for maximum foot comfort while standing atop the ladder.

2. GROUND CUE

Many injuries occur when descending the ladder, specifically by missing the last rung of the ladder. When you step on the bottom rung of the ladder, Ground Cue makes an audible click, alerting you that you have reached the bottom step safely.

3. RAIL LOCKS

The Sentinel's easy-to-use Rail Locks keep rails together while in the leaning position, storage and transit, and can easily be released for use in the stepladder position.

ROTATING WALL PAD

The crowning gem of the King Kombo is its rotating wall pad. Now, you can safely set up your ladder on inside and outside corners, walls and studs with ease.

Available in 10 ft and 12 ft. Non- conductive fiberglass. A-frame • Osha compliant leaning ladder.

Specifications
Product Category	Sentinel
Extension Lock	None
Country Assembled	China & USA
Marketing Language	English / Spanish
Duty Rating	Type IAA - Special Duty
Feet	Standard non-marring (screw-on)
Hinge Lock	None
Material	Fiberglass
Load Capacity	375 lbs.
Spreader System	None
Ladder Type	Step Ladder
Warranty	1-Year
Size	10'	3.05 m
Inside Clear Width	1 ft. 1 in.	34 cm
Storage Height	10 ft. 5 in.	3.18 m
Storage Width at Base	2 ft. 2 in.	66 cm
Storage Depth	7 in.	18 cm
Top Width	1 ft. 3 in.	38 cm
Product Weight	40 lbs.	18.14 kg

Features
Scaffolding Position	No
Tip-N-Glide Wheels	No
90° Position	No

Shipping
Freight Class	300 - AL and/or FG Ladder
HTS Code	3926.90.9930

Step Ladder
Stepladder Size	10'	3.05 m
Highest standing level Max	7 ft. 8 in.	2.34 m
Highest standing level Min	7 ft. 8 in.	2.34 m
Maximum Footprint	5 ft. 4 in.	1.63 m
Minimum Footprint	5 ft. 4 in.	1.63 m
Max Reach	14 ft. 2 in.	4.32 m
