SUMOSTANCE with HYPERLITE Technology 20' - ANSI Type IA - 300 lb Rated,fiberglass Extension Ladder

Dowload Specsheet
Download Media Package
Download Box Label
Download Notice Label

No manuals have been assigned to this product

  • Model Number: 15097 - Ladder Rack
  • Model Number: 19103 - Wall Pad Accessory for HYPERLITE and SUMOSTANCE with HYPERLITE Technology Ladders

SumoStance®



Working at a significant height can be nerve-wracking, but the Little Giant® SumoStance® ladder eliminates those concerns and makes using an extension ladder easy. Designed for stability and its light weight, the SumoStance will easily become your new go-to ladder for every task.

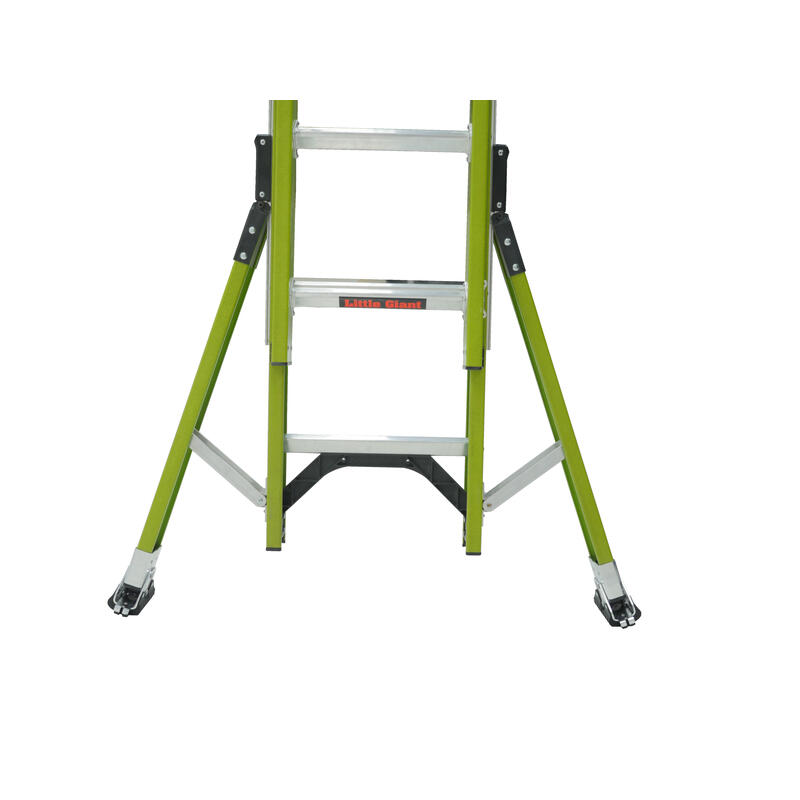

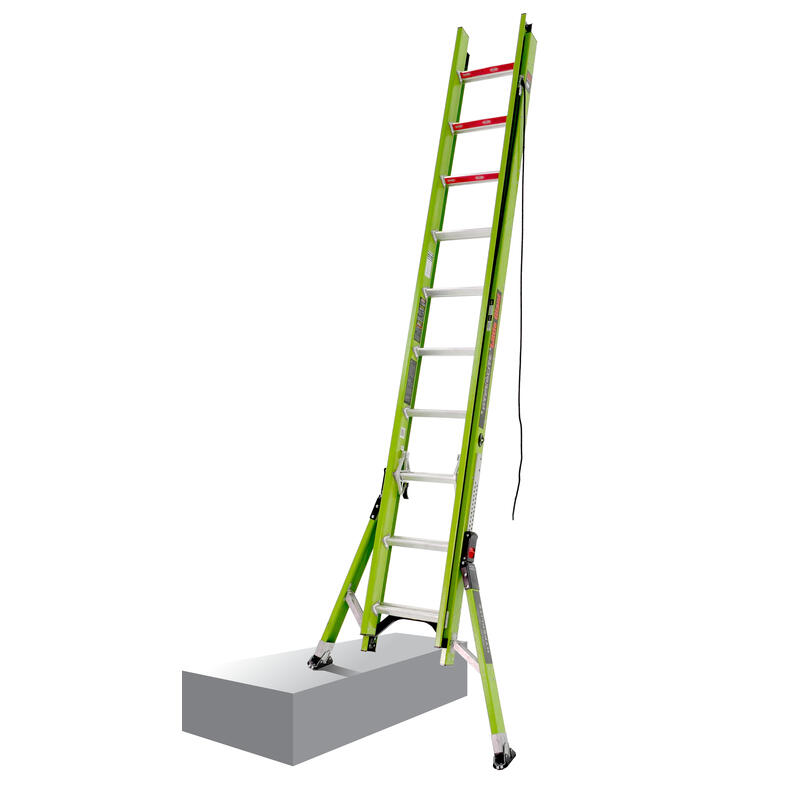

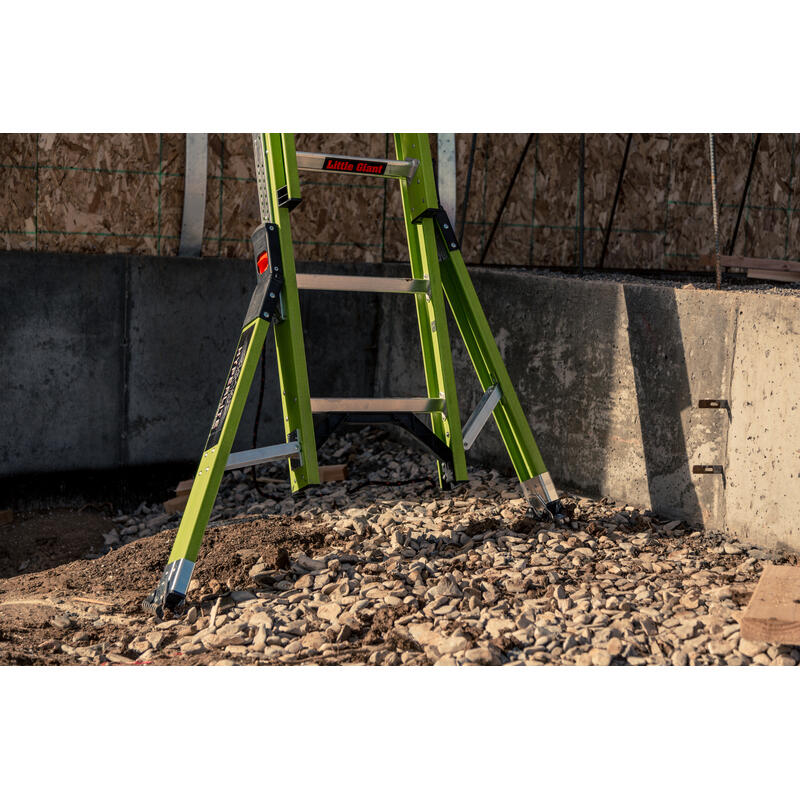

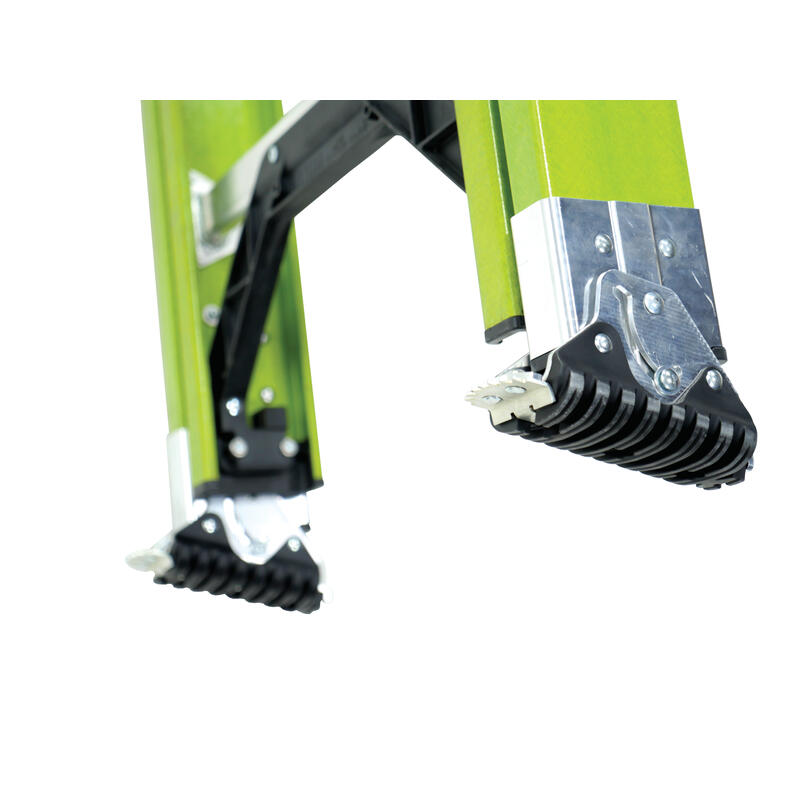

Wide-Flared Leg Levelers

The SumoStance utilizes wide-flared leg levelers to increase the stability of your ladder. The wide legs nearly double the ladder’s width, giving your ladder added side-tip stability. Work on any terrain, adjusting the ladder’s legs as needed, so you can confidently tackle any project.



Lightweight

Most extension ladders are heavy and difficult to carry, but the SumoStance uses lightweight, non-conductive fiberglass to help you reach the highest places with ease.



Comfortable Wide Rungs

Do you experience foot fatigue while standing on a ladder? If you find yourself constantly shifting your weight to rest your feet while at the top of the ladder, you are going to love the comfort that our wide ladder rungs provide.

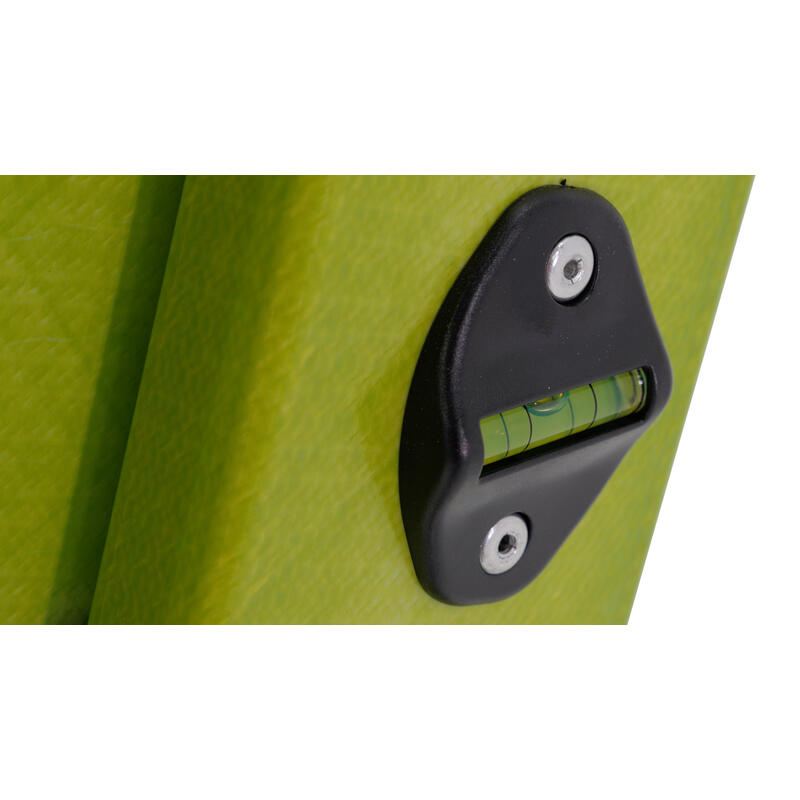

Bubble Levels

Little-Known Fact: having your ladder level off by just 1 inch at the bottom causes a 9-inch lean at the top of a 19-foot ladder. If safety is the goal, and it should be, the bubble levels on the SumoStance are a useful tool to ensure that your ladder is level before climbing.



Other Benefits

The benefits of this ladder are clear. In addition to the benefits listed above, the SumoStance increases safety with its patent-pending Hi-Viz Green color. This color of fiberglass is easy to see, which helps prevent accidents associated with walking or driving into a ladder that is in-use.



The SumoStance complies with all OSHA, ANSI A14 strength and testing standards. Rung/step spacing complies to OSHA and Int’l standards*. The ANSI IA ladders are rated to hold 300 lbs. on the 16’, 20’, 24’, 28’, 32’, 36’ and 40’ models. Our ANSI IAA ladders are rated to hold 375 lbs. on 16’, 20’, 24’, 28’ and 32’ models.



*OSHA 1910.23, OSHA 1926.10.53, CSA Z11, EN131-1, AS/NZS 1892.2.6.2

Specifications
Product Category SumoStance
Extension Lock Rung Locks
Country Assembled USA
Marketing Language English / Spanish
Duty Rating Type IA - Extra Heavy Duty
Feet Standard pick foot
Hinge Lock None
Material Fiberglass
Load Capacity 300 lbs.
Spreader System None
Ladder Type Extension
Warranty 1-Year
Size 20' 6.10 m
Inside Clear Width 1 ft. 1 in. 33 cm
Storage Height 10 ft. 9 in. 3.28 m
Storage Width at Base 1 ft. 9 in. 53 cm
Storage Depth 6 in. 15 cm
Inner Rung Depth 1 in. 3 cm
Outer Rung Depth 1 in. 4 cm
Double Rung Depth 3 in. 9 cm
Top Width 1 ft. 4 in. 42 cm
Product Weight 44 lbs. 19.95 kg
Features
Scaffolding Position No
Tip-N-Glide Wheels No
90° Position No
Shipping
Freight Class 300 - AL and/or FG Ladder
Ship Length 128" 10' 8"
Ship Width 21½" 1' 9½"
Ship Height 6" 6"
Ship Weight 46.9 lbs.
Ship Volume 9½6 CuFt.
HTS Code 3926.90.9930
Single / Extension
Extension Total Length of Sections 20 ft. 1 in. 6.13 m
Extension Max Reach 20 ft. 6.10 m
Single / Extension Highest Standing Level Max 13 ft. 6 in. 4.11 m
Single / Extension Highest Standing Level Min 6 ft. 9 in. 2.07 m
Single / Extension Max Working Length 17 ft. 8 in. 5.38 m
Single / Extension Min Working Length 10 ft. 9 in. 3.28 m
