15146-186
Conquest

CONQUEST, Model 22 - ANSI Type IA - 300 lb Rated, Fiberglass Articulated Extendable Ladder with V-Rung Will Be Discontinued On 11/09/2021 This Item is Replaced by 17122-001

Dowload Specsheet

Download Media Package

Download Box Label

Download Notice Label

Data Feed:

Manuals

No manuals have been assigned to this product

Base Sku: 15146 -- CONQUEST, Model 22 - ANSI Type IA - 300 lb Rated, Fiberglass Articulated Extendable Ladder Will Be Discontinued On 11/09/2021 This Item is Replaced by 17122-001

Compatible Accessories

Model Number: 10104 - Work Platform
Model Number: 11069 - ADJUSTABLE PLANK, 6-9-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 11813 - ADJUSTABLE PLANK, 8-13-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 11915 - ADJUSTABLE PLANK, 9-15-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15012 - Project Tray
Model Number: 15036 - PLANK, 6-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 15040-001 - Cargo Hold
Model Number: 15050-001 - FUEL TANK, vertical paint tray, Ladder Accessory
Model Number: 15087 - Accessory pack, Work Platform and Project Tray, Accessories for Articulated Extendable Ladders
Model Number: 15097 - Ladder Rack
Model Number: 15180 - PLANK, 8-Foot Model, 500 lb two person Rated, Aluminum Ladder Accessory
Model Number: 15210 - PLANK, 10-Foot Model, 500 lb Two Person Rated, Aluminum Ladder Accessory
Model Number: 56480 - Trestle Brackets - Dark Horse/Conquest

Conquest™

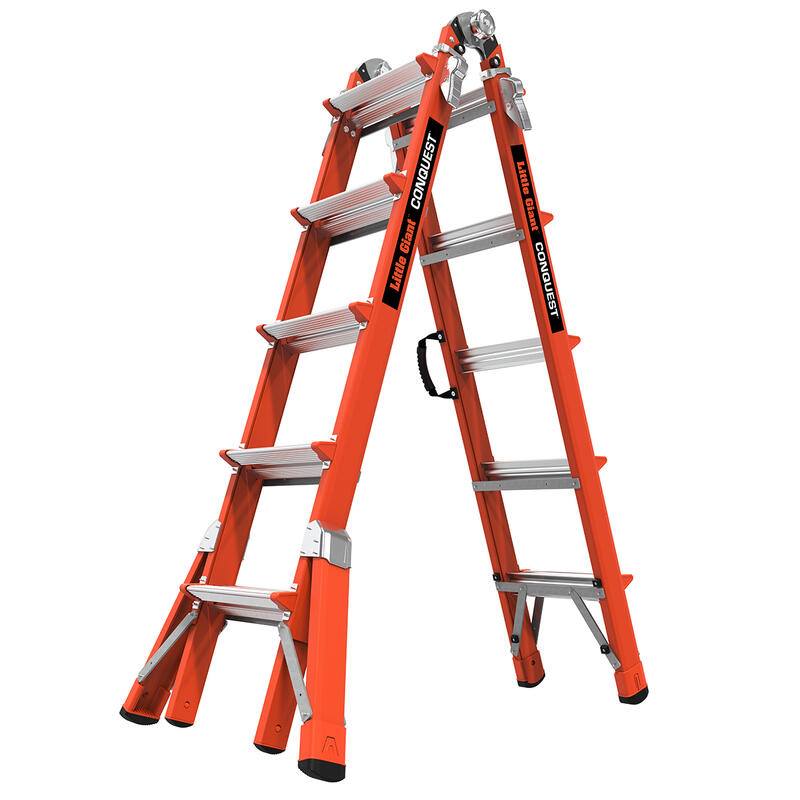

Access a variety of workspaces Little Giant® Conquest™ ladder. This versatile, multi-position ladder will help you get stuff done efficiently.

Multi-Position Ladder

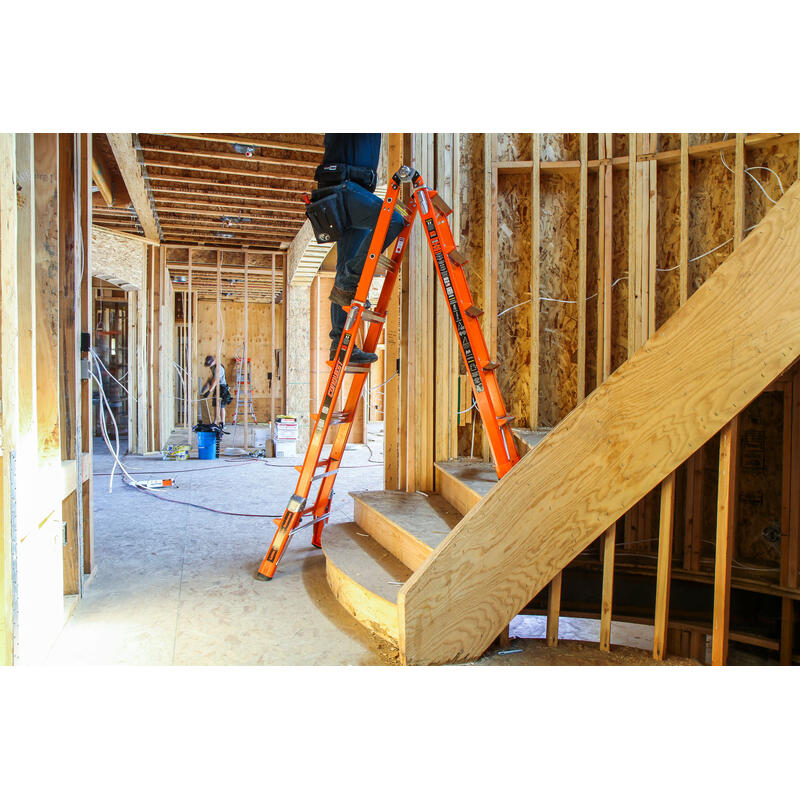

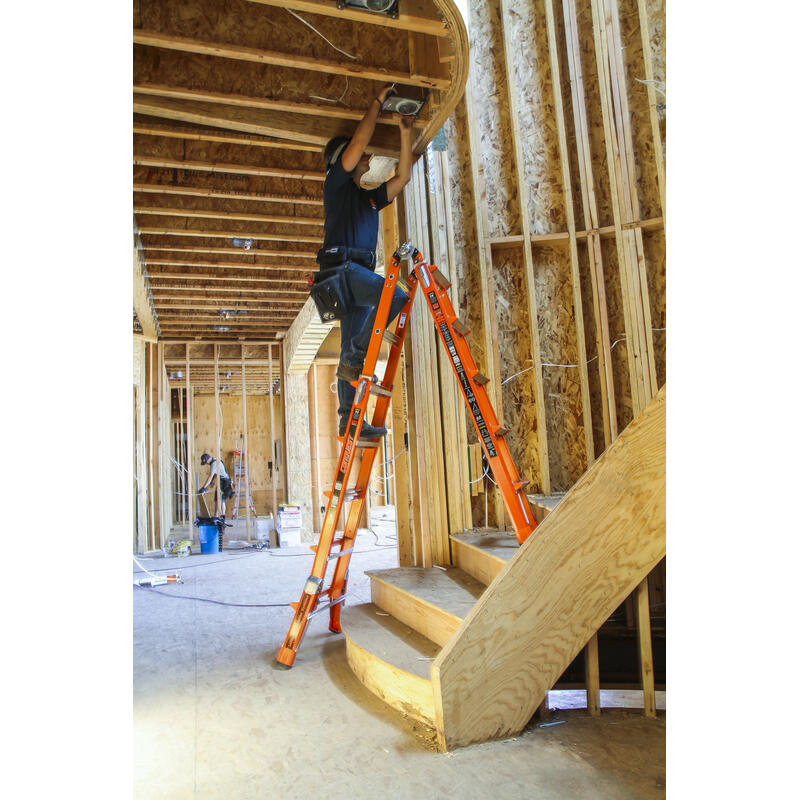

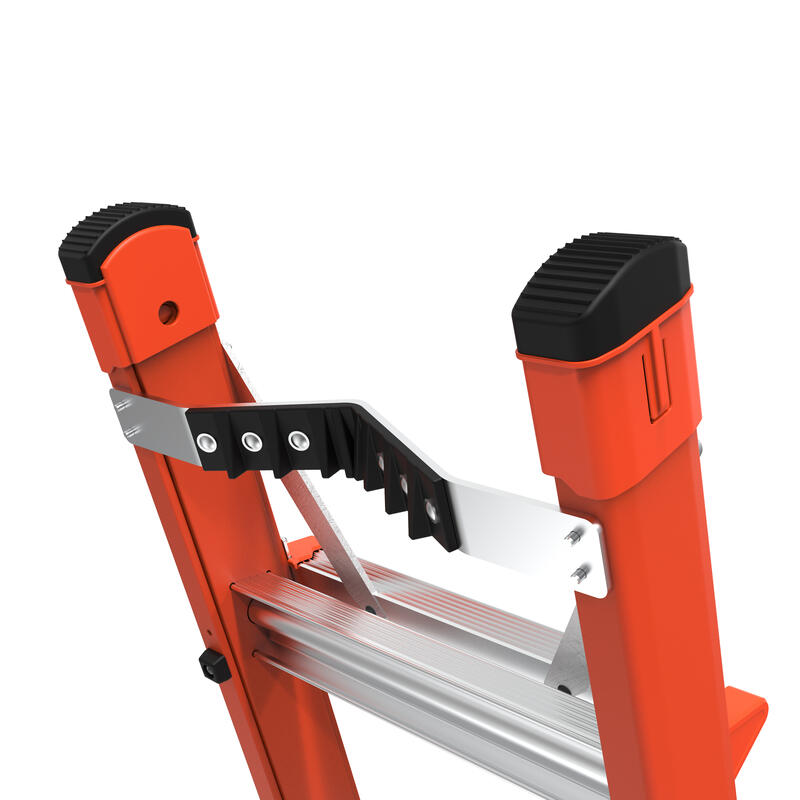

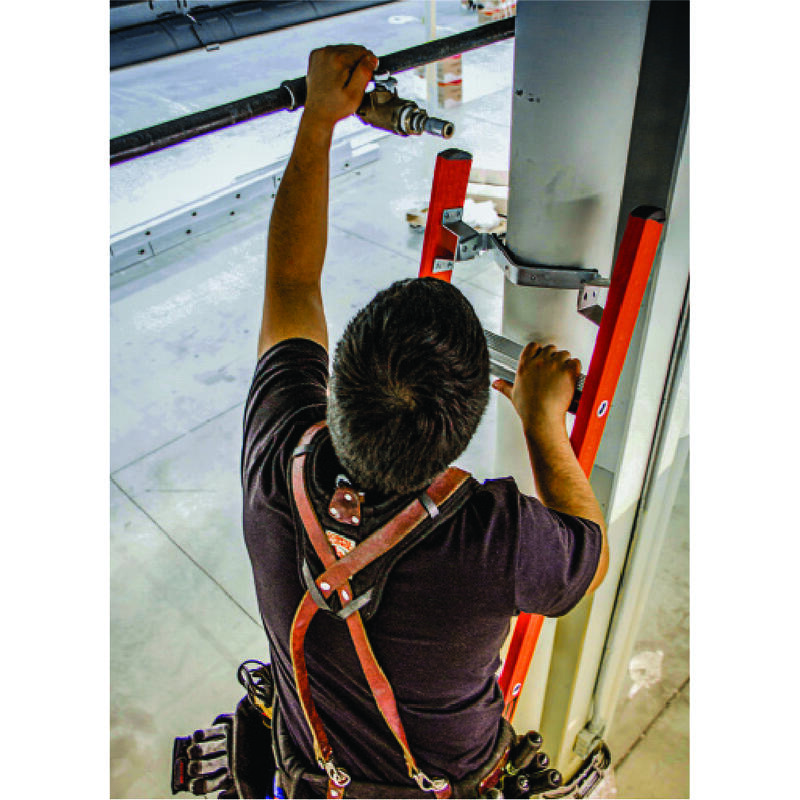

Set up your ladder in a variety of positions to find the right one for your task. The Conquest can be used in stepladder, extension, 90-degree and staircase configurations. With its wide-flared legs, you will feel secure while working, and with the narrow extension and optional V-bar, you can access attics and roofs.

Non-Conductive Fiberglass

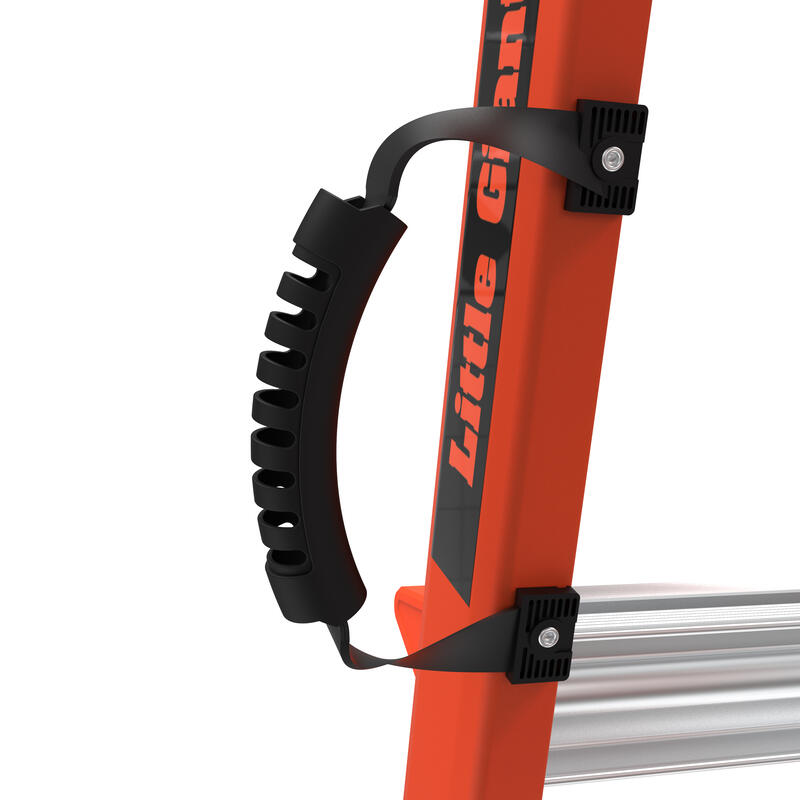

Made from durable, non-conductive fiberglass, the Conquest is suited for a variety of jobs. Our fiberglass is lightweight, yet dependable, and with the attached, weight-balanced carrying handle, transportation of the ladder is simple.

Specs

The Conquest meets or exceeds all OSHA and ANSI standards and is Type IA rated to hold 300 lbs. It is available in 17’ and 22’ sizes.

Specifications
Product Category	Conquest
Discontinuation Date	11/09/2021
Replacement Item	17122-001
Extension Lock	Cast Aluminum Rock Locks
Country Assembled	USA
Marketing Language	English / Spanish
Duty Rating	Type IA - Extra Heavy Duty
Feet	Standard non-marring (snap-on)
Hinge Lock	Cast Aluminum / Triple Locking Hinge
Material	Fiberglass
Load Capacity	300 lbs.
Spreader System	Hinge Lock
Ladder Type	Multi-Position
Warranty	1-Year
Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Inside Clear Width	1 ft.	32 cm
Storage Height	5 ft. 7 in.	1.70 m
Storage Width at Base	2 ft. 5 in.	74 cm
Storage Depth	10 in.	25 cm
Inner Rung Depth	1 in.	4 cm
Outer Rung Depth	1 in.	4 cm
Double Rung Depth	3 in.	10 cm
Top Width	1 ft. 5 in.	45 cm
Product Weight	49 lbs.	22.22 kg

Features
Scaffolding Position	Yes
Tip-N-Glide Wheels	No
90° Position	Yes

Shipping
Freight Class	250 - Ladders and/or Accessories
HTS Code	3926.90.9930

Step Ladder
Stepladder Size	5' 6" - 9' 6"	1.68 m - 2.90 m
Highest standing level Max	6 ft. 8 in.	2.03 m
Highest standing level Min	2 ft. 11 in.	89 cm
Maximum Footprint	6 ft. 7 in.	2.01 m
Minimum Footprint	4 ft.	1.22 m
Max Reach	13 ft. 2 in.	4.01 m

Single / Extension
Extension Total Length of Sections	21 ft. 2 in.	6.45 m
Extension Max Reach	22 ft.	6.71 m
Single / Extension Highest Standing Level Max	15 ft. 6 in.	4.72 m
Single / Extension Highest Standing Level Min	7 ft. 10 in.	2.39 m
Single / Extension Max Working Length	18 ft. 11 in.	5.77 m
Single / Extension Min Working Length	10 ft. 11 in.	3.33 m
